W11396033, W11307244, W10843830, W10619869, W10404050, PS11755921, AP6022472, 8182634, 8181700

Whirlpool: WFW6620HW0, WFW6620HC0, WFW7620HW0, WFW7620HC0, WFW8620HW0, WFW8620HC0, WFW9620HW0, WFW9620HC0, WFW5620HW0, WFW5620HC0

Maytag: MHW6630HW0, MHW6630HC0, MHW7630HW0, MHW7630HC0, MHW8630HW0, MHW8630HC0, MHW5630HW0, MHW5630HC0, MHWE301YW0, MHWE301YW1

Amana: NFW5800HW0, NFW5800HW1, NFW6800HW0, NFW6800HW1, NFW7800HW0, NFW7800HW1, NTW4516FW0, NTW4516FW1, NTW4516FW2, NTW4519JW0

Kenmore: 110.47789700, 110.47789701, 110.47789702, 110.48789700, 110.48789701, 110.48789702, 110.49789700, 110.49789701, 110.49789702, 110.46789700

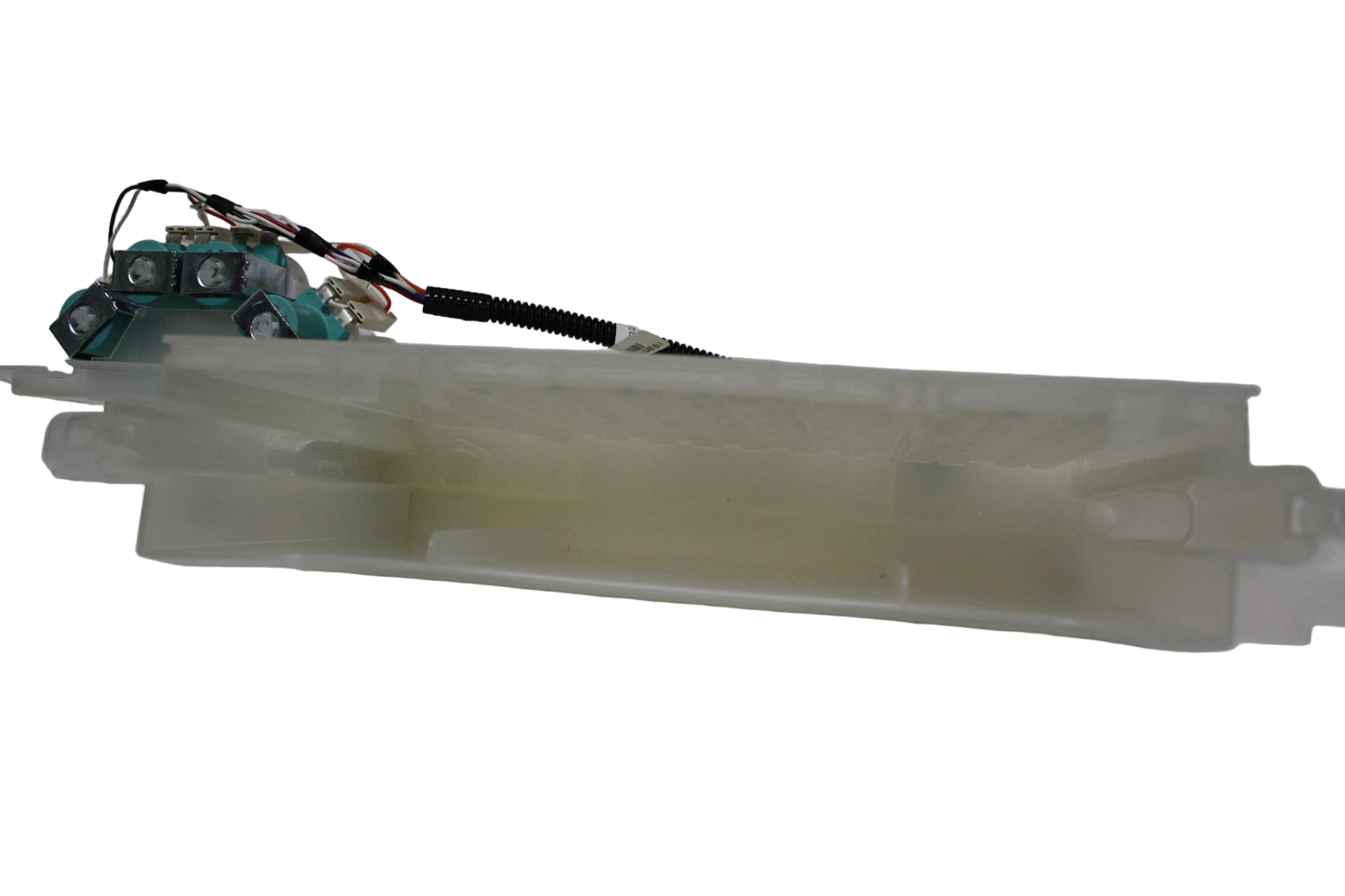

Note: This is a partial list. This dispenser housing is used in many Whirlpool-manufactured front-load and top-load washers built between 2015-2024. Verify your specific model number for compatibility before ordering. Dispenser housings are model-specific based on drawer configuration and mounting design.

Required Tools:

• Phillips screwdriver
• Flathead screwdriver
• 1/4" nut driver
• Needle-nose pliers
• Putty knife or trim removal tool
• Towels (to catch water)
• Small bucket or pan (to catch water)
• Work gloves
• Flashlight

Step-by-Step Installation:

1. Disconnect Power: Unplug the washer from the electrical outlet or turn off the circuit breaker. Never work on the washer with power connected.
2. Shut Off Water Supply: Turn off both hot and cold water supply valves behind the washer. Turn the valves clockwise until fully closed.
3. Remove Dispenser Drawer: Pull the dispenser drawer out as far as it will go. Press the release tab (typically located at the back center of the drawer) and pull the drawer completely out of the housing. Set the drawer aside.
4. Bail Out Water: The dispenser housing may contain residual water in the siphon tubes and channels. Place towels around the dispenser area to catch any water that drips out during removal.
5. Access Dispenser Housing: Depending on your washer model, you'll need to access the dispenser housing from inside the washer cabinet. For front-load models: remove the top panel by removing screws at the rear top corners and lifting the panel up and back. For top-load models: the housing is typically accessible from the top once the drawer is removed.
6. Locate Mounting Hardware: The dispenser housing is secured to the washer cabinet with screws or clips (typically 2-6 screws around the perimeter of the housing). Locate all mounting screws.
7. Disconnect Water Hoses: The dispenser housing has water inlet hoses connected from the water inlet valves. These are typically push-fit or clamp-style connections. Use pliers to release hose clamps (if present) and pull the hoses off the housing inlet ports. Have towels ready—water will drip out. Note which hose connects to which port (hot, cold, or both).
8. Take Reference Photos: Before disconnecting anything else, take clear photos of the dispenser housing showing all hose connections, wire harness positions (if any), and mounting orientation.
9. Disconnect Drain Hose (if applicable): Some dispenser housings have a drain hose that routes dispensed detergent/water to the wash tub. This is typically a larger diameter hose (1-2 inches) connected to the bottom of the housing. Release the hose clamp and pull the hose off the housing outlet. Have a bucket ready to catch water.
10. Remove Mounting Screws: Remove all screws or clips securing the dispenser housing to the washer cabinet. Keep these screws—you may need to reuse them if the new housing doesn't include them.
11. Remove Old Housing: Once all connections and mounting hardware are removed, carefully lift the old dispenser housing up and out of the washer cabinet. Maneuver it through the opening, tilting as needed to clear any obstructions. Residual water will drain out—have towels ready.
12. Inspect for Damage: Examine the old housing for visible damage: cracks, broken siphon tubes, clogged channels, mineral deposits, or mold growth. This helps confirm the diagnosis and identify the cause of failure.
13. Clean Mounting Area: Wipe down the washer cabinet mounting area where the housing sits. Remove any detergent residue, mineral deposits, mold, or debris. A clean mounting surface ensures proper sealing and prevents leaks.
14. Prepare New Housing: Remove the new dispenser housing from its packaging. Verify it matches the old housing in size, shape, inlet/outlet port configuration, and mounting hole positions. Inspect the new housing for any shipping damage.
15. Position New Housing: Carefully lower the new dispenser housing into position in the washer cabinet. Align the mounting holes with the cabinet mounting points. Ensure any alignment tabs or guides fit properly into their slots.
16. Install Mounting Screws: Insert and tighten the mounting screws to secure the housing to the washer cabinet. Tighten in a cross-pattern to ensure even seating. Tighten firmly but do not overtighten—plastic housings can crack under excessive pressure.
17. Reconnect Drain Hose (if applicable): Push the drain hose onto the outlet port at the bottom of the new housing. Secure with a hose clamp. Ensure the hose is fully seated and the clamp is positioned correctly.
18. Reconnect Water Inlet Hoses: Using your reference photos, reconnect the water inlet hoses to the correct ports on the new housing. For push-fit connections, push the hose firmly onto the port until it clicks and seats fully. For clamp-style connections, slide the hose onto the port and secure with a hose clamp. Ensure hot water connects to the hot inlet and cold water to the cold inlet (if separate).
19. Verify All Connections: Gently tug on each hose to ensure it's securely connected and won't pull off. Check that all hose clamps are properly positioned and tightened.
20. Reinstall Top Panel (if removed): If you removed the top panel, lower it back into position on the washer cabinet. Ensure it engages properly with the front clips. Secure with the rear mounting screws.
21. Reinstall Dispenser Drawer: Slide the dispenser drawer back into the new housing. Push it in until it clicks and seats fully. Pull the drawer out and push it back in several times to verify smooth operation.
22. Restore Water Supply: Turn on both hot and cold water supply valves by turning them counterclockwise until fully open.
23. Restore Power: Plug the washer back into the electrical outlet or turn on the circuit breaker.
24. Test for Leaks: Run a short RINSE cycle without clothes. Carefully watch the dispenser housing area for any water leaks during the fill and rinse phases. Check all hose connections, the housing body, and the drain hose outlet.
25. Test Dispenser Operation: Run a complete NORMAL wash cycle with detergent, bleach, and fabric softener in the appropriate compartments. Verify each product dispenses at the correct time during the cycle. Check that water flows through the housing properly and no water backs up or overflows from the drawer.
26. Full Load Test: Run a complete wash cycle with a normal load of laundry to verify the dispenser housing operates properly under full load conditions without leaks.

Clean before replacing—many "failed" housings just need cleaning. Dispenser housings rarely fail structurally unless cracked or broken. Most dispenser problems are caused by detergent buildup, mineral deposits, or mold clogging the siphon tubes and channels. Before ordering a $100+ replacement housing, remove the drawer and housing (if possible) and thoroughly clean all channels, tubes, and ports with hot water, vinegar, and a small brush. Soak severely clogged housings in a vinegar solution overnight. An estimated 60% of dispenser issues can be resolved with thorough cleaning, saving you from unnecessary replacement.

Inspect and clean the dispenser drawer too. If your dispenser housing failed or became clogged, the removable drawer is likely also clogged with detergent residue and needs cleaning. While you have the housing removed, thoroughly clean the drawer in hot soapy water, scrubbing all compartments, siphon caps, and channels. A clean drawer prevents future clogging and ensures proper dispensing with your new housing. Many people replace the housing but neglect the drawer, leading to repeat problems.

Use the correct detergent type and amount. Dispenser clogs and housing failures are often caused by using too much detergent, the wrong detergent type (regular detergent in HE washers), or powder detergent that doesn't dissolve completely. High-efficiency (HE) washers require HE detergent—regular detergent creates excessive suds that clog dispensers. Use only 1-2 tablespoons of HE detergent per load (follow bottle instructions). Excess detergent leaves residue that clogs siphon tubes, causes mold growth, and damages housings over time.

Check water inlet valve screens and pressure. If detergent isn't dispensing properly even with a new housing, the problem may be low water pressure or clogged inlet valve screens. The dispenser relies on adequate water flow to siphon detergent from the compartments. Remove the water inlet hoses and inspect the inlet valve screens for debris or mineral buildup. Clean or replace clogged screens. Also verify your home water pressure is at least 20 PSI—low pressure prevents proper dispensing regardless of housing condition.

Prevent future clogs with monthly maintenance. After installing the new housing, establish a monthly cleaning routine to prevent repeat failures. Once a month, remove the dispenser drawer and rinse it thoroughly under hot water. Run an empty CLEAN WASHER cycle with washer cleaner or vinegar to flush detergent residue from the housing channels. Leave the dispenser drawer slightly open between uses to allow air circulation and prevent mold growth. These simple habits extend housing life from 5 years to 10+ years.

Verify hose connections and clamp positions. Improperly connected or loose water inlet hoses are a common cause of dispenser leaks after housing replacement. Ensure each hose is pushed fully onto its port—you should feel or hear a click with push-fit connections. Position hose clamps 1/4 inch from the hose end, not right at the edge. Test connections by gently tugging on each hose—they should not pull off. A loose connection causes leaks that mimic a cracked housing and can damage your new housing through water intrusion.

Consider replacing inlet valves if housing failed due to leaks. If your old housing cracked or failed due to water leaks, the inlet valves may also be leaking or malfunctioning. Leaking inlet valves cause water to constantly drip into the dispenser housing, leading to overflow, mold growth, and housing damage. While you have the washer disassembled and housing accessible, inspect the inlet valves for leaks or mineral buildup. Replace failing inlet valves along with the housing to prevent repeat failures and water damage.
