GE Monogram Range Burners Not Igniting? Spark Module WS01F10534 — Fix It Fast

If your GE Monogram or Café gas range has burners that won't spark, click continuously without igniting, or only some burners ignite, the oven spark module is the most common cause. In most GE Monogram professional gas ranges, the spark module fails due to moisture intrusion, power surges, or component fatigue — causing it to lose the ability to send voltage to the igniter electrodes. When it fails, one or more burners won't spark at all, all burners spark simultaneously and won't stop, or the ignition system is completely dead. ⚡ Common failure point in GE Monogram CGU, ZDP, and ZGP professional gas ranges. Part WS01F10534 is the genuine OEM replacement spark module that restores proper ignition sequencing to all burners immediately.

❓ Is This the Right Part?

This is the correct fix if ALL of the following are true:

• ✔ The range has power — clock and controls are functioning normally
• ✔ The igniter electrodes and spark wires have been visually inspected and are undamaged
• ✔ The burner caps are seated correctly and the burner ports are clear of debris
• ✔ The gas supply is confirmed on and other gas appliances work normally
• ✔ ONLY problem is one or more burners not sparking or sparking continuously

🔧 Common Symptoms

• One or more burners won't spark when the knob is turned to ignite
• All burners spark simultaneously and continuously even when knobs are off
• Clicking sound from ignition system but no spark visible at the burner
• Intermittent ignition — burner sparks sometimes but not reliably
• Oven igniter won't activate even though the bake/broil function is selected
• Range was exposed to a boilover or moisture and ignition stopped working

✔ If these symptoms match, this is the most likely failed component in the ignition system.

✔ In most cases, replacing the spark module restores normal ignition to all burners immediately.

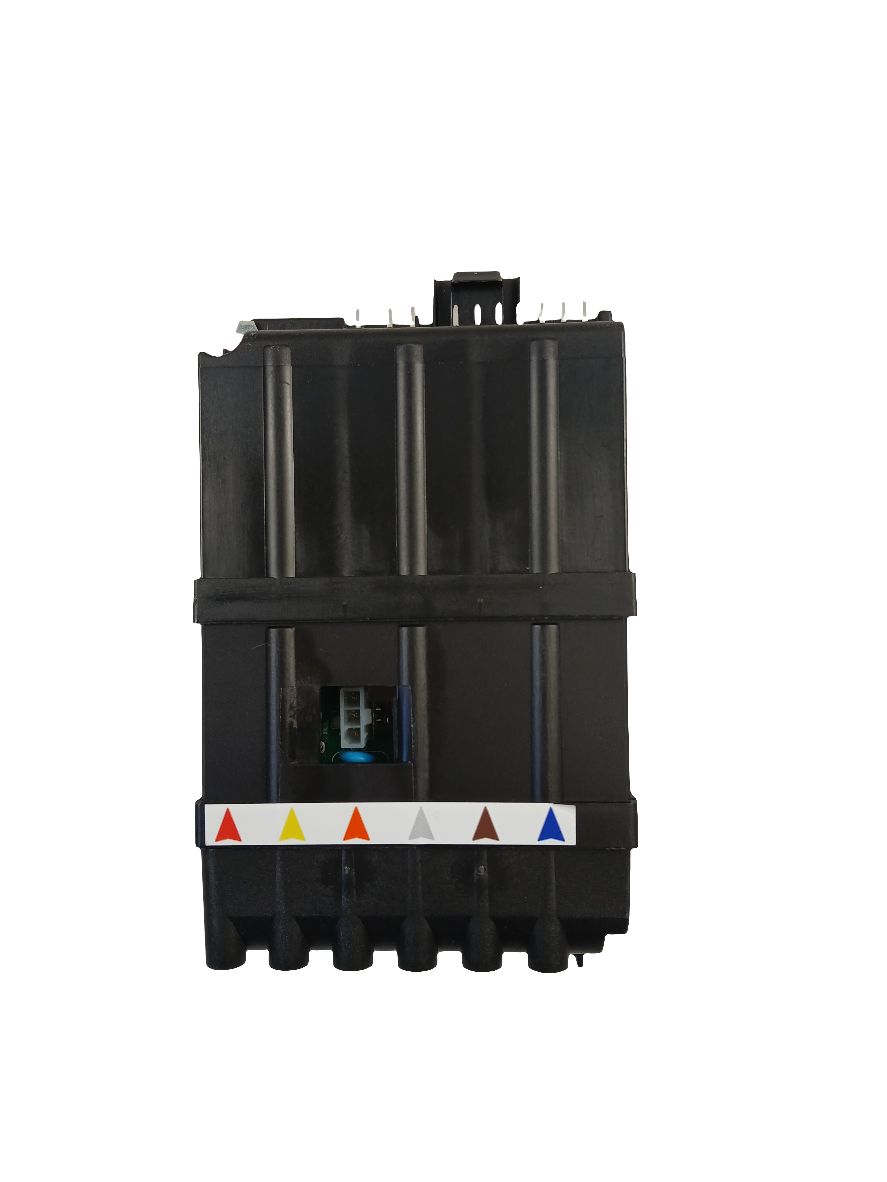

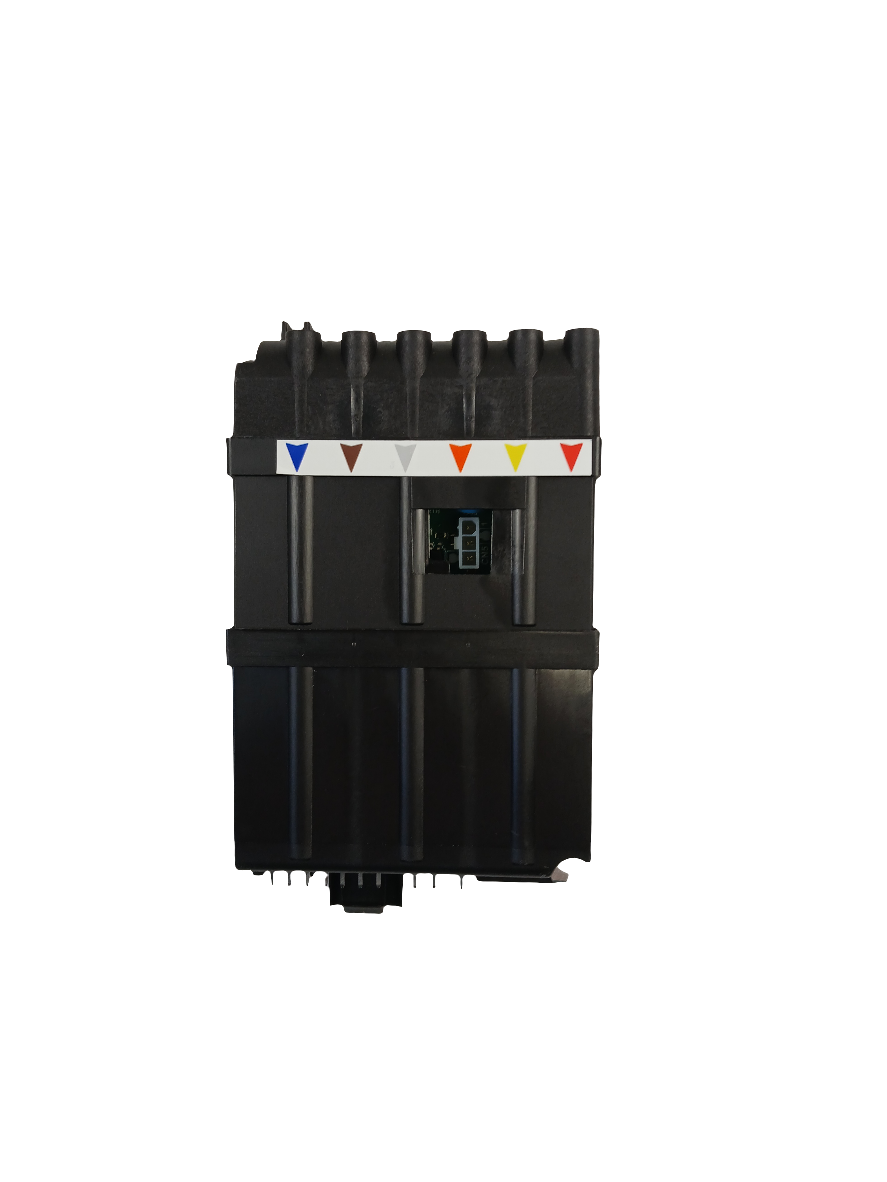

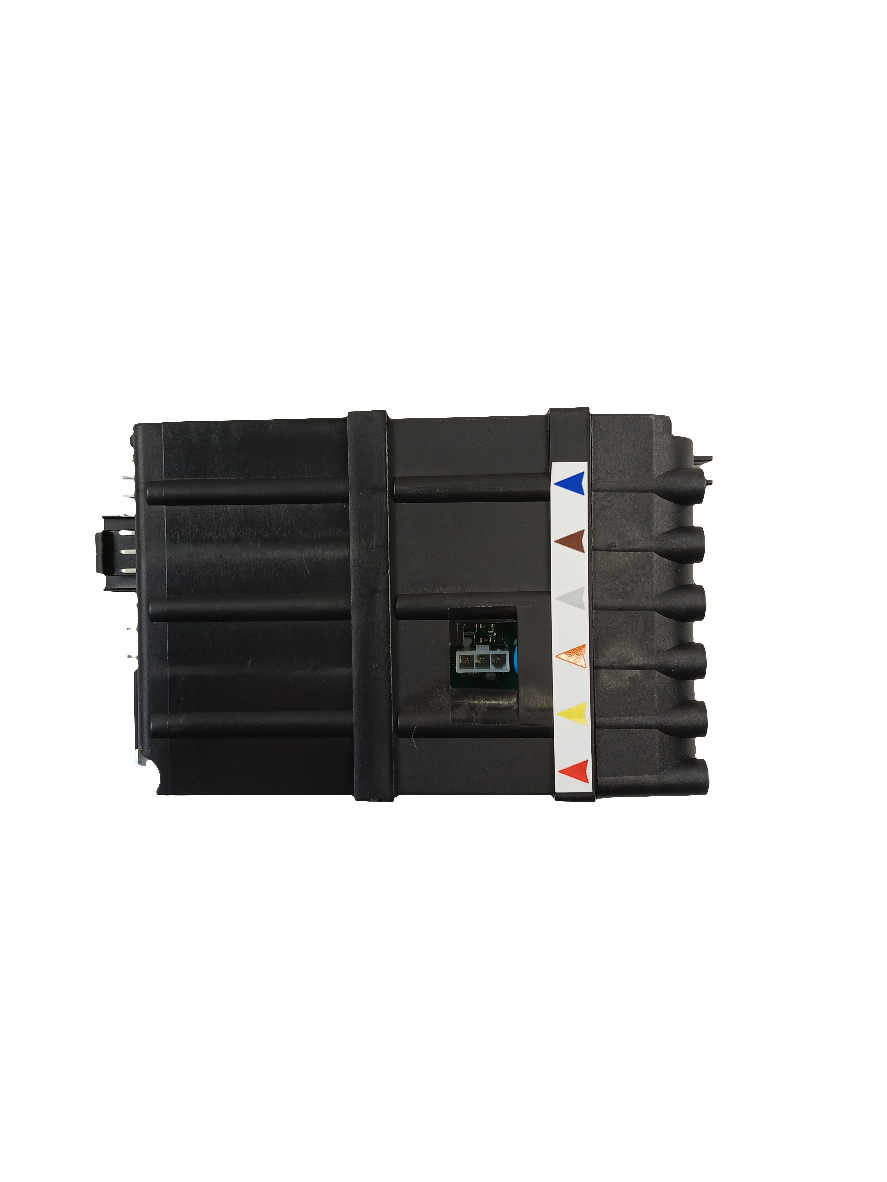

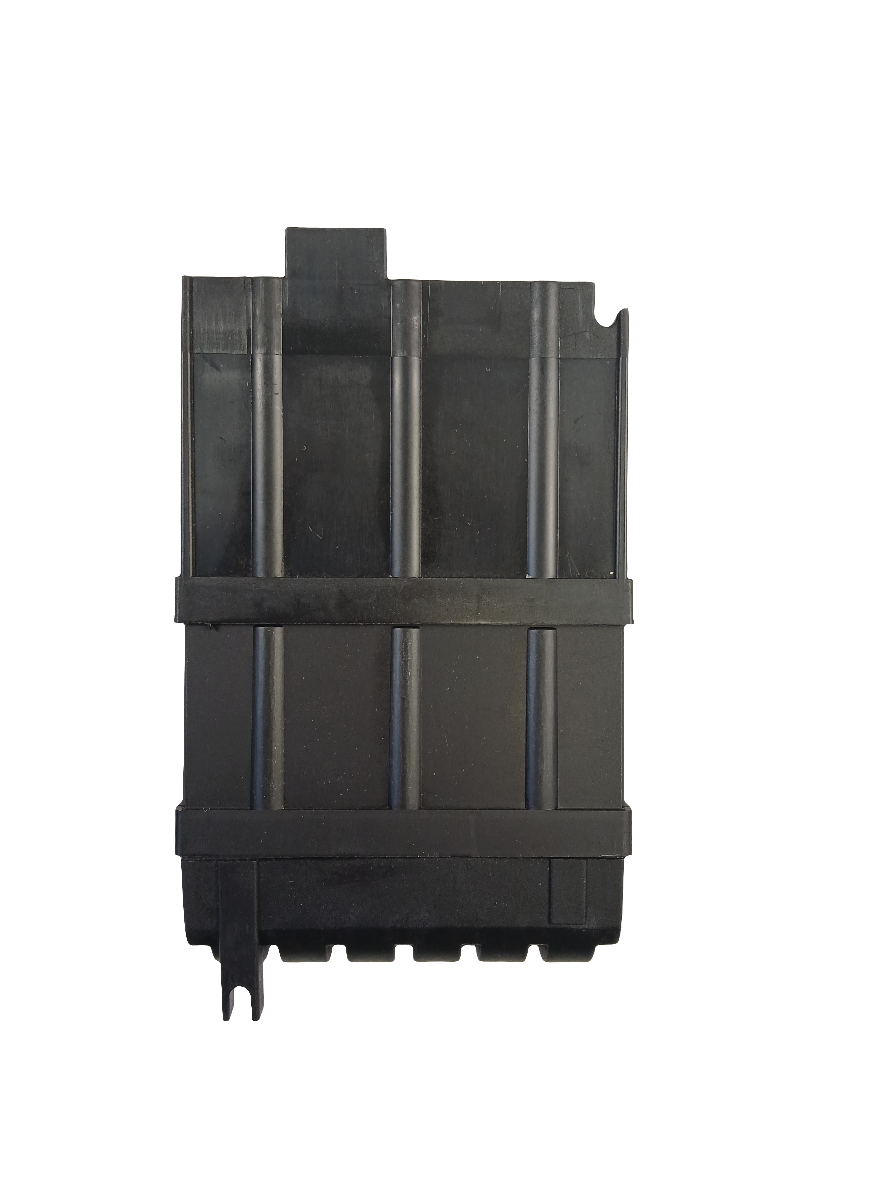

📦 Part Details

• Part Number: WS01F10534
• Type: OEM Gas Range Oven Spark Module (Ignition Module)
• Replaces: 164D9720P003 — no modification required
• Brands: GE Monogram, Café, GE Profile (select models)

⚙️ Installation Notes

Skill Level: MODERATE — 30–45 minutes. Basic tools required. Disconnect power at the breaker before servicing. The spark module is typically located under the cooktop or behind the control panel — access varies by model. Disconnect the wiring harness connectors from the old module, noting or photographing each wire position. Install WS01F10534, reconnect all harness connectors, restore power, and test each burner knob to confirm proper single-burner ignition before closing up.
