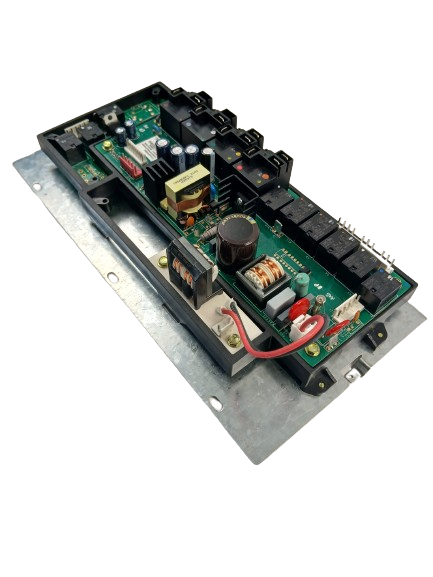

GE Range Oven Electronic Relay Board Assembly, Right Hand WS01L01956, Replaces WB19K10061, 164D8125G001

Genuine OEM GE right-hand electronic relay-board assembly for a range oven.

Is This the Right Part?

✅ Cross Reference Information

Common Symptoms

• Oven not reaching or maintaining set temperature
• Burners not igniting or cycling off unexpectedly
• Uneven heating across oven cavity
• Error codes related to relay or control board faults

Check Before Replacing

• Verify the oven temperature sensor (RTD probe) is reading correctly — a faulty sensor mimics relay board failure
• Inspect wiring harness connectors on the relay board for burn marks, corrosion, or loose pins
• Check for blown fuses or tripped breakers on the range circuit
• Confirm the igniter or bake/broil element is not the root cause of the symptom

Part Details

Verified Compatible Models

C2Y486P2M1S1, C2Y486SDL1SS, ZDP304NP6SS, ZDP304NP7SS, ZDP364NDP1SS, ZDP364NDP6SS, ZDP366NP5SS, ZDP484NGP5SS, ZDP484NGP8SS, ZDP486NDP1SS, ZDP486NRP6SS, ZET2PH1SS, C2Y366P2M1S1, C2Y366P3M1D1, C2Y366P4M1W2, ZDP364LDP2SS, ZDP364LDP4SS, ZDP364LDP5SS, ZDP364LDP6SS, ZDP364LDP7SS, ZDP364LRP1SS, ZDP364LRP3SS, ZDP364LRP4SS, ZDP364LRP6SS, ZDP364NDN1SS, ZDP364NDP2SS, ZDP364NDP3SS, ZDP364NDP4SS, ZDP364NDP5SS, ZDP364NDP7SS, ZDP364NDP8SS, ZDP364NRN1SS, ZDP364NRP2SS, ZDP364NRP3SS, ZDP364NRP4SS, ZDP364NRP5SS, ZDP364NRP7SS, ZDP366NN1SS, ZDP366NP2SS, ZDP484LGP1SS, ZDP484LGP2SS, ZDP484LGP3SS, ZDP484LGP4SS, ZDP484LGP5SS, ZDP484LGP6SS, ZDP484LGP7SS, ZDP484NGN1SS, ZDP484NGP2SS, ZDP484NGP3SS, ZDP484NGP4SS, ZDP484NGP6SS, ZDP484NGP7SS, ZDP486LDP2SS, ZDP486LDP3SS, ZDP486LDP4SS, ZDP486LDP5SS, ZDP486LDP6SS, ZDP486LDP7SS, ZDP486LRP1SS, ZDP486LRP3SS, ZDP486LRP4SS, ZDP486LRP5SS, ZDP486LRP6SS, ZDP486NDP2SS, ZDP486NDP4SS, ZDP486NDP5SS, ZDP486NDP6SS, ZDP486NDP7SS, ZDP486NDP8SS, ZDP486NRP2SS, ZDP486NRP3SS, ZDP486NRP4SS, ZDP486NRP5SS, ZDP486NRP7SS

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
