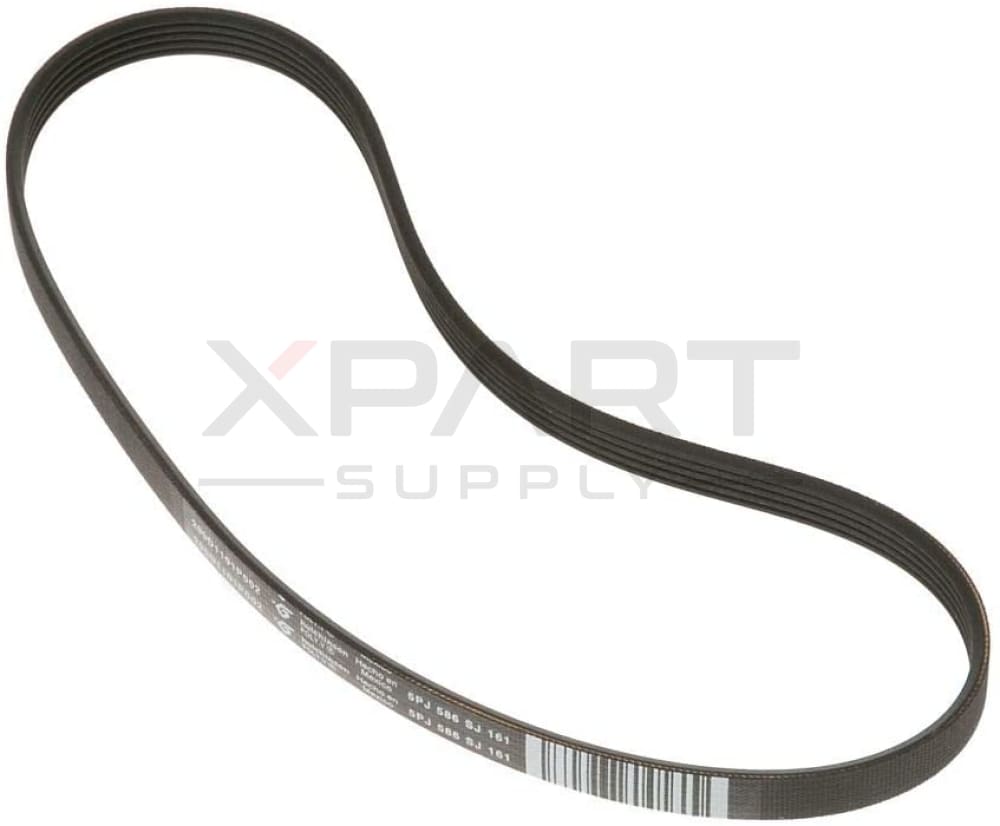

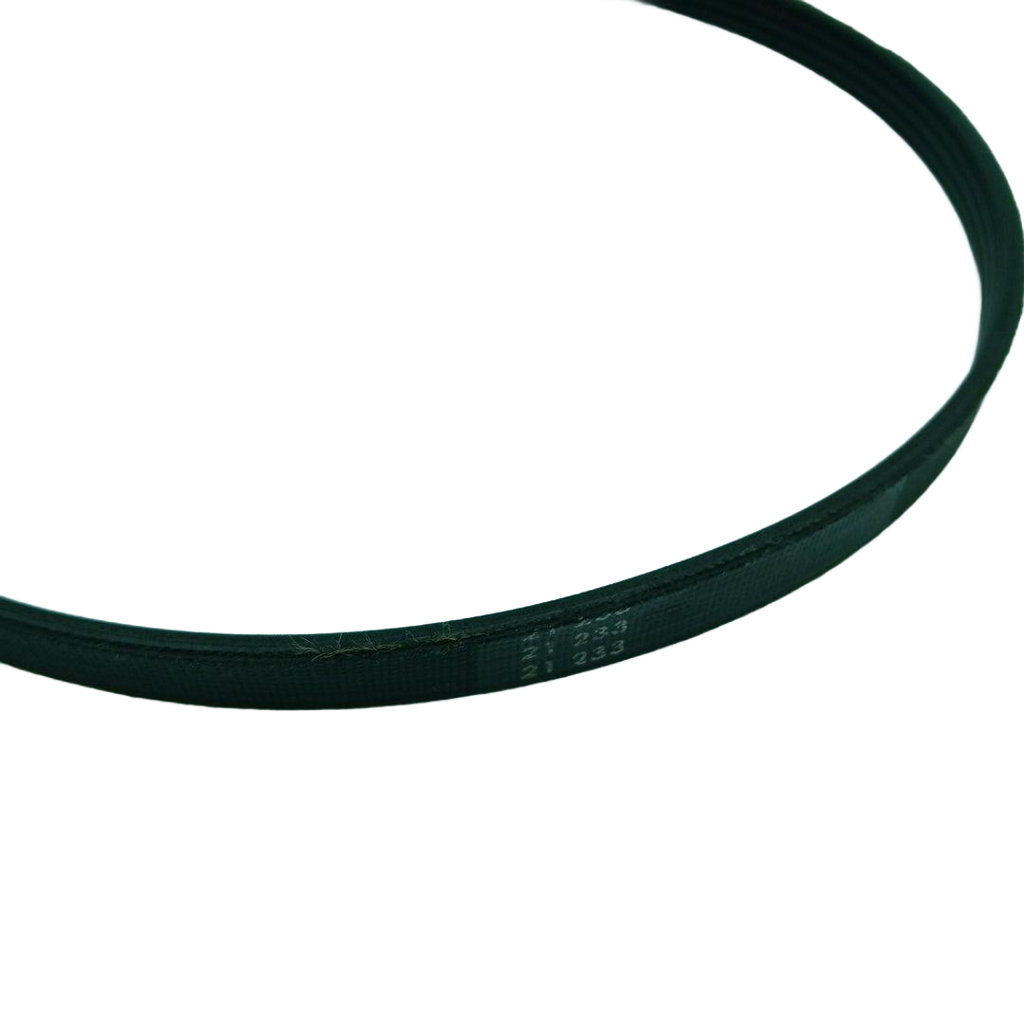

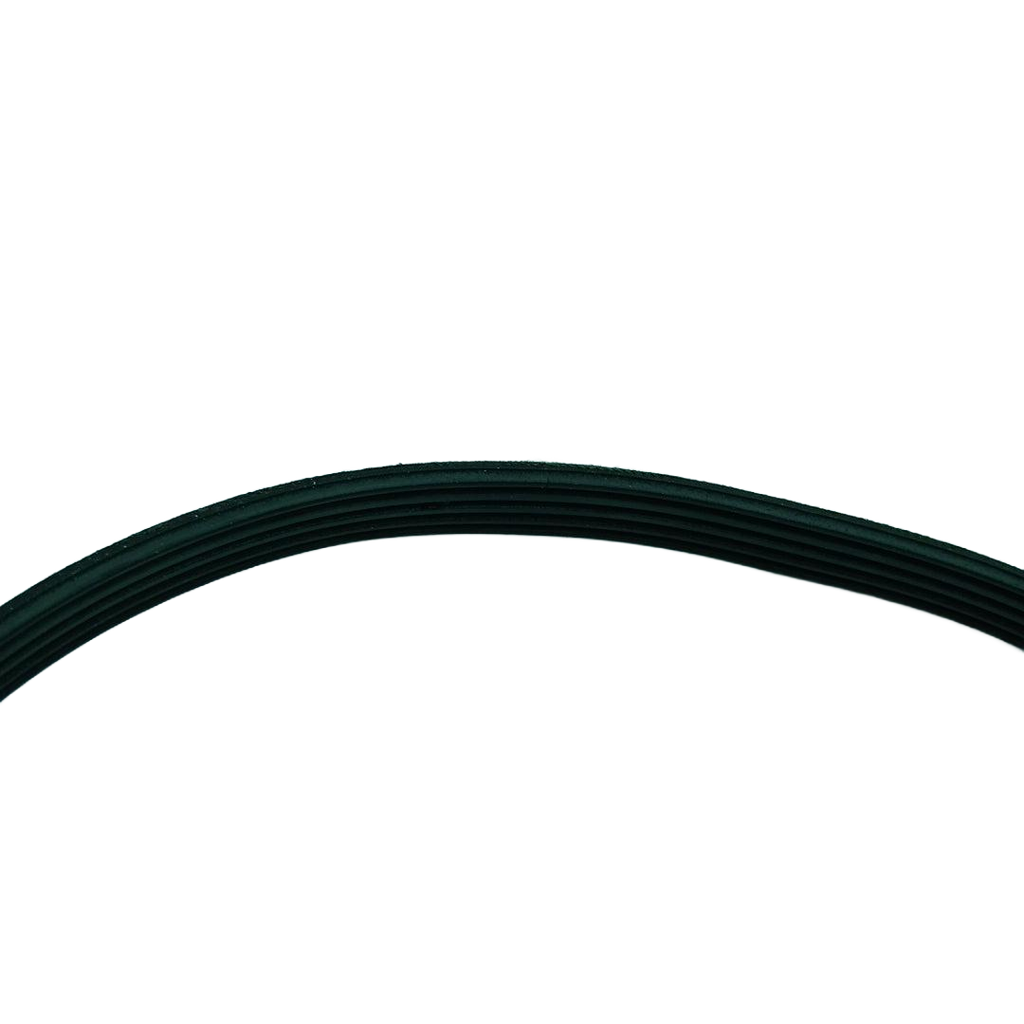

Drive Belt, Washer Belt, Poly-V Belt, Multi-Rib Belt, Serpentine Belt, Motor Belt

WH01X24180, WG04L05385, 5PJ587SJ161, 5PJ581S161, AP6024314, 4455970, PS11736832, 290D1101P002, 1155395, AH12074047, EA12074047, 22045, 253C1275P001, 5PJ587SJ161, 22045, IA711, 5PJ587SJ161, WH01X24180, 5PJ581S161 290D1101P005 290D1101P002

GE, General Electric, Hotpoint, RCA, Haier, Monogram, Café, Kenmore, Sears

GTW220BMK0WW, GTW220BMK1WW, GTW220BMM0WW, GTW220BMM1WW, GTW223BMR0WW, GTW302BMP0WW, GTW302BMP1WW, GTW330BMK0WW, GTW330BMK1WW, GTW330BMM0WW, GTW330BMM1WW, GTW331BMR0WS, GTW451BMR0WS, GTW460BMK0WW, GTW460BMK1WW, GTW460BMM0WW, GTW460BMM1WW, GTW465BMK1WS, GTW465BMM0WS, GTW465BMM1WS, GTW470BMM0DG, GTW470BMM1DG, GTW485BMK0WS, GTW485BMK1WS, GTW485BMM0WS, GTW490BMR0WS, GTW495DMN0WS, GTW495DMN1WS, GTW550BMR0WS, GTW560BMM0WW, GTW560BMM1WW, GTW575BMM0WS, GTW575BMM1WS, GTW580BMR0WS, GTW680BMK0DG, GTW680BMK0WS, GTW680BMM0DG, GTW680BMM0WS, GTW680BMM1DG, GTW680BMM1WS, GTW680BMR0DG, GTW680BMR0WS, GTW685BMR0WS, HTW200BMK0WW, HTW200BMM0WW, LEA79115CBAB00, LEA79115CBAB01, LEA79115CBAB02, LEA79115CBAB03, LGA71215CBAB01, LGA77115CBAB00, LGA77115CBAB01, LGA77115CBAB02, LGA79113CBAB00, LGA79113CBAB01, LGA79113CBDB00, LGA79113CBDB01, LGH72201WBAB00, LGH72201WBAB01, LGH73201WBAB00, LIA70213CBAB00, LIA70213CBAB01, LIA71214CBAB00, LIA71214CBAB01, LIH74201WDAB00, LMA70213CBAB00, LMA70213CBAB01, LMA70213CBAB02, LMA70213VBAB00, LMA70213VBAB01, LMA70213VBAB02, LMA70214VBAB00, LMA70214VBAB01, LMA70214VBAB02, LMA70214VBAB03, LMA70215VBAB00, LMA70215VBAB01, LMA70215VBAB02, LMA70215WBAB00, LMA71214VBAB00, LMA71214VBAB01, LMA71214VBAB02, LMA71214VBAB03, LMA71215VBAB00, LMA71215VBAB01, LMA71215VBAB02, LMA71215WBAB00, LMA71215WDAB00, LMA71215WGAB00, LMA71215WGAB01, LMA72215CBAB00, LMA72215CBAB01, LMA72215CBAB02, LMA72215WBAB00, LMA74215WBAB00, LMA74215WBAB01, LMA74215WBAB02, LMA74215WDAB00, LMA78115VBAB00, LMA78115VBAB01, LMA78115VBAB02, LMA78115VBAB03, LMA78115VBAB04, LMA78115VGAB00, LMA78115VGAB01, LMA78115VGAB02, LMA79115CBDK00, LMA79115CBDK01, LMA79115CBDK02, LMA79115CBDK03, LMA79115CBDK10, LMA79115CBEK00, LMA79115CBEK02, LMA79115CBEK03, LMA79115CBEK10, LMA79115CBEK11, LMA79115VBAB00, LMA79115VBAB01, LMA79115VBAB02, LMC70201WGAB00, LMC70201WGAB01, LMC72201WGAB00, LMC72201WGAB01, LMC72201WGAB02, LMC72205WGAB00, LMC72205WGAB01, LMC74201WDAB00, LMC74201WDAB01, LMH70201WBAB00, LMH70201WBAB0, LMH70201WBAB0, LMH70201WBAB0, LMH70201WBAB0, LMH70201WGAB00, LMH70201WGAB01, LMH70201WGAB02, LMH70201WGDK00, LMH70201WGDK01, LMH70201WGDK02, LMH70201WGEB00, LMH70203SBDB00, LMH70203SBEB00, LMH70203WBAB00, LMH70203WBAB01, LMH70203WBAB02, LMH70203WBAB03, LMH70203WBAB04, LMH70203WDAB00, LMH70203WDAB01, LMH70203WDAB02, LMH70203WDAB10, LMH70203WGAB00, LMH70203WGAB01, LMH70203WGAB02, LMH70203WGAB03, LMH72201WBAB00, LMH72201WBAB02, LMH72201WBAB03, LMH72201WBAB04, LMH72201WGAB00, LMH72201WGAB01, LMH72201WGAB02, LMH72201WGAB03, LMH72205SBAB00, LMH72205SBAB01, LMH72205SBAB02, LMH72205SBAB03, LMH72205SBAB04, LMH72205SBAB05, LMH72205WBAB00, LMH72205WBAB01, LMH72205WBAB02, LMH72205WBAB03, LMH72205WBAB04, LMH72205WBAB05, LMH72205WDAB00, LMH72205WDAB01, LMH72205WDAB02, LMH72205WDAB03, LMH72205WDAB04, LMH72205WGAB00, LMH72205WGAB01, LMH72205WGAB02, LMH72205WGAB03, LMH74201WDAB00, LMH74201WDAB01, LMH74201WDAB02, LMH74201WDAB03, LMH74201WDAB04, LMH78103SBAB00, LMH78103SBAB01, LMH78103SBAB02, LMH78103SBAB03, LMH78103SBAB04, LMH78103SBDK00, LMH78103SBDK01, LMH78103SBDK02, LMH79104SBAB00, LMH79104SBAB01, LMH79104SBAB02, LMH79104SBAB03, LMH79104SBAB04, LMH79104SBAB05, LMH79104WBAB00, LMH79104WBAB01, LMH79104WBAB02, LMH79104WBAB03, LMH79104WBAB04, LMH79104WRAB00, LMH79104WRAB01, LMH79104WRAB02, LMP74201WDAB00, MTW200BMK0WW, MTW200BMM0WW, MTW200BMM1WW, MTW201BMR0WW, WEA79115CBAB00, WEA79115CBAB01, WEA79115CBAB02, WEA79115CBAB03, WMA71214CBDB00, WMA71214CBDB01, WMA71214CBDB02, WMA71214CBEB00, WMA71214CBEB01, WMA71214CBEB02, WMA72215CDDB00, WMA72215CDEB00, WMA72215CGDB00, WMA72215CGDB01, WMA72215CGEB00, WMA72215CGEB01, WMH70201WBAB00, WMH70201WBAB01, WMH70201WBAB02, WMH74201WDAB00, WMH74201WDAB01, WMH79104SBAB00, WMH79104SBAB01, WMH79104SBAB02, WMH79104SBAB03, WMH79104WBAB00, WMH79104WBAB01, WMH79104WBAB02, WMH79104WBAB03, GTW460AMJ0WW, GTW460AMJ2WW, GTW460ASJ0WW, GTW460ASJ2WW, GTW465ASN0WW, GTW485ASJ0WS, GTW485ASJ0WW, GTW485ASJ1WS, GTW485ASJ2WS, GTW485ASJ3WS, GTW485ASJ4WS, GTW485ASJ5WS, GTW490ACJ0WS, GTW490ACJ0WW, GTW490ACJ1WS, GTW490ACJ1WW, GTW490ACJ2WS, GTW490ACJ2WW, GTW490ACJ3WS, GTW490ACJ3WW, GTW490ACJ4WS, GTW490ACJ4WW, GTW490ACJ5WS, GTW490ACJ5WW, GTW500ASN0WS, GTW525ACP0WB, GTW680BPL0DG, GTW680BPL1DG, GTW680BPL2DG, GTW680BSJ0WS, GTW680BSJ1WS, GTW680BSJ2WS, GTW680BSJ3WS, GTW680BSJ4WS, GTW680BSJ5WS, GTW680BSJ6WS, GTW680BSJ7WS, GTW685BPL0DG, GTW685BPL1DG, GTW685BSL0WS, GTW685BSL1WS, GTW750CPL0DG, GTW750CPL1DG, GTW750CSL0DG, GTW750CSL0WS, GTW750CSL1WS, GTW755CPM0DG, GTW755CPM1DG, GTW755CSM0WS, GTW755CSM1WS, YTW4514PN0DG

1. Turn off power to the washer at the circuit breaker to ensure complete power disconnection.
2. Unplug the washer from the wall outlet for additional safety.
3. Verify power is off by attempting to start the washer. The washer should not respond.
4. Turn off the water supply to the washer at the hot and cold water shutoff valves.
5. Move the washer away from the wall to provide access to the back panel and motor area.
6. Take multiple photos of the old drive belt routing and position before removal. Document from multiple angles showing how the belt wraps around the motor pulley, drive pulley, and idler pulley. This is absolutely critical for proper reassembly.
7. Remove the washer cabinet by locating and removing the screws securing the back panel (typically 8-12 screws around the perimeter).
8. Carefully remove the back panel to expose the motor, pulleys, and drive belt area.
9. Locate the drive belt wrapped around the motor pulley (bottom), drive pulley (top), and idler pulley (if equipped).
10. Inspect the old drive belt for visible damage such as cracks, fraying, glazing, or stretching. This confirms the diagnosis.
11. Take additional photos of the belt routing from multiple angles before removal. Pay special attention to which side of the belt (ribbed or smooth) faces which pulley.
12. Release tension on the drive belt by pulling the idler pulley away from the belt (if equipped) or by manually stretching the belt off one pulley.
13. Remove the old drive belt by slipping it off the motor pulley first, then the drive pulley, and finally the idler pulley (if equipped).
14. Place the old drive belt on a clean work surface with adequate space for comparison with the new belt.
15. Inspect all pulleys for wear, damage, or debris. Clean the pulley grooves if necessary using a dry cloth or soft brush. Worn pulley grooves can cause premature belt failure.
16. Verify the motor pulley and drive pulley rotate freely by spinning them by hand. They should rotate smoothly without grinding or resistance.
17. Unpack the new WW01F01756 drive belt from its packaging. Handle carefully to avoid stretching or damaging the belt.
18. Verify the belt specifications match the old belt: approximately 23 inches circumference, 5 ribs, 4 grooves, poly-V design.
19. Compare the new belt to the old one to verify the length, width, rib pattern, and overall appearance match. Ensure you have the correct replacement part.
20. Inspect the new drive belt for any damage or defects before installation. The belt should be intact with no cracks, fraying, or damage.
21. Begin belt installation by looping the new belt around the motor pulley first (bottom pulley). Ensure the ribbed side of the belt faces inward and seats properly in the pulley grooves.
22. Route the belt up and around the drive pulley (top pulley), following your photo reference. Ensure the ribbed side faces inward and seats properly in the pulley grooves.
23. If your washer has an idler pulley, route the belt around the idler pulley last, following your photo reference.
24. Verify the belt is properly seated in all pulley grooves. The ribs should align with the grooves—the belt should not sit on top of the pulley or ride up on the edges.
25. Pull the belt tight and verify proper tension. The belt should have approximately 1/2 inch of deflection when pressed at the midpoint between pulleys.
26. Rotate the motor pulley by hand several full rotations to verify the belt tracks properly and doesn't slip off the pulleys.
27. Verify the belt routing matches your photo reference exactly. Incorrect routing can cause the belt to slip or fail prematurely.
28. Check belt tension again after rotating the pulleys. Adjust if necessary by repositioning the belt or adjusting the idler pulley (if equipped).
29. Verify all pulleys rotate smoothly with the new belt installed. There should be no binding, grinding, or unusual resistance.
30. Reinstall the washer back panel by positioning it over the washer frame and reinstalling all screws. Tighten evenly around the perimeter.
31. Restore power at the circuit breaker and plug in the washer.
32. Turn on the water supply at the hot and cold water shutoff valves.
33. Test the new drive belt by starting a wash cycle (empty washer, no clothes).
34. Verify the washer agitates normally during the wash cycle without unusual noises or vibration.
35. Verify the washer spins normally during the spin cycle without squealing, grinding, or slipping.
36. Listen for unusual noises such as squealing, grinding, or rattling. The washer should operate quietly with only normal motor and water sounds.
37. Verify the drum reaches full spin speed without hesitation or slipping. The belt should transfer power efficiently.
38. Stop the washer mid-cycle and verify the drum stops promptly. Delayed stopping can indicate belt slippage.
39. Move the washer back into position against the wall.
40. Run 2-3 complete wash cycles to verify the belt seats properly and maintains tension during normal operation.
41. Monitor the washer for 5-10 wash cycles to ensure the drive belt operates properly without issues.

Safety Notes: Always turn off power at the circuit breaker and unplug the washer before working on it to prevent electrical shock. Ensure the drive belt is properly routed and tensioned before operating the washer. Improper belt installation can cause the belt to slip, break, or damage other components. This repair requires basic tools (screwdriver) and moderate mechanical skill—most homeowners can complete this repair successfully with proper precautions and careful attention to belt routing.

1. Document belt routing with detailed photos before removal. The belt routing pattern is critical for proper operation. Take clear photos from multiple angles showing how the belt wraps around each pulley and which side (ribbed or smooth) faces which direction. Incorrect routing is the #1 cause of belt failure after installation.
2. Inspect all pulleys for wear before installing the new belt. Worn pulley grooves can cause premature belt failure. Run your finger along the pulley grooves—they should be smooth and deep. Glazed, worn, or damaged pulleys should be replaced along with the belt to prevent repeat failure.
3. The ribbed side of the belt must face inward toward the pulleys. The poly-V belt has a ribbed side and a smooth side. The ribbed side must face inward and seat in the pulley grooves. Installing the belt backwards (smooth side inward) will cause immediate slipping and failure.
4. Proper belt tension is critical for reliable operation. The belt should have approximately 1/2 inch of deflection when pressed at the midpoint between pulleys. Too loose and the belt will slip; too tight and the motor will work harder and the belt will wear faster. Most GE washers use an automatic tensioner or idler pulley to maintain proper tension.
5. Rotate the pulleys by hand after installation to verify proper tracking. After installing the new belt, rotate the motor pulley by hand several full rotations. Watch the belt carefully—it should track smoothly in the pulley grooves without riding up on the edges or slipping off. Adjust the belt position if necessary.
6. Clean pulley grooves before installing the new belt. Dirt, detergent residue, or rubber debris in the pulley grooves can prevent proper belt seating and cause slippage. Clean all pulley grooves with a dry cloth or soft brush before installing the new belt.
7. The drive belt is a wear item with limited lifespan. Washer drive belts typically last 5-8 years depending on usage. Plan for eventual replacement as part of routine maintenance. Replace the belt promptly when wear or damage is detected to prevent more expensive component damage.
8. Listen for squealing noises after installation—they indicate improper seating or tension. If the washer squeals during operation after belt replacement, the belt may not be properly seated in the pulley grooves or the tension may be incorrect. Stop the washer immediately and verify belt routing, seating, and tension.
9. A new belt may squeak slightly during the first few cycles. A brand-new belt may produce slight squeaking during the first 2-3 wash cycles as it seats into the pulley grooves. This is normal and should disappear after a few cycles. Persistent squealing indicates a problem.
10. This repair is cost-effective compared to motor or transmission replacement. The cost of drive belt replacement ($20-40) is far less than the cost of a new motor ($200-400+), transmission ($300-600+), or new washer ($600-1,500+). Replace the belt promptly when failure is detected to prevent the need for expensive component or washer replacement.
