GE Dishwasher PDT720SGH5WW Parts

Model: PDT720SGH5WW

Browse this model’s parts or select a diagram to see its matching parts beside the drawing.

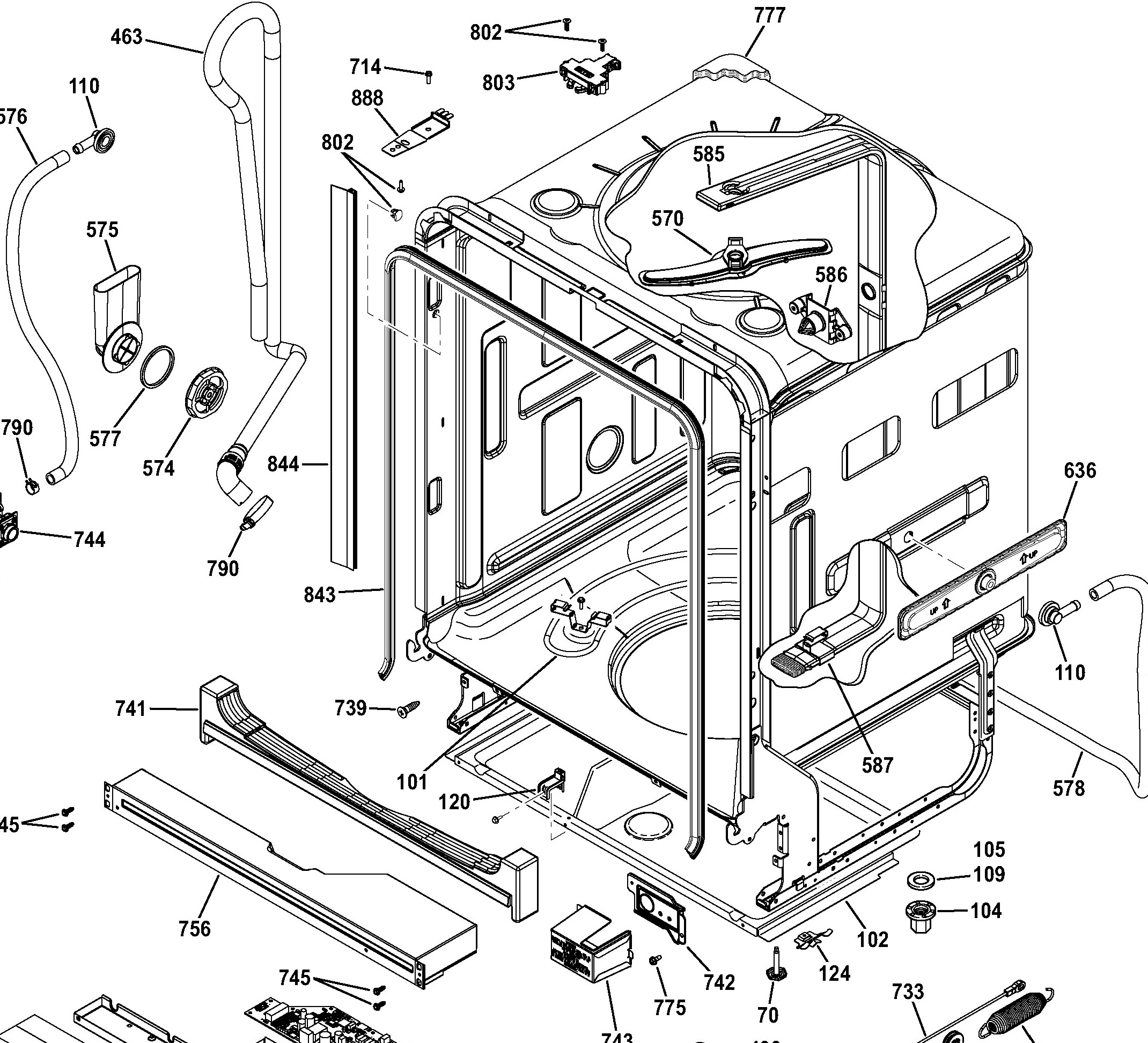

Diagram section

Exploded View 1

13 verified parts

View full image

Only verified parts currently linked to this section are shown. More parts are being added.

Screw

XPart Number XP10003024

OEMWG04A01265

See available options

Certified Pre-Owned$4.99 CAD OEM Genuine$8.99 CAD

Certified Pre-Owned parts need 1 business day to prepare.

From $4.99 CAD

View buying options

ELEMENT HEATING ASM

XPart Number XP10724720

OEMWG04F08050

View buying options

FILL ELBOW

XPart Number XP10722175

OEMWG04L04123

View buying options

ARM SPRAY UPPER ASM

XPart Number XP10722120

OEMWG04L01519

View buying options

CONDUIT MAIN ASM

XPart Number XP10722068

OEMWG04F06987

View buying options

SIDE BLASTER ASM

XPart Number XP10739100

OEMWG04L03242

$25.00 CAD

View buying options

Dishwasher Cable Pulley Assembly

XPart Number XP10008127

OEMWG04F04517

See available options

Certified Pre-Owned$17.99 CAD OEM Genuine$36.95 CAD

Certified Pre-Owned parts need 1 business day to prepare.

From $17.99 CAD

View buying options

Junction box bracket

XPart Number XP10003704

OEMWG04A03885

$31.99 CAD

View buying options

VALVE WATER ASM

XPart Number XP10722066

OEMWG04F05891

View buying options

SCR 10-16X1

XPart Number XP10722140

OEMWG04A01230

$4.99 CAD

View buying options

INSULATION TUB BLANKET

XPart Number XP10746354

OEMWG04F06762

View buying options

Screw

XPart Number XP10064358

OEMWG04A01079

$14.99 CAD

View buying options

BRACKET COUNTERTOP

XPart Number XP10722200

OEMWG04A01050

View buying options

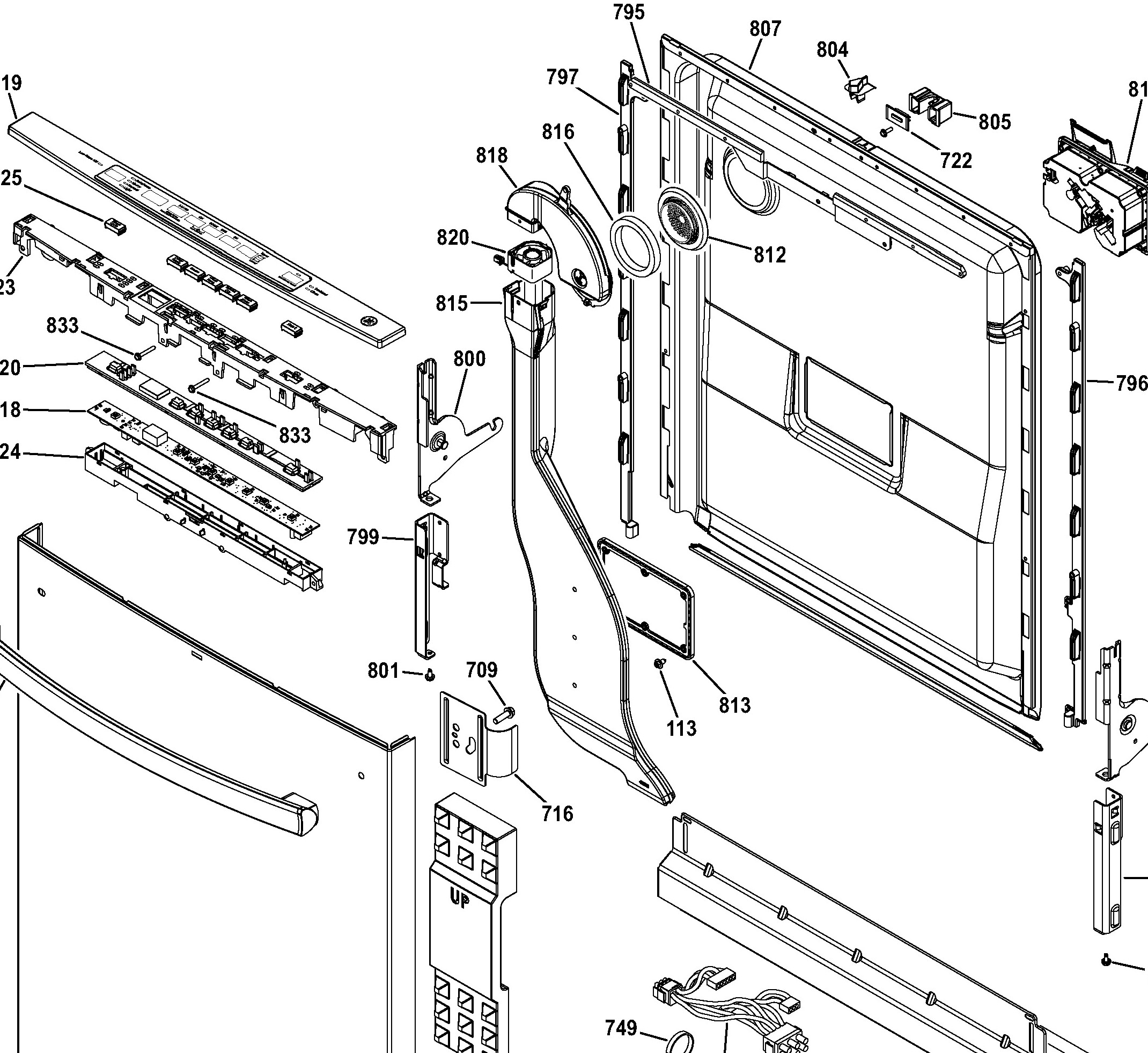

Diagram section

Exploded View 2

8 verified parts

View full image

Only verified parts currently linked to this section are shown. More parts are being added.

ATTACH STRIP

XPart Number XP10746930

OEMWG04A02187

$18.99 CAD

View buying options

ARM HINGE ASM (left side)

XPart Number XP10044912

OEMWG04L01959

$35.99 CAD

View buying options

ARM HINGE ASM (RIGHT SIDE)

XPart Number XP10724695

OEMWG04L01958

$33.99 CAD

View buying options

Dishwasher Latch Striker

XPart Number XP10008233

OEMWG04F06693

See available options

Certified Pre-Owned$8.99 CAD OEM Genuine$18.95 CAD

Certified Pre-Owned parts need 1 business day to prepare.

From $8.99 CAD

View buying options

Inner Door Kit

XPart Number XP10010914

OEMWG04A01462

$255.00 CAD

View buying options

COVER VENT

XPart Number XP10722174

OEMWG04L02102

View buying options

Plate Detergent

XPart Number XP10009256

OEMWG04L03555

See available options

Certified Pre-Owned$4.50 CAD OEM Genuine$18.95 CAD

Certified Pre-Owned parts need 1 business day to prepare.

From $4.50 CAD

View buying options

VENT FAN ASM

XPart Number XP10722205

OEMWG04F05895

View buying options

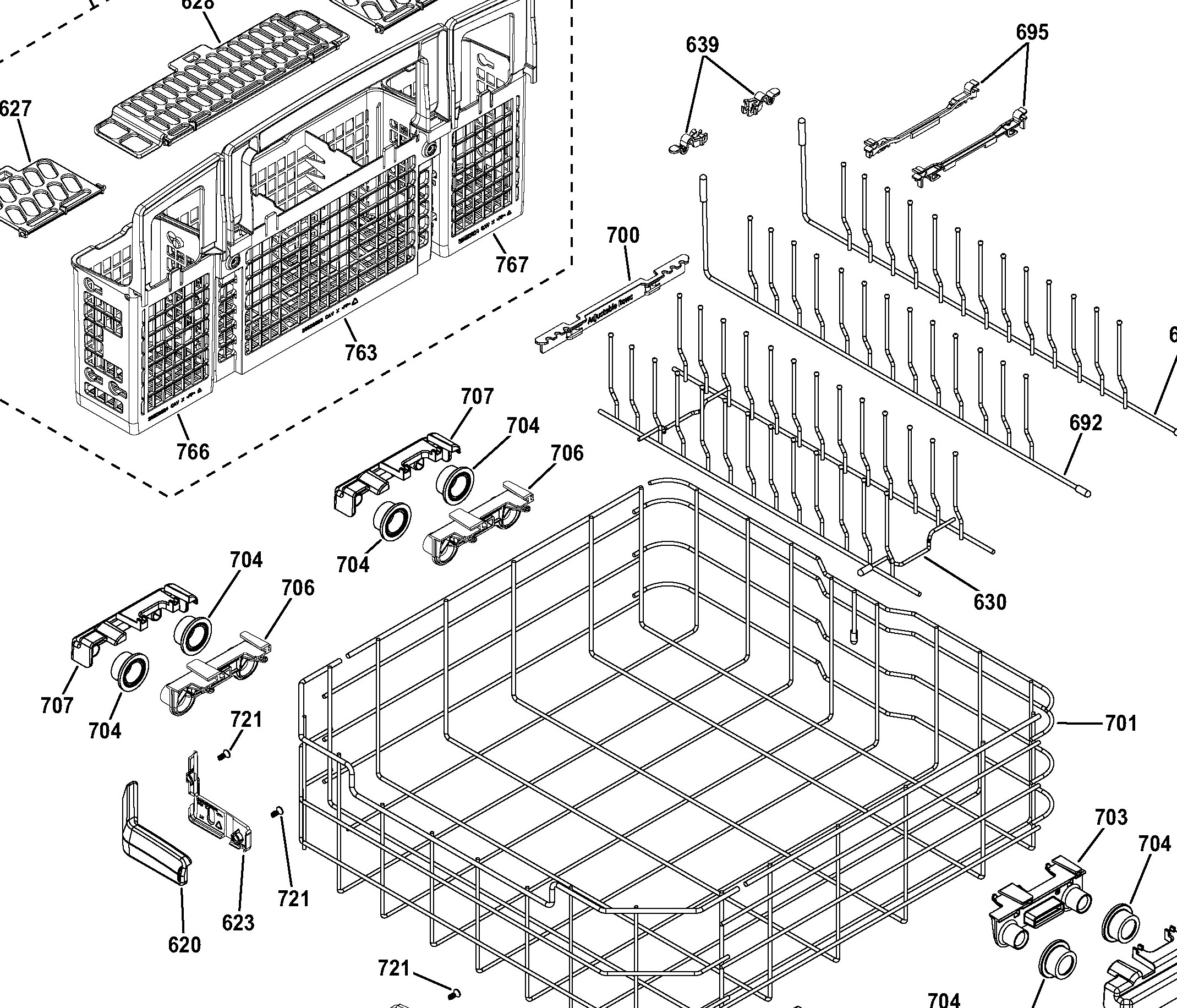

Diagram section

Exploded View 3

2 verified parts

View full image

Only verified parts currently linked to this section are shown. More parts are being added.

Clip

XPart Number XP10717571

OEMWG04A02414

$5.99 CAD

View buying options

Roller Lower Rack

XPart Number XP10044913

OEMWG04A04447

$3.99 CAD

View buying options

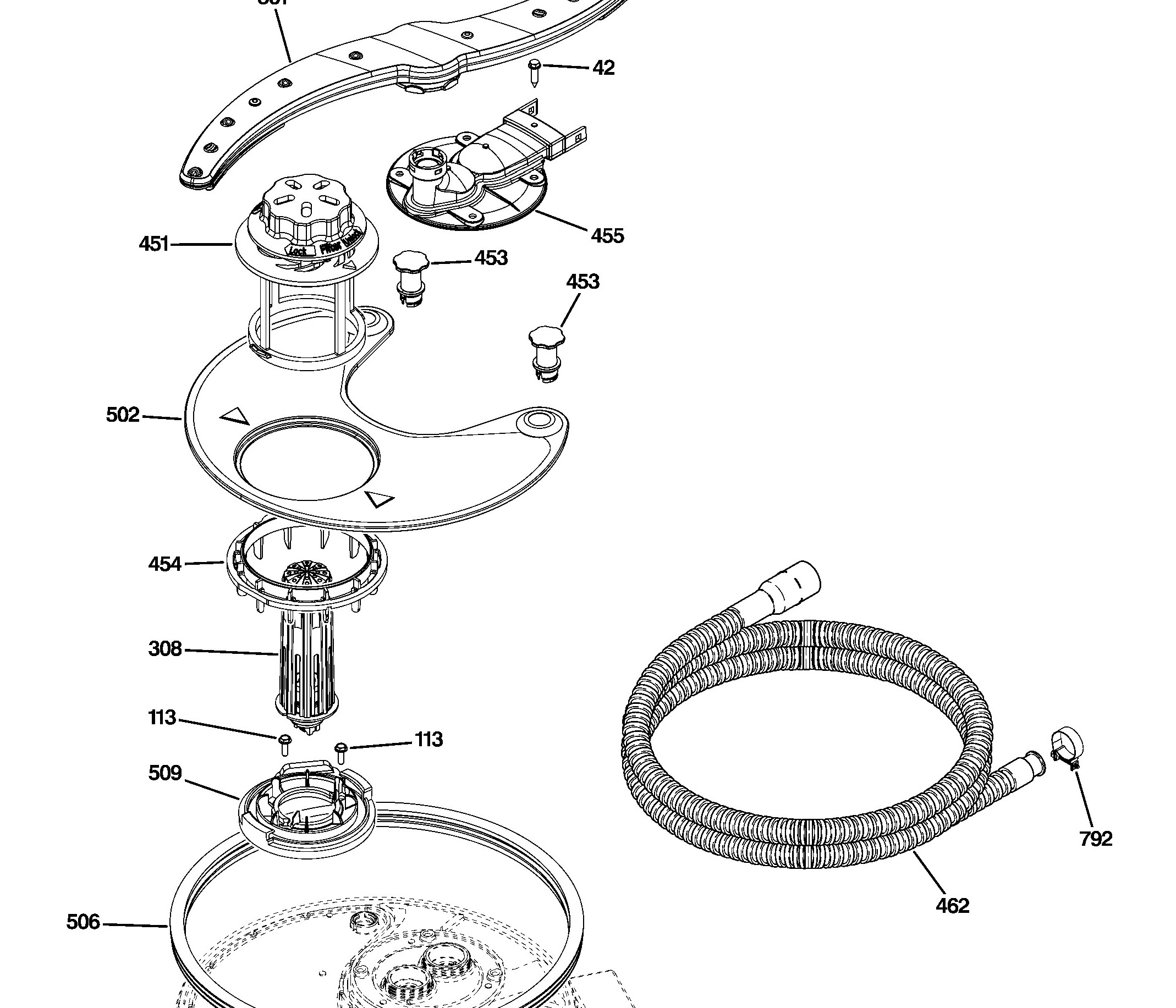

Diagram section

Exploded View 4

3 verified parts

View full image

Only verified parts currently linked to this section are shown. More parts are being added.

Dishwasher Drain Tube Assembly

XPart Number XP10005457

OEMWG04F04609

See available options

Certified Pre-Owned$20.99 CAD OEM Genuine$43.95 CAD

Certified Pre-Owned parts need 1 business day to prepare.

From $20.99 CAD

View buying options

GASKET SUMP MANIFOLD

XPart Number XP10722157

OEMWG04L03501

View buying options

Clamp

XPart Number XP10736391

OEMWD01X10104

$11.99 CAD

View buying options

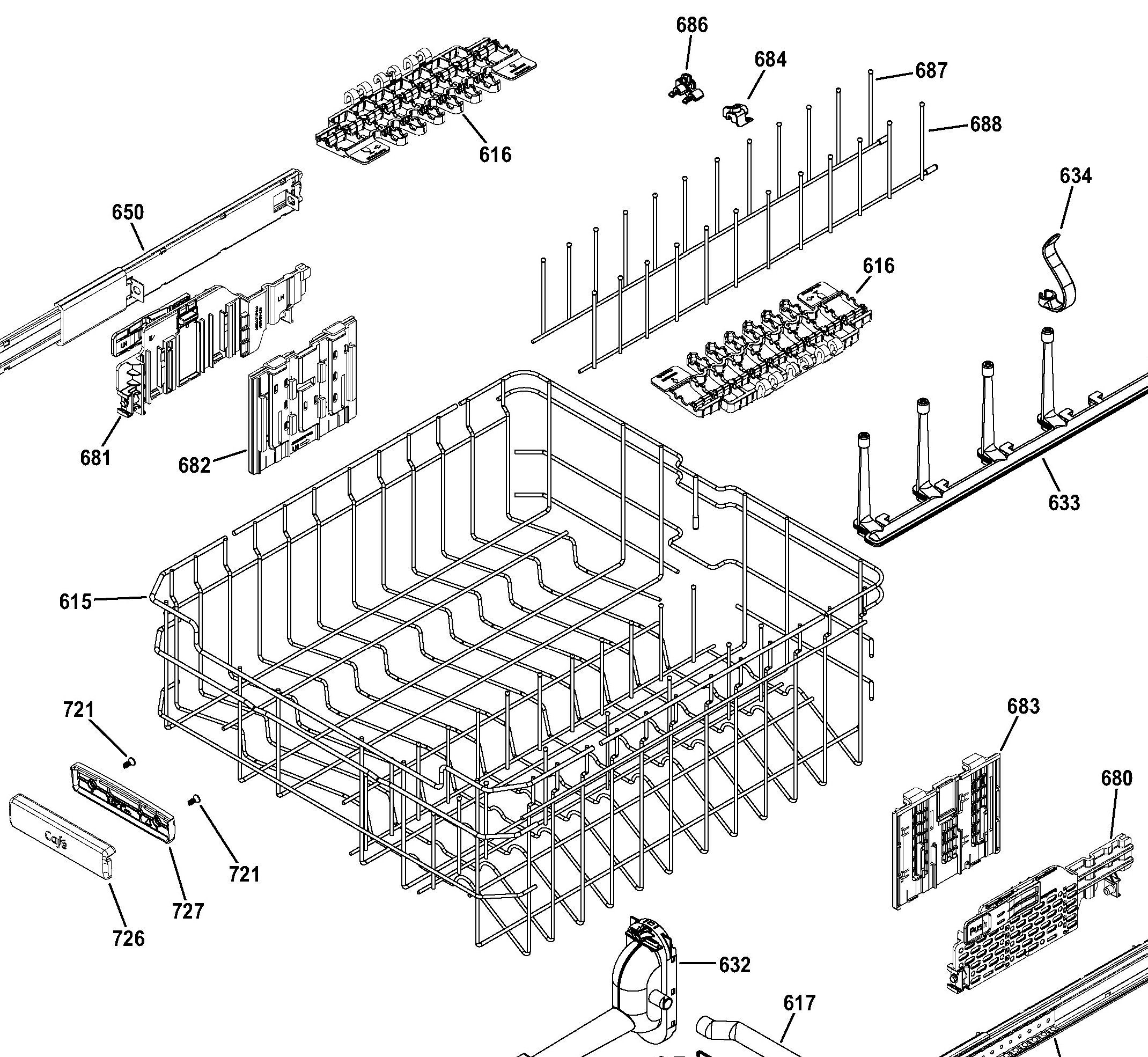

Diagram section

Exploded View 5

4 verified parts

View full image

Only verified parts currently linked to this section are shown. More parts are being added.

Dishwasher Drain Pump Assembly

XPart Number XP10003287

OEMWG04L04531

$120.85 CAD

View buying options

LATCH CAM

XPart Number XP10016462

OEMWG04F06911

$24.99 CAD

View buying options

HANGER DRAIN PUMP

XPart Number XP10016347

OEMWG04F06906

$42.99 CAD

View buying options

Worm Gear Clamp

XPart Number XP10722173

OEMWG04A02196

$11.99 CAD

View buying options

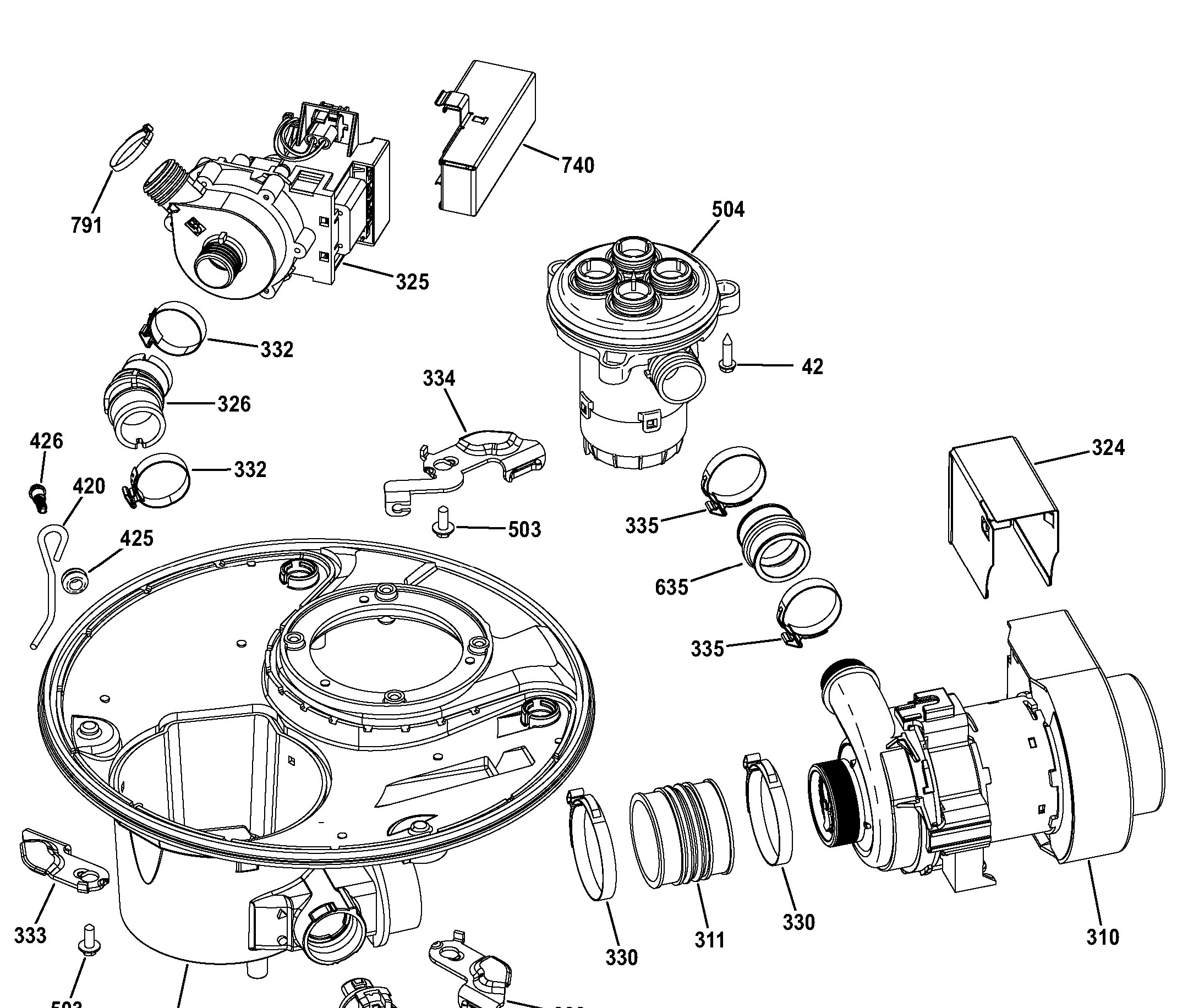

Diagram section

Exploded View 6

4 verified parts

View full image

Only verified parts currently linked to this section are shown. More parts are being added.

INNER RAIL UPR RACK ASM

XPart Number XP10717613

OEMWG04L03829

$44.99 CAD

View buying options

BRACKET ASM UPPER RACK

XPart Number XP10726354

OEMWG04A02408

$39.99 CAD

View buying options

BRACKET ASM UPPER RACK

XPart Number XP10722124

OEMWG04A02409

$33.99 CAD

View buying options

BRACKET FIXED

XPart Number XP10726352

OEMWG04A02411

$15.99 CAD

View buying options

Parts group

More verified model parts

38 verified parts

Only verified parts currently linked to this section are shown. More parts are being added.

GE Dishwasher Electronic Control Board / Main Control Board WG04F05128, Replaces WD21X20451, WD21X10532, WG03F05898 – Superseded by WG04A03757

XPart Number XP10001340

OEMWG04A03757

Model fitment is verified. A diagram position has not been assigned.

GE Dishwasher Electronic Control Board / Main Control Board WG04F05128, Replaces WD21X20451, WD21X10532, WG03F05898 – Superseded by WG04A03757

View buying options

Dishwasher latch tub side standard

XPart Number XP10002323

OEMWG04F04726

See available options

Certified Pre-Owned$40.99 CAD OEM Genuine$82.95 CAD

Certified Pre-Owned parts need 1 business day to prepare.

Model fitment is verified. A diagram position has not been assigned.

From $40.99 CAD

View buying options

Dishwasher Door Spring

XPart Number XP10003017

OEMWG04A02197

See available options

Certified Pre-Owned$18.99 CAD OEM Genuine$39.95 CAD

Certified Pre-Owned parts need 1 business day to prepare.

Model fitment is verified. A diagram position has not been assigned.

From $18.99 CAD

View buying options

Kit Svc UI Top Logic

XPart Number XP10003099

OEMWG04A02632

Model fitment is verified. A diagram position has not been assigned.

$200.99 CAD

View buying options

Dishwasher turbidity sensor assembly

XPart Number XP10003200

OEMWG04F05595

Model fitment is verified. A diagram position has not been assigned.

$54.99 CAD

View buying options

Dishwasher Door Vent Seal

XPart Number XP10003280

OEMWG04L01634

See available options

Certified Pre-Owned$12.99 CAD OEM Genuine$26.95 CAD

Certified Pre-Owned parts need 1 business day to prepare.

Model fitment is verified. A diagram position has not been assigned.

From $12.99 CAD

View buying options

FILTER COARSE SS

XPart Number XP10007306

OEMWG04F07097

Model fitment is verified. A diagram position has not been assigned.

$5.99 CAD

View buying options

Dishwasher top control console

XPart Number XP10010108

OEMWG04F05111

Model fitment is verified. A diagram position has not been assigned.

$24.99 CAD

View buying options

Lower Rack

XPart Number XP10055001

OEMWD28X34743

Model fitment is verified. A diagram position has not been assigned.

$113.99 CAD

View buying options

Screw

XPart Number XP10416401

OEMWG04A01270

Model fitment is verified. A diagram position has not been assigned.

$67.99 CAD

View buying options

Screw

XPart Number XP10705192

OEMWG04A00176

Model fitment is verified. A diagram position has not been assigned.

$2.99 CAD

View buying options

BADGE GE ASM

XPart Number XP10711836

OEMWG04A01013

Model fitment is verified. A diagram position has not been assigned.

$15.99 CAD

View buying options

BLOCK FOAM DOOR

XPart Number XP10717567

OEMWG04L03454

Model fitment is verified. A diagram position has not been assigned.

$11.99 CAD

View buying options

HOSE ELBOW DRAIN

XPart Number XP10722064

OEMWG04F04671

Model fitment is verified. A diagram position has not been assigned.

View buying options

ADAPTER CONDUIT ASM

XPart Number XP10722065

OEMWG04F07027

Model fitment is verified. A diagram position has not been assigned.

View buying options

HOSE FILL

XPart Number XP10722090

OEMWG04F07119

Model fitment is verified. A diagram position has not been assigned.

View buying options

CONDUIT TIERED BLAST ASM

XPart Number XP10722091

OEMWG04F04559

Model fitment is verified. A diagram position has not been assigned.

View buying options

Screw

XPart Number XP10722093

OEMWG04A01237

Model fitment is verified. A diagram position has not been assigned.

$3.99 CAD

View buying options

PULLEY SCREW

XPart Number XP10722095

OEMWG04A01519

Model fitment is verified. A diagram position has not been assigned.

View buying options

ATTACH STRIP

XPart Number XP10722118

OEMWG04A02180

Model fitment is verified. A diagram position has not been assigned.

View buying options

HOSE LOOP DRAIN HIGH

XPart Number XP10722119

OEMWG04F06708

Model fitment is verified. A diagram position has not been assigned.

View buying options

VENT FILTER

XPart Number XP10722122

OEMWG04F07118

Model fitment is verified. A diagram position has not been assigned.

$5.99 CAD

View buying options

HARNESS ASM DOOR

XPart Number XP10722123

OEMWG04F05402

Model fitment is verified. A diagram position has not been assigned.

View buying options

HOSE WASH PUMP OUTLET

XPart Number XP10722147

OEMWG04A01085

Model fitment is verified. A diagram position has not been assigned.

View buying options

Piranha hose clamp kit

XPart Number XP10722148

OEMWG04A01134

Model fitment is verified. A diagram position has not been assigned.

$17.99 CAD

View buying options

HOUSING BOTTOM

XPart Number XP10722149

OEMWG04F05451

Model fitment is verified. A diagram position has not been assigned.

$9.99 CAD

View buying options

SWITCH FLOOD ASM

XPart Number XP10722150

OEMWG04F05653

Model fitment is verified. A diagram position has not been assigned.

View buying options

GASKET TUB

XPart Number XP10722177

OEMWG04F06951

Model fitment is verified. A diagram position has not been assigned.

View buying options

SEAL CONDUIT

XPart Number XP10722183

OEMWG04F06950

Model fitment is verified. A diagram position has not been assigned.

View buying options

TCO ASSEMBLY

XPart Number XP10722190

OEMWG04L04530

Model fitment is verified. A diagram position has not been assigned.

View buying options

TOE KICK PAINTED ASM

XPart Number XP10722201

OEMWG04A01322

Model fitment is verified. A diagram position has not been assigned.

$22.99 CAD

View buying options

ADAPTOR FILTER

XPart Number XP10722202

OEMWG04F06976

Model fitment is verified. A diagram position has not been assigned.

$20.99 CAD

View buying options

BRKT SUPPORT HINGE ASM

XPart Number XP10722203

OEMWG04L02004

Model fitment is verified. A diagram position has not been assigned.

View buying options

SUMP MANIFOLD

XPart Number XP10722204

OEMWG04F07026

Model fitment is verified. A diagram position has not been assigned.

View buying options

BRACKET FIXED

XPart Number XP10726326

OEMWG04A02410

Model fitment is verified. A diagram position has not been assigned.

$17.99 CAD

View buying options

SCR 10-32 GX HXW 3/8

XPart Number XP10738853

OEMWG04A02147

Model fitment is verified. A diagram position has not been assigned.

$2.99 CAD

View buying options

Diverter Air Assembly

XPart Number XP10746941

OEMWG04F06701

Model fitment is verified. A diagram position has not been assigned.

$55.99 CAD

View buying options

COVER JUNCTION BOX

XPart Number XP10746953

OEMWG04L01578

Model fitment is verified. A diagram position has not been assigned.

$31.99 CAD

View buying options

Choose a diagram or section

Parts for PDT720SGH5WW
