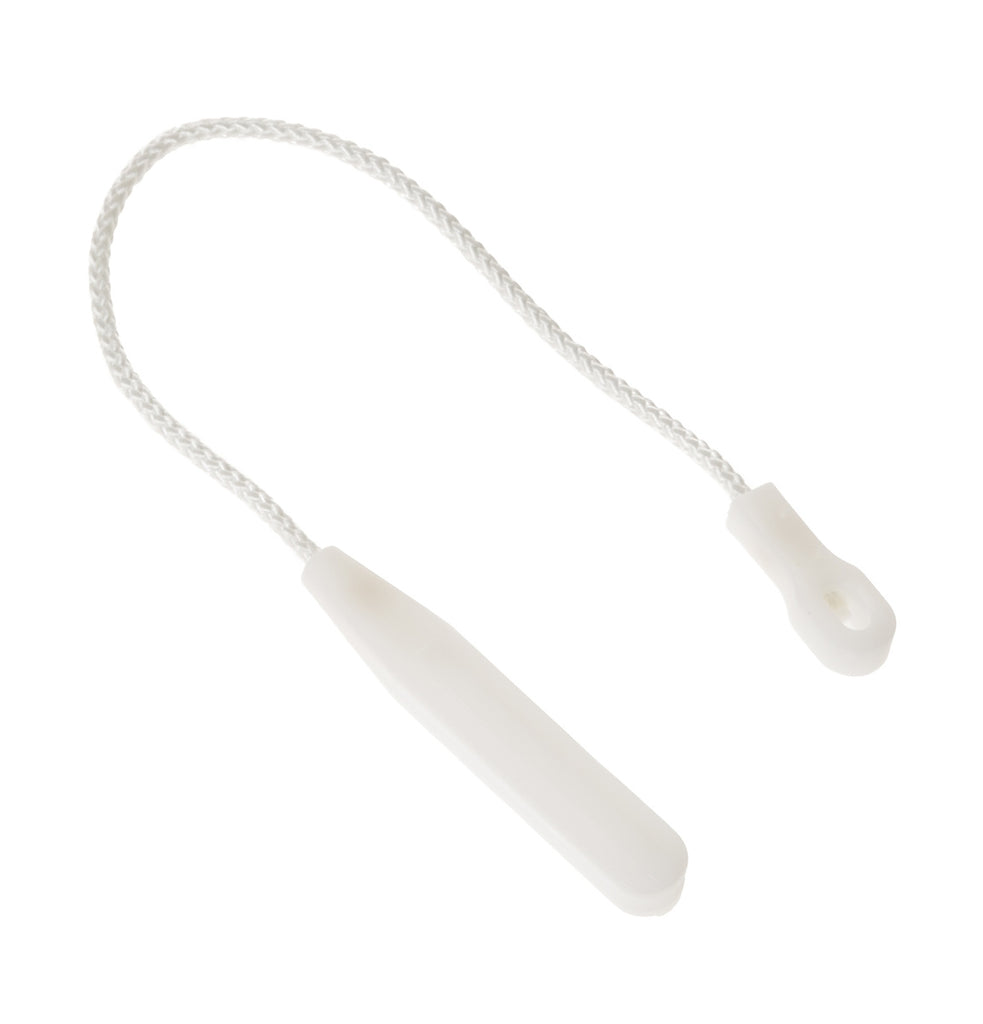

GE Dishwasher Cable Pulley Assembly WG04F04517, Replaces WD01X10569, 265D1852G001

Is This the Right Part?

✅ Cross Reference Information

Common Symptoms

• Door falls open instead of remaining controlled.
• Door slams down or is difficult to close.
• Door does not stay at partially open positions.
• Door may not latch correctly after cable or pulley failure.
• Cable may be broken, detached, or off the pulley.

Check Before Replacing

• With electrical power disconnected, visually inspect both door-cable paths for a broken, detached, frayed, or displaced cable.
• Open the door slowly and observe whether the movement is uncontrolled or significantly heavier on one side.
• Check that the cable remains seated in the pulley groove and that the pulley is not visibly cracked, obstructed, or misaligned.
• Inspect the associated door spring and hinge for damage, since those components can produce similar symptoms.
• Do not operate the dishwasher with a loose cable or uncontrolled door movement.

Pro Tip

Part Details

Installation Notes

• Disconnect electrical power before servicing and shut off the water supply if the dishwasher must be pulled from the cabinet.
• Access may require carefully moving the dishwasher forward after removing its mounting restraints and lower access panel.
• Attach the cable to the spring, route it over the pulley, and connect it to the door hinge as shown for the exact dishwasher model.
• Keep the cable properly seated in the pulley groove and inspect the opposite-side cable before reassembly.
• After installation, verify controlled door movement and proper latching before normal use.

Verified Compatible Models

ADT521PGJ0BS, GDF510PGD0WW, GDF510PGD1WW, GDF530PGM0CC, GDF540HMF2ES, GDT530PSD2SS, GDT530PSD4SS, GDT550HSD2SS, GDT580SMF0ES, GDT625PGJ5BB, GDT635HSJ4SS, GDT720SGF0WW, GDWF400V00WW, PDT750SSF0SS, PDT760SSF0SS, ADT521PGJBS, ADT521PGJWS, CDT765SSF0SS, GDF510PGJ2WW, GDF510PGJ6WW, GDF510PGM4WW, GDF510PSJ0SS, GDF510PSJ2SS, GDF510PSJ4SS, GDF510PSJ6SS, GDF510PSM4SS, GDF511PGR1WW, GDF570SGF2BB, GDF570SGF2WW, GDF570SGF4WW, GDF570SGF6WW, GDF570SGF7WW, GDF570SSF0SS, GDF570SSF2SS, GDF570SSF4SS, GDF570SSF6SS, GDF570SSF8SS, GDF610PMJ0ES, GDT545PGJ2BB, GDT545PGJ2WW, GDT545PGJ6BB, GDT580SGF6WW, GDT580SMF2ES, GDT580SMF5ES, GDT580SMF6ES, GDT580SSF0SS, GDT580SSF2SS, GDT580SSF5SS, GDT605PGM4WW, GDT605PGM5WW, GDT605PGM6BB, GDT605PGM6WW, GDT605PSM4SS, GDT605PSM6SS, GDT635HMJ0ES, GDT635HMM4ES, GDT635HMM5ES, GDT635HSJ2SS, GDT635HSJ6SS, GDT635HSM4SS, GDT635HSM5SS, GDT635HSM6SS, GDT680SSH2SS, PDT720SSH5SS, PDT720SSH6SS, PDT720SSH7SS, PDT750SSF1SS, PDT750SSF2SS, PDT750SSF4SS, PDT750SSF5SS, PDT750SSF7SS, PDT750SSF8SS, PDT750SSFASS

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
