GE Dryer MKTG15DNAVB01 Parts
Model: MKTG15DNAVB01
Browse this model’s parts or select a diagram to see its matching parts beside the drawing.
No matching verified parts in this model. Check the complete part number or try a description.
Parts for MKTG15DNAVB01
Diagram section

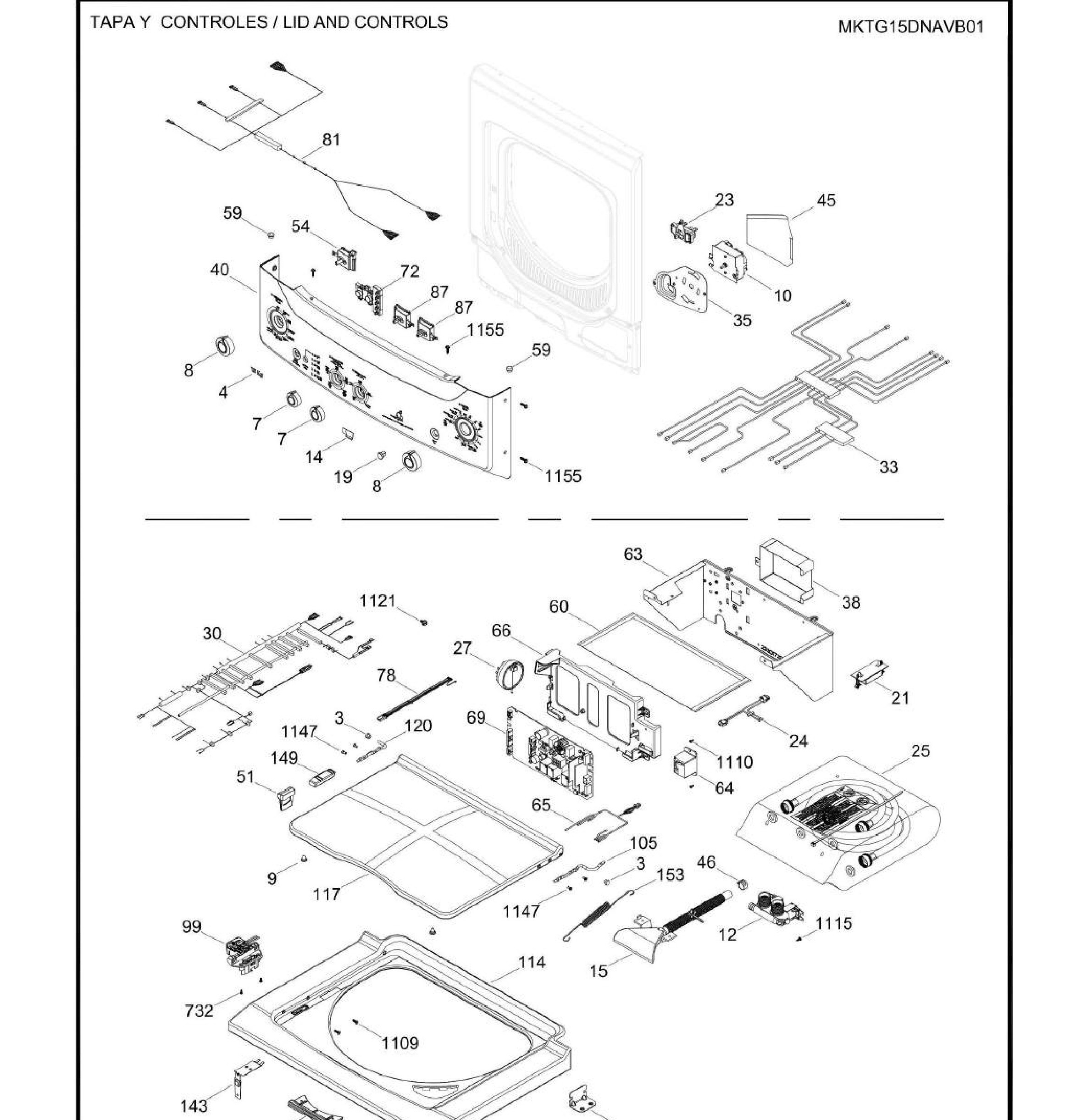

Exploded View 1
This diagram could not load. The verified parts remain available.
Only verified parts currently linked to this section are shown. More parts are being added.
Item35
Item38
Item54
Item117
Item149
Item1109
Item1155
No matching parts in this section. Clear your search or choose All model parts.
Diagram section

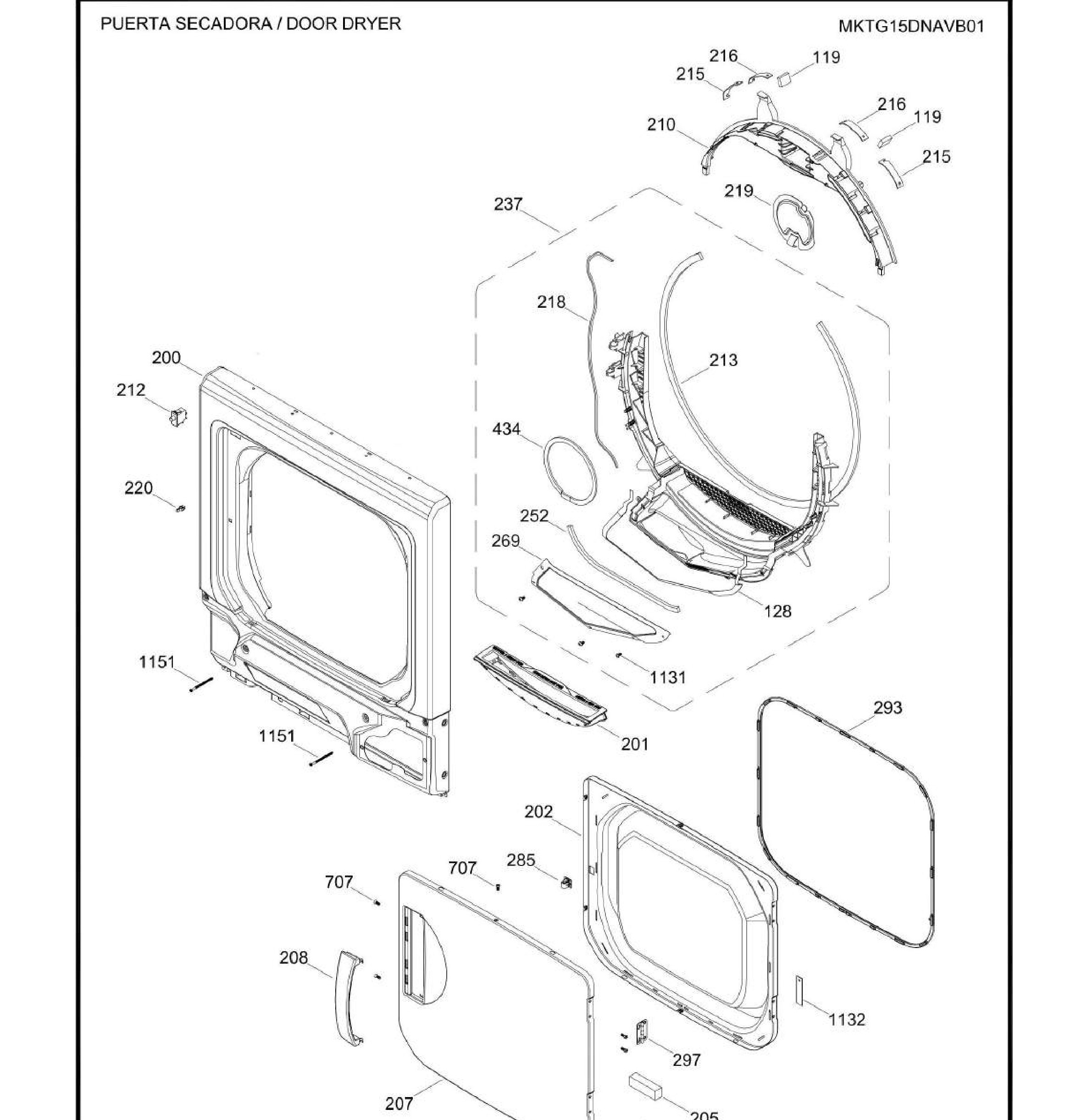

Exploded View 2
This diagram could not load. The verified parts remain available.
Only verified parts currently linked to this section are shown. More parts are being added.
Item210
Item212
Item215
Item216
No matching parts in this section. Clear your search or choose All model parts.
Diagram section

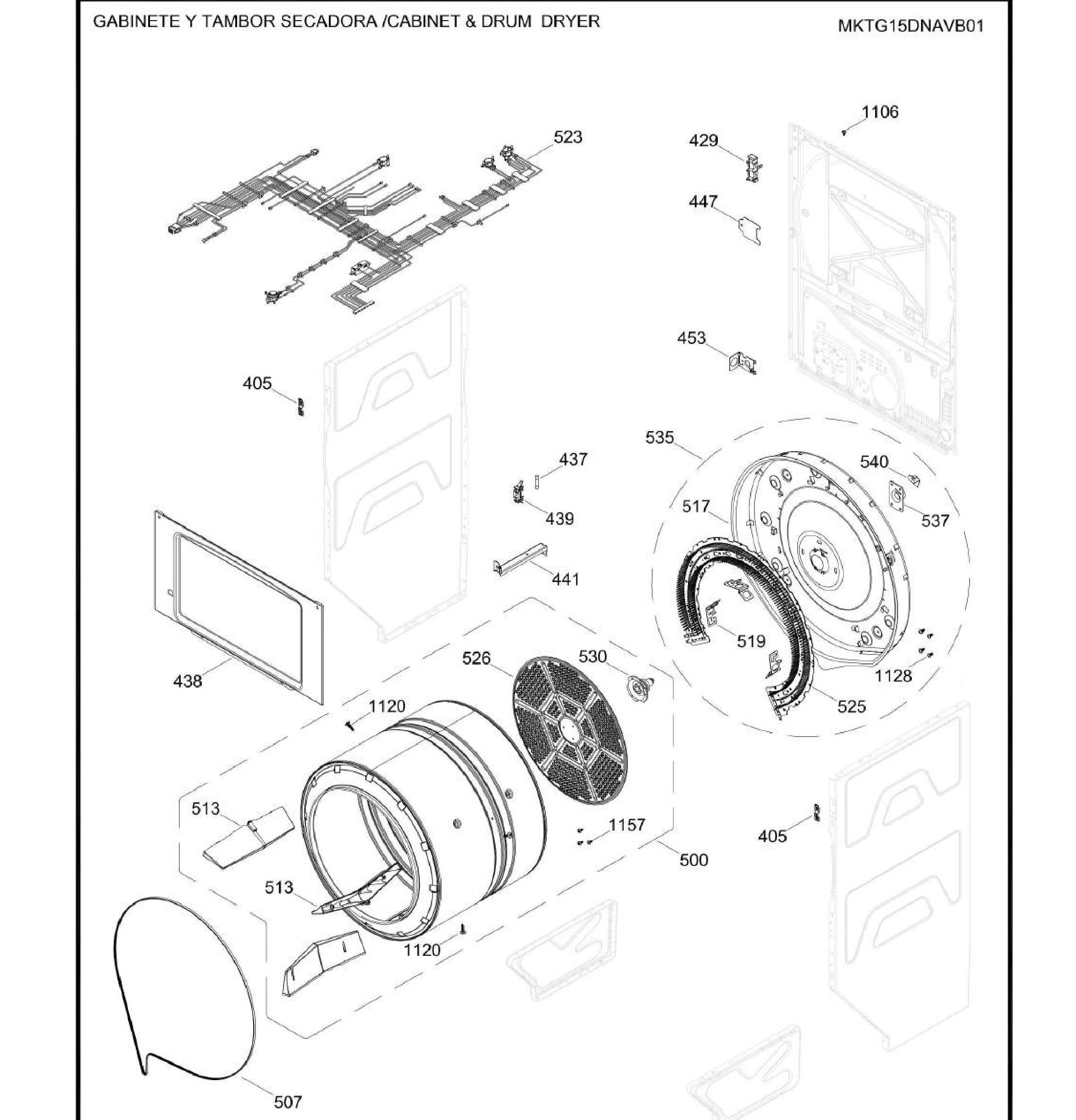

Exploded View 3
This diagram could not load. The verified parts remain available.
Only verified parts currently linked to this section are shown. More parts are being added.
Item405
Item437
Item439
Item500
Item517
Item530
No matching parts in this section. Clear your search or choose All model parts.
Diagram section

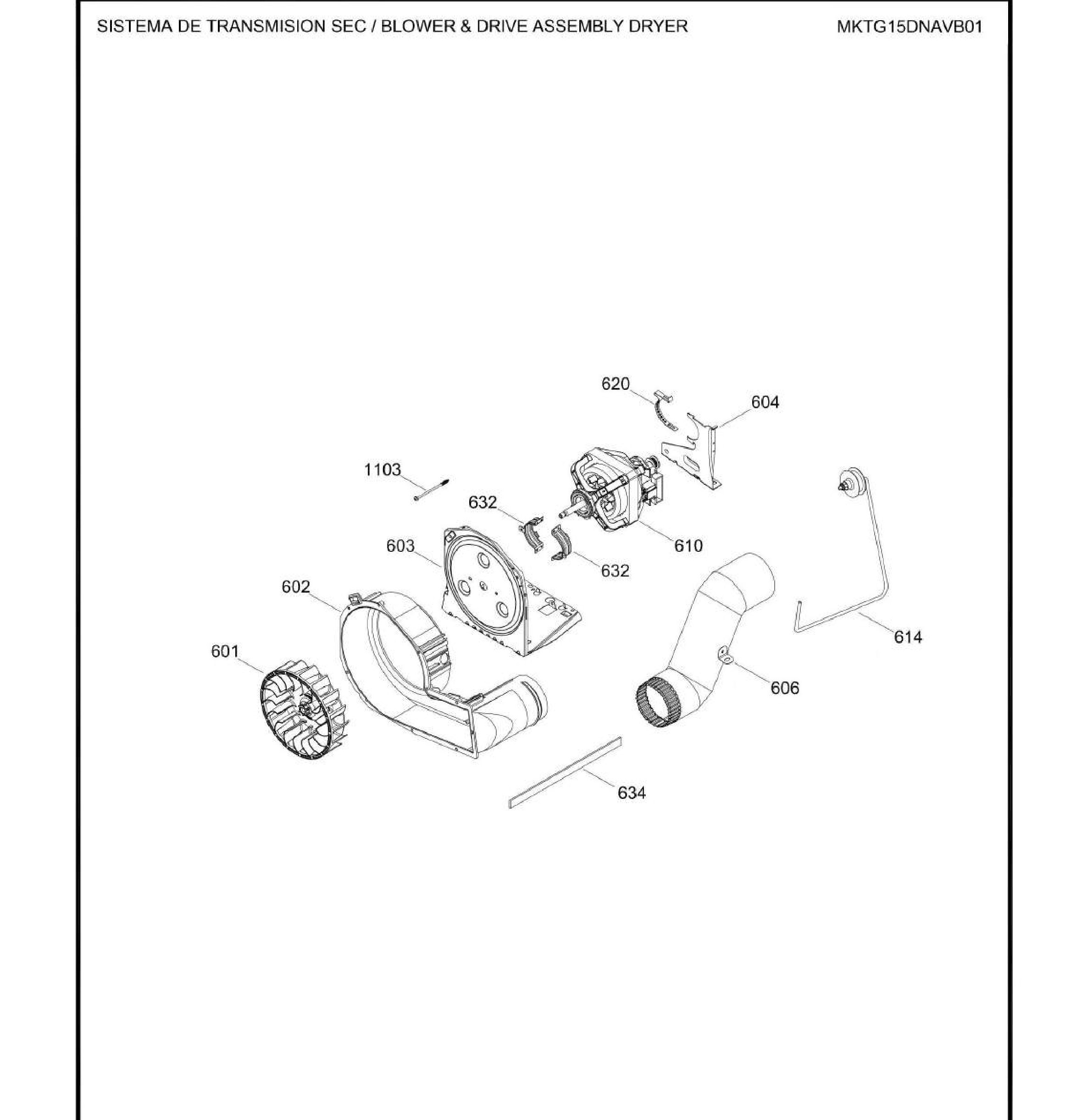

Exploded View 4
This diagram could not load. The verified parts remain available.
Only verified parts currently linked to this section are shown. More parts are being added.
Item604
Item614
Item632
No matching parts in this section. Clear your search or choose All model parts.
Diagram section

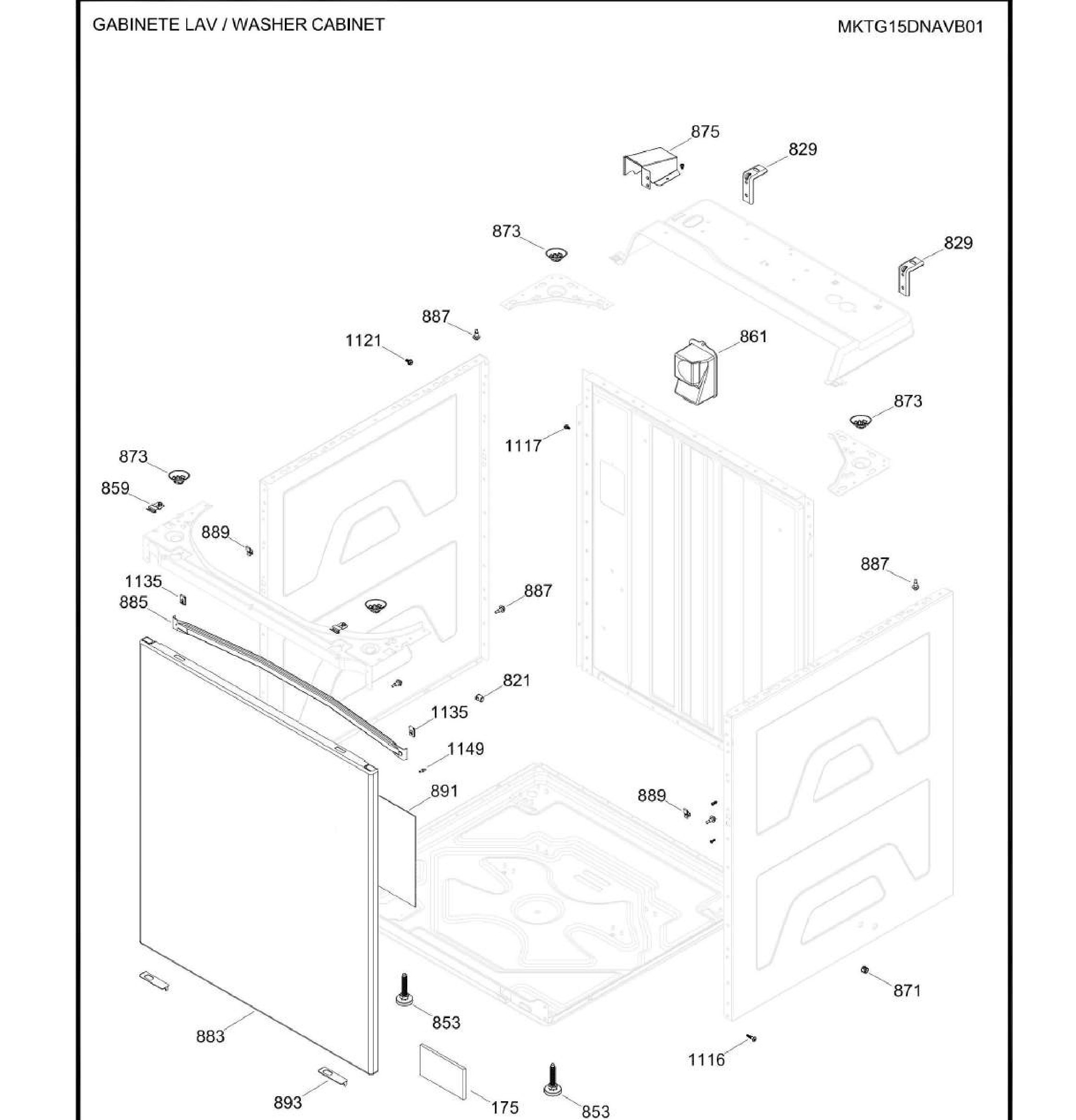

Exploded View 5
This diagram could not load. The verified parts remain available.
Only verified parts currently linked to this section are shown. More parts are being added.
Item883
No matching parts in this section. Clear your search or choose All model parts.
Diagram section

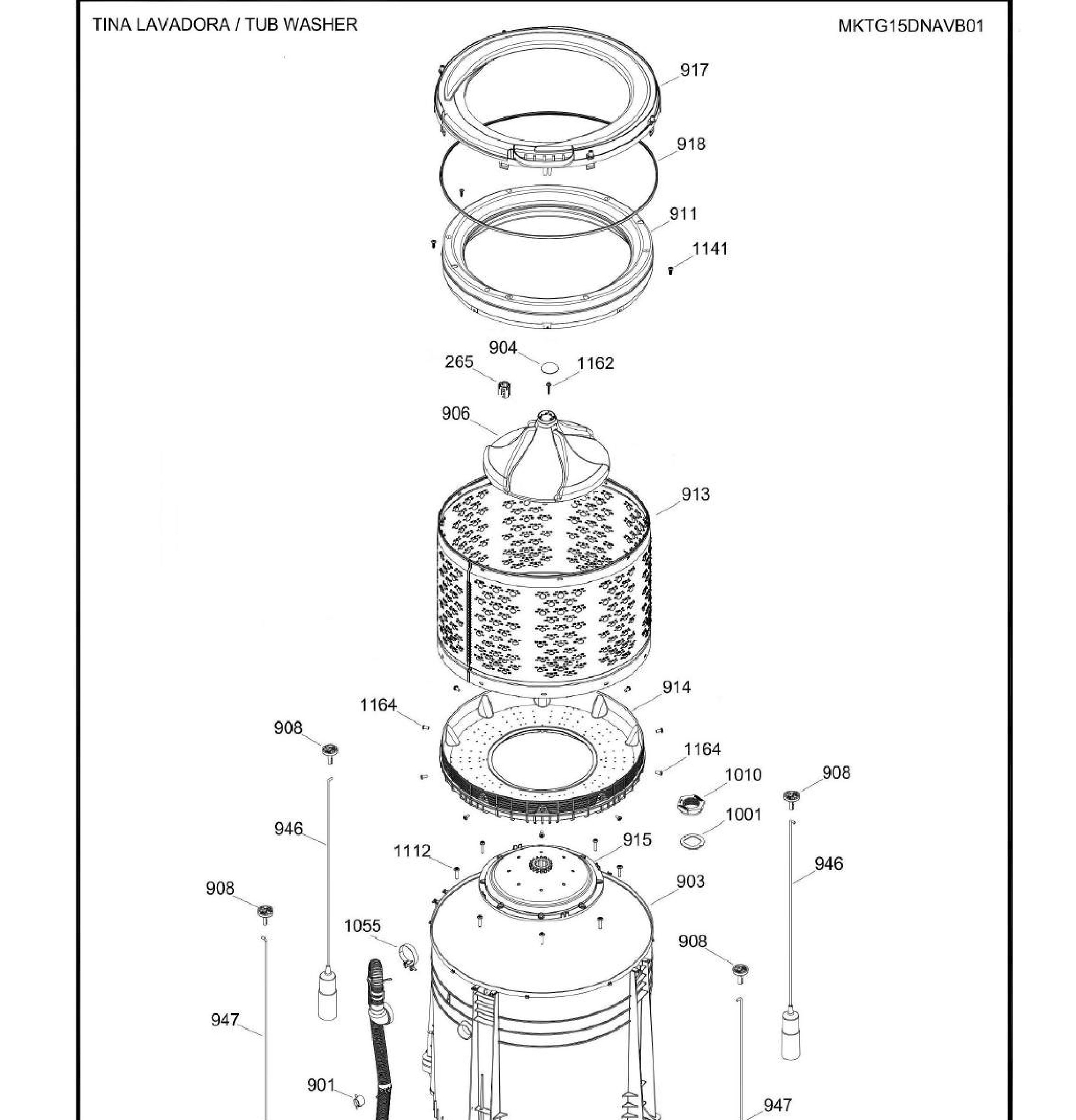

Exploded View 6
This diagram could not load. The verified parts remain available.
Only verified parts currently linked to this section are shown. More parts are being added.
Item903
Item915
Item917
Item946
Item947
Item1001
Item1010
Item1162
No matching parts in this section. Clear your search or choose All model parts.
Diagram section

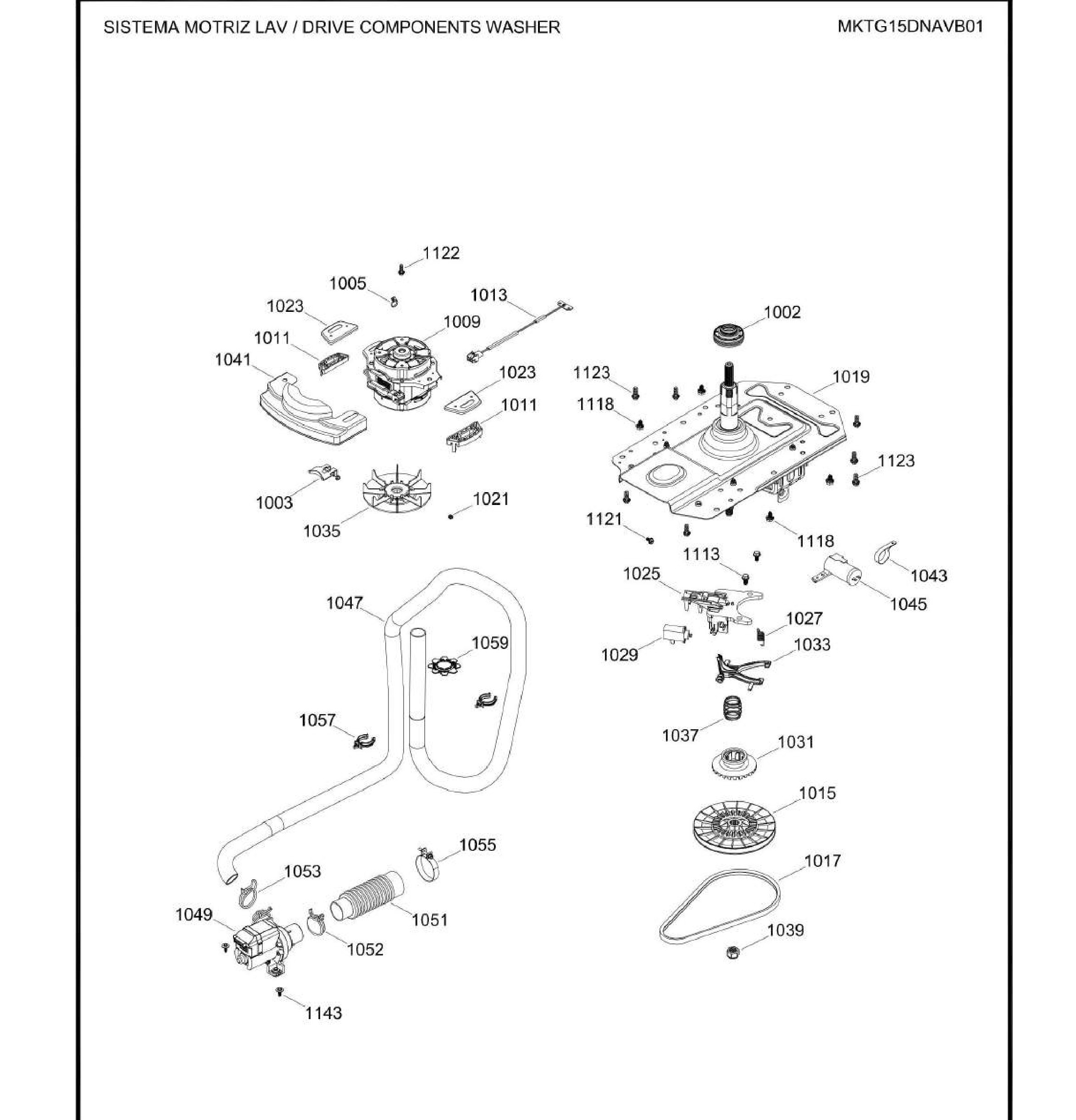

Exploded View 7
