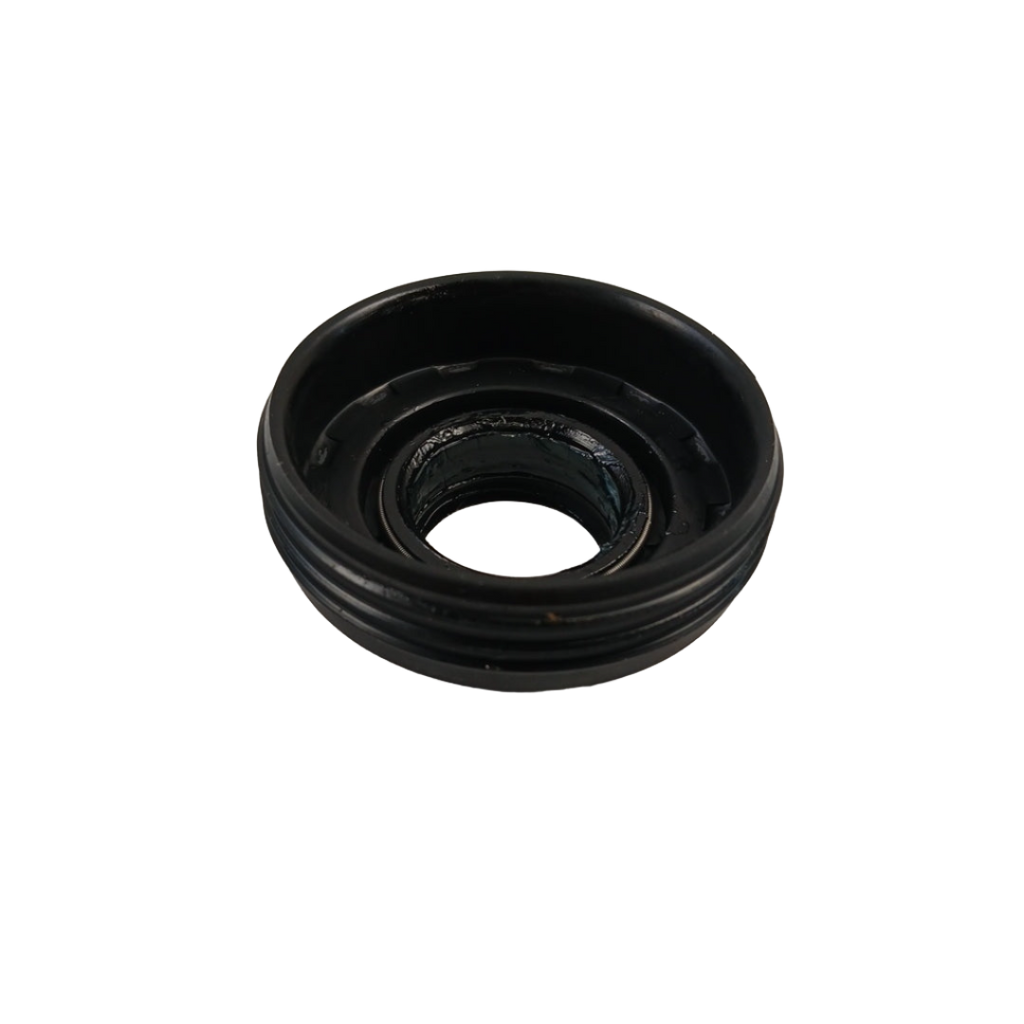

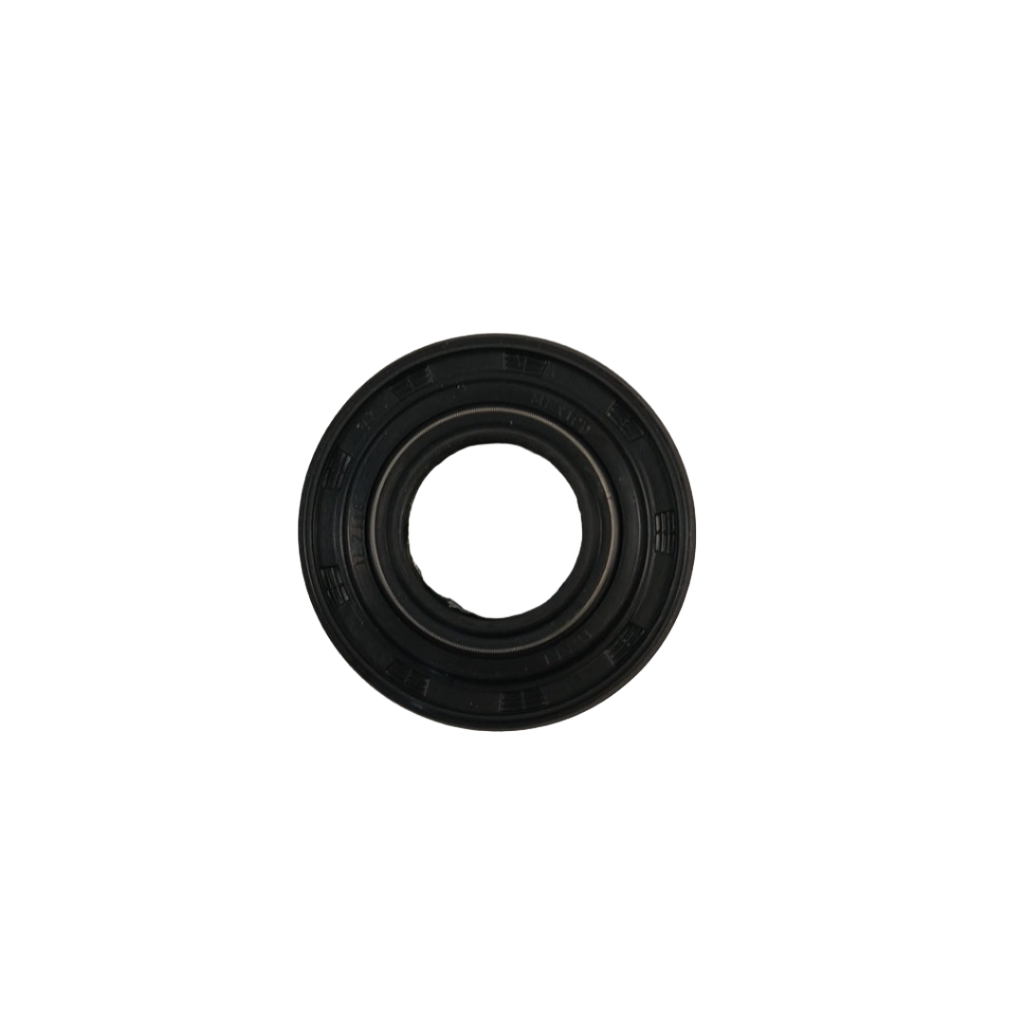

GE Appliances Top Load Washer Tub Seal WW02F00547
Genuine OEM tub seal for a top-load washer. It forms a watertight seal around the drive shaft between the outer tub and the inner spin basket.
❓ Is This the Right Part?
This is the correct fix if ALL of the following are true:
- ✔ Washer powers on and agitates/spins normally — motor and controls are functional
- ✔ Water supply and drain hoses are intact — no external plumbing leaks
- ✔ Door boot/gasket is undamaged — leak is not from the door seal
- ✔ ONLY problem is water leaking from beneath the drum or pooling under the unit during or after a wash cycle
Not sure? Send us your model number — we’ll confirm before you order.
🔧 Common Symptoms
- Water pooling under the washer or laundry center during or after a wash cycle
- Visible water dripping from the bottom of the outer tub or drum shaft area
- Rust staining or water damage on the cabinet floor beneath the drum
- Musty smell from inside the cabinet caused by chronic moisture
- Bearing noise (grinding or rumbling) accompanying the leak — seal failure has allowed water into the bearing
- Leak worsens progressively with each wash cycle
✔ If these symptoms match, the tub seal is the most likely failed component in the system.
✔ In most cases, replacing this tub seal stops the leak immediately and prevents further bearing damage.
✅ Cross Reference Information
Part Number: WW02F00547
Previous Part Numbers: WW01L00471
Part Details
- Part Number: WW02F00547
- Part Type: Top Load Washer Tub Seal
- Manufacturer: GE Appliances
- Appliance Type: Washer
If the tub seal has been leaking for more than a few weeks, inspect the tub bearing before reassembly. Water that bypasses a failed seal travels directly into the bearing race and causes rapid corrosion. A bearing that sounds rough or gritty when spun by hand is already damaged — replacing the seal without replacing the bearing means the new seal will fail again quickly as the worn bearing destroys the sealing surface. Replace both at the same time to avoid a repeat repair.
⚙️ Installation
Skill Level: Advanced — 60 to 90 minutes. Disconnect power and water supply before servicing. Access requires removing the washer cabinet panels and lifting the outer tub to expose the drum shaft and seal. Remove the drum, press out the old seal, press in the new WW02F00547, reassemble in reverse, and run a test cycle to confirm the leak is resolved. A seal driver or large socket is recommended for clean installation without damaging the new seal lip.
Verified Compatible Models
MCL1740ESDG10, MCL1740ESBB10, LAE17500XBB00, LMA15200PBB00, LMH20589ZKGG01, GTUP270GMWM01, LAE15400PBB00, GUAN275ED0WW, GUAP240EM0WW, GUD24ESMJ0WW, GUD27ESMJ0WW, PTAN9150MWW0, PTAN9455MGG0, CLME77014BFU00, CLME77014BFU01, CLME77014DFU00, CLME77014DFU01, CLME77104BBB00, CLMG77104BBB00, CLMG77104DBB00, ECL1540EEBBY00, ECL1540EEDGY00, GTUP270GMWM02, GTUP270PSDG00, GUD24ESMJ1WW, GUD24ESSJ1WW, GUD24GSSJ1WW, GUD27ESMJ1WW, GUD27ESSJ1WW, GUD27GSSJ1WW, GUD37ESMJ1DG, ICL1740PSDG00, ICL1740PSDG01, ICL1740PSDG10, LAE18201PBB00, LCA15400XBB00, LCA17500XBB00, LCF1430XBB00, LCF14380XBB00, LCF14380XGG00, LCF19380XWGG00, LCMP77104BAB00, LCMP77104BAB01, LHG17480PSBX00, LHG18480ZSBB00, LHG20580ZSBB00, LHG20580ZWBB00, LHS20580ZSBV00, LHS20580ZSBW00, LHS20580ZSBY00
Fitment reminder: Match the complete appliance model number before ordering.
💡 Pro Tip
Before disassembling the unit, reach into the drum and spin it by hand. A healthy bearing spins freely and quietly. If you hear grinding, feel roughness, or the drum wobbles side-to-side, the bearing is already damaged from the leaking seal. In that case, order the tub bearing at the same time as WW02F00547 — the labour to access the seal and the bearing is identical, and doing both in one visit saves you from tearing the machine apart twice.
✓ Model-Specific Repair Pages
✅Compatibility & Cross Reference
Not sure about your model number? Call 1-877-899-7278 and we’ll help you confirm. All brand names are the property of their respective owners and are used for compatibility reference only.
