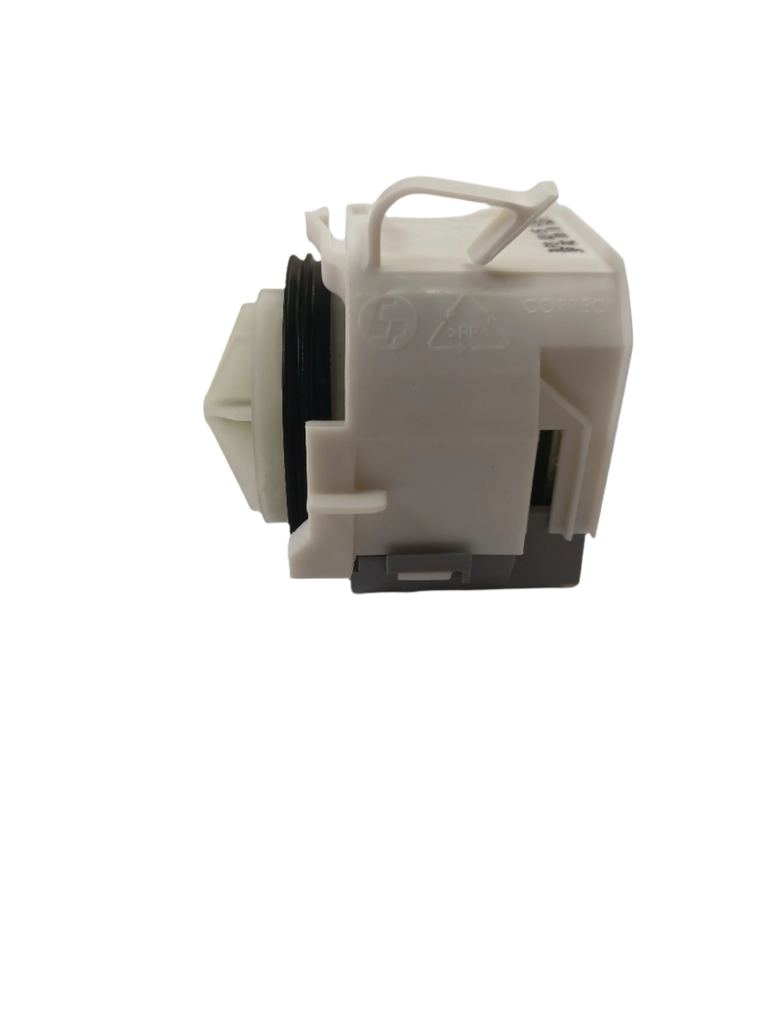

XPart Supply 00631200 dishwasher drain pump replacement gray housing white impeller with black O ring
Front view of white impeller and rubber seal 00631200 dishwasher drain pump replacement for appliance repairs by XPart Supply

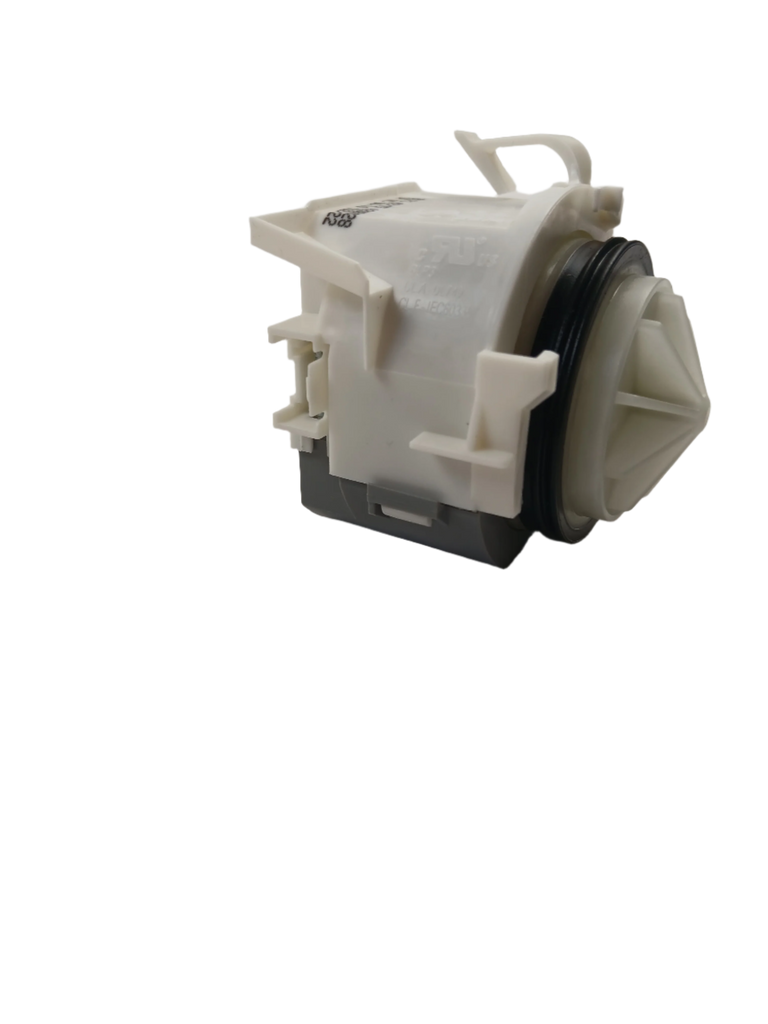

XPart Supply 00631200 dishwasher drain pump replacement white plastic drain pump assembly on black
XPart Supply 00631200 dishwasher drain pump replacement white plastic drain pump unit on black background
XPart Supply 00631200 dishwasher drain pump replacement gray housing white impeller with black O ring
Front view of white impeller and rubber seal 00631200 dishwasher drain pump replacement for appliance repairs by XPart Supply
XPart Supply 00631200 dishwasher drain pump replacement white plastic drain pump assembly on black
XPart Supply 00631200 dishwasher drain pump replacement white plastic drain pump unit on black background

00631200 Dishwasher Drain Pump (Drain Motor, Drainage Pump, Water Pump Assembly)

Sale price
$73.13
Regular price
$86.29
You save
$13.16 (15%)

XPart Number: 9665417969953   |   GTIN: 100094977495

Buying Options: OEM
Condition: New

Product variant with selected options does not exist!

Frequently Bought Together

Shipper / Seller: XPart Supply Ltd.

Professional Repair Time: 20–30 minutes
DIY Repair Time: 30–45 minutes
Difficulty Rating: Medium (3/5) — Requires safe access, hose handling, and leak check

  • Dishwasher won’t drain
  • Water left in tub after cycle
  • Loud grinding, buzzing, or humming from pump
  • Leaking water under dishwasher
  • Drain-related error codes (e.g., E24, E25)
  • Dishwasher stops mid-cycle or won’t finish

Drain Pump, Water Pump, Drain Motor, Pump Assembly

00631200, 631200, AP2802385, PS3439123

Bosch, Thermador, Gaggenau, Siemens (verify by model)

Fits Models: (Ctrl+F and Enter Your Model Number)

Bosch Dishwashers
SHU43C05UC/17, SHX46A05UC/14, SHU9955UC/12, SHE43RF2UC/64, SHU5315UC/06, SHU5315UC/07, SHU9955UC/14Thermador, Gaggenau, Siemens
(Various models—always verify by part number and model lookup)

CRITICAL SAFETY WARNING: Disconnect power and turn off water supply before servicing.

  1. Unplug dishwasher and turn off water supply.
  2. Remove toe kick panel at base of dishwasher.
  3. Tilt or pull out dishwasher for access to pump area (may require disconnecting fill/drain hoses).
  4. Locate drain pump at sump area underneath.
  5. Disconnect wiring harness from pump motor.
  6. Release pump locking tab or remove mounting screws (model dependent).
  7. Twist and pull out old pump from sump assembly.
  8. Inspect sump and hoses for debris—clean as needed.
  9. Install new pump by aligning and locking in place.
  10. Reconnect wiring harness and hoses.
  11. Restore water and power, run a drain cycle to check for leaks and proper operation.

Safety Notes: Always clear debris from sump and drain hose before installing new pump. If errors persist after install, reset control board by unplugging for 5 minutes.

  1. Test old pump for continuity (typically 20–40Ω); infinite = open winding.
  2. Check for debris in sump or impeller before replacing pump.
  3. Inspect pump impeller for cracks or binding—should spin freely by hand.
  4. If pump fails repeatedly, check drain hose for kinks, blockages, or excessive runs.
  5. Use only OEM pumps—aftermarket versions may not fit or seal properly.
  6. If pump is noisy but drains, check for foreign objects in housing or impeller.
  7. Document installation for warranty and troubleshooting.
  8. If dishwasher still won’t drain, check control board and pressure sensor.
  9. Test with a rinse cycle before full load.
  10. Check for leaks during first cycle after repair.
  11. Replace sump gasket if water is leaking at pump interface.


Whirlpool refrigerator replacement parts, Frigidaire refrigerator replacement parts, GE refrigerator replacement parts, Kenmore refrigerator replacement parts, KitchenAid refrigerator replacement parts, LG refrigerator replacement parts, Maytag refrigerator replacement parts, Whirlpool refrigerator drawers and glides replacement, Whirlpool dishwasher replacement parts, GE dishwasher replacement parts, KitchenAid dishwasher replacement parts, Maytag dishwasher replacement parts, Frigidaire dishwasher replacement parts, Kenmore dishwasher replacement parts, Whirlpool washer replacement parts, GE washer replacement parts, Maytag washer replacement parts, Kenmore washer replacement parts, LG washer replacement parts, Whirlpool dryer replacement parts, GE dryer replacement parts, Maytag dryer replacement parts, Kenmore dryer replacement parts, LG dryer replacement parts, Whirlpool range replacement parts, GE range replacement parts, Whirlpool stove replacement parts, GE stove replacement parts, GE oven replacement parts, GE microwave replacement parts, buy Whirlpool refrigerator parts online, buy GE dishwasher parts online, replacement Kenmore washer parts for sale, buy Maytag dryer parts, LG washer replacement parts online, KitchenAid refrigerator parts for sale, Whirlpool stove and range replacement parts

OEM 00631200 Dishwasher Drain Pump Replacement

The 00631200 is a genuine OEM drain pump for Bosch and compatible dishwashers. This electrically driven pump removes wastewater from the dishwasher tub during drain cycles, pushing it out through the drain hose. It features a sealed electric motor, high-efficiency impeller, reinforced plastic housing, and integrated check valve for backflow prevention. Engineered for durability, chemical resistance, and quiet operation. Typical lifespan is 7–12 years; failures are most often due to impeller jamming (debris), motor burnout, or housing leaks. Symptoms: dishwasher won’t drain, water left in tub, loud humming or grinding, leaks under unit, or drain error codes. IMPORTANT: Only use OEM pumps for proper fit and performance. CRITICAL: Always disconnect power and water before servicing.

Key Features and Design

Engineered with a high-powered motor and durable construction, the 00631200 Drain Pump ensures long-term reliability for everyday use. This OEM replacement part seamlessly integrates into your dishwasher, featuring a robust build that withstands frequent cycles while promoting efficient water flow.

  • High-powered motor: Delivers strong performance to quickly and effectively drain water, reducing the risk of buildup or overflow.
  • Durable materials: Built for longevity, with a design that emphasizes resilience and ease of installation to minimize downtime.
  • Compatibility: Replaces part 631200 and fits models such as SGE53U52UC and SHE53T55UC, making it a versatile choice for various dishwasher systems.
  • Universal compatibility: Identified by SKU DWD3 and universal number DW31200, ensuring it meets industry standards for broad applicability.

Performance and Benefits

This drain pump restores your dishwasher's efficiency by solving common issues like poor drainage or water accumulation, enhancing your overall kitchen experience with smoother operation and reduced maintenance needs. From XPart Supply Ltd., it offers trustworthy performance that saves time and extends the life of your appliance, allowing you to enjoy clean dishes without interruptions.

The 00631200 Dishwasher Drain Pump is a reliable and efficient addition to any dishwashing system. Its high-powered motor is designed to effectively move water from the dishwasher tub to the drain, helping to prevent water leakage. It also features a durable construction for long-term use.

Part number 00631200 replaces 631200, 1208028

Supported models:

3VC730XC/01, 3VC730XC/02, 3VF300NA/01, 3VF301NA/01, 3VF301NA/01, 3VF302NA/01, 3VF302NA/01, 3VF302NA/02, 3VF302NA/02, 3VF700XA/01, 3VF700XA/01, 3VF700XA/01, 3VF701XA/01, 3VF780XA/01, 3VF781XA/01, 3VF781XA/01, 3VF781XA/01, 3VF782XA/01, 3VF782XA/01, 3VH302NA/01, SGE53U52UC, SGE53U55UC, SGE53U56UC, SGE68U55UC, SGV68U53UC, SGX68U55UC, SHE3AR72UC, SHE3AR75UC, SHE3AR76UC, SHE3ARF2UC, SHE3ARF5UC, SHE3ARF6UC,, SHE53T52UC, SHE53T55UC, SHE53T56UC, SHE53TF2UC, SHE53TF5UC, SHE53TF6UC, SHE65T52UC, SHE65T55UC, SHE65T56UC, SHE68T52UC, SHE68T55UC, SHE68T56UC, SHE7PT52UC, SHE7PT55UC, SHE7PT56UC, SHE863WF2N, SHE863WF5N, SHE878WD2N, SHE878WD5N, SHE878WD6N, SHE89PW55N, SHEM63W52N, SHEM63W55N, SHEM63W56N, SHEM78W52N, SHEM78W55N, SHEM78W56N, SHEM78WH5N, SHP53T55UC, SHPM78W54N, SHPM78W55N, SHPM78W56N, SHPM98W75N, SHS5AV52UC, SHS5AV55UC, SHS5AV56UC, SHS5AVF2UC, SHS5AVF5UC, SHS5AVF6UC, SHS863WD2N, SHS863WD6N, SHSM63W52N, SHSM63W55N, SHSM63W56N, SHV53T53UC, SHV68T53UC, SHV68TL3UC, SHV863WD3N, SHVM63W53N, SHVM78W53N, SHVM98W73N, SHX3AR72UC, SHX3AR75UC, SHX3AR76UC, SHX53T55UC, SHX5AV52UC, SHXM65W55N, SHXM78W52N, SHXM78W55N, SHXM78W56N, SHXM98W75N, SHXN8U55UC, SPE53U52UC, SPE53U55UC, SPE53U56UC, SPE68U55UC, SPV68U53UC, and SPX68U55UC

Past Part Numbers (Superseded)

Drain Pump, Water Pump, Drain Motor, Pump Assembly

00631200, 631200, AP2802385, PS3439123

Compatible with the following models

Bosch, Thermador, Gaggenau, Siemens (verify by model)

Bosch Dishwashers
SHU43C05UC/17, SHX46A05UC/14, SHU9955UC/12, SHE43RF2UC/64, SHU5315UC/06, SHU5315UC/07, SHU9955UC/14Thermador, Gaggenau, Siemens
(Various models—always verify by part number and model lookup)
