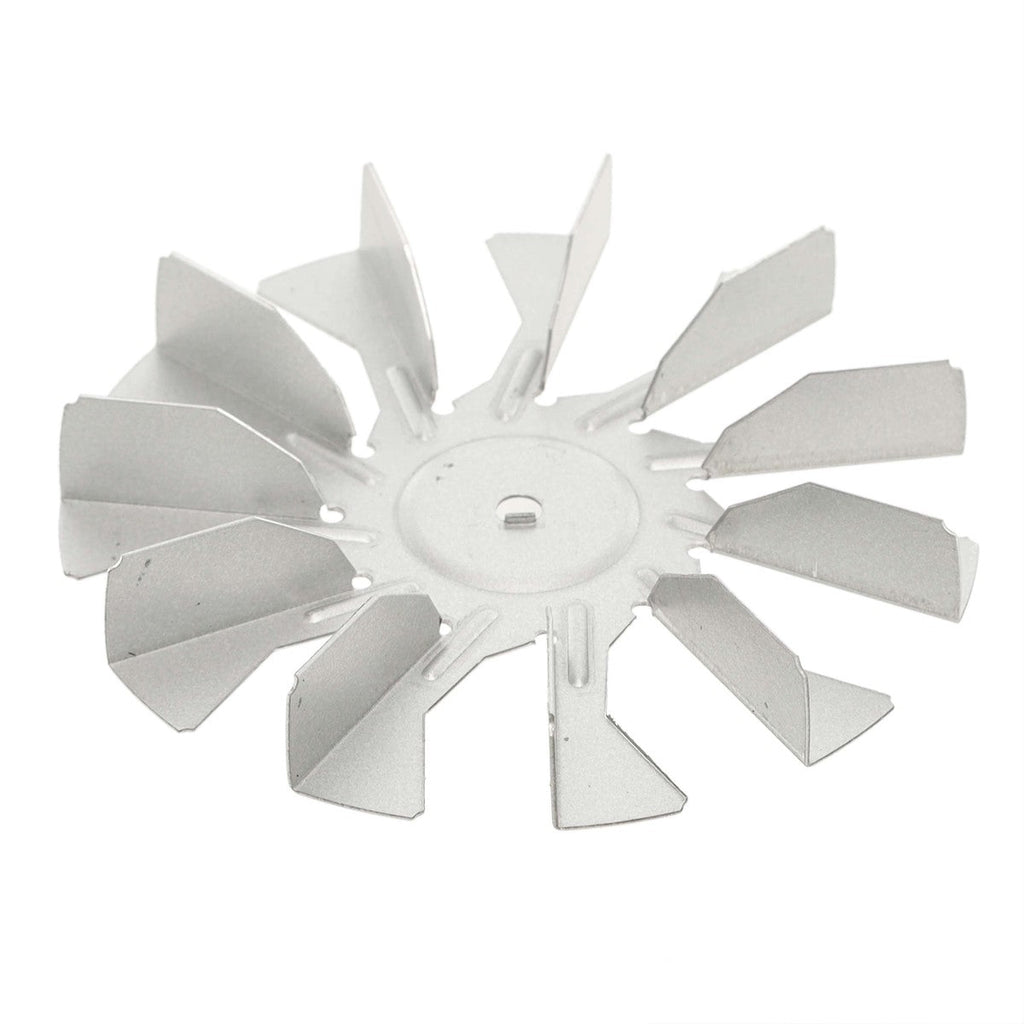

Frigidaire Range Convection fan blade 318398302, Replaces 139009100, 316136400, 318398300, 7316136400, 7318398300

Genuine Frigidaire convection fan blade for ranges. The blade mounts on the convection fan motor shaft and circulates hot air through the oven for even heating.

Is This the Right Part?

✅ Cross Reference Information

Common Symptoms

• Uneven heat distribution during convection cooking
• Poor oven-air circulation
• Fan noise caused by a bent blade or blade contacting the housing
• Visible blade damage, warping, or chipping
• Oven not heating or circulating heat as expected during convection operation

Check Before Replacing

• Disconnect electrical power before inspection.
• With power disconnected and the fan assembly accessible, visually inspect the blade for bending, warping, cracks, chips, or other damage.
• Check that the blade is not visibly contacting the surrounding housing.
• Compare the blade position with the motor shaft and look for obvious looseness or slipping.
• Confirm that the symptom occurs specifically during convection operation; other heating or control faults may produce similar oven symptoms.

Pro Tip

Part Details

Key Features

• Genuine Frigidaire OEM convection fan blade
• Metal construction
• Approximately 4.75 inches in diameter
• Mounts on the convection fan motor shaft
• Sold as an individual blade
• Used to distribute oven heat more evenly

Installation Notes

• Disconnect the range from electrical power before installation.
• Access the convection fan assembly according to the appliance service instructions.
• Remove the existing blade's securing hardware without forcing or bending the motor shaft.
• Install the replacement blade in the same orientation and secure it to the motor shaft.
• Reinstall any removed covers or assembly panels before restoring power.
• Verify that the blade rotates freely and does not contact the housing before normal use.

Verified Compatible Models

790.49073400, 79031043802, 79032632315, 79042753510, 79042753514, CFES3035LS1, CGES3065KW4, EW30DS80RSA, EW30DS80RSB, EW30EW55GS4, EW30GS80RSA, EW30IS8CRSB, FGDS3065PFM, FGEH3047VDB, FGES3065PFN

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
