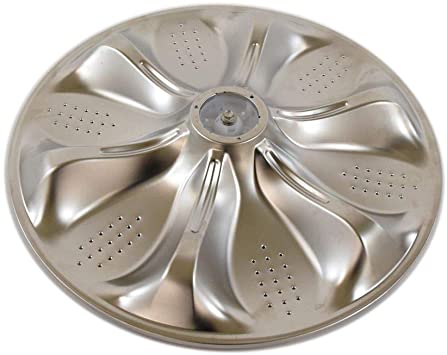

LG Washer Pulsator Assembly AGZ72909711

XPart Number XP10001837
$222.95
$261.59
Available by special order
Buying Options: OEM Genuine

Choose an available buying option.
Equivalent Parts Cross-reference listings may have additional stock Check Stock →
Check Fit & Find Parts
Bubba checks verified models, product descriptions, cross-references and store data. Find your model number →

Frequently Bought Together
WASHER WILL NOT AGITATE

LG Washer Pulsator Assembly AGZ72909711, Fixes Washer will not agitate

Genuine LG washer pulsator, also called a washplate, that mounts at the bottom of the wash basket and circulates the load through the wash water.

Part AGZ72909711LG

Genuine LG washer pulsator, also called a washplate, that mounts at the bottom of the wash basket and circulates the load through the wash water.

Is This the Right Part?

Part NumberAGZ72909711
ManufacturerLG
Appliance TypeWasher
Part TypeWasher Pulsator Assembly

Common Symptoms

  • Poor or ineffective agitation
  • Clothes are not moved effectively during washing
  • Marks left on clothes
  • Pulsator spins without properly moving the load
  • Grinding or unusual pulsator noise

Check Before Replacing

  • With power disconnected, inspect the pulsator for visible cracks, breakage, or damage.
  • Observe whether the bottom pulsator moves during a wash cycle; lack of movement can also have causes other than the pulsator.
  • Confirm the complete washer model number before ordering because compatibility varies by model.

Pro Tip

The center pulsator cap is sold separately.

Part Details

Part NumberAGZ72909711
Part TypeWasher Pulsator Assembly
ManufacturerLG
Appliance TypeWasher
Primary FunctionProvides the washer's mechanical wash action by rotating back and forth at the bottom of the basket.

Key Features

  • Genuine LG OEM part
  • Bottom-mounted washplate/pulsator assembly
  • Includes the pulsator assembly; the center cap is sold separately

Installation Notes

  • Disconnect electrical power before servicing.
  • Shut off the washer water supply before installation.
  • Wear work gloves to protect hands.
  • Remove and reinstall the center fastener and pulsator cap according to the washer's service documentation.

Verified Compatible Models

29002, 29272, 29278, 29472, 29478, 31402, 31403, 31412, 31422, 31423, 31433, 31452, 31462, 31463, 31512, 31513, 31522, 31523, 31552, 31553, 31622, 31623, 35452, 35563, 048231013369, 048231013635, 79629002000, 79629272000, 79629272001, 79629272900, 79629278001, 79631402410, 79631403410, 79631412310, 79631422410, 79631423410, 79631553610, LGWT7200CW, T1872EFHUB, WT28EGTX6, WT1101CW, WT1150CW, WT1201CV, WT1201CW, WT1301CW, WT1501CW, WT1701CV, WT1701CW, WT1801HVA, WT1801HWA, WT1901CK, WT1901CW, WT4901CW, WT4970CW, WT5070CV, WT5075CW, WT5101HV, WT5101HW, WT5270CW, WT5270HV, WT5270HW, WT5480CW, WT5680HVA, WT5680HWA, WT6001HV, WT6001HVA, WT7050CV, WT7100CW, WT7150CW, WT7150CX, WT7200CV, WT7200CW, WT7300CV, WT7300CW, WT7400CV, WT7400CW, WT7500CW, WT7600HKA, WT7600HMA, WT7600HWA, WT7800CV, WT7800CW, WT7880HWA, WT7900HBA, WT7900HWA, WT8400CB, WT8400CW, WT8600CB, WT8600CW

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
