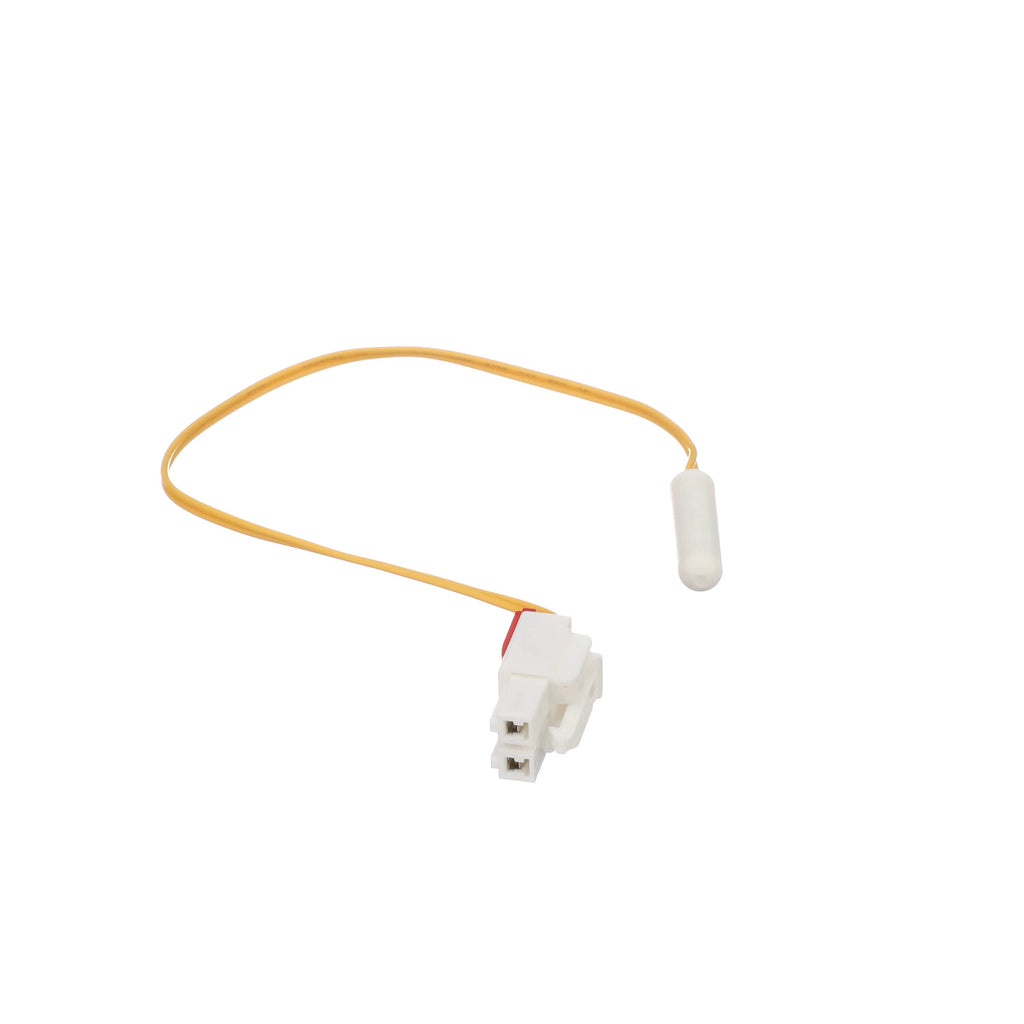

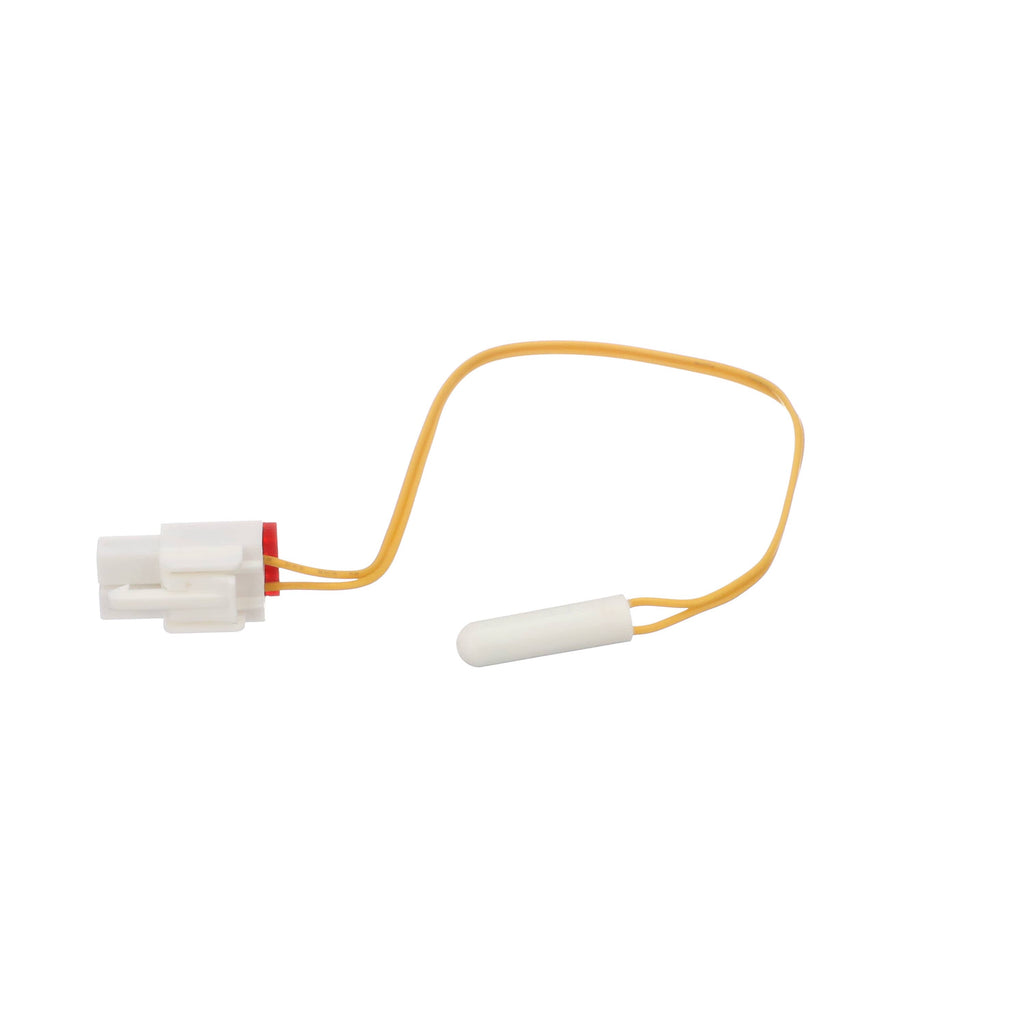

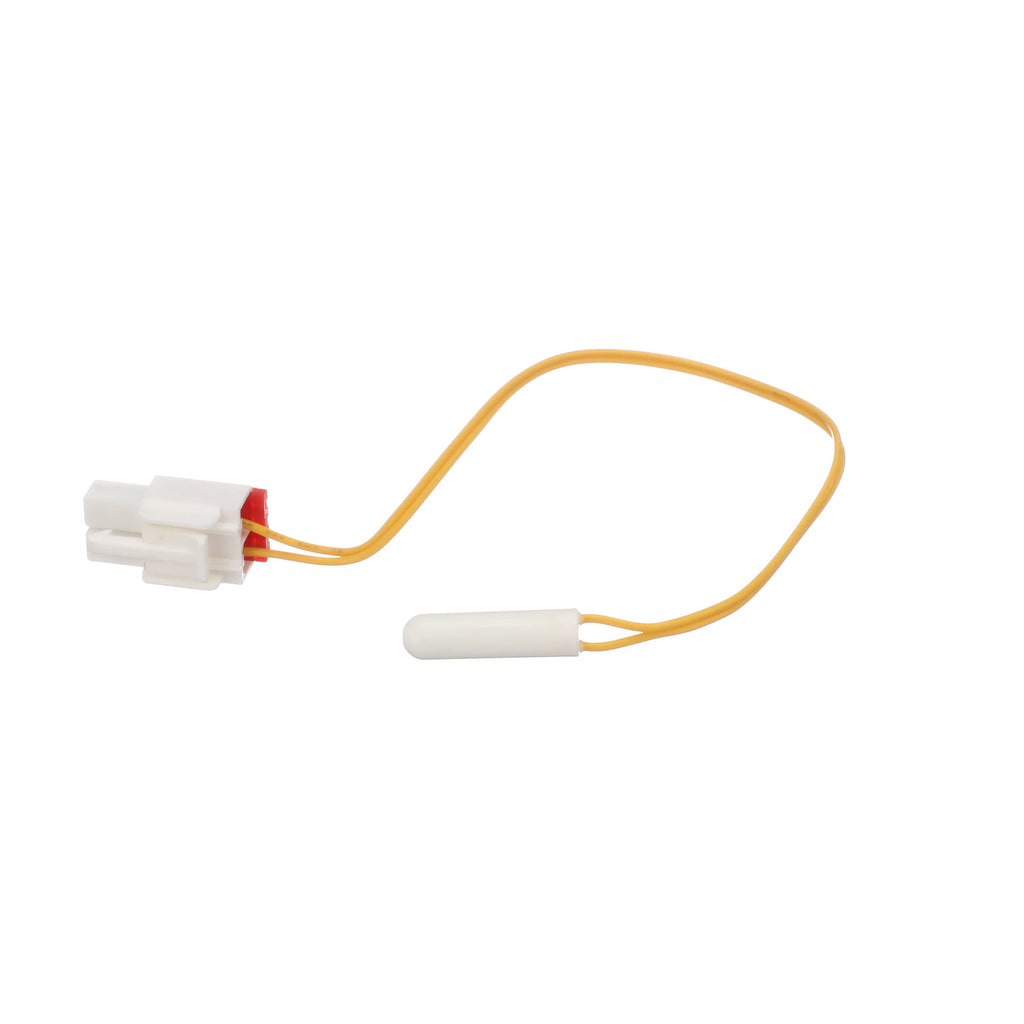

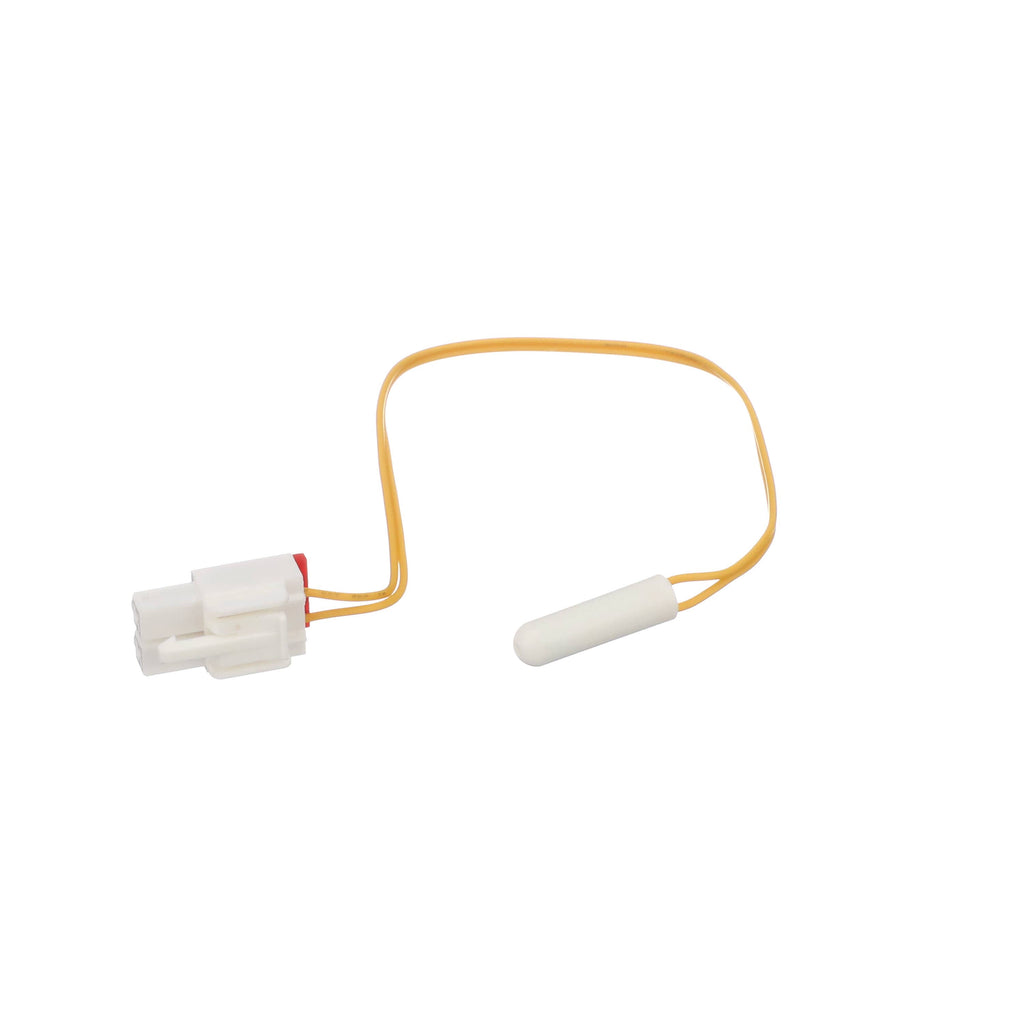

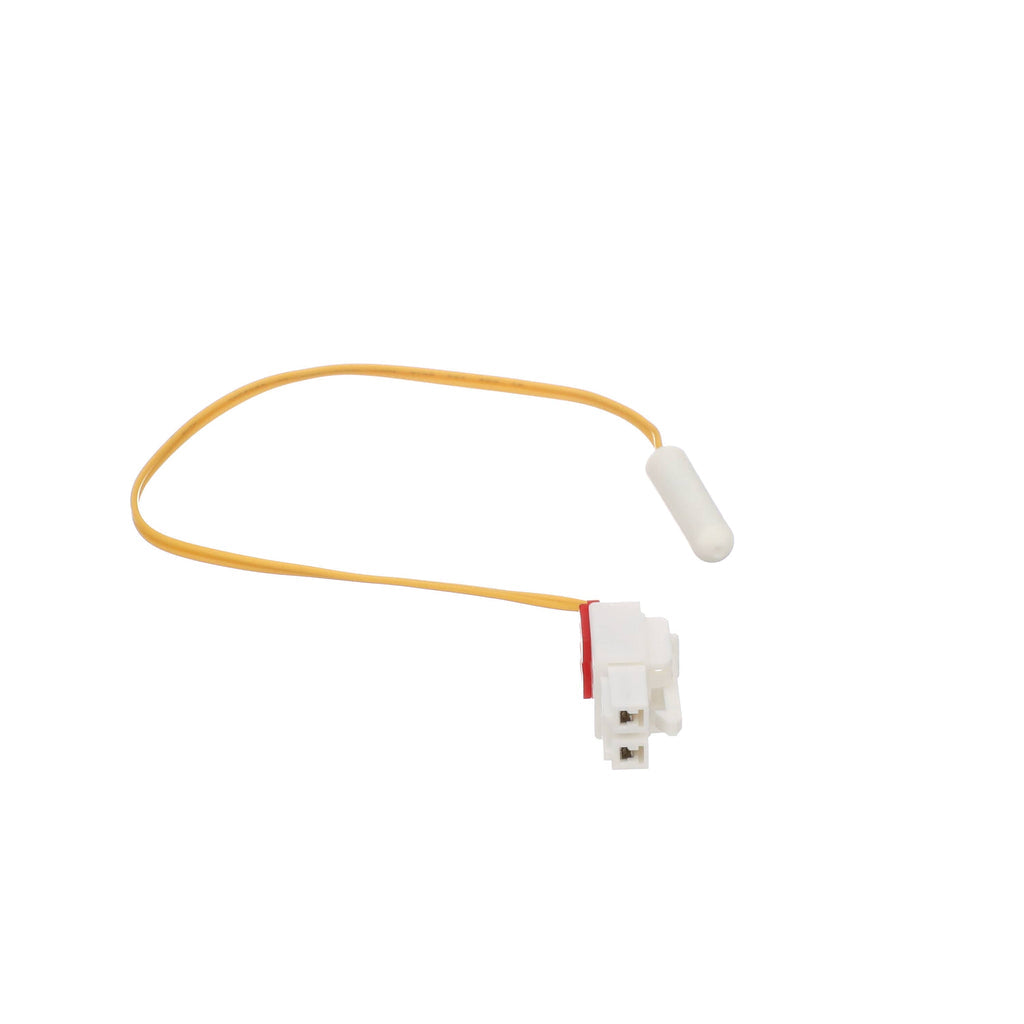

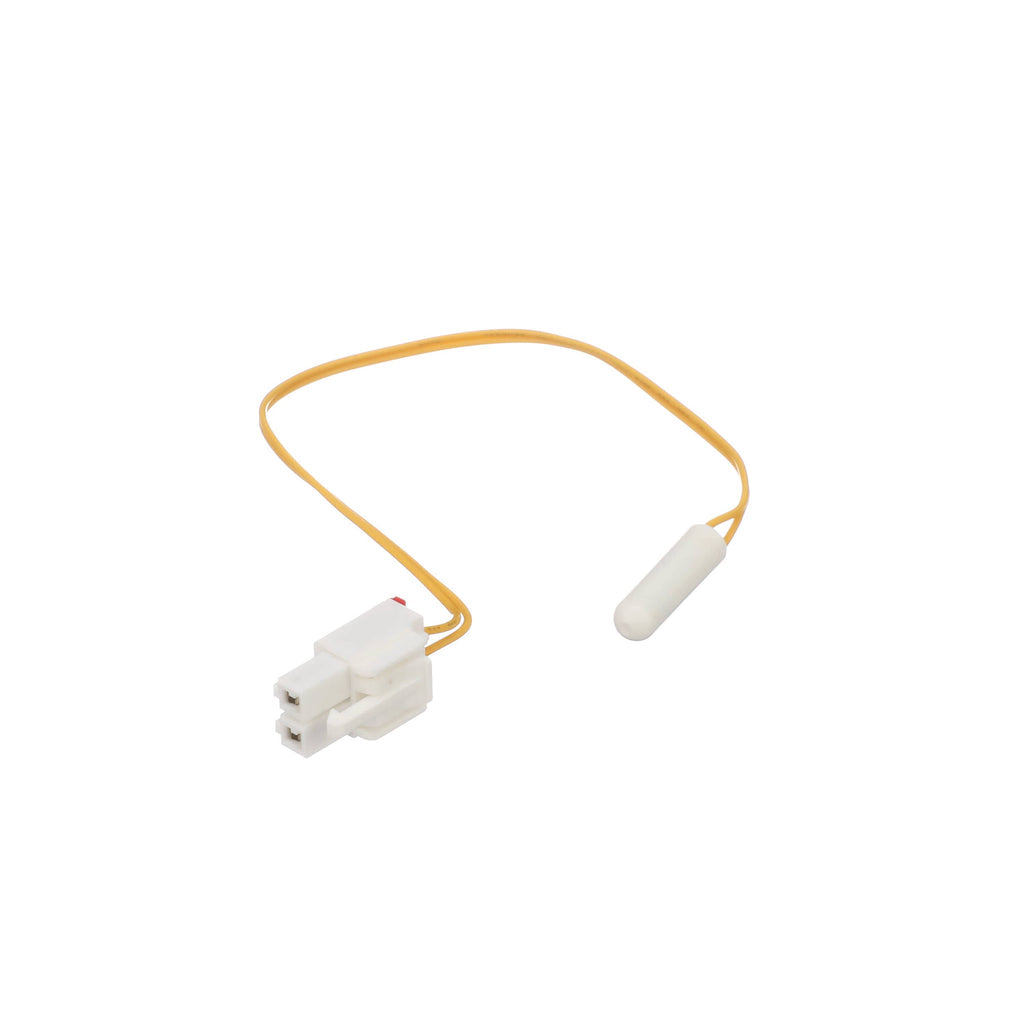

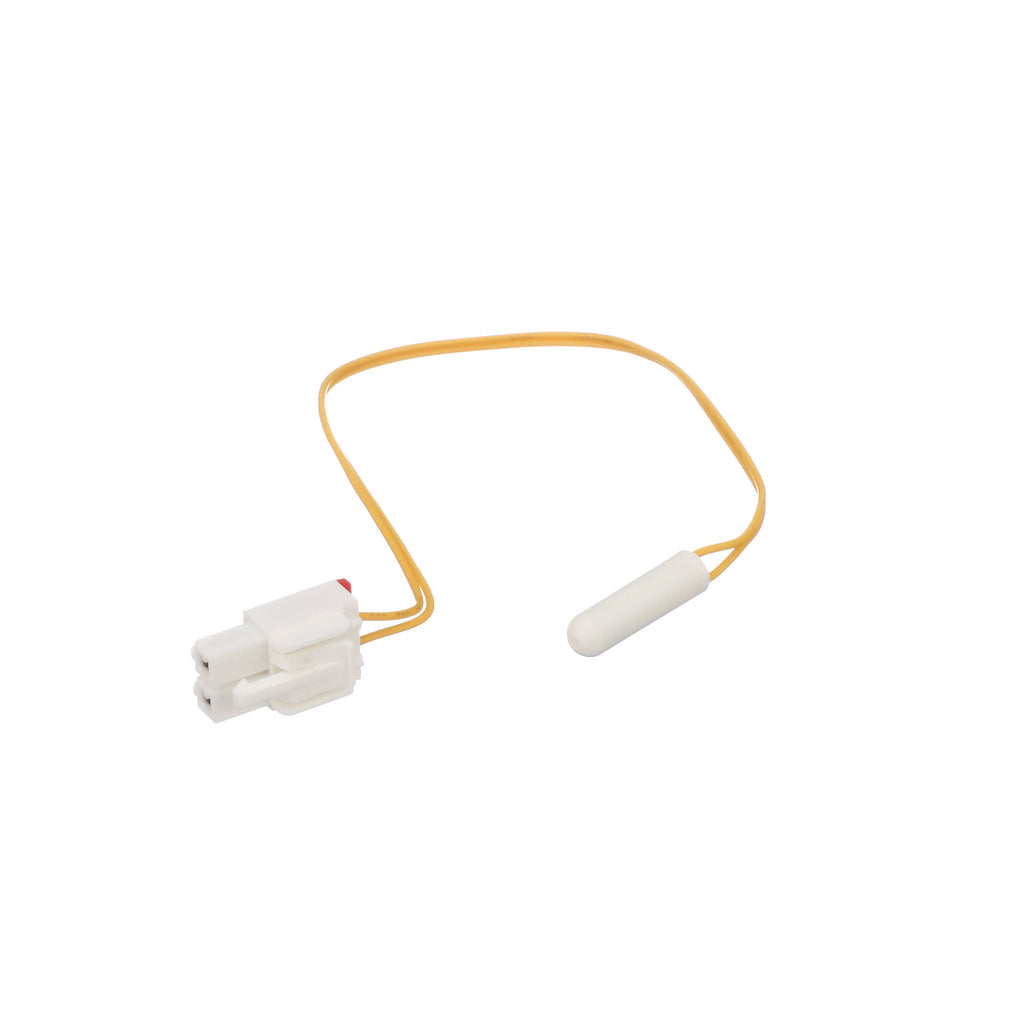

Samsung Refrigerator Pantry Temperature Sensor DA32-00006R

Samsung refrigerator pantry temperature sensor/thermistor. Samsung exploded-parts documentation identifies it as "SENSOR TEMP-PANTRY" with specification PX-41C, 502AT, AW-PJT, -40~110°C, 5V, pantry sensor, yellow, 200 mm.

Is This the Right Part?

Common Symptoms

• Pantry contents may become too warm.
• Pantry contents may freeze or become excessively cold.
• Pantry temperature may fluctuate or read inaccurately.

Check Before Replacing

• Verify the pantry temperature with an independent refrigerator thermometer rather than relying only on the display.
• Inspect the sensor wiring and connector for visible damage, loose connections, or corrosion after disconnecting refrigerator power.
• If service documentation for the exact refrigerator model specifies a resistance test, compare the sensor reading with the model's temperature/resistance chart; an AppliancePartsPros technician response cites approximately 5.6 kΩ at room temperature as a reference value.
• Check for obvious airflow obstruction or ice buildup near the pantry sensor before condemning the sensor, since other refrigerator components can cause similar temperature symptoms.

Pro Tip

Part Details

Key Features

• Genuine Samsung pantry temperature sensor/thermistor.
• Component designation: SENSOR TEMP-PANTRY.
• Thermistor specification documented as PX-41C, 502AT, AW-PJT; pantry sensor, yellow, 200 mm.
• Designed to provide temperature feedback to the refrigerator control system.

Installation Notes

• Disconnect refrigerator power before accessing or disconnecting the sensor.
• Access may require removal of pantry-area components such as drawers, dividers, shelves, or a damper/vent assembly, depending on the refrigerator model.
• Disconnect the existing sensor connector carefully and route the replacement wiring as the original was routed; do not pinch or obstruct the wire during reassembly.
• After reassembly, restore power and verify pantry temperature operation.
• Use the exact model-specific service information for access details because the procedure varies by refrigerator model.

Verified Compatible Models

GFSS6KIXBSS, PFSS9PKYASS, RF260BEAEBC, RF260BEAESP, RF260BEAESPAA, RF260BEAESR, RF260BEAESRAA, RF260BEAEWW, RF260BEAEWWAA, RF261BEAEBC, RF261BEAESP, RF261BEAESR, RF261BEAEWW, RF261BEAEWWAA, RF261BIAESRAA, RF263AEBP, RF263AEBPXAA, RF263AEPN, RF263AEPNXAA, RF263AERSXAA, RF263AEWP, RF263AEWPXAA, RF263BEAEBC, RF263BEAEBCAA, RF263BEAESG/AA-0002, RF263BEAESG/AA-0003, RF263BEAESG/AA-0004, RF263BEAESP, RF263BEAESP/AA-0004, RF263BEAESPAA, RF263BEAESR, RF263BEAEWW, RF263BEAEWWAA, RF263TEAEBC, RF263TEAEBCAA, RF263TEAEWWAA, RF265AABP, RF265AABPXAA, RF265AARS, RF265AARSXAA, RF265AASH, RF265AASHXAA, RF265AAWP, RF265AAWPXAA, RF265ABBP, RF265ABPN, RF265ABPNXAA, RF265ABRS, RF265ABWP, RF265ABWPXAA, RF266AABP, RF266AARS, RF266AARSXAA, RF266AASH, RF266AASHXAA, RF266AAWP, RF266ABBP, RF266ABBPXAA, RF266ABPN, RF266ABRS, RF266ABRSXAA, RF266ABWP, RF266ABWPXAA, RF266ACWPXAA, RF266ADBPXAA, RF266ADPNXAA, RF266ADRS/XAA, RF266AEBP, RF266AEBPXAA, RF266AEPN, RF266AERS, RF266AERSXAA, RF266AEWP, RF266AEWPXAA, RF267AABP, RF267AARS, RF267AASH, RF267AAWP, RF267AAWPXAA, RF267ABBP, RF267ABBPXAA, RF267ABPN, RF267ABRS, RF267ABRSXAA, RF267ABWP, RF267ABWPXAA, RF267ADRSXAA, RF267AEBP, RF267AERS, RF267AERS/XAA-0000, RF267AERSXAA, RF267AEWP, RF267AEWP/XAA-0000, RF267AEWP/XAA-0001, RF267AZBPXAA, RF268ABBPXAA, RF268ABRS, RF268ABWP, RF268ABWPXAA, RF268ACBPXAA, RF268ACPNXAA, RF268ACRSXAA, RF268ACWPXAA, RF26DEPN, RF26HFPNBSR/AA-0001, RF26HFPNBSR/AA-0003, RF26J7500BC/AA-0003, RF26J7500SR/AA-0003, RF26J7500SR/AA-0004, RF26J7500WW/AA-0003, RF26J7500WW/AA-0004, RF28HDEDBSG/AA-0000, RF28HDEDBSG/AA-0002, RF28HDEDBSR/AA-0000, RF28HDEDBSR/AA-0001, RF28HDEDBSR/AA-0002, RF28HDEDBSR/AA-0003, RF28HDEDBSR/AA-0004, RF28HDEDBSR/AA-0005, RF28HDEDBSR/AA-0006, RF28HDEDBSR/AA-0008, RF28HDEDBSR/AA-0009, RF28HDEDBSR/AA-0010, RF28HDEDBSR/AA-0013, RF28HDEDBSR/AA-0014, RF28HDEDBSR/AA-0015, RF28HDEDBSR/AA-0051, RF28HDEDBSR/AA-0052, RF28HDEDBSR/AA-0054, RF28HDEDPBC/AA-0002, RF28HDEDPBC/AA-0003, RF28HDEDPBC/AA-0004, RF28HDEDPBC/AA-0005, RF28HDEDPBC/AA-0006, RF28HDEDPBC/AA-0008, RF28HDEDPWW/AA-0000, RF28HDEDPWW/AA-0005, RF28HDEDPWW/AA-0006, RF28HDEDPWW/AA-0007, RF28HDEDPWW/AA-0008, RF28HFEDBBC/AA-2, RF28HFEDBBC/AA-6, RF28HFEDBBC/AA-7, RF28HFEDBSG/AA-0, RF28HFEDBSG/AA-1, RF28HFEDBSG/AA-2, RF28HFEDBSG/AA-3, RF28HFEDBSR/AA-1, RF28HFEDBSR/AA-2, RF28HFEDBSR/AA-21, RF28HFEDBSR/AA-22, RF28HFEDBSR/AA-23, RF28HFEDBSR/AA-3, RF28HFEDBSR/AA-7, RF28HFEDBWW/AA-6, RF28HFEDBWW/AA-7, RF28HFEDTSG/AA-3, RF28HFEDTSG/AA-4, RF28HFPDBSR/AA-1, RF28HFPDBSR/AA-2, RF28HFPDBSR/AA-3, RF28HFPDBSR/AA-4, RF28HFPDBSR/AA-5, RF28HFPDBSR/AA-6, RF28HFPDBSR/AA-7, RF28R6201SR/AA-0000, RF28R6301SG/AA-0000, RF28R6301SG/AA-0051, RF28R6301SR/AA-0000, RF30HDEDTSR/AA-3, RF323TEDBBC, RF323TEDBBCAA, RF323TEDBSR, RF323TEDBSRAA, RF323TEDBWWAA, RFG237AABP, RFG237AABP/XAA-0001, RFG237AABP/XAA-0002, RFG237AABP/XAA-0004, RFG237AABP/XAA-0005, RFG237AABPXAA, RFG237AAPN, RFG237AAPN/XAA-0001, RFG237AAPN/XAA-0003, RFG237AARS, RFG237AARS/XAA-0001, RFG237AARS/XAA-0002, RFG237AARS/XAA-0003, RFG237AARS/XAA-0004, RFG237AARSXAA, RFG237AAWP/XAA-0001, RFG237AAWP/XAA-0002, RFG237AAWP/XAA-0003, RFG237AAWP/XAA-0004, RFG237AAWPXAA, RFG237ACRS, RFG237ACRSXAC, RFG238AABP, RFG238AABPXAA, RFG238AAPN, RFG238AAPNXAA, RFG238AARS, RFG238AARS/XAA-0001, RFG238AARS/XAA-0002, RFG238AARSXAA, RFG238AAWPXAA, RFG238AZRS, RFG238AZRSXAA, RFG293HABP/XAA-0001, RFG293HABP/XAA-0002, RFG293HABP/XAA-0003, RFG293HABP/XAA-0004, RFG293HABPXAA, RFG293HAPN, RFG293HAPNXAA, RFG293HARS, RFG293HARS/XAA-0002, RFG293HARS/XAA-0003, RFG293HARSXAA, RFG293HAWP, RFG293HAWP/XAA-0001, RFG293HAWP/XAA-0002, RFG293HAWP/XAA-0003, RFG293HAWP/XAA-0004, RFG293HAWPXAA, RFG297AABP, RFG297AAWP, RFG297AAWPXAA, RFG297ACBP, RFG297ACBPXAC, RFG297ACRS, RFG297ACRSXAC, RFG297ACWP, RFG297ACWPXAC, RFG297HDBP/XAA-0001, RFG297HDBP/XAA-0003, RFG297HDBP/XAA-0004, RFG297HDBP/XAA-0005, RFG297HDBPXAA, RFG297HDRS, RFG297HDRS/XAA-0000, RFG297HDRS/XAA-0001, RFG297HDRS/XAA-0002, RFG297HDRS/XAA-0003, RFG297HDRS/XAA-0004, RFG297HDRS/XAA-0005, RFG297HDRSXAA, RFG297HDWPXAA, RFG298AAPN, RFG298AAPNXAA, RFG298AARS, RFG298AAWP, RFG298AAWPXAA, RFG298HDBP/XAA-0003, RFG298HDBP/XAA-0004, RFG298HDRS, RFG298HDWP/XAA-0002, RFG298HDWP/XAA-0003, RFG298HDWP/XAA-0004, RFG298HDWP/XAA-0005, RFG298HDWPXAA, RFG299AARSXAA, RFG29PHDBP/XAA-0001, RFG29PHDBP/XAA-0003, RFG29PHDBPXAA, RFG29PHDRS/XAA-0001, RFG29PHDRS/XAA-0002, RFG29PHDRS/XAA-0003, RFG29PHDRS/XAA-0004, RFG29PHDRSXAA, RFG29PHDWP/XAA-0000, RH22H8010SR/AA-0001, RH22H8010SR/AA-0002, RH22H8010SR/AA-0003, RH22H8010SR/AA-0004, RH22H8010SR/AA-0005, RH22H8010SR/AA-0006, RH22H9010SG/AA-0000, RH22H9010SG/AA-0001, RH22H9010SG/AA-0002, RH22H9010SG/AA-0003, RH22H9010SG/AA-0004, RH22H9010SR/AA-0000, RH22H9010SR/AA-0001, RH22H9010SR/AA-0002, RH22H9010SR/AA-0003, RH22H9010SR/AA-0004, RH22H9010SR/AA-0005, RH22H9010SR/AA-0006, RH22H9010SR/AA-0007, RH22H9010SR/AA-0008, RH22H9010SR/AA-0009, RH22H9010SR/AA-0010, RH22H9010SR/AA-0011, RH22H9010SR/AA-0012, RH22H9010SR/AA-0013, RH22H9010SR/AA-0014, RH22H9010SR/AA-0015, RH29H8000SR/AA-0001, RH29H8000SR/AA-0002, RH29H8000SR/AA-0003, RH29H8000SR/AA-0004, RH29H8000SR/AA-0006, RH29H8000SR/AA-0007, RH29H9000SR/AA-0000, RH29H9000SR/AA-0001, RH29H9000SR/AA-0002, RH29H9000SR/AA-0003, RH29H9000SR/AA-0005, RH29H9000SR/AA-0006, RH29H9000SR/AA-0007, RH29H9000SR/AA-0008, RH29H9000SR/AA-0009, RH29H9000SR/AA-0012, RH29H9000SR/AA-0013, RH29H9000SR/AA-0014, RH29H9000SR/AA-0015, RF23HCEDBBCAA0000, RF23HCEDBWWAA0000, RF263BEAESPAA0001, RF265AABPXAA0000, RF265AARSXAA0000, RF265AASHXAA0000, RF265AAWPXAA0000, RF266AABPXAA0000, RF266AARSXAA0000, RF266AASHXAA0000, RF266AAWPXAA0000, RF266ABPN/XAA, RF266ACWPXAA0000, RF266ADBPXAA0000, RF266ADRSXAA0000, RF266ADWPXAA0000, RF266AZPNXAA0000, RF266AZRSXAA0000, RF26HFPNBSRAA0000, RF28HFEDBWWAA0000, RF28HFEDBWWAA0001, RF28HFEDBWWAA0002, RF28HFEDBWWAA0003, RF28HFEDTBCAA0000, RF28HFEDTBCAA0001, RF28HFEDTBCAA0002, RF28HFEDTBCAA0003, RF28HFEDTWWAA0000, RF28HFEDTWWAA0001, RF28HFEDTWWAA0002, RF28HFEDTWWAA0003, RF28HFPDBSRAA0000, RFG238AABPXAA0000, RFG238AAPNXAA0000, RFG238AAWPXAA0000, RFG297AABP/XAA, RFG297AAPN/XAA, RFG297AARS/XAA, RFG297ABPN/XAA, RFG298AABP/XAA, RFG298AARS/XAA

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
