Samsung Range Burner Stuck on High or Not Regulating? Energy Regulator DG44-01009B – Fix Heat Control Failures Fast

A failed energy regulator is the most common cause of a Samsung electric range burner that is stuck on high, won't maintain a set temperature, or cycles erratically between heat levels. In most Samsung electric ranges, the energy regulator (also called a simmerstat or infinite switch) controls the duty cycle of the surface heating element — cycling power on and off to maintain precise heat from low simmer to high. When it fails, the burner loses the ability to modulate heat, leaving it stuck on maximum output, completely off, or cycling unpredictably. ⚡ Common failure point in Samsung electric ranges with heavy daily use. Part DG44-01009B is the genuine OEM replacement that restores smooth, precise burner heat control immediately — directly supersedes NL811236 and 811236, no modification required.

❓ Is This the Right Part?

This is the correct fix if ALL of the following are true:

• ✔ Range powers on and other burners operate normally
• ✔ Heating element (surface coil or radiant) confirmed functional — not burned out
• ✔ Power supply and outlet confirmed delivering correct voltage
• ✔ Wiring harness to the regulator confirmed intact with no burned terminals
• ✔ ONLY problem is one burner stuck on high, not regulating temperature, or cycling erratically at any setting

Not sure? Send us your model number — we'll confirm before you order.

🔧 Common Symptoms

• Burner stuck on high heat and won't turn down — most common complaint
• Burner not heating at all despite element being functional
• Burner cycles on and off erratically at any heat setting
• Control knob turns but burner does not respond or change heat level
• Burning smell from the control panel area near the regulator
• Visible burn marks or melted plastic on or around the regulator body

✔ If these symptoms match, this is the most likely failed component in the system.

✔ In most cases, replacing this energy regulator restores full, precise burner heat control immediately.

📦 Part Details

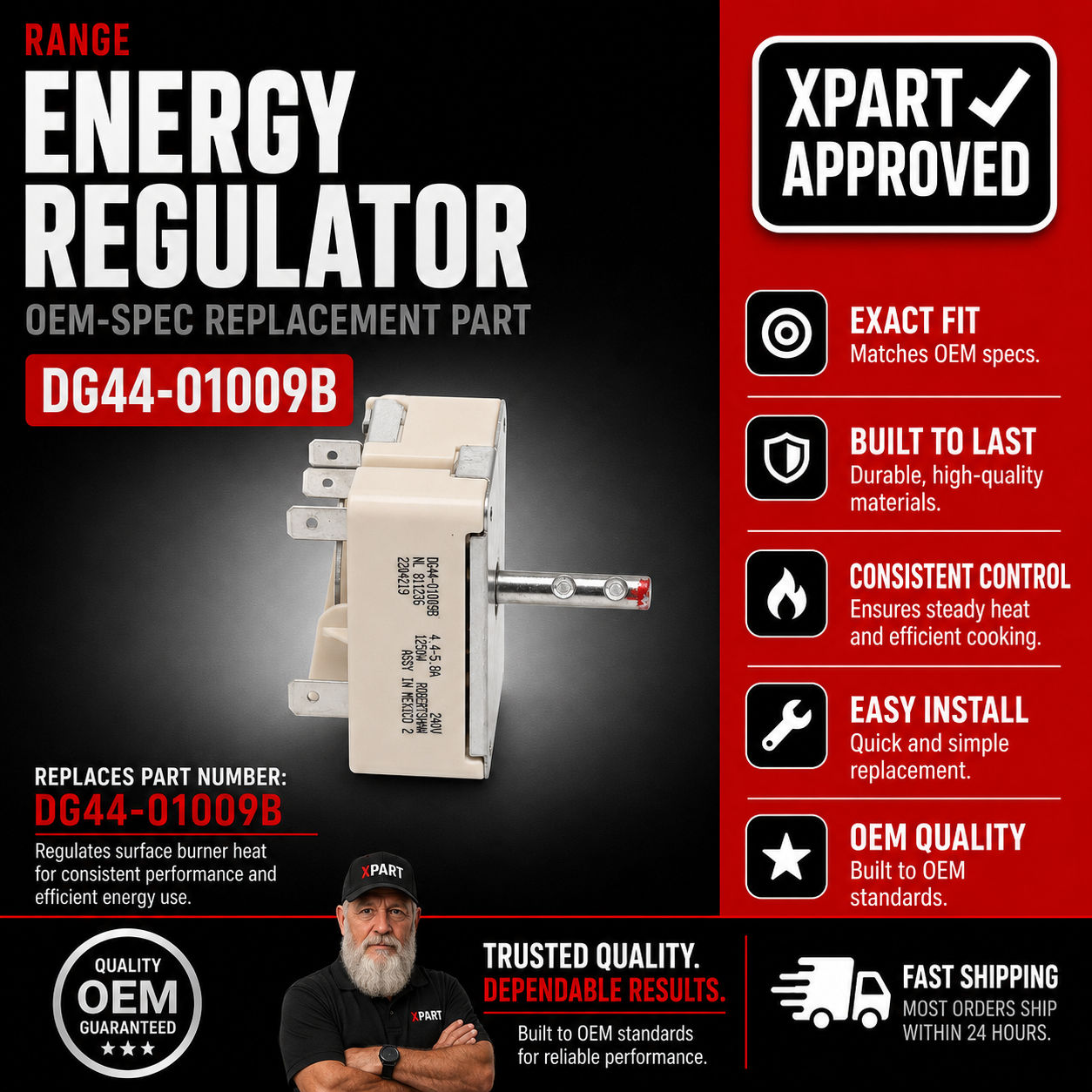

• Part Number: DG44-01009B
• Type: Range Energy Regulator (Simmerstat / Infinite Switch) — 811236-S, 5.8A configuration; controls duty cycle of surface heating element for precise heat modulation
• Replaces: NL811236, 811236
• Brands: Samsung

⚙️ Installation

Skill Level: MODERATE — 20–40 minutes. Disconnect power before beginning. The regulator is accessed by removing the control panel or rear panel depending on your model. Photograph all wiring connections before disconnecting — match wire positions exactly when connecting to the new regulator. Restore power and test each heat setting from low to high before reassembling the panel.

✓ Compatible Models

Confirmed compatible with NE63A6111SB/AA, NE63A6111SS/AA, NE63A6111SW/AA, NE63A6311SG/AA, NE63A6311SS/AA, NE63A6511SB/AA, NE63A6511SG/AA, NE63A6511SS/AA, NE63A6511SW/AA, NE63A6711SG/AA, NE63A6711SS/AA, NE63A6711ST/AA, NE63A6751SS/AA, NE63T8111SG/AA, NE63T8111SS/AA, NE63T8311SS/AA, NE63T8511SS/AA, NE63T8711SS/AA plus additional Samsung electric range models. Contact us to verify your model number before ordering.
