Whirlpool Corporation Refrigerator Freezer Door Assembly, Stainless LW10413531, Replaces W10413531

Genuine Whirlpool stainless/monochromatic-stainless freezer door assembly for a refrigerator. The assembly includes the inner liner and outer panel; additional included items should be confirmed against the applicable parts diagram.

Is This the Right Part?

✅ Cross Reference Information

Common Symptoms

• Door misalignment
• Difficulty closing the freezer door
• Visible door or outer-panel damage
• Air leakage around the freezer door when the door assembly or sealing interface is damaged

Check Before Replacing

• Confirm the freezer door is visibly misaligned, damaged, or unable to close correctly before replacing the assembly.
• Inspect the door perimeter and sealing interface for obvious gaps, deformation, or damage with the door closed.
• Check that stored items, shelves, or bins are not obstructing door closure.

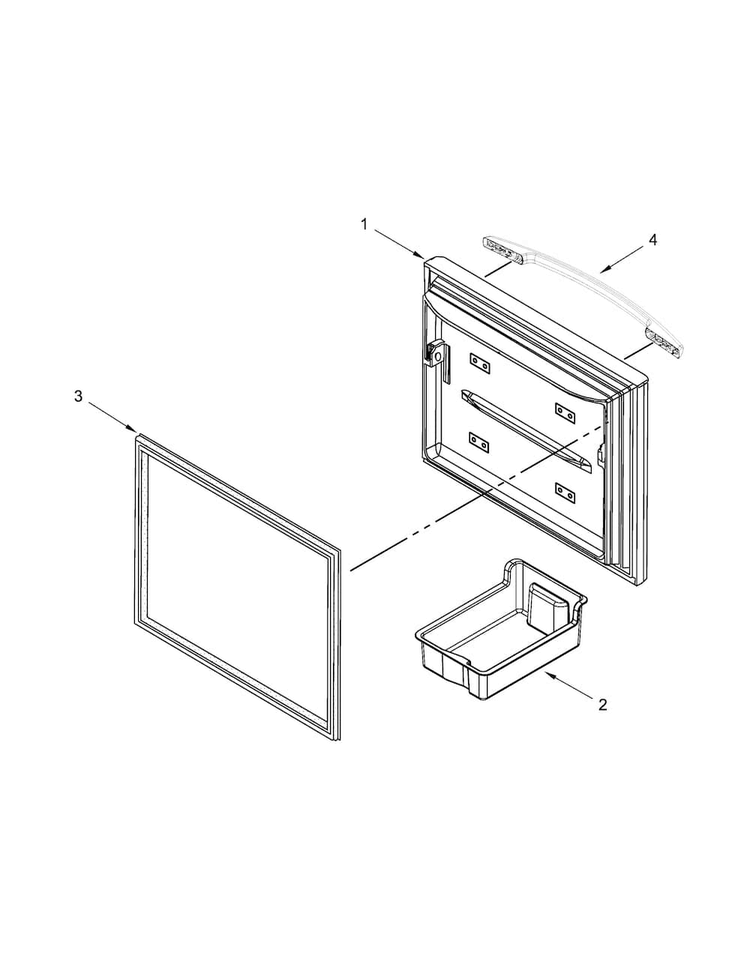

• Compare the replacement door’s finish, orientation, and visible features with the existing door and applicable parts diagram before installation.
• Do not lift or remove the door assembly alone; its weight requires safe handling with assistance.

Pro Tip

Part Details

Key Features

• Genuine Whirlpool OEM freezer door assembly
• Stainless/monochromatic-stainless exterior finish
• Complete door assembly rather than an exterior panel alone
• Includes the inner liner and outer panel
• Additional included components should be confirmed against the applicable parts diagram
• Replaces manufacturer part W10413531

Installation Notes

• Use a helper to safely support and lift the heavy door assembly.
• Consult the applicable refrigerator service or owner documentation before attempting installation.
• Confirm the parts diagram for included components; the assembly may not include every door accessory or hardware item.
• After installation, verify that the door is aligned, closes fully, and seals evenly without forcing it.

Verified Compatible Models

10673002510, 10673002511, 10673003510, 10673003511, 10673009510, 10673009511, 10679402410, 10679403410, 10679472410, 10679472411, 10679473411, 59673002510, 59673003510, 59673003511, 59673009510, IX5BBEXDS00, IX5BBEXDS01, KFFS20EYBL00, KFFS20EYBL01, KFFS20EYBL02, KFFS20EYBL04, KFFS20EYMS00, KFFS20EYMS01, KFFS20EYMS02, KFFS20EYMS04, KFFS20EYWH00, KFFS20EYWH01, KFFS20EYWH02, KFFS20EYWH04, KRFF300EBL00, KRFF300ESS00, KRFF300ESS01, KRFF300EWH00, KRFF300EWH01, MFB2055DRE00, MFB2055DRE01, MFB2055DRH00, MFB2055DRH01, MFB2055DRM00, MFB2055DRM01, MFB2055YEB00, MFB2055YEB01, MFB2055YEB02, MFB2055YEM00, MFB2055YEM01, MFB2055YEM02, MFB2055YEW00, MFB2055YEW01, MFB2055YEW02, MFF2055DRE00

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
