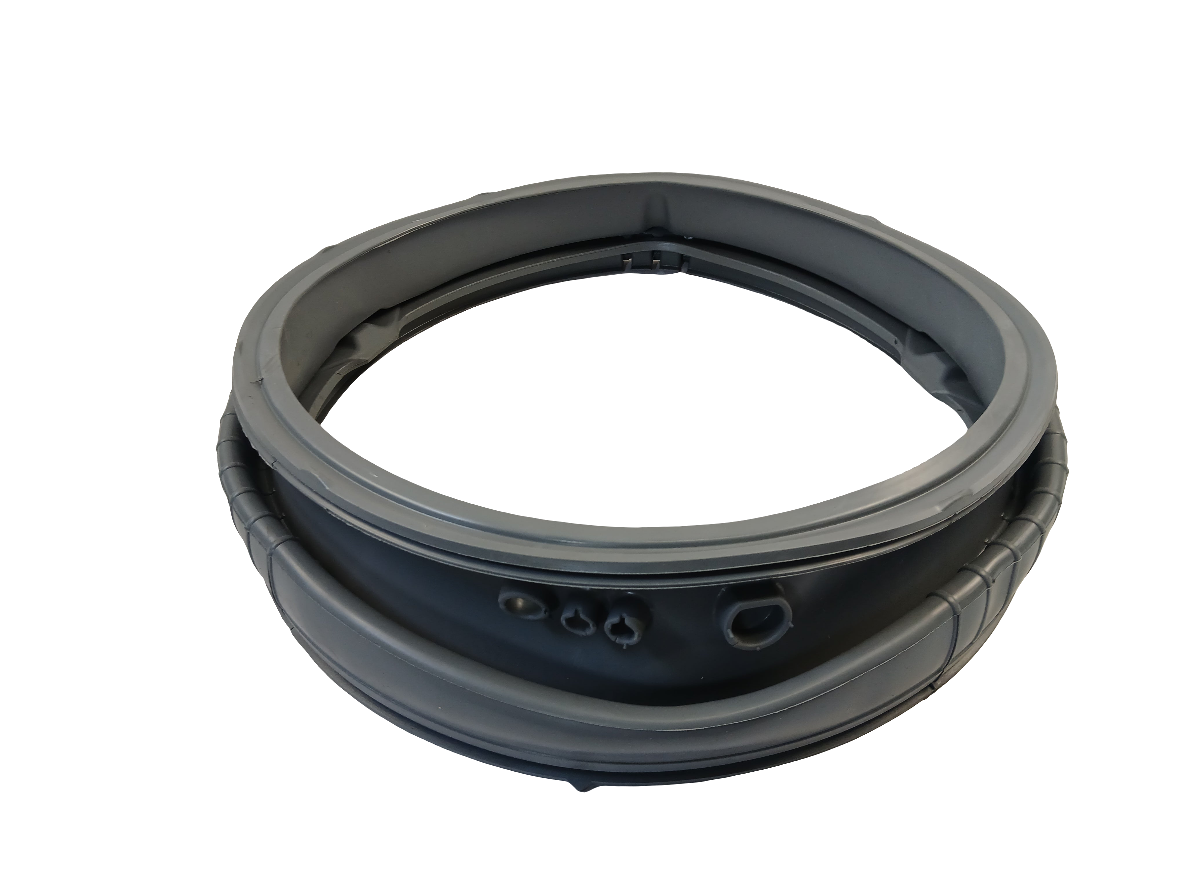

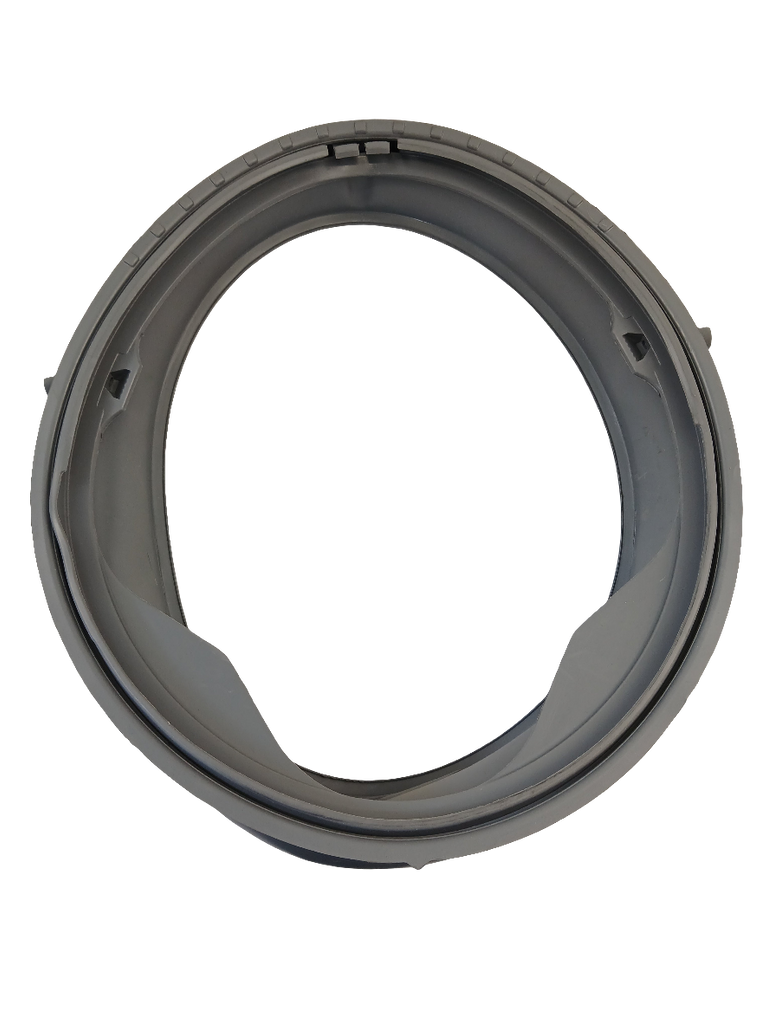

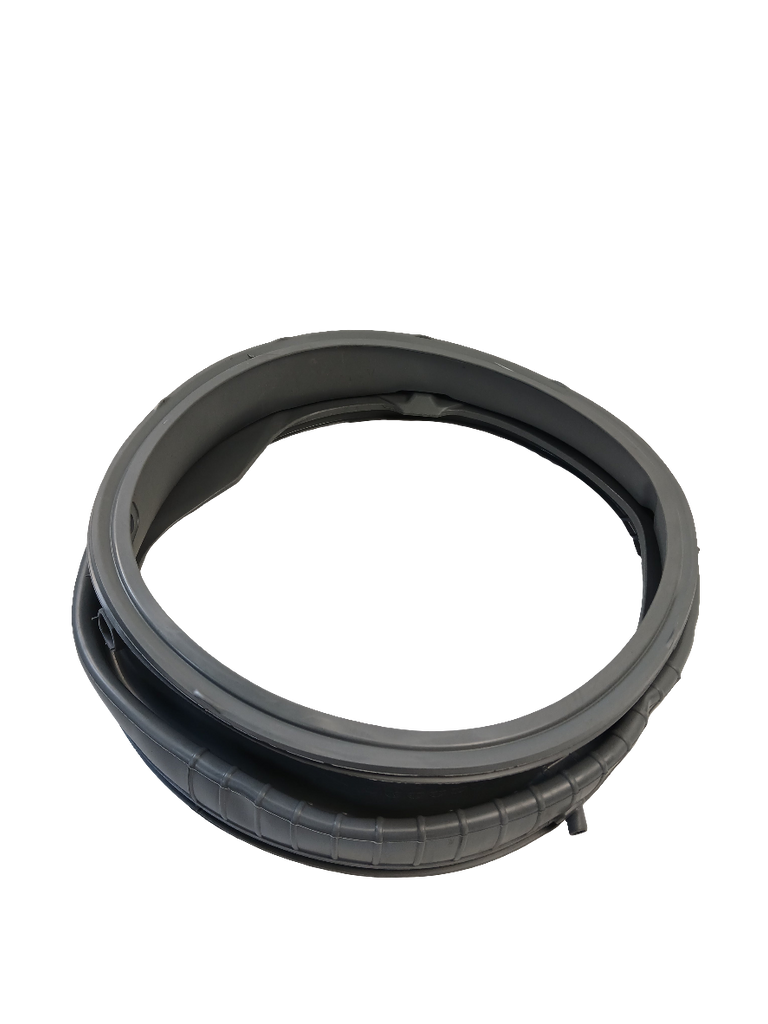

LG Washer Door Gasket MDS47123605

Front-load washer door boot gasket that forms a seal between the washer door and wash tub to help prevent water leakage.

Is This the Right Part?

Common Symptoms

• Water appearing below or around the washer door during a cycle
• Door difficult to close or lock when the gasket is damaged or misaligned
• Musty or unpleasant odor associated with residue or moisture retained in the gasket folds
• Visible tearing, cracking, deformation, or foreign objects lodged in the gasket

Check Before Replacing

• With the washer empty and powered off, visually inspect the entire gasket—especially the lower folds—for tears, cracks, distortion, or separation.
• Check the gasket-to-door contact area for hair, clothing, coins, or other foreign objects that could prevent a proper seal.
• Confirm that the gasket is seated evenly around the opening and that no clothing is trapped between the door glass and gasket.
• If there is no visible damage, clean and dry the gasket folds, then observe whether leakage continues during a supervised short cycle; do not assume the gasket is the cause because other washer components can also leak.

Pro Tip

Part Details

Key Features

• Genuine LG OEM front-load washer door boot/gasket
• Flexible rubber bellows design
• Creates a watertight door-to-tub seal
• Exact port and opening configuration is part-specific; compare the replacement with the original gasket and verify the appliance model before installation

Installation Notes

• Disconnect electrical power before beginning service and follow the washer's model-specific service or installation instructions.
• The gasket is retained by inner and outer retaining clamps; take care not to damage the new rubber seal while removing or reinstalling them.
• Align the gasket correctly with the washer tub and any drain or hose openings before securing the clamps.
• After installation, inspect the gasket for even seating and run a supervised test cycle, checking the door area for leaks.
• If clamp removal, panel access, or gasket alignment cannot be completed safely, use qualified appliance service.

Verified Compatible Models

796.41392510, 796.41392511, 796.41393510, 796.41393610, 796.41472210, 796.41473210, 796.41482410, WM3370HWA, WM3470HVA, WM3470HWA, WM3570HVA, WM3570HWA, WM3575CV, WM3575CW, WM3770HWA

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
