Whirlpool Dryer lint filter W10120998, Replaces 1206293, 3390721, 8066170, 8572268, W10049370, W10178353, W10596627

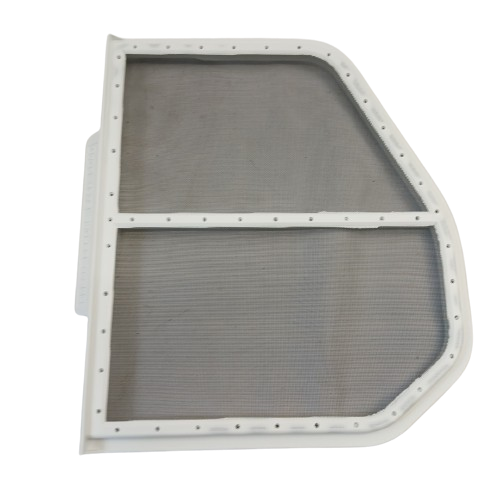

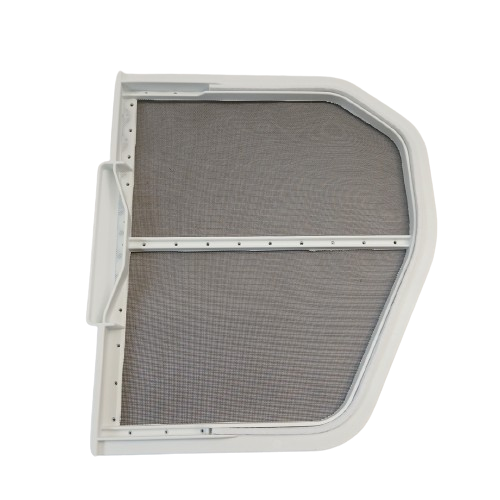

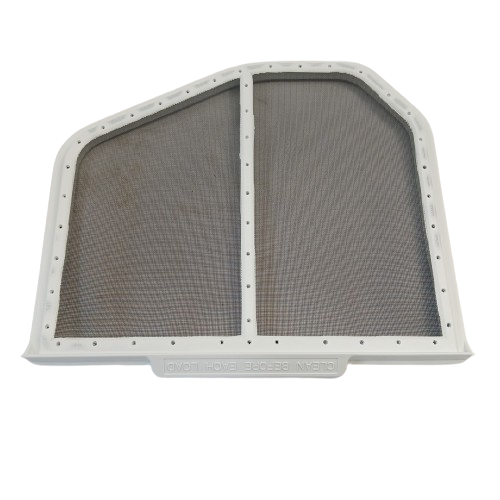

Genuine Whirlpool OEM dryer lint filter/lint screen. The filter traps lint from dryer exhaust airflow; documented versions include an improved center reinforcement strip and felt seal.

Is This the Right Part?

✅ Cross Reference Information

Common Symptoms

• Lint bypassing the filter because the screen, frame, or felt seal is damaged
• Dryer overheating or restricted airflow when the filter is clogged
• Door not closing properly if the filter is warped, damaged, or incorrectly seated
• Marks on clothing associated with a damaged or improperly seated filter

Check Before Replacing

• Remove the filter and inspect the mesh for tears, holes, heavy residue, or deformation.
• Confirm the filter is fully seated in its slot and that the felt seal is intact where applicable.
• Clean visible lint from the filter and filter slot; do not operate the dryer with a damaged filter.
• After cleaning, check whether airflow and drying performance improve; persistent overheating or long drying times require broader dryer and vent-system diagnosis.

Pro Tip

Part Details

Key Features

• Genuine Whirlpool OEM dryer lint filter
• Fine mesh screen designed to capture lint and debris from exhaust airflow
• Improved center reinforcement strip
• Includes felt seal according to documented product listings
• Approximate size: 12.1 to 12.5 inches wide by 10.5 to 10.7 inches deep
• Tool-free replacement is documented by established parts sources

Installation Notes

• Disconnect the dryer from electrical power before servicing.
• Remove the existing lint filter from its slot.
• Inspect and clear lint from the filter slot before installing the replacement.
• Insert W10120998 fully into the designated slot and confirm it is seated correctly.
• Follow the appliance owner's manual if the model-specific filter arrangement differs.

Verified Compatible Models

11060052990, 11060052991, 11060056990, 11060056991, 11060072990, 11060072991, 11060092990, 11060092991, 11060094990, 11060094991, 11060096990, 11060097990, 11060372710, 11060901990, 11060902990

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
