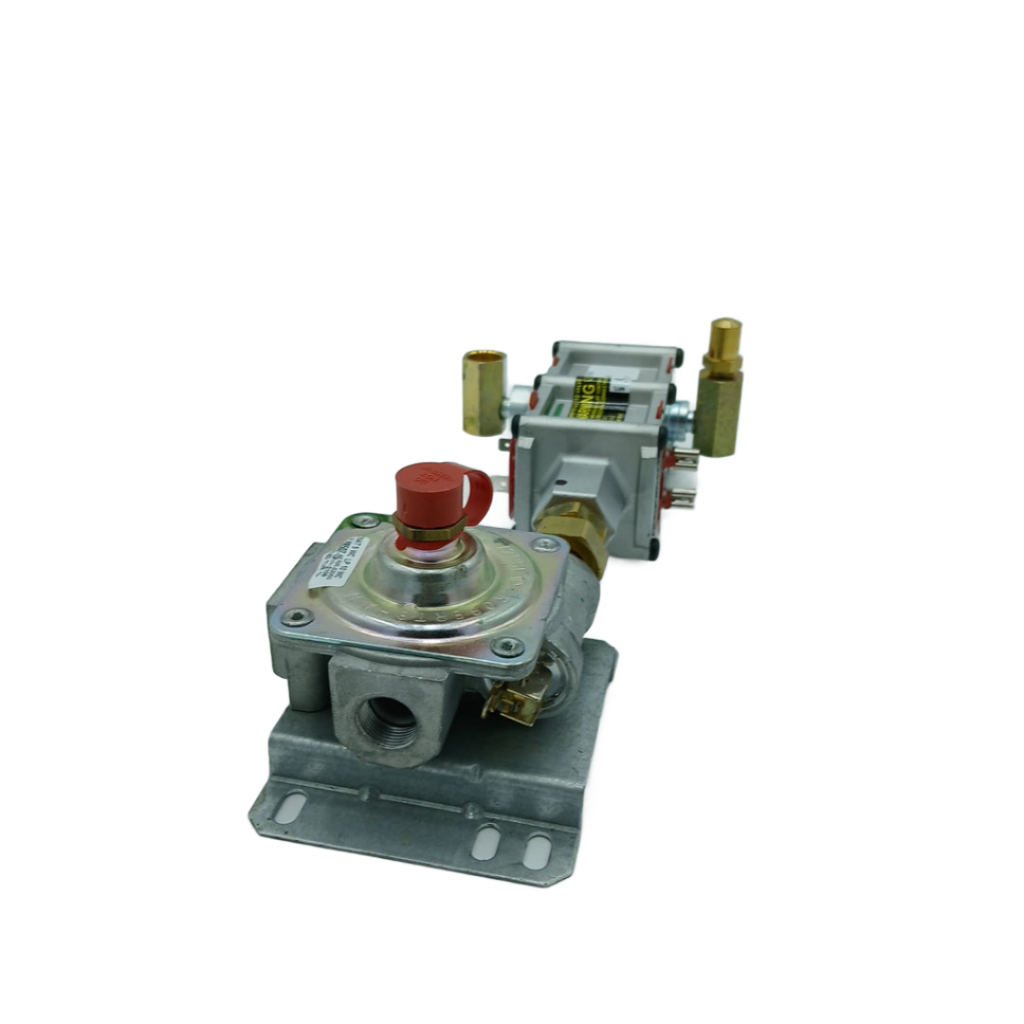

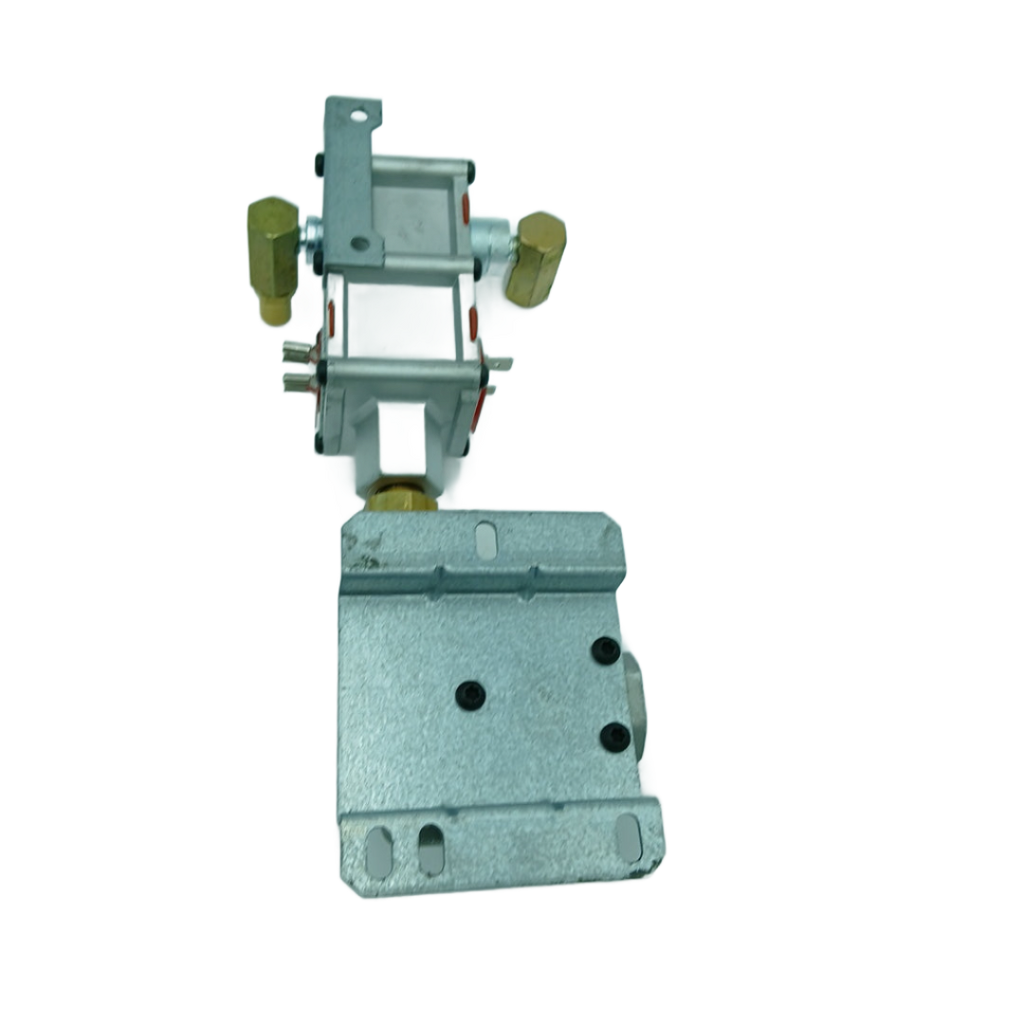

Whirlpool Range Gas Valve and Regulator Assembly W10130932, Replaces 7501P231-60, Fixes No or insufficient oven heat
OEM gas valve and regulator assembly for a gas range. It controls gas flow to the bake and broil burners and regulates incoming gas pressure to a safe, constant level.
OEM gas valve and regulator assembly for a gas range. It controls gas flow to the bake and broil burners and regulates incoming gas pressure to a safe, constant level.
Is This the Right Part?
Common Symptoms
- Oven will not start or ignite
- Insufficient heat or failure to reach the selected temperature
- Unstable or inconsistent burner operation
- Gas odor during operation—stop using the range and shut off the gas supply if safe to do so
Check Before Replacing
- Confirm the range’s gas shutoff valve is open and that other gas appliances have normal operation.
- Observe whether the symptom affects both bake and broil functions, rather than only one burner.
- Check the appliance documentation for the specified gas type and supply requirements; do not adjust the regulator setting.
- If a gas odor is present, stop testing, avoid ignition sources, and contact a qualified gas-appliance technician or gas utility.
Pro Tip
Part Details
Key Features
- Whirlpool genuine OEM valve and regulator assembly
- Combines gas-valve control with pressure regulation
- Supports bake and broil burner gas delivery
- Listed for select Whirlpool, Maytag, Jenn-Air, Amana, and related range models
Installation Notes
- Disconnect electrical power and shut off the range’s gas supply before installation.
- Wear work gloves when handling the assembly.
- Use the appliance’s model-specific parts diagram and service documentation to confirm connection locations and assembly orientation.
- Gas-line disconnection, reconnection, and leak testing should be performed by a qualified appliance or gas technician; do not alter the factory regulator setting.
Verified Compatible Models
AGS1740BDQ, AGS1740BDW, AGS3760BDB, AGS3760BDQ, AGS3760BDS, AGS3760BDW, AGS5730BDB, AGS5730BDQ, AGS5730BDS, AGS5730BDW, ISG650VS12, ISG650VS13, ISG650WS00, ISG650WS01, JGS8750BDB
Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
✅Compatibility & Cross Reference
Not sure about your model number? Call 1-877-899-7278 and we’ll help you confirm. All brand names are the property of their respective owners and are used for compatibility reference only.
