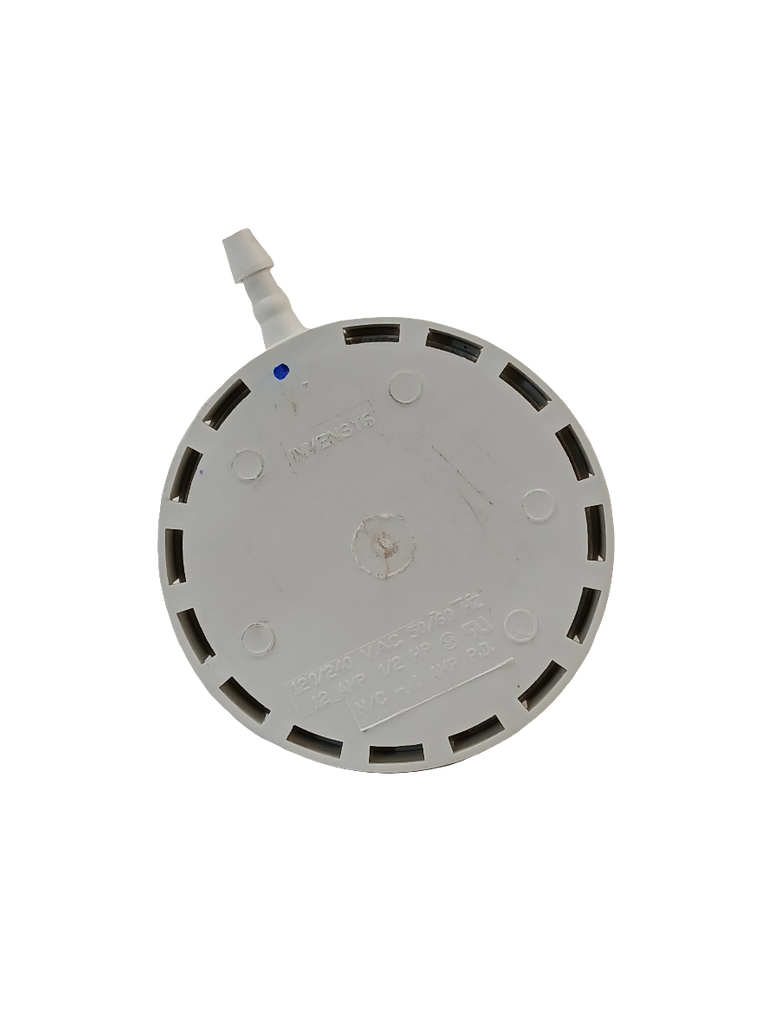

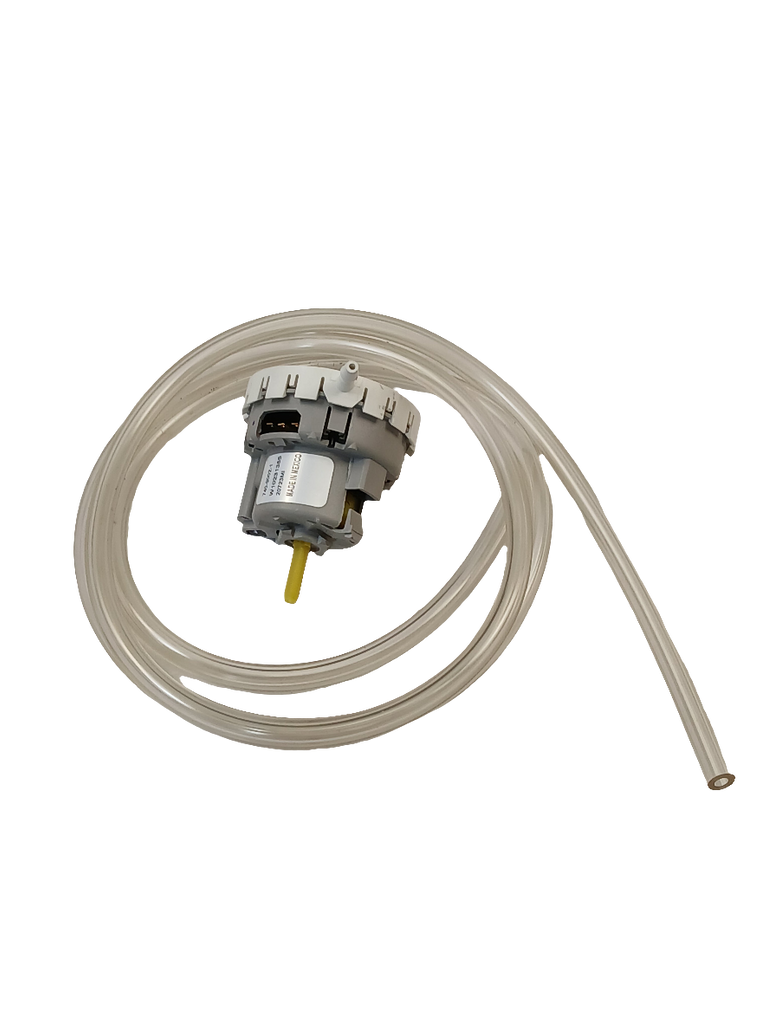

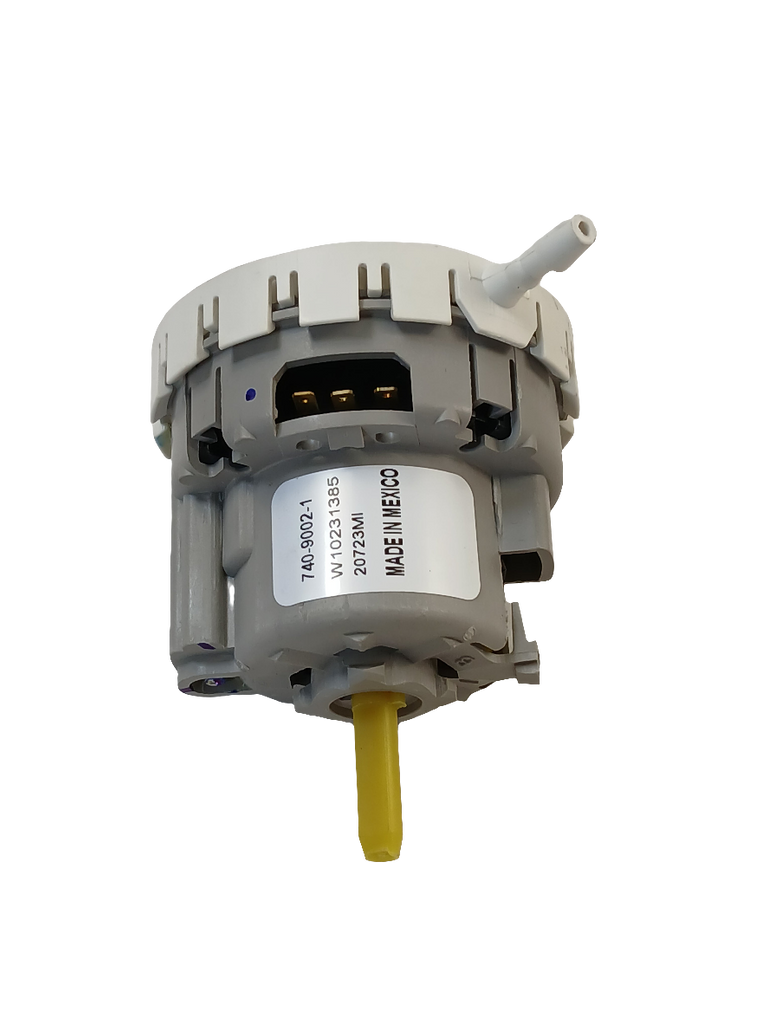

Whirlpool Washer Water-Level Pressure Switch W10339228, Replaces 3366849

Is This the Right Part?

✅ Cross Reference Information

Common Symptoms

• Washer continues filling beyond the selected level.
• Washer stops filling at an incorrect water level.
• Long-fill behavior may occur when the pressure-sensing system cannot detect the expected level.

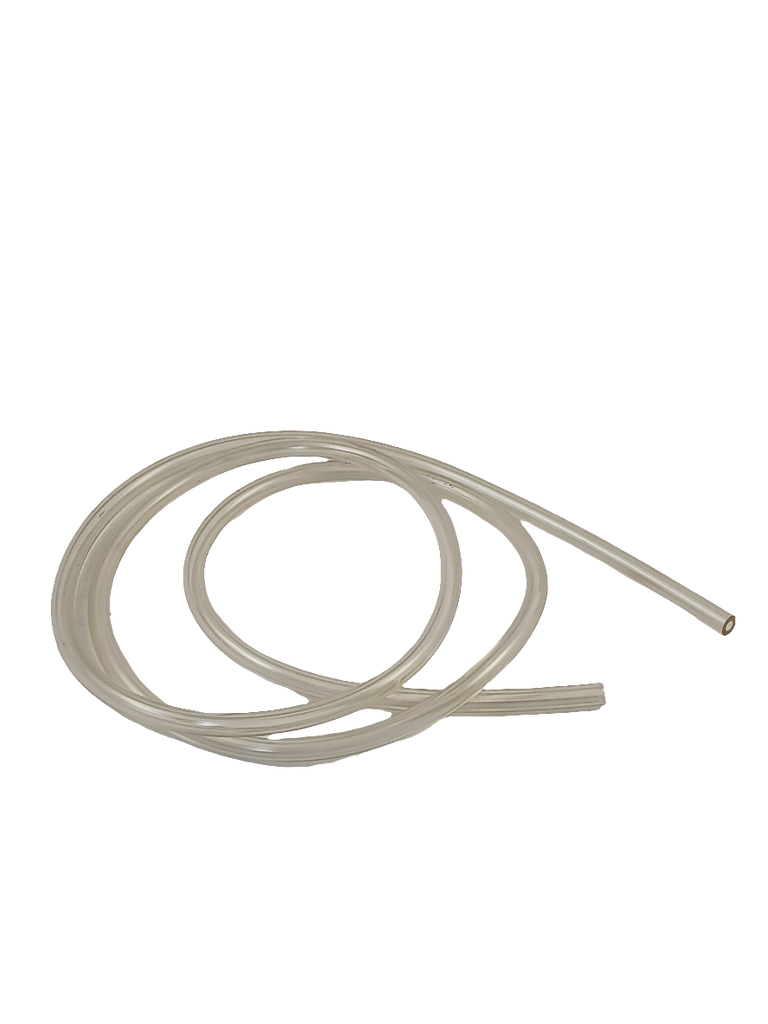

• Water-level control problems may result when the pressure hose is kinked, leaking, obstructed, or disconnected.

Check Before Replacing

• Disconnect washer power and shut off the water supply before inspection or service.
• Visually inspect the pressure hose connection at the switch and tub pressure dome.
• Check that the pressure hose is correctly routed and is not kinked, pinched, or visibly leaking.
• Check the hose and pressure dome for visible water, suds, or debris; clear the hose only according to the applicable service documentation.
• Verify that the electrical connector and switch harness are fully seated and undamaged.
• If the applicable washer tech sheet specifies an electrical test, compare switch continuity at the documented pressure states; do not use continuity results alone to diagnose the switch without checking the hose, wiring, and controls.

Pro Tip

Part Details

Installation Notes

• Disconnect electrical power and shut off the washer water supply before installation.
• Access and panel-removal steps vary by washer model; follow the model-specific service documentation.
• Transfer the pressure hose and electrical connection to the replacement switch without damaging or stretching them.
• Route the pressure hose as originally installed and confirm that it is not kinked or pinched.
• Reinstall all removed panels and verify that the hose and harness connections are secure before returning the washer to service.

Verified Compatible Models

11013202200, 11013212200, 11014202300, 11014212200, 11014222300, 11016212500, 11016212501, 11016212502, 11016212503, 11018202790, 11019202200, 11020402990, 11020412990, 11020412991, 11027622790

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
