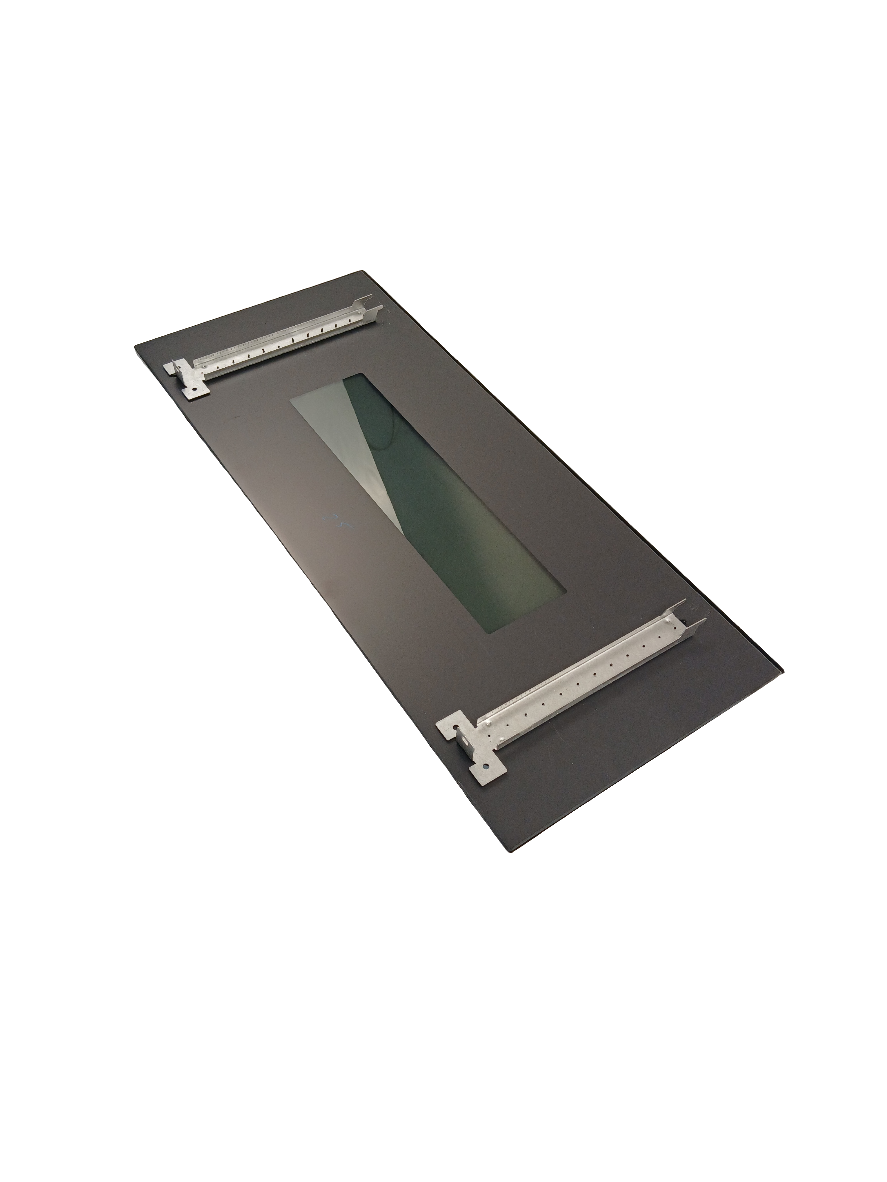

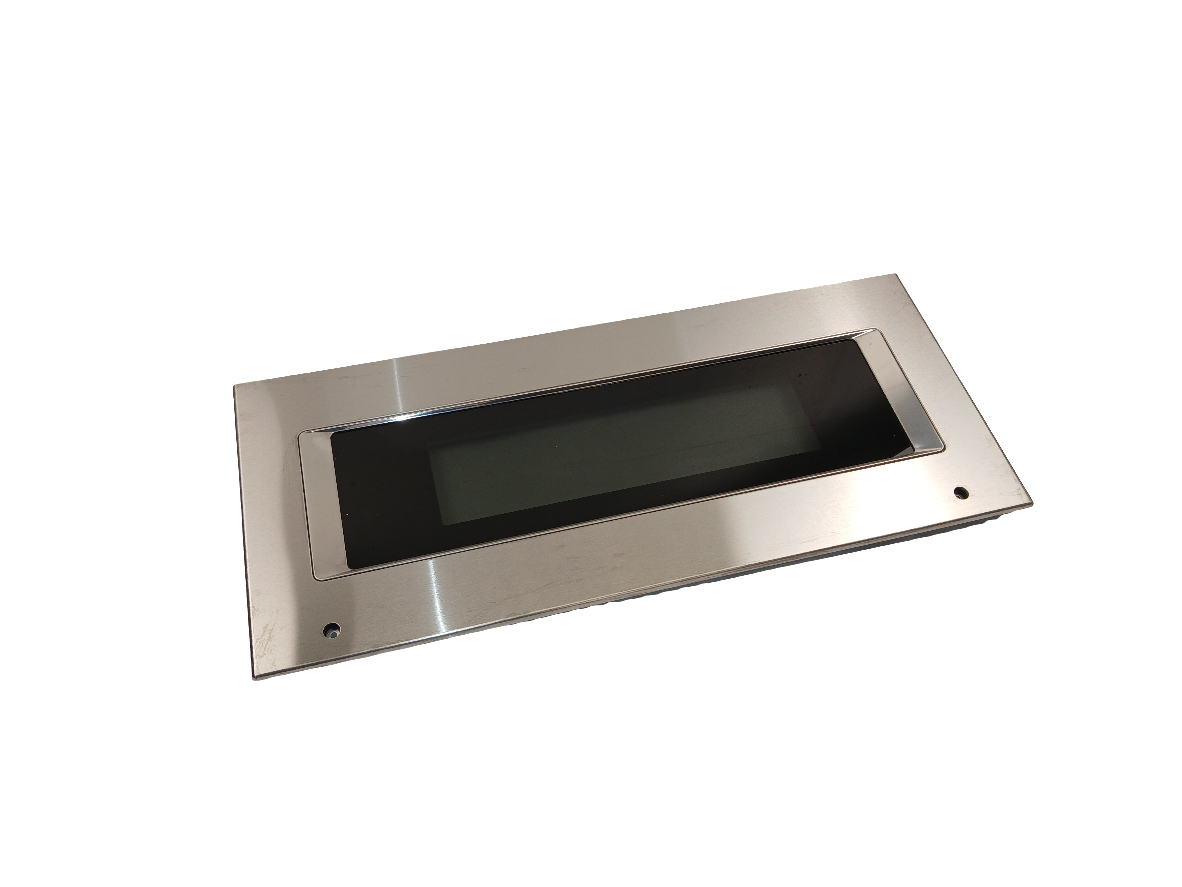

Microwave Door Cracked, Shattered, or Not Sealing? W10775493 Glass Door – Fix It Fast

Name: W10775493 Microwave Glass Door | Replaces W10615372 | Jenn-Air, Whirlpool, KitchenAid
Brand: XPart Supply Ltd.
SKU: A056883G
Price: 318.6 CAD
Availability: OutOfStock

A cracked, shattered, or damaged microwave door is a safety issue that stops your appliance from operating and must be replaced immediately. In most Jenn-Air, KitchenAid, and Whirlpool built-in microwave and wall oven/microwave combination units, the glass door is a structural and safety component — it contains the microwave energy, seals heat during convection cooking, and provides visibility into the cavity. When the glass cracks or the door frame warps, the unit will not operate safely and most models will refuse to start. ⚡ High-impact failure point in built-in microwave and combination oven units. Part W10775493 is the genuine OEM replacement glass door that restores full safety, sealing, and operation immediately.

❓ Is This the Right Part?

This is the correct fix if ALL of the following are true:

✔ Your microwave or combination unit powers on and the control panel is responsive
✔ The magnetron, turntable, and interior lighting are functioning normally
✔ The door hinges and latch mechanism are undamaged
✔ The door interlock switches are intact and triggering correctly
✔ ONLY problem is the glass door itself — cracked, shattered, chipped, or the outer glass panel has separated

Not sure? Send us your model number — we’ll confirm before you order.

🔧 Common Symptoms

Visible crack, chip, or shatter in the microwave door glass — most common reason customers search for this part
Microwave won’t start — door sensor not detecting a fully closed, sealed door
Outer glass panel separated or delaminated from the door frame
Door feels loose, rattles, or doesn’t close flush with the unit face
Visible light escaping around the door seal during operation
Door handle broken or detached as part of the door assembly failure

✔ If these symptoms match, this is the most likely failed component in the system.

✔ In most cases, replacing this glass door assembly restores full safe operation immediately.

📦 Part Details

Part Number: W10775493
Type: OEM Microwave / Wall Oven Combination Glass Door Assembly
Replaces: OEM direct-fit glass door — supersedes W10615372 (no modification required)
Brands: Jenn-Air, KitchenAid, Whirlpool, Maytag, Maytag

⚠️ Recommended While Repairing:
While the door is off, inspect the door interlock switches and hinge arms for wear or misalignment — a bent hinge puts uneven stress on the new door glass and can cause premature cracking. Replacing worn hinges at the same time protects your investment.

⚙️ Installation Notes

Skill Level: MODERATE — 20 to 30 minutes. Disconnect power to the unit at the breaker before beginning. The door assembly attaches via hinge arms at the bottom of the door frame — support the door fully while removing the hinge screws to prevent it from dropping. Align W10775493 onto the hinge arms, secure the screws, and confirm the door closes flush and latches firmly before restoring power. Do not overtighten hinge screws — glass door frames are precision-fit and over-torquing can stress the frame.

✓ Compatible Models

Confirmed compatible with JMW2430DB00, JMW2430DB01, JMW2430DB02, JMW2430DB03, JMW2430DP00, JMW2430DP01, JMW2430DP02, JMW2430DP03, JMW2430DP04, JMW2430DS00, JMW2430DS01, JMW2430DS02, JMW2430DS03, JMW2430DS04, plus additional Jenn-Air JMC, JMW, JMW3430, KitchenAid KOCE/WOC/KMBP, Whirlpool MMW, and Maytag MMW models. Contact us to verify your model number before ordering.

💡 Pro Tip

Check the Door Interlock Switches Before Ordering the Door:
If your microwave won’t start but the door glass is intact, the interlock switches — not the door — are the more likely cause. The switches are inexpensive and fail far more often than the glass. Only order the door assembly if the glass is visibly damaged or the door frame is physically compromised.

✓ Model-Specific Repair Pages

WOCA7EC0HN00 WOC97EC0HZ00 WOC95EC0AS02 WOC75EC0HS00 WOC54EC0HS00 MMW9730FZ01 MMW7730DS01 KOCE900HSS00 KOCE900HBS00 KOCE500ESS01 KOCE500EBL01 KMBP100ESS01 JMW3430WS00 JMW3430DS00 JMW3430DB00 JMW2430WS00 JMC2430WS00 JMC2430DB00 JMC2130WB00

✅Compatibility & Cross Reference

Part number W10775493 replaces W10615372

JMC2130WB00, JMC2130WB01, JMC2130WS00, JMC2130WS01, JMC2130WS02, JMC2430DB00, JMC2430DB01, JMC2430DB02, JMC2430DP00, JMC2430DP01, JMC2430DP02, JMC2430DS00, JMC2430DS01, JMC2430DS02, JMC2430IL01, JMC2430IL02, JMC2430IM01, JMC2430IM02, JMC2430WB00, JMC2430WB01, JMC2430WB02, JMC2430WP00, JMC2430WP01, JMC2430WP02, JMC2430WR00, JMC2430WR01, JMC2430WS00, JMC2430WS01, JMC2430WS02, JMW2330WB00, JMW2330WB01, JMW2330WS00, JMW2330WS01, JMW2330WS02, JMW2430DB00, JMW2430DB01, JMW2430DB02, JMW2430DB03, JMW2430DP01, JMW2430DP02, JMW2430DP03, JMW2430DP04,, JMW2430DS00, JMW2430DS01, JMW2430DS02, JMW2430DS03, JMW2430DS04, JMW2430IL01, JMW2430IL02, JMW2430IM01, JMW2430IM02,, JMW2430WB00, JMW2430WB01, JMW2430WB02, JMW2430WB03, JMW2430WP00, JMW2430WP01, JMW2430WP02, JMW2430WP03, JMW2430WR00, JMW2430WR01, JMW2430WR02, JMW2430WS00, JMW2430WS01, JMW2430WS02, JMW2430WS03, JMW2430WW00, JMW2430WW01, JMW2430WW02, JMW2430WW03, JMW3430DB00, JMW3430DB01, JMW3430DB02, JMW3430DB03,, JMW3430DP00, JMW3430DP01, JMW3430DP02, JMW3430DP03, JMW3430DP04,, JMW3430DS00, JMW3430DS01, JMW3430DS02, JMW3430DS03, JMW3430DS04,, JMW3430HP00, JMW3430HS00, JMW3430IL00, JMW3430IL01, JMW3430IL02, JMW3430IM00, JMW3430IM01, JMW3430IM02,, JMW3430WB00, JMW3430WB01, JMW3430WB02, JMW3430WB03, JMW3430WP00, JMW3430WP01, JMW3430WP02, JMW3430WP03, JMW3430WR00, JMW3430WR01, JMW3430WR02, JMW3430WS00, JMW3430WS01, JMW3430WS02, JMW3430WS03, KMBP100EBS01, KMBP100EBS02, KMBP100EBS03, KMBP100ESS01, KMBP100ESS02, KMBP100ESS03, KOCE500EBL01, KOCE500EBL02, KOCE500EBL04, KOCE500EBL05, KOCE500EBL06, KOCE500EBL07, KOCE500EBL08, KOCE500EBL09, KOCE500EBL11, KOCE500EBS01, KOCE500EBS02, KOCE500EBS04, KOCE500EBS05, KOCE500EBS06, KOCE500EBS07, KOCE500EBS08, KOCE500EBS09, KOCE500EBS11, KOCE500ESS01, KOCE500ESS02, KOCE500ESS04, KOCE500ESS05, KOCE500ESS06, KOCE500ESS07, KOCE500ESS08, KOCE500ESS09, KOCE500ESS11, KOCE500EWH01, KOCE500EWH02, KOCE500EWH04, KOCE500EWH05, KOCE500EWH06, KOCE500EWH07, KOCE500EWH08, KOCE500EWH09, KOCE500EWH11, KOCE900HBS00, KOCE900HBS01, KOCE900HBS02, KOCE900HSS00, KOCE900HSS01, KOCE900HSS02, MMW7730DE01, MMW7730DE02, MMW7730DS01, MMW7730DS02, MMW9730FZ01, MMW9730FZ02, MMW9730FZ03, MMW9730FZ04, MMW9730FZ05, WOC54EC0AB02, WOC54EC0AB03, WOC54EC0AB04, WOC54EC0AB05, WOC54EC0AS02, WOC54EC0AS03, WOC54EC0AS04, WOC54EC0AS05, WOC54EC0AW02, WOC54EC0AW03, WOC54EC0AW04, WOC54EC0AW05, WOC54EC0HB00, WOC54EC0HB01, WOC54EC0HB02, WOC54EC0HB03, WOC54EC0HB04, WOC54EC0HS00, WOC54EC0HS01, WOC54EC0HS02, WOC54EC0HS03, WOC54EC0HS04, WOC54EC0HW00, WOC54EC0HW01, WOC54EC0HW02, WOC54EC0HW03, WOC54EC0HW04, WOC75EC0HB00, WOC75EC0HB01, WOC75EC0HS00, WOC75EC0HS01, WOC75EC0HS02, WOC75EC0HS03, WOC75EC0HS04, WOC75EC0HV00, WOC75EC0HV01, WOC75EC0HV02, WOC75EC0HV03, WOC75EC0HV04, WOC75EC0HW00, WOC75EC0HW01, WOC95EC0AB02, WOC95EC0AB03, WOC95EC0AB04, WOC95EC0AB05, WOC95EC0AH02, WOC95EC0AH03, WOC95EC0AH04, WOC95EC0AS02, WOC95EC0AS03, WOC95EC0AS04, WOC95EC0AS05, WOC97EC0HZ00, WOC97EC0HZ01, WOC97EC0HZ02, WOC97EC0HZ03, WOC97ES0ES00, WOC97ES0ES01, WOC97ES0ES02, WOC97ES0ES03, WOC97ES0ES04, WOCA7EC0HN00, WOCA7EC0HN01, WOCA7EC0HN02, WOCA7EC0HN03, WOCA7EC0HZ00, WOCA7EC0HZ01, WOCA7EC0HZ02, WOCA7EC0HZ03

Not sure about your model number? Call 1-877-899-7278 and we’ll help you confirm. All brand names are the property of their respective owners and are used for compatibility reference only.

Buy Online Pick Up In-Store

Address

101 Trillium Dr
Kitchener, Ontario N2E 1W8

Phone

1-877-899-7278

Hours

Mon–Fri 9 AM–5 PM • Sat 9 AM–1 PM

Get Directions

Map showing warehouse location at 101 Trillium Dr, Kitchener

View on Google Maps

W10775493 Microwave Glass Door – OEM Replacement for Jenn-Air, Whirlpool & KitchenAid (Replaces W10615372)

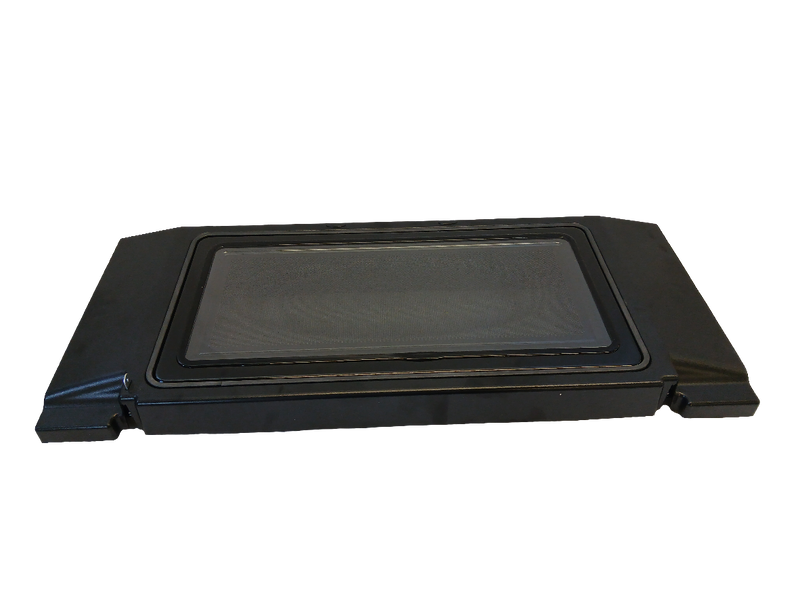

Frequently Bought Together
