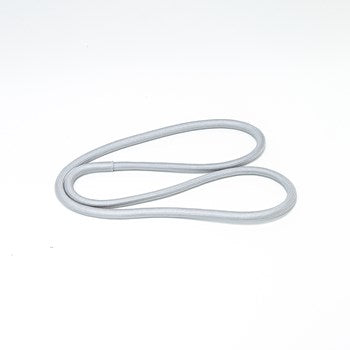

Whirlpool Dryer Door seal W10861521

Whirlpool OEM dryer door seal/gasket, approximately 61.42 inches long. It seals the area around the dryer door to help prevent heat loss. Some installations may require high-temperature adhesive WPY055980 if the original seal was glued in place.

Is This the Right Part?

Common Symptoms

• Visible gaps, tears, compression, or separation in the door seal
• Dryer door does not close or seal evenly
• Hot air escaping around the door during operation
• Clothes may develop marks if the damaged seal contacts them

Check Before Replacing

• With the dryer unplugged, visually inspect the entire seal for tears, gaps, flattening, exposed reinforcement, or separation from the door.
• Close the dryer door and check that the seal contacts the surrounding opening evenly, without visible gaps.
• After a cycle and once the dryer is safe to access, check for obvious lint or heat escaping around the door area; do not touch hot surfaces.
• Confirm that the door alignment and latch are normal before attributing a sealing problem specifically to the gasket.

Pro Tip

Part Details

Key Features

• Whirlpool OEM dryer door seal/gasket
• Approximately 61.42 inches long
• Designed to seal the dryer door perimeter and limit heat loss
• Used on select Whirlpool-family electric and gas dryers
• Whirlpool identifies high-temperature silicone sealant as a required accompanying part for the repair

Installation Notes

• Disconnect electrical power before beginning the repair; for gas dryers, follow the appliance service instructions and shut off gas if required by the manufacturer’s procedure.
• Remove the old seal and clean residual adhesive, lint, and debris from the bonding channel or surface before installation.
• Check the replacement’s fit and orientation around the door before applying adhesive.
• Where the original installation is adhesive-mounted, use only the specified high-temperature sealant/adhesive and follow its curing instructions before operating the dryer.
• Reinstall and align the door, then verify that it closes evenly and the seal has continuous contact before returning the dryer to service.

Verified Compatible Models

MEDC465HW0, NED4655EW0, NGD4655EW0, NGD4655EW2, WED4815EW1, WED4985EW0, WED7000DW0, WED7000DW1, WED7000DW2, WED7300DW0, WGD7000DW0, WGD7000DW1, WGD7000DW2, WGD7000DW3, WGD7300DW0

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
