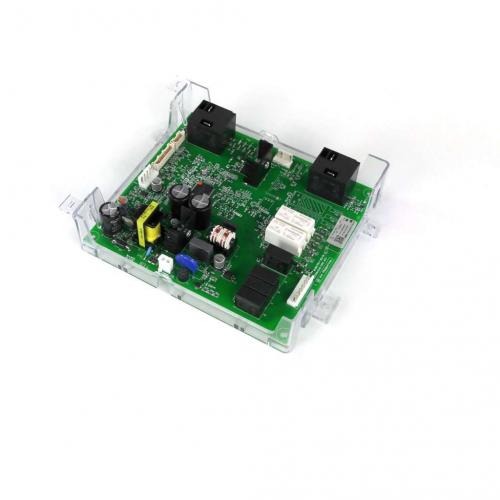

W11261167 Range Electronic Control Board
W11261167 Range Electronic Control Board

Whirlpool Microwave / Wall Oven / Oven-Microwave Combo / Range Control Board with Power Supply W11261167, Replaces W11040197, W11200665, W11253187

Price
$193.60
Buying Option: Used

Product variant with selected options does not exist!

Frequently Bought Together

Confirm This Fits Your Model
Not sure where to find your model number? See guide →
BLANK DISPLAY OR UNRESPONSIVE CONTROLS

Whirlpool Microwave / Wall Oven / Oven-Microwave Combo / Range Control Board with Power Supply W11261167, Replaces W11040197, W11200665, W11253187, Fixes Blank display or unresponsive controls

Genuine Whirlpool OEM control board with power supply.

Part W11261167Replaces W11040197, W11200665, W11253187Whirlpool

Genuine Whirlpool OEM control board with power supply.

Is This the Right Part?

Part NumberW11261167
ReplacesW11040197, W11200665, W11253187
ManufacturerWhirlpool
Appliance TypeMicrowave / Wall Oven / Oven-Microwave Combo / Range
Part TypeControl Board with Power Supply

✅ Cross Reference Information

Current Part NumberW11261167
ReplacesW11040197, W11200665, W11253187

Common Symptoms

  • Oven or microwave will not turn on
  • Microwave buttons do not respond
  • Display does not work
  • Oven temperature is inaccurate
  • Oven or microwave shuts off unexpectedly

Check Before Replacing

  • Check whether the display and control buttons respond normally.
  • Before replacing the board, test related components such as the temperature sensor and heating circuits according to the appliance service documentation.
  • Inspect the board for visible damage or shorted components only after disconnecting appliance power.

Pro Tip

Confirm the complete appliance model number before ordering; this board is model-specific even when the part number is listed for multiple appliance categories.

Part Details

Part NumberW11261167
Part TypeControl Board with Power Supply
ManufacturerWhirlpool
Appliance TypeMicrowave / Wall Oven / Oven-Microwave Combo / Range
Primary FunctionControls appliance operating functions, including user controls and oven heating/temperature functions.
Cross ReferencesW11040197, W11200665, W11253187

Key Features

  • OEM Whirlpool part
  • Control board with integrated power supply

Installation Notes

  • Disconnect electrical power at the circuit breaker before servicing.
  • Use the appliance wiring diagram or service documentation to verify connections before replacing the board.
  • Because this is a control-board repair involving line voltage, qualified service is recommended if proper testing procedures are unavailable.

Verified Compatible Models

WOC54EC0HB00, WOC54EC0HB03, WOC54EC0HB04, WOC54EC0HS02, WOC54EC0HS03, WOC54EC0HS04, WOC54EC0HW03, WOC54EC0HW04, WOC54EC7HB02, WOC54EC7HB03, WOC54EC7HB04, WOC54EC7HS02, WOC54EC7HS03, WOC54EC7HS04, WOC54EC7HW02, WOC54EC7HW04, WOC54EC7HW03

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.

✅Compatibility & Cross Reference

W11040197, W11200665, W11253187

WOC54EC0HB00, WOC54EC0HB03, WOC54EC0HB04, WOC54EC0HS02, WOC54EC0HS03, WOC54EC0HS04, WOC54EC0HW03, WOC54EC0HW04, WOC54EC7HB02, WOC54EC7HB03, WOC54EC7HB04, WOC54EC7HS02, WOC54EC7HS03, WOC54EC7HS04, WOC54EC7HW02, WOC54EC7HW03, WOC54EC7HW04

Not sure about your model number? Call 1-877-899-7278 and we’ll help you confirm. All brand names are the property of their respective owners and are used for compatibility reference only.
