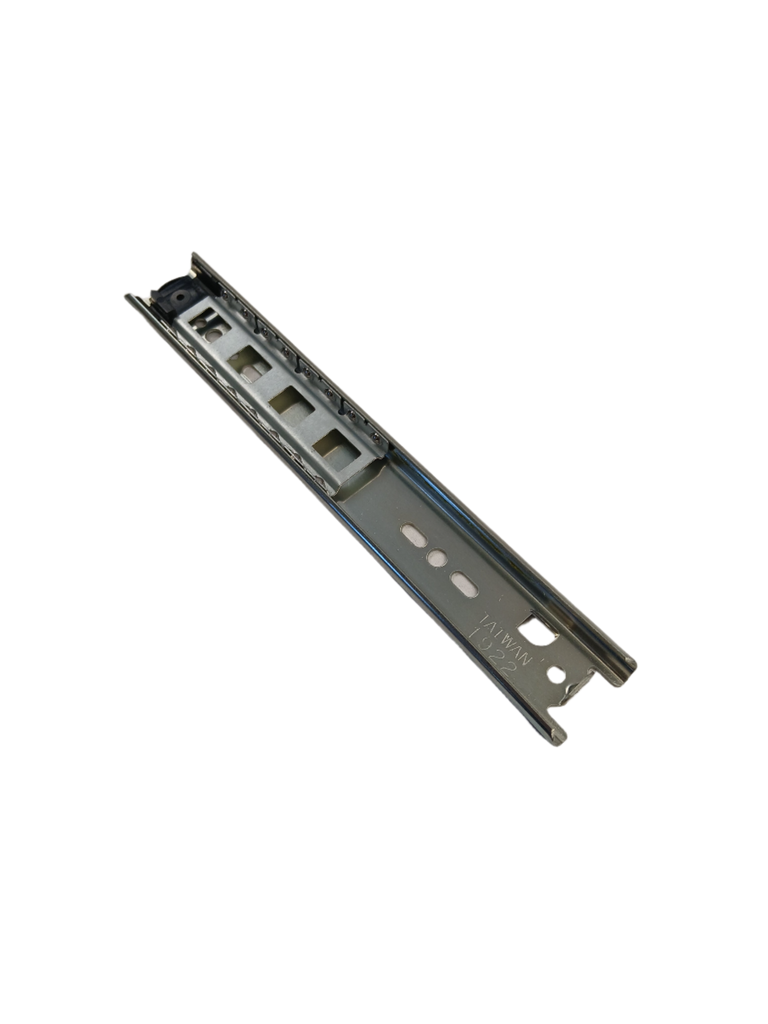

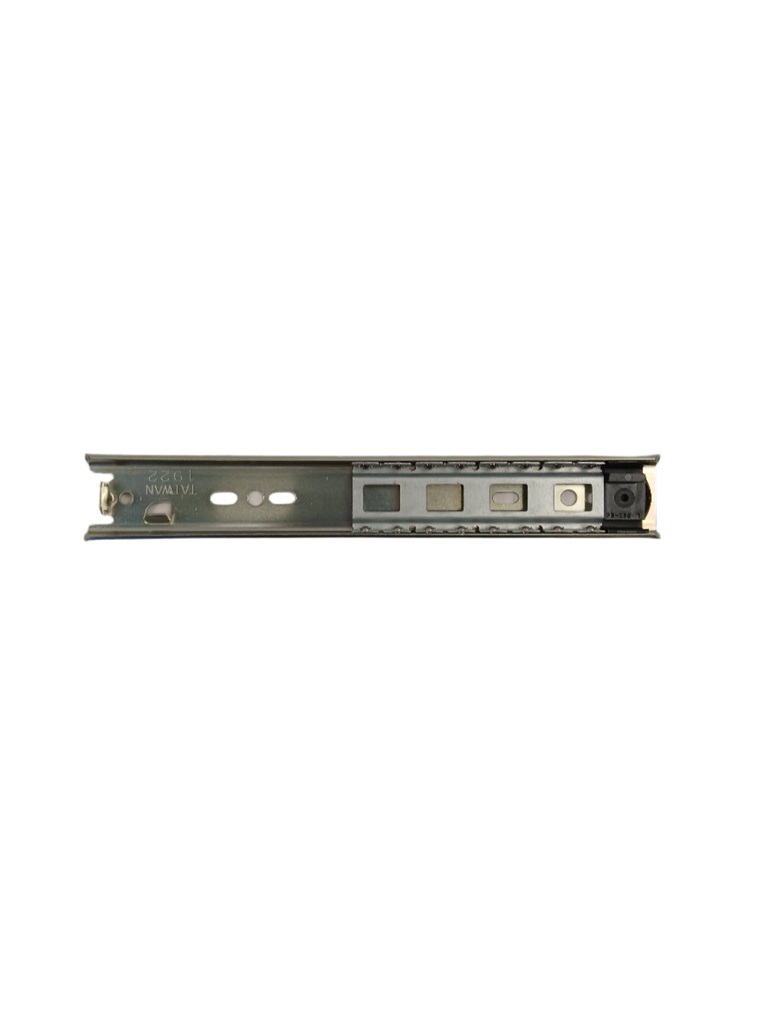

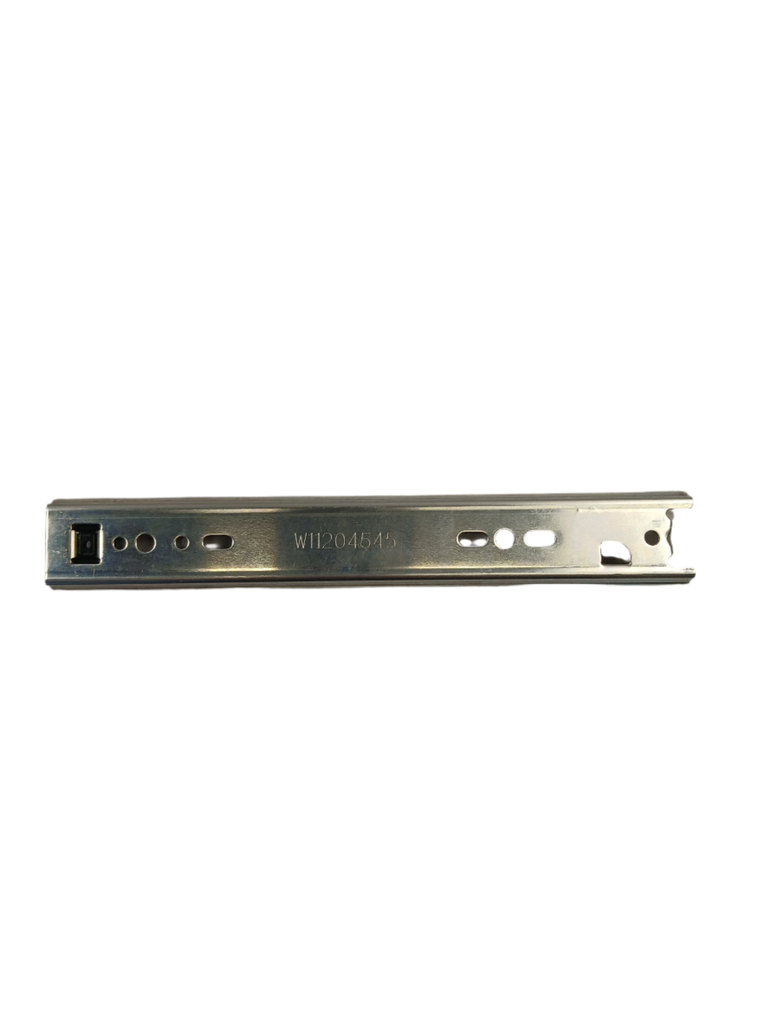

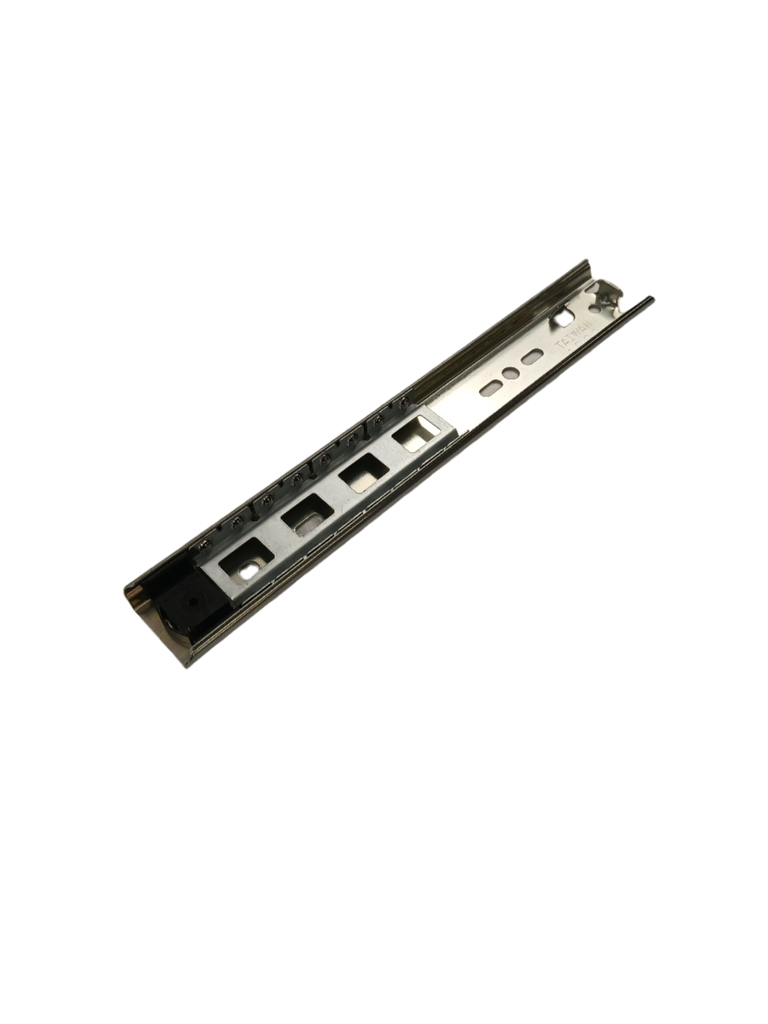

Whirlpool Corporation Washer Drawer Slide Rail W11321012, Replaces W11204545

Genuine Whirlpool OEM slide rail used in the detergent/dispenser drawer of compatible Whirlpool-family washing machines and washer/dryer combination appliances.

Is This the Right Part?

Common Symptoms

• Dispenser drawer wobbles during movement.
• Dispenser drawer binds or does not open and close smoothly.
• Dispenser drawer comes off its guide/track.

Check Before Replacing

• With the washer off, pull the dispenser drawer through its normal travel and note binding, uneven movement, or excessive side-to-side play.
• Remove the dispenser drawer only by its model-specific release method, then visually inspect the slide rail and mating drawer guides for cracks, deformation, disengagement, or detergent residue/debris.
• Clean accessible dispenser-drawer residue as directed by the appliance owner’s manual, then recheck drawer travel before attributing the issue to the rail.

Pro Tip

Part Details

Key Features

• Genuine Whirlpool OEM drawer slide rail.
• Guides the detergent/dispenser drawer in compatible washer and washer/dryer-combo models.
• The purchase is for the W11321012 drawer slide rail.

Installation Notes

• Disconnect power to the washer before servicing.
• Use the exact model’s owner/service documentation for dispenser-drawer removal and reinstallation; Whirlpool instructions for applicable dispenser designs use a release tab/lever and require aligning the dispenser edges with the washer guides before sliding it back in.
• Do not force the drawer during reassembly; confirm the rail and drawer guides are aligned and that the drawer moves smoothly by hand before operating the washer.

Verified Compatible Models

7MWFW5622HW2, 7MWFW6621HC2, 7MWFW6622HW0, 7MWFW6622HW1, 8TWFC6820LC0, 8TWFW6620HW0, 8TWFW8620HW0, WFW862CHC4, WFW6620HC1, WFW6620HC3, WFW6620HW0, WFW8620HW4, WFW9620HBK1, WFW9620HW1, WFW9620HW2

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
