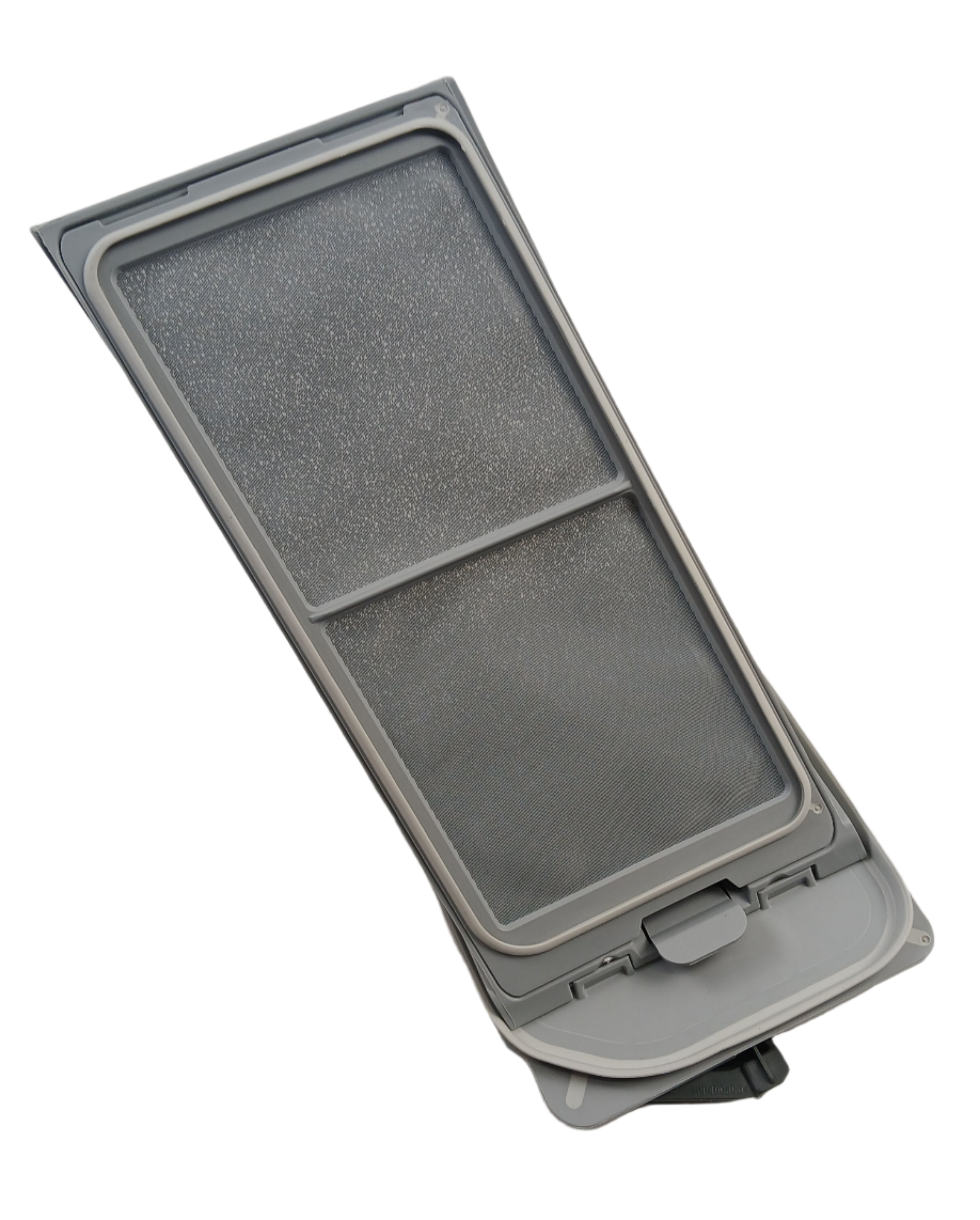

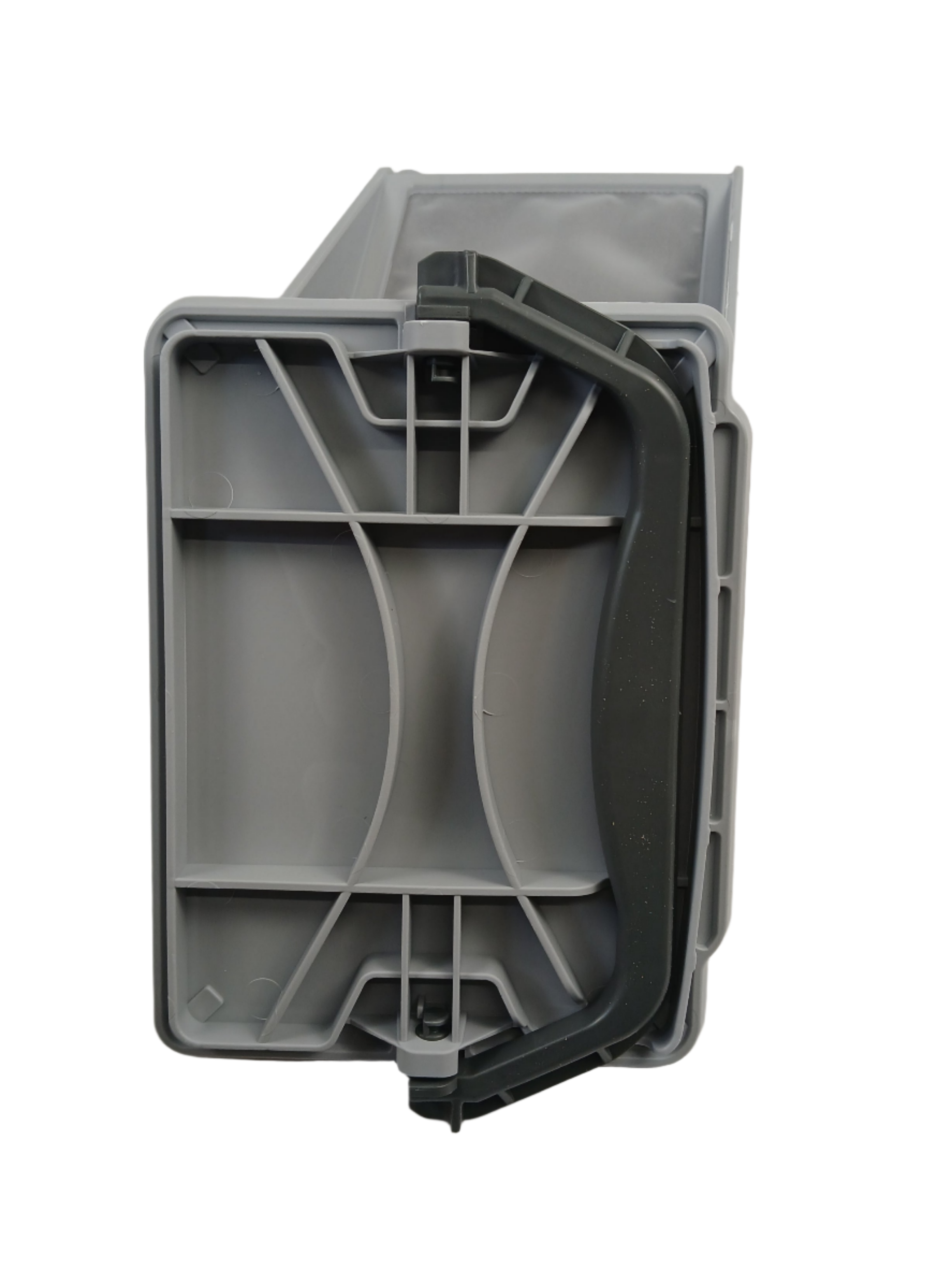

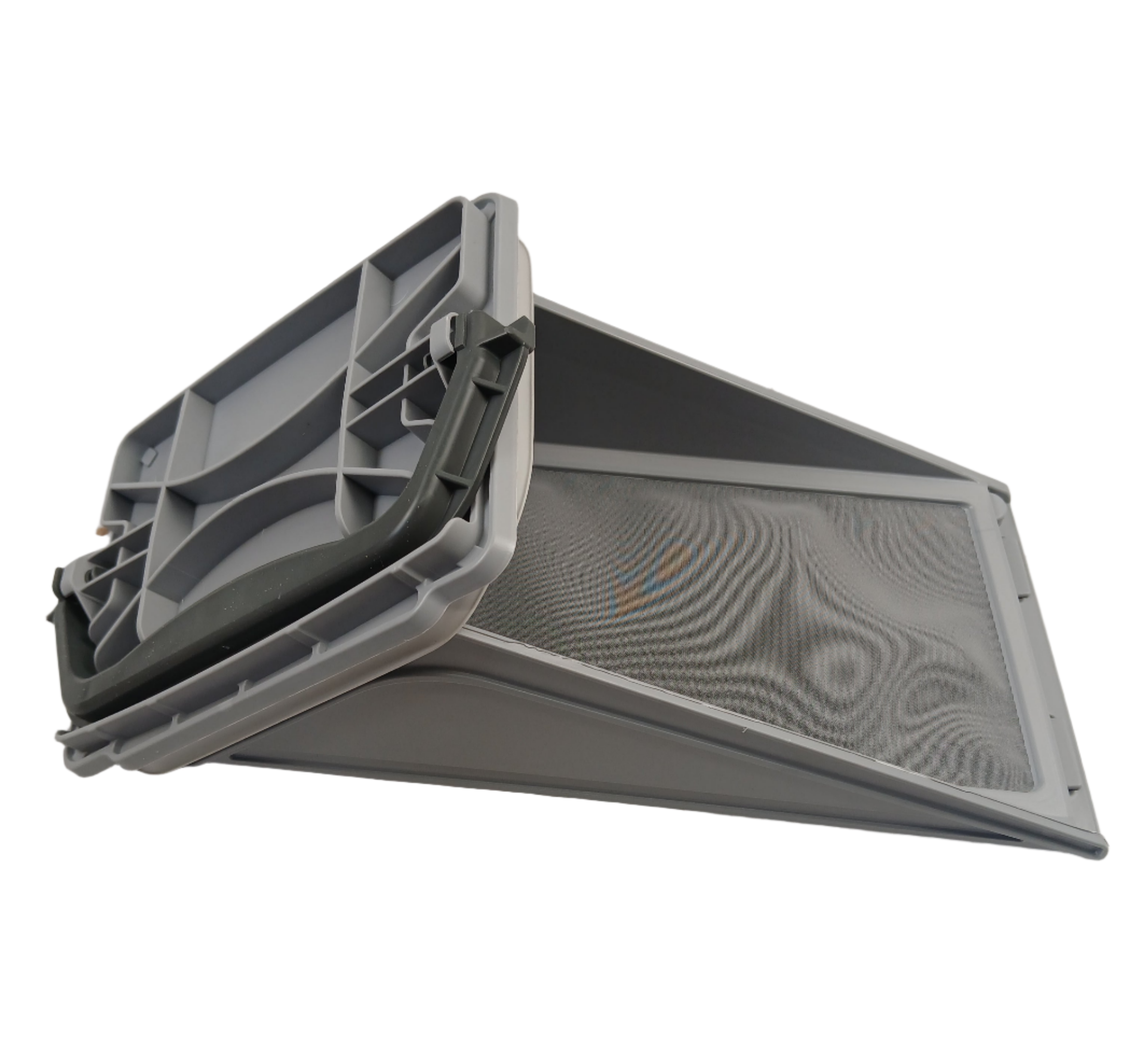

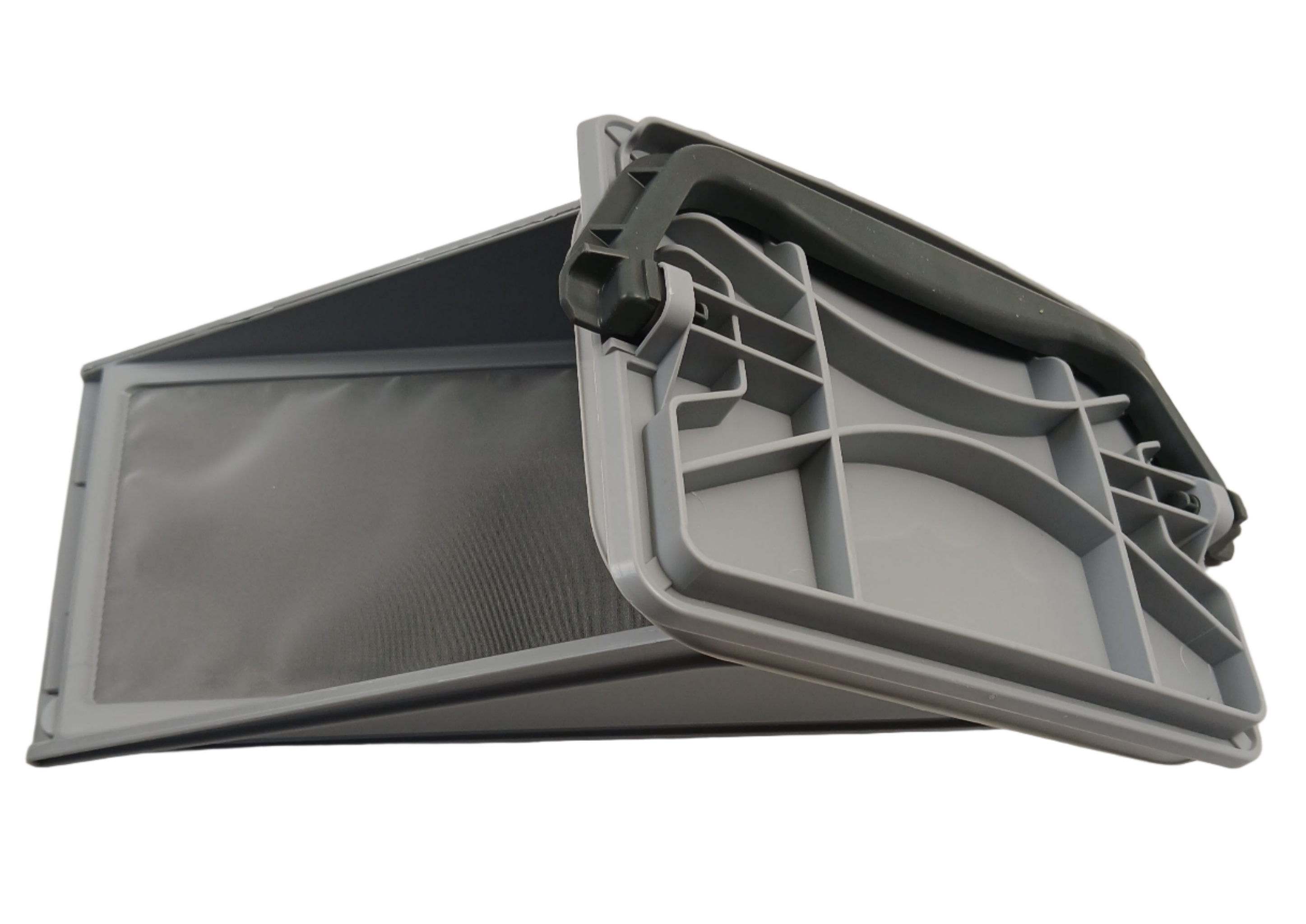

Whirlpool Dryer HX Filter Assembly W11382898, Replaces W10345281, W10716908, W10716911, W10878816, W11368867

Genuine Whirlpool dryer HX/foam filter assembly. It covers and protects the foam filter frame at the bottom of compatible dryers; retailer documentation also describes it as a filter-and-housing or bottom filter cover assembly.

Is This the Right Part?

✅ Cross Reference Information

Common Symptoms

• Lint appearing on clothing or around the dryer
• Dryer taking longer to dry when the filter assembly is damaged or not sealing correctly
• Foam filter insert or mesh deteriorating, breaking apart, or becoming difficult to clean
• Lint or debris accumulating around the bottom filter area

Check Before Replacing

• Disconnect power before inspection or removal.
• Visually inspect the bottom filter assembly for cracked plastic, missing sections, deteriorated foam, or damaged mesh.
• Check that the assembly is correctly oriented and seated in the bottom filter location without visible gaps.
• Inspect the surrounding filter area for excess lint or debris and clean accessible accumulation according to the dryer's care instructions.
• If the assembly is physically damaged or the foam/mesh is disintegrating, replace the complete assembly rather than relying on it for filtration.

Pro Tip

Part Details

Key Features

• Genuine Whirlpool OEM HX filter assembly
• Filter-and-housing/bottom filter cover assembly
• Protective cover for the dryer's bottom foam filter frame
• Designed for lint and debris filtration in compatible Whirlpool ventless dryer systems
• Replacement assembly includes the filter-cover structure rather than only a loose foam insert

Installation Notes

• Disconnect electrical power before installing or removing the part.
• Remove the existing bottom filter assembly while noting its orientation.
• Install the replacement in the same bottom filter location and verify that it is fully seated and secure before restoring power.
• Do not force the assembly if it does not align; verify the appliance model and part orientation.

Verified Compatible Models

WHD3090GW0, WHD5090GW0, YWHD3090GW0, YWHD5090GW0

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
