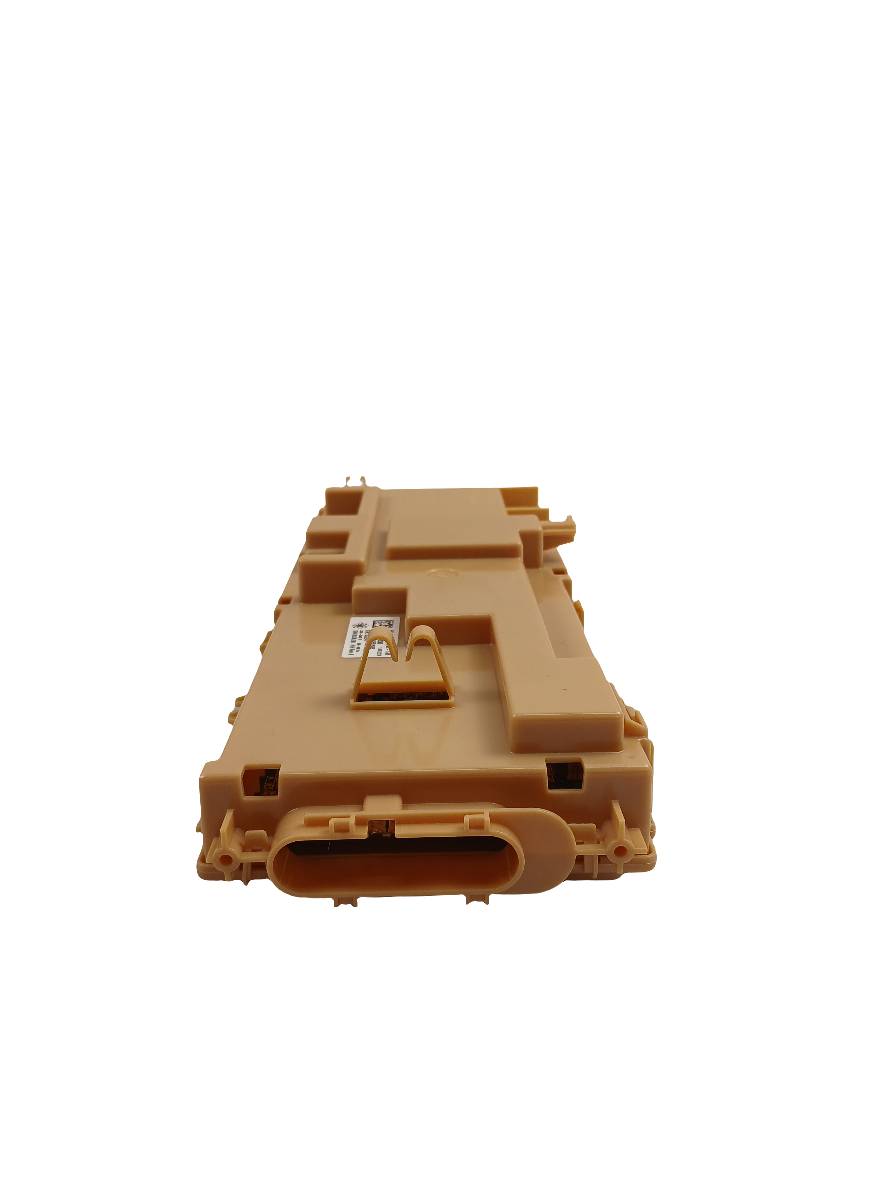

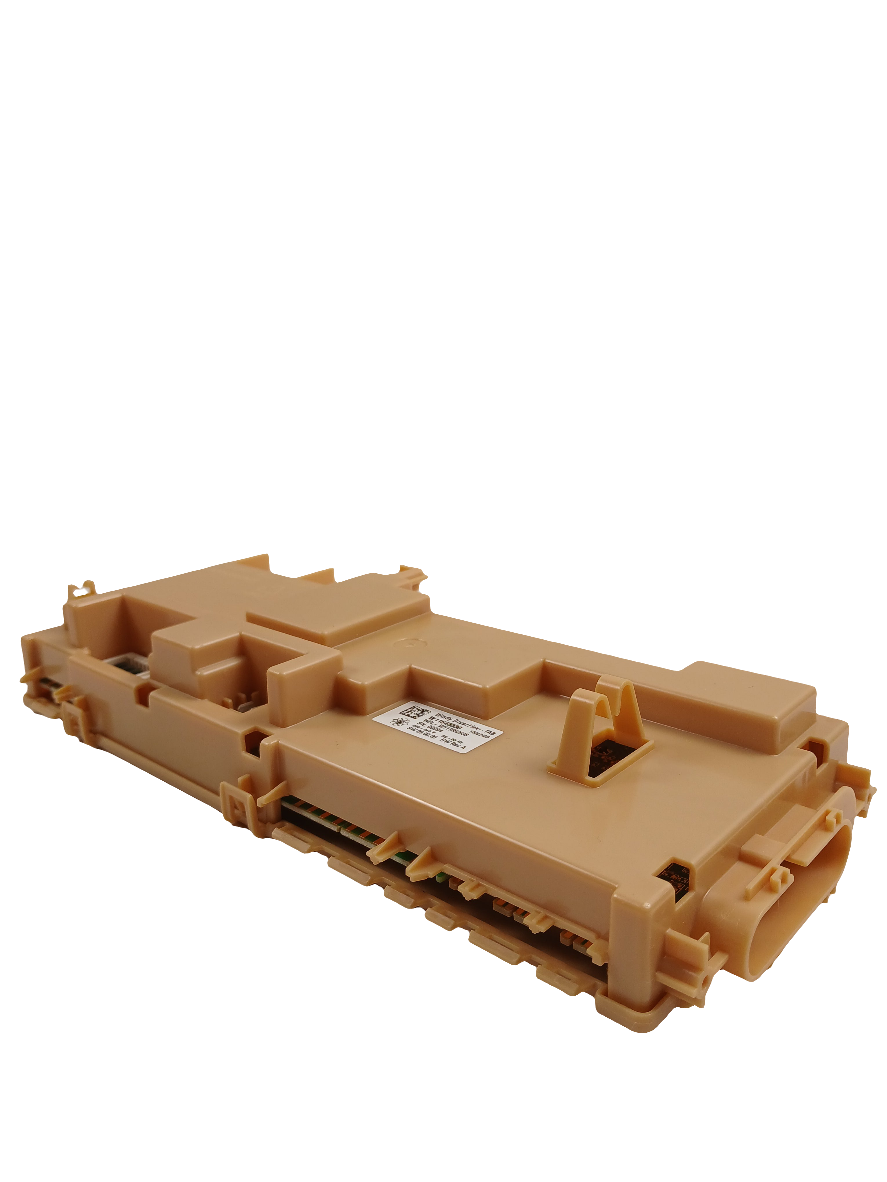

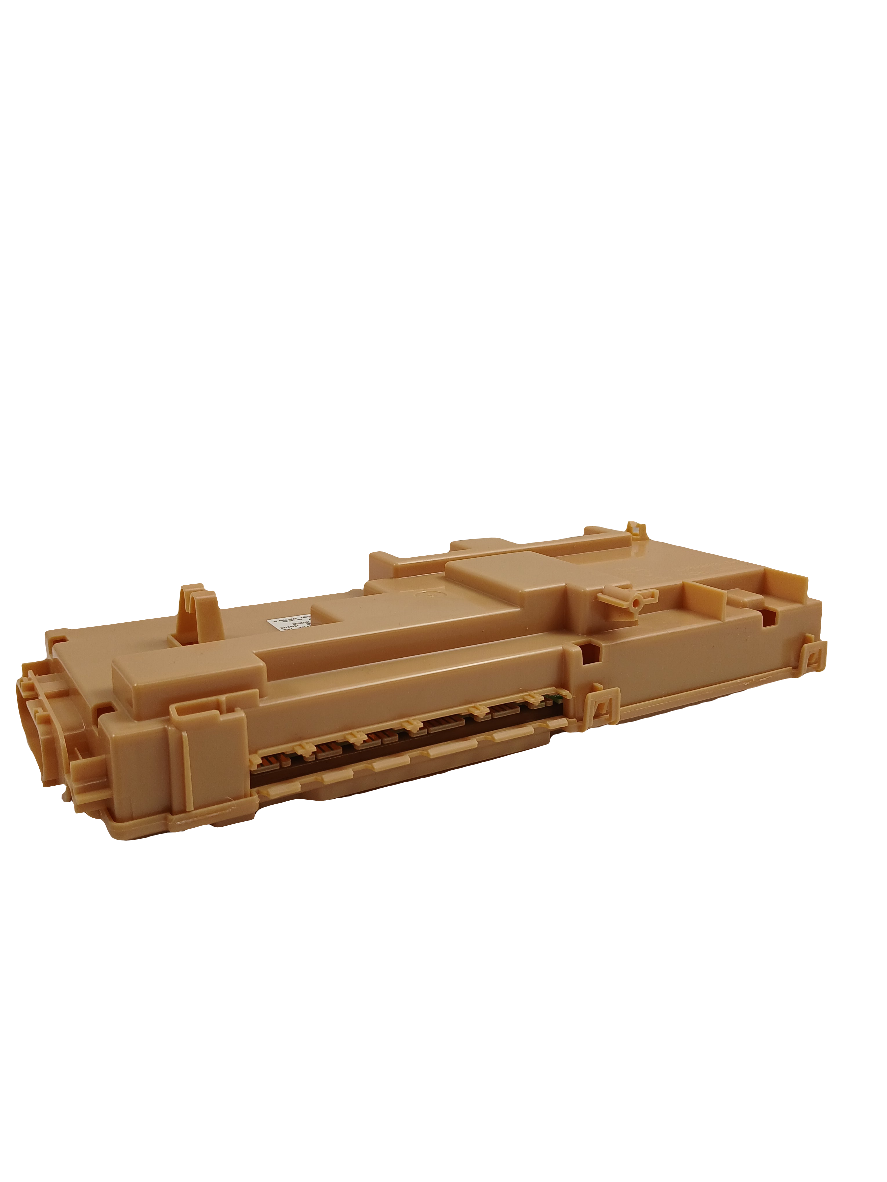

Whirlpool Dryer Electronic Control Board W11527562, Replaces W11410518

Genuine Whirlpool electronic control board used to manage dryer operating functions and cycles. Verified for Whirlpool dryer models WCD3090JW0 and YWCD3090JW0.

Is This the Right Part?

✅ Cross Reference Information

Common Symptoms

• Dryer does not respond to button presses or will not start despite confirmed power.
• Cycles stop prematurely or operate erratically.
• Dryer displays control-related error codes.
• Heating or temperature control is abnormal after the thermal fuse, heating element, and sensor circuits have been checked.

Check Before Replacing

• Verify the dryer has power at the outlet and that the circuit breakers or fuses have not tripped.
• With power disconnected, inspect the control-board connectors for loose, damaged, corroded, or incompletely seated wires.
• Record and check displayed fault codes using the model-specific Whirlpool service information.
• If resistance testing is required, disconnect power first and test related components such as the thermal fuse, heating element, and temperature sensor before condemning the control board.
• Confirm the dryer model number and compare the installed board’s identification before ordering or replacing the part.

Pro Tip

Part Details

Key Features

• Genuine Whirlpool electronic control board.
• Manages dryer cycles and operating functions through electronic control circuitry.
• Listed as the control board for Whirlpool dryer model WCD3090JW0.
• Prior part number W11410518 is documented as replaced by W11527562.
• Model-specific part; compatibility should be confirmed from the complete appliance model number.

Installation Notes

• Disconnect electrical power before opening the dryer or removing the control board.
• Handle the electronic assembly by its edges and avoid touching terminal contacts or electronic components.
• Use appropriate electrostatic-discharge precautions when handling the replacement board.
• Before removing the old board, inspect and reseat connectors only with power disconnected; reconnect each harness to its original location.
• Follow the model-specific Whirlpool service documentation for access, connector placement, and post-installation checks.

Verified Compatible Models

WCD3090JW0, YWCD3090JW0

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
