Whirlpool Refrigerator Not Cooling? Compressor W11740253 – Fix Warm Fridge & No Cooling Fast
A refrigerator that won't cool, runs warm, or has a compressor that clicks and won't start has almost certainly suffered a compressor failure — the single most critical component in the entire refrigeration system. In most Whirlpool, KitchenAid, and Maytag French door refrigerators, the compressor pressurizes refrigerant and drives the entire cooling cycle. When it fails, the fridge stops cooling entirely, the compressor may not start at all or may click off on overload, and food spoilage begins within hours. ⚡ The compressor is the heart of the refrigeration system — when it fails, nothing else can compensate. Part W11740253 is the genuine OEM Whirlpool compressor that restores full refrigeration and freezing performance, directly replacing W11592429 and W11656989.
❓ Is This the Right Part?
This is the correct fix if ALL of the following are true:
- ✔ Refrigerator powers on — lights, display, and fans function normally
- ✔ Start relay and overload protector have been tested and confirmed failed or ruled out
- ✔ Refrigerant charge has been verified — no leak present
- ✔ ONLY problem is compressor not starting, clicking off on overload, or running continuously without cooling
Not sure? Send us your model number — we'll confirm before you order.
🔧 Common Symptoms
- Refrigerator not cooling — fridge and freezer both warm
- Compressor not starting — clicking sound from rear of unit then silence
- Compressor running continuously without reaching set temperature
- Freezer partially cooling but fresh food compartment warm
- Loud humming or buzzing from compressor area followed by shutdown
- Compressor hot to the touch and tripping overload protector repeatedly
✔ If these symptoms match and the start relay has been ruled out, the compressor is the failed component.
✔ Replacing the W11740253 restores full refrigeration and freezing performance when installed by a certified technician.
📦 Part Details
- Part Number: W11740253
- Type: Refrigerator Compressor — OEM hermetic compressor assembly, direct-fit replacement for compatible Whirlpool-platform French door refrigerators
- Replaces: W11592429, W11656989
- Brands: Whirlpool, KitchenAid, Maytag
- Appliance Type: French Door Refrigerator

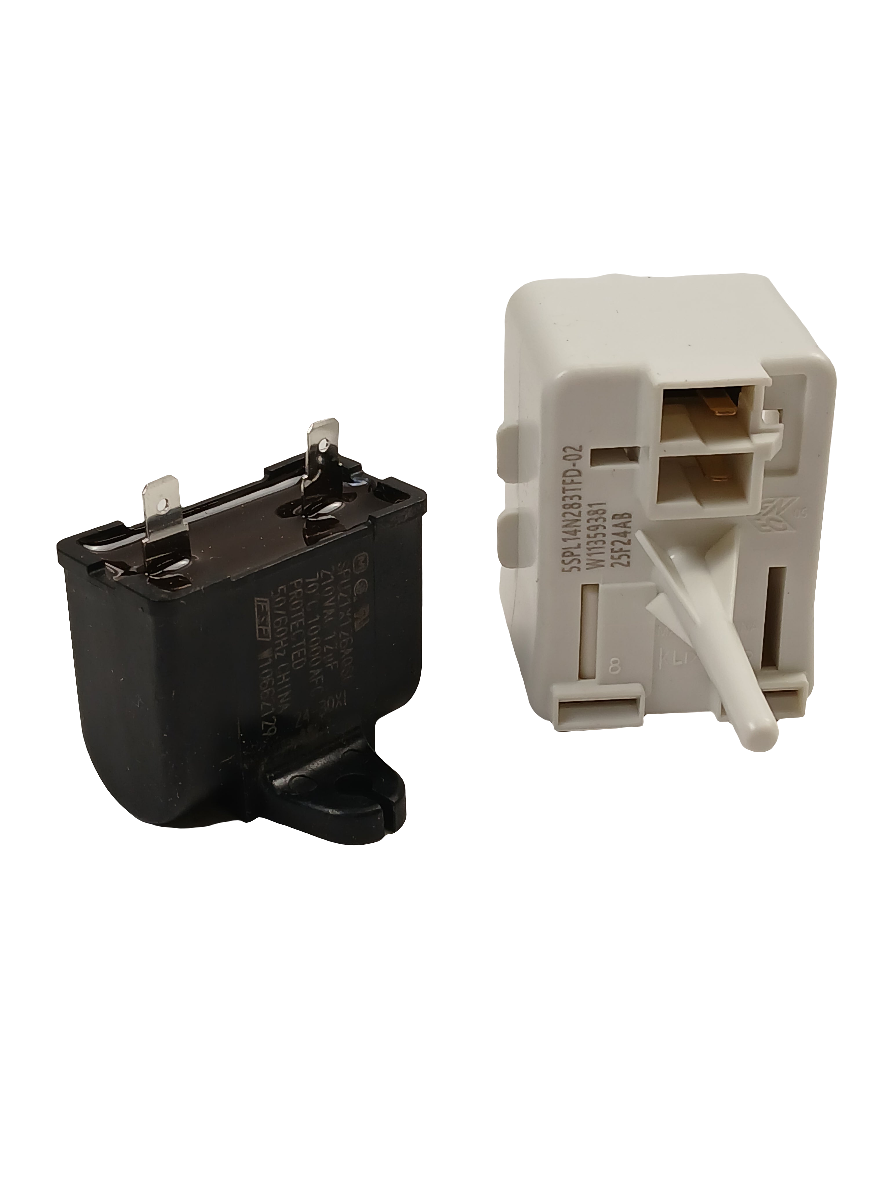

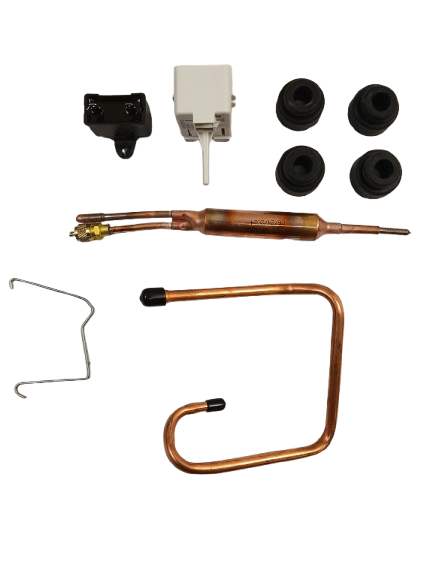

When replacing a compressor, always replace the start relay and overload protector as a set — these low-cost components are stressed by a failing compressor and often fail shortly after a new compressor is installed. Also flush and replace the filter drier to remove moisture and debris from the refrigerant circuit before recharging. Skipping these steps is the #1 cause of premature compressor failure after replacement.
⚙️ Installation
Skill Level: ADVANCED — Certified Technician Required. Disconnect power before servicing. Compressor replacement requires EPA-certified refrigerant recovery and recharge — this repair cannot legally be performed without proper certification and equipment. A certified technician will recover the existing refrigerant charge, remove the failed compressor, install the W11740253, replace the filter drier, evacuate the system, and recharge with the correct refrigerant type and weight per the unit's data plate.
✓ Compatible Models
Confirmed compatible with KRFF300ESS04, KRFF300EWH04, MFB2055FRZ04, MFW2055FRZ04, WRF560SEHB03, WRF560SEHV03, WRF560SEHW03, WRF560SEHZ03, WRF560SFHV03, WRF560SFHW03, WRF560SFHZ03, WRF560SMHB03, WRF560SMHV03, WRF560SMHW03, WRF560SMHZ03, WRFA60SFHZ03, WRFA60SMHZ03 plus additional Whirlpool, KitchenAid, and Maytag French door models. Contact us to verify your model number before ordering.
💡 Pro Tip
The start relay (a small plug-in component on the side of the compressor) is the most common cause of a compressor that clicks and won't start — and it costs a fraction of a new compressor. Shake the relay: if it rattles, it's failed. Replace the relay first and test before committing to a compressor replacement. If the relay is good and the compressor still won't start, the W11740253 is your fix. This one diagnostic step can save hundreds of dollars.
✓ Model-Specific Repair Pages
✅Compatibility & Cross Reference
Not sure about your model number? Call 1-877-899-7278 and we’ll help you confirm. All brand names are the property of their respective owners and are used for compatibility reference only.
