Oven Not Heating or Displaying Error Codes? W11763588 Electronic Control Board – Fix Oven Control Failures Fast
If your Whirlpool oven won't heat, displays error codes, or the controls are unresponsive, the electronic control board is the most common cause. In most Whirlpool and Maytag ranges, the control board manages all oven functions — bake, broil, self-clean, and temperature regulation. When it fails, the oven may not heat at all, display fault codes, or become completely unresponsive. ⚡ Common failure point in Whirlpool-built ranges and wall ovens. Part W11763588 is the genuine OEM replacement that restores full oven operation and clears control-related fault codes immediately.
❓ Is This the Right Part?
This is the correct fix if ALL of the following are true:
- ✔ Your oven powers on but won't heat or maintain temperature
- ✔ Bake and broil elements test OK (not burned out)
- ✔ Household power supply and breaker confirmed OK
- ✔ Temperature sensor (probe) tests within spec
- ✔ ONLY problem is control board errors, unresponsive keypad, or no heat despite elements being good
Not sure? Send us your model number — we'll confirm before you order.
🔧 Common Symptoms
- Oven won't heat — most common, what customers search for
- Oven display is blank or shows garbled characters
- Keypad buttons unresponsive or erratic
- Oven shuts off mid-cycle unexpectedly
- Error codes F1, F2, F3, F5, or F9 displayed on control panel
- Self-clean cycle won't start or complete
✔ If these symptoms match, the electronic control board is the most likely failed component in the system.
✔ In most cases, replacing this control board restores normal oven operation immediately.
📦 Part Details

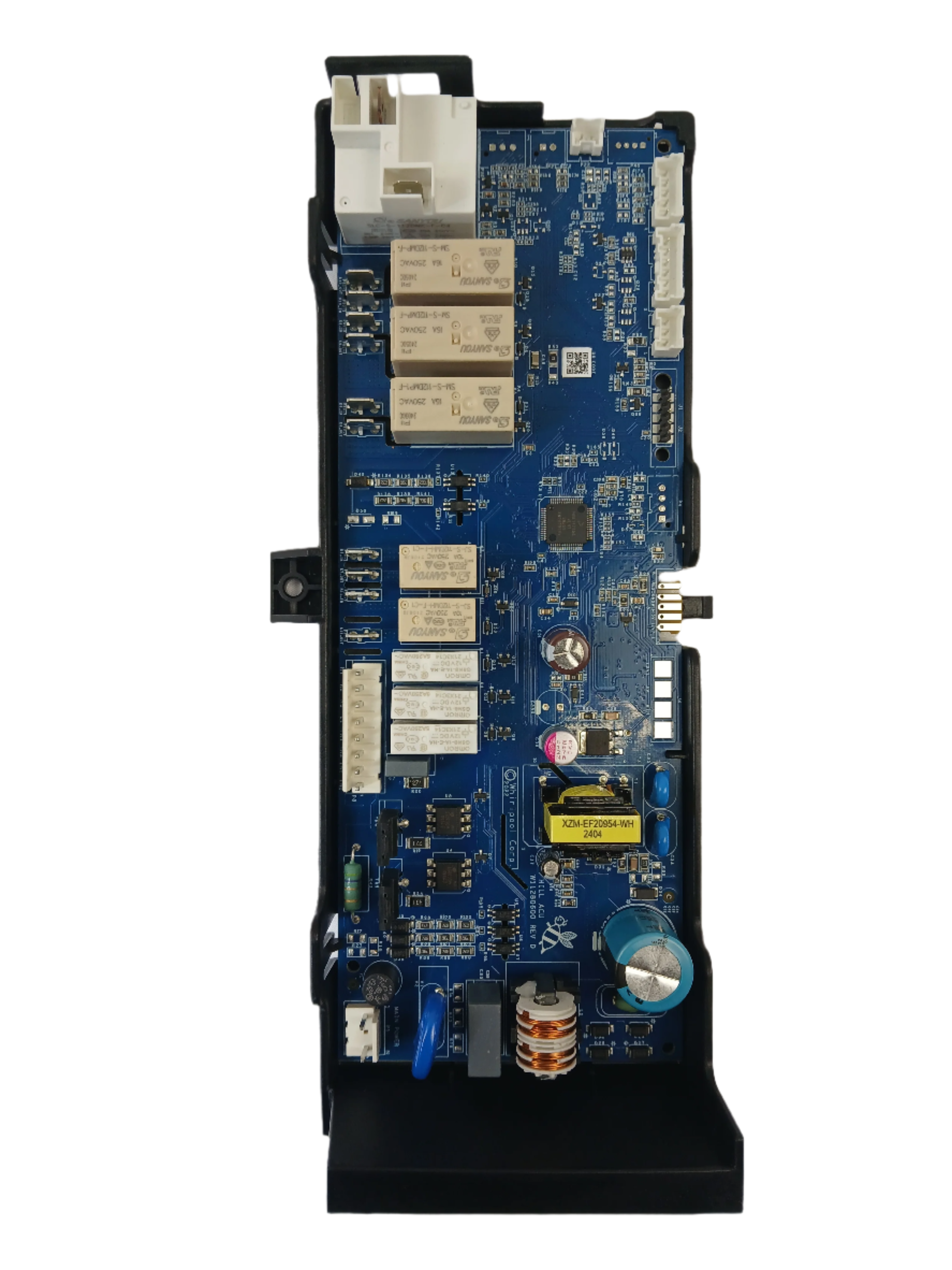

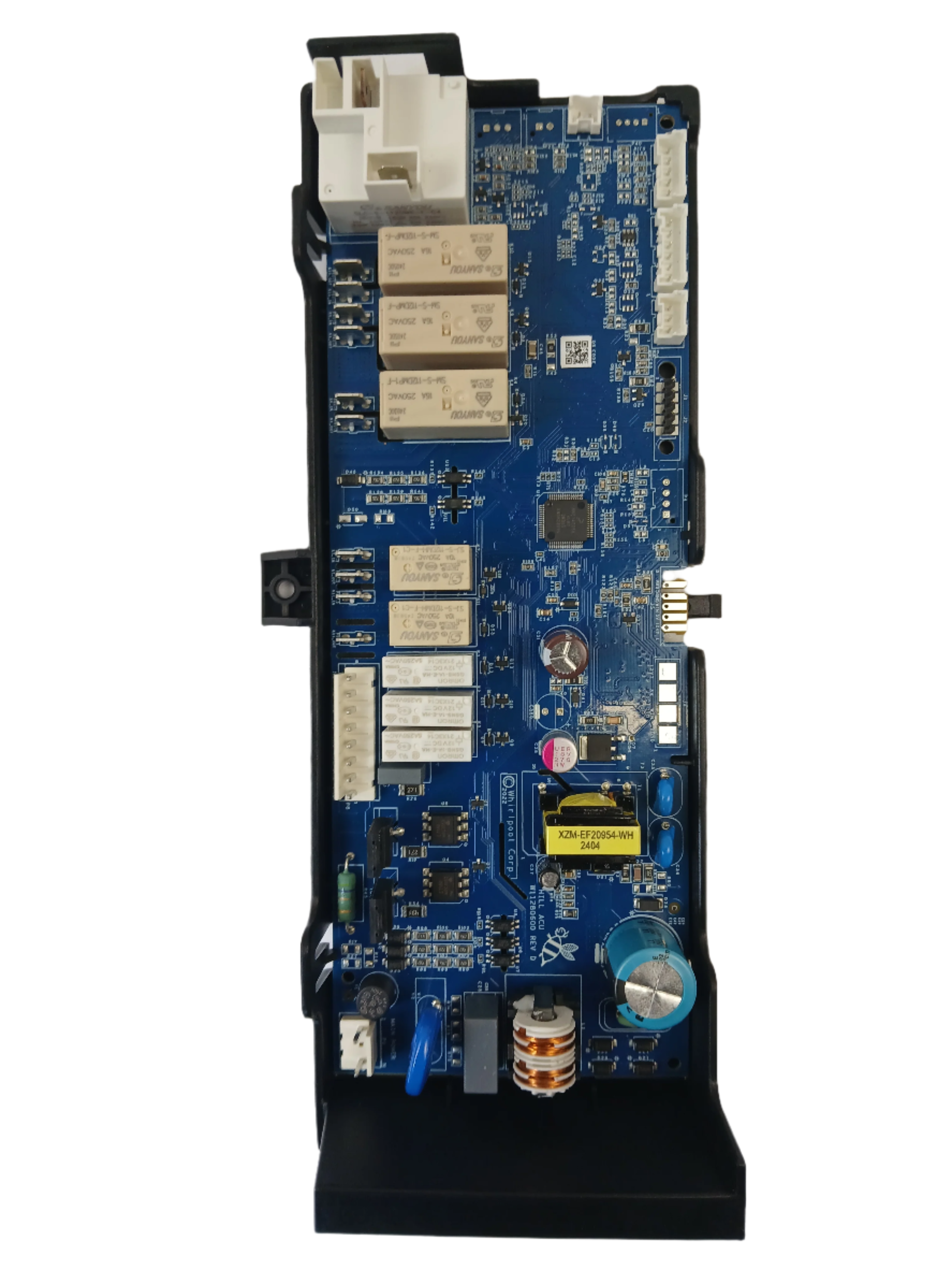

- Part Number: W11763588
- Type: Electronic Oven Control Board (ERC)
- Replaces: OEM direct-fit control board assembly — supersedes W11734474 (no modification required)
- Brands: Whirlpool, Maytag, KitchenAid
⚠️ Recommended While Repairing:
While the oven is apart, inspect the oven temperature sensor (probe) — a failing sensor can cause the same symptoms and stress the new control board. Replacing both at the same time eliminates the most common root causes in one service call.
While the oven is apart, inspect the oven temperature sensor (probe) — a failing sensor can cause the same symptoms and stress the new control board. Replacing both at the same time eliminates the most common root causes in one service call.
⚙️ Installation
Skill Level: MODERATE — 30–45 minutes. Disconnect power at the breaker before beginning. Remove the rear panel or control console to access the board, disconnect all wire harnesses (photograph first), swap the board, and reconnect. No soldering or modification required — direct plug-in replacement.
✓ Compatible Models
Confirmed compatible with Whirlpool and Maytag ranges and wall ovens using control board W11763588 or W11734474. Contact us to verify your model number before ordering.
💡 Pro Tip
Check the Temperature Sensor First:
Before replacing the control board, test the oven temperature sensor with a multimeter — it should read approximately 1080–1090 ohms at room temperature. A shorted or open sensor will throw the same fault codes and can damage a new control board if left in place. Confirm the sensor is good before powering up the new board.
Before replacing the control board, test the oven temperature sensor with a multimeter — it should read approximately 1080–1090 ohms at room temperature. A shorted or open sensor will throw the same fault codes and can damage a new control board if left in place. Confirm the sensor is good before powering up the new board.
Model hub pages: Whirlpool Oven Control Board Hub
✅Compatibility & Cross Reference
Not sure about your model number? Call 1-877-899-7278 and we’ll help you confirm. All brand names are the property of their respective owners and are used for compatibility reference only.
