GE Range Terminal Block Assembly WG02F02750, Replaces WB17T10011, 205C2833G002, 205C2833G005

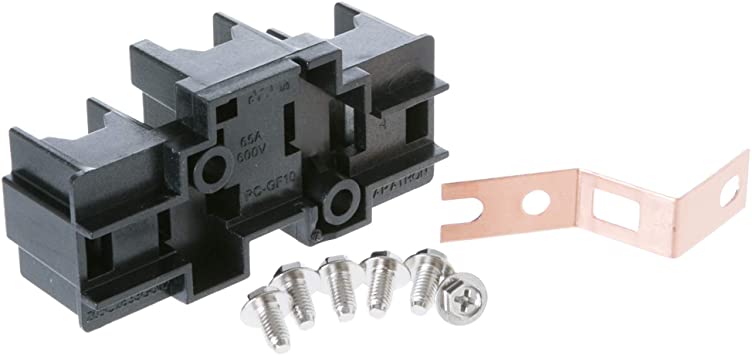

Genuine GE terminal block assembly that connects the range house power supply to the range wire harness.

Is This the Right Part?

Common Symptoms

• Range will not turn on
• Range will not start
• Range does not heat properly

Check Before Replacing

• With power disconnected, inspect the terminal block and nearby wiring for visible burn marks, melted plastic, loose connections, or heat damage.
• Verify the appliance model number against a documented compatibility listing before ordering.
• If the terminal block shows damage, inspect the power-cord connection and wire terminations for related heat or arcing damage.

Pro Tip

Part Details

Key Features

• Genuine OEM GE part
• Terminal block assembly
• Manufacturer part number WG02F02750
• Also identified as WB17T10011
• Diagram position 526 on some models and 203 on some models

Installation Notes

• Disconnect electrical power to the range before inspection or replacement.
• Confirm the complete appliance model number and compare the original part before ordering.
• Follow the appliance service documentation for terminal wiring and connection requirements.

✅ Cross Reference Information

WB17T10011, 205C2833G002, 205C2833G005, WB17M150, WB17M153, WB17T10012, WB17T10016, WB17T10023, WS01F00770

Verified Compatible Models

CBC980ST1SS, CC2S985SET1SS, CC2S985SET3SS, CC2S985SET7SS, CES750P4M1W2, CHS950P4M8W2, CS980ST8SS, JAS02SN4SS, JB400DP1WW, JB650DF5BB, JB650DF5WW, JBS27DF1BB, JBS27DF1WW, JBS27DF2WW, JBS27DF3WW, JBS27RF1SS, JBS27RK1SS, JBS27RK2SS, JBS27RK3SS, JCB850SF1SS, JCB865SJ1SS, JCBP840DT1WW, JCS840SM2SS, JCS860DF1WW, JCSP41SV3SS, JCSP41SV4SS, NS-RNE4BMSS9-C, NS-RNEC4BSS9-C, NSRNE4BMWH9CA, P2S920SEF5SS, PB911SJ1SS, PB911SJ2SS, PC2S910SEF1SS, PC2S920SEF2SS, PC2S920SEF3SS, PCHB920SJ1SS, PCHB920SJ2SS, PCHB920SJ3SS, PCS940SF1SS, PCS940SF2SS, PCS940SF3SS, PCS968SR1SS, PHB920EJ1ES, PHS920SF1SS, PHS920SF2SS, PHS930SL1SS, PS950SF3SS, RCBS536DN1WW, ZDP364NDP2SS, ZDP364NDP3SS, ZDP364NDP4SS, ZDP364NDP6SS, ZDP364NRP2SS, ZDP364NRP3SS, ZDP364NRP5SS, ZDP484NGP6SS, ZDP486NDP2SS, ZDP486NDP4SS, ZDP486NDP6SS, ZDP486NRP2SS, ZDP486NRP3SS, ZDP486NRP5SS, C2Y366P2M1S1, C2Y366P3M1D1, C2Y366P4M1W2, C2Y486P2M1S1, CBC980ST3SS, CBC980ST4SS, CBC980ST5SS, CBC980ST7SS, CC2S900P3M1D1, CC2S986SEL2SS, CCES700P3M1D1, CCES750P3M1D1, CCHS900P3M1D1, CCHS950P3M1D1, CCHS950P4M1W2

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
