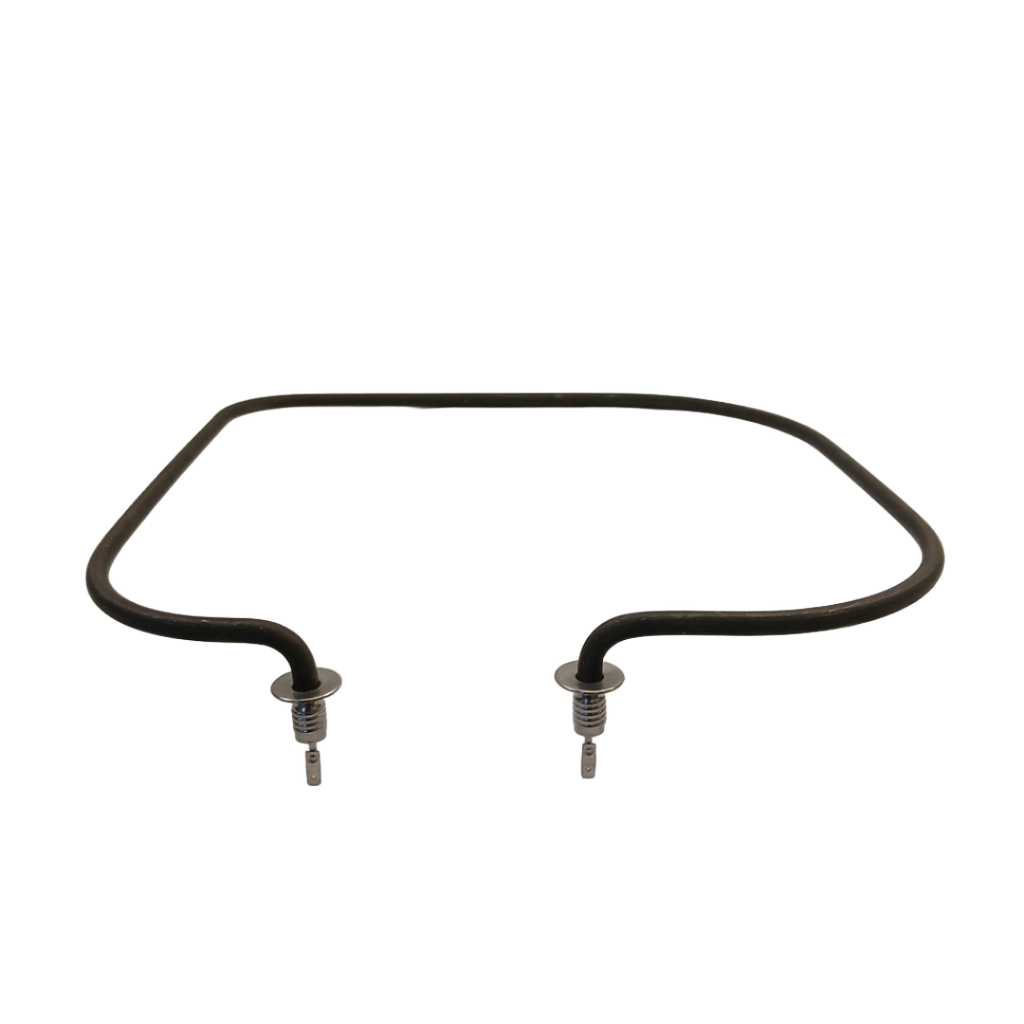

GE / General Electric Dishwasher heating element WG04A01114, Replaces WD05X10017, WD05X10017X, WD5X10017, WD5X10017X

Is This the Right Part?

✅ Cross Reference Information

Common Symptoms

• Poor drying when Heated Dry is selected
• Wash water is not hot enough
• Cleaning performance may decline when the dishwasher cannot heat wash water

Check Before Replacing

• Confirm that the Heated Dry or another heat-adding option is selected; some cycles use natural convection drying without energizing the heater.
• Check that incoming water is approximately 120–140°F, since insufficient inlet-water temperature can mimic a heating-element problem.
• With the dishwasher powered off and the element completely cool, visually inspect the exposed element for cracking, scorching, melted plastic, food residue, or other visible damage.
• Before any maintenance, unplug the dishwasher or switch off its circuit breaker/fuse. A qualified technician can test the heater circuit with power disconnected; do not assume the element is defective based only on wet dishes or low cleaning performance.

Pro Tip

Part Details

Installation Notes

• Verify the dishwasher model against the approved fitment information before installing.
• Disconnect electrical power before maintenance or replacement work.
• Allow the element to cool completely before touching or inspecting it.
• Follow the model-specific installation instructions; if electrical testing or access to wiring is required, use a qualified appliance technician.

Verified Compatible Models

GHD4309L15CS, GHD5711L15WW, GHD5711L20WW, GHD6310L15SS, GHD6711L15WW, GHD6711N00SS, GLD4209L15SS, GLD4209L15WW, GLD4209L20SS, GLD4209L20WW, GLD5611L15CS, GLD5611L15WW, GLD5611L20CS, GLD6210L15SS, GLD6210L15WW

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
