Whirlpool Dryer Lint screen housing foam seal WP339956, Replaces 311956, 339956, 4319308

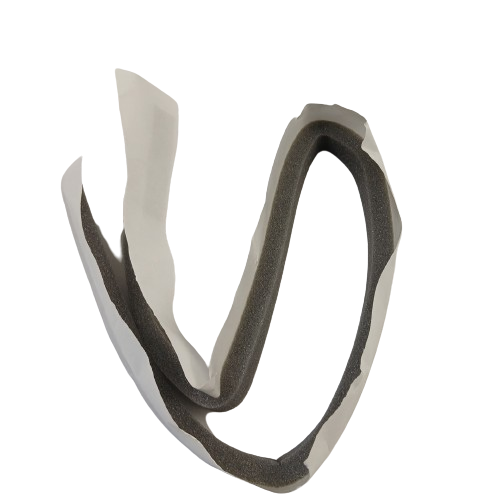

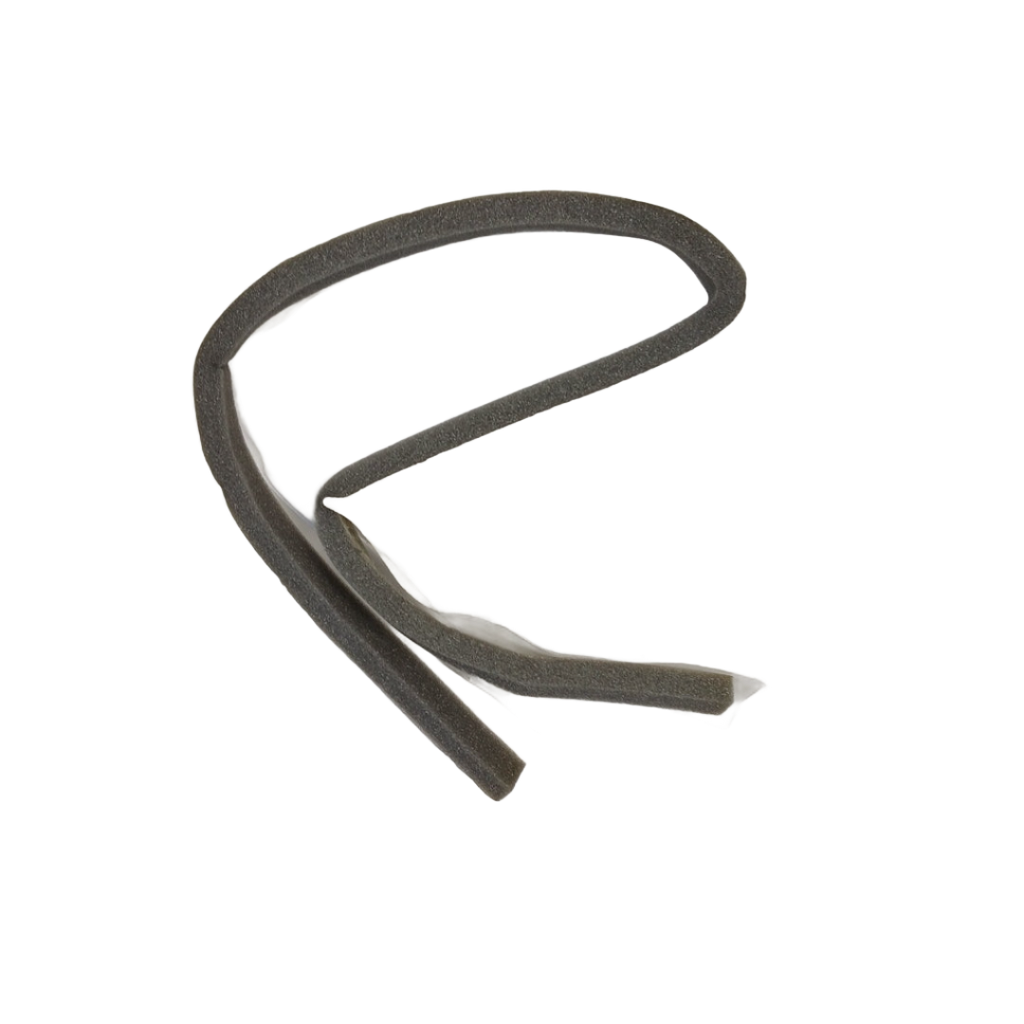

Genuine Whirlpool OEM adhesive-backed foam seal used at the dryer lint screen/lint duct housing to prevent air leaks and maintain proper airflow. The seal is approximately 28 inches long and about 1 inch wide.

Is This the Right Part?

✅ Cross Reference Information

Common Symptoms

• Lint buildup inside the dryer cabinet or beyond the lint filter
• Reduced drying efficiency or airflow
• Excessive heat or humidity associated with inefficient air circulation
• Possible airflow-related noise from a leaking lint-screen housing seal

Check Before Replacing

• Unplug the dryer before inspection.
• Remove the lint screen and visually inspect the foam seal for gaps, tears, compression, hardening, dislodgment, or missing sections.
• Check for lint deposits around or beyond the lint-screen housing that could indicate air bypass.
• Confirm that the lint screen and housing are clean and seated correctly before attributing airflow problems to the seal.
• Inspect the seal-to-housing contact area for loose or contaminated surfaces without operating the dryer with panels removed.

Pro Tip

Part Details

Key Features

• Genuine Whirlpool OEM lint-screen housing foam seal
• Adhesive-backed design
• Approximately 28 inches long and about 1 inch wide
• Installed between the lint chute/housing and dryer bulkhead
• Helps maintain an airtight lint-screen housing and proper airflow
• Replaces Whirlpool part numbers 311956, 339956, and 4319308

Installation Notes

• Disconnect electrical power before beginning the repair.
• Follow the model-specific service procedure to access and remove the lint-screen housing.
• Peel away the old seal and clean remaining adhesive or debris from the mounting surface.
• Expose the new seal's adhesive backing and apply it evenly around the designated housing or air-vent outlet surface without stretching or leaving gaps.
• Reinstall the lint-screen housing and any removed components securely before restoring power.

Verified Compatible Models

11088419110, 11096573920, LEE9848BZ0, MEDC465HW0, MGDC465HW0, WED49STBW1, WED4850HW0, WED4950HW0, WET4024HW0, WET4124HW0, WGD4850HW0, WGD4950HW0, YMEDC465HW0, YWED4850HW0, YWET4024HW0

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
