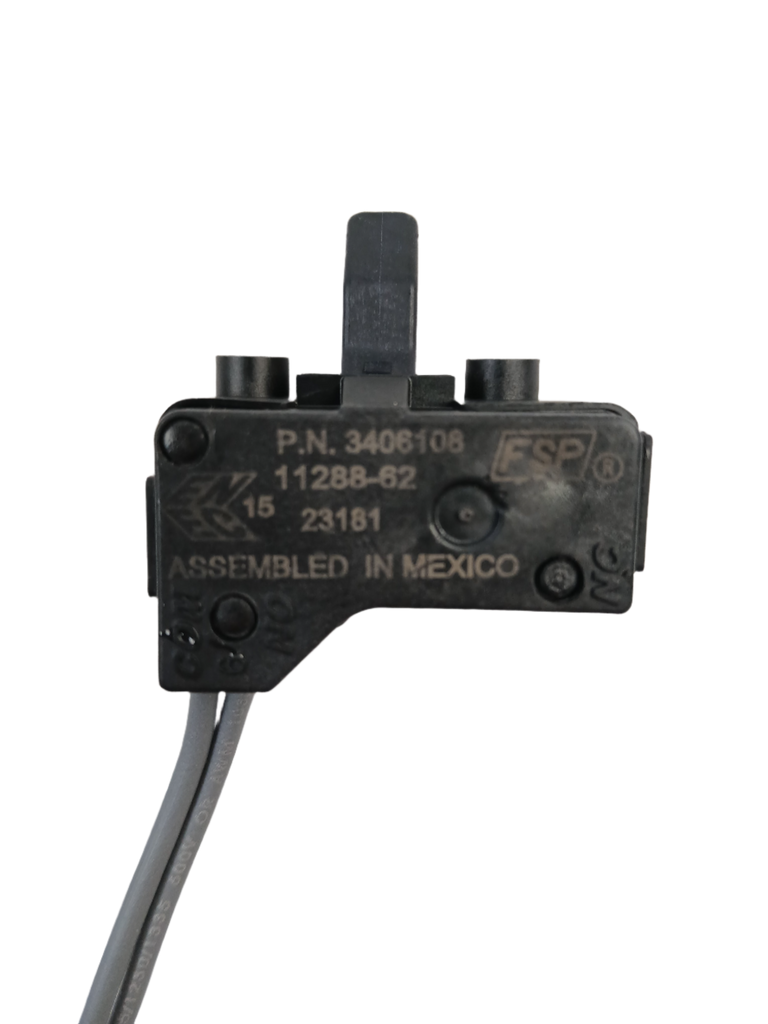

Whirlpool Dryer door switch with wire harness and connector WP3406108, Replaces 3406108

Whirlpool OEM door switch used in dryers and washer/dryer laundry centers. The switch prevents the dryer from operating when the door is open.

Is This the Right Part?

Common Symptoms

• Dryer will not start.
• Dryer starts and then stops.
• Dryer does not stop when the door is opened.

Check Before Replacing

• Disconnect power before inspecting the part or harness.
• With the dryer unplugged, manually operate the door-switch actuator and check for normal mechanical movement/clicking.
• Inspect the switch connector and attached wire harness for a loose connection, damaged insulation, or damaged terminals.
• If qualified to use a multimeter, test switch continuity only with power disconnected and according to the appliance wiring information; lack of continuity can indicate a failed switch.
• Check that the dryer door closes fully and actuates the switch; do not bypass the door switch for operation.

Pro Tip

Part Details

Key Features

• Genuine Whirlpool OEM part WP3406108.

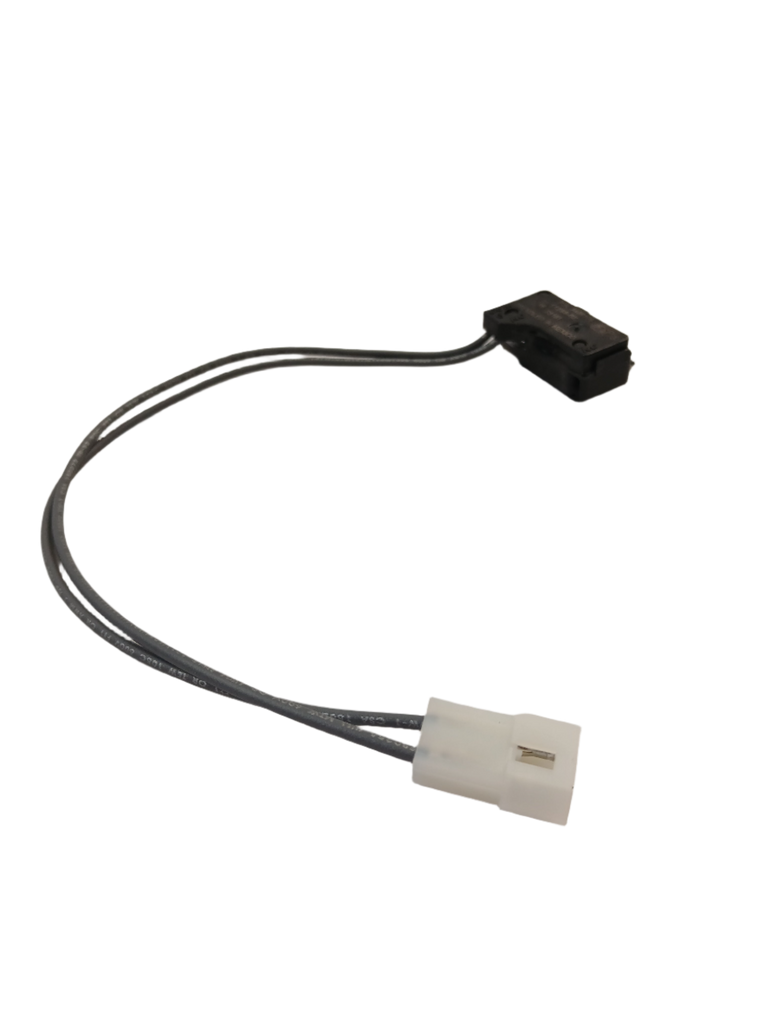

• Door switch supplied with wire harness and connector.
• Door-open safety interlock for dryer operation.

Installation Notes

• Unplug the dryer before installation and wear work gloves.
• Use the service information for the exact model, since access and disassembly can vary by dryer/laundry-center configuration.
• Ensure the supplied connector is fully seated and the wire harness is routed clear of moving door or cabinet parts before reassembly.
• Do not operate the dryer with the door switch bypassed.

Verified Compatible Models

LTE5243DQ1, LTE5243DQ2, LTE5243DQ3, LTE5243DQ4, LTE5243DQ5, LTE5243DQ6, LTE5243DQ7, LTE5243DQ8, LTE5243DQ9, LTE5243DQA, LTE5243DQB, LTE5243DT2, LTE5243DT3, LTE5243DT4, LTE5243DT5

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
