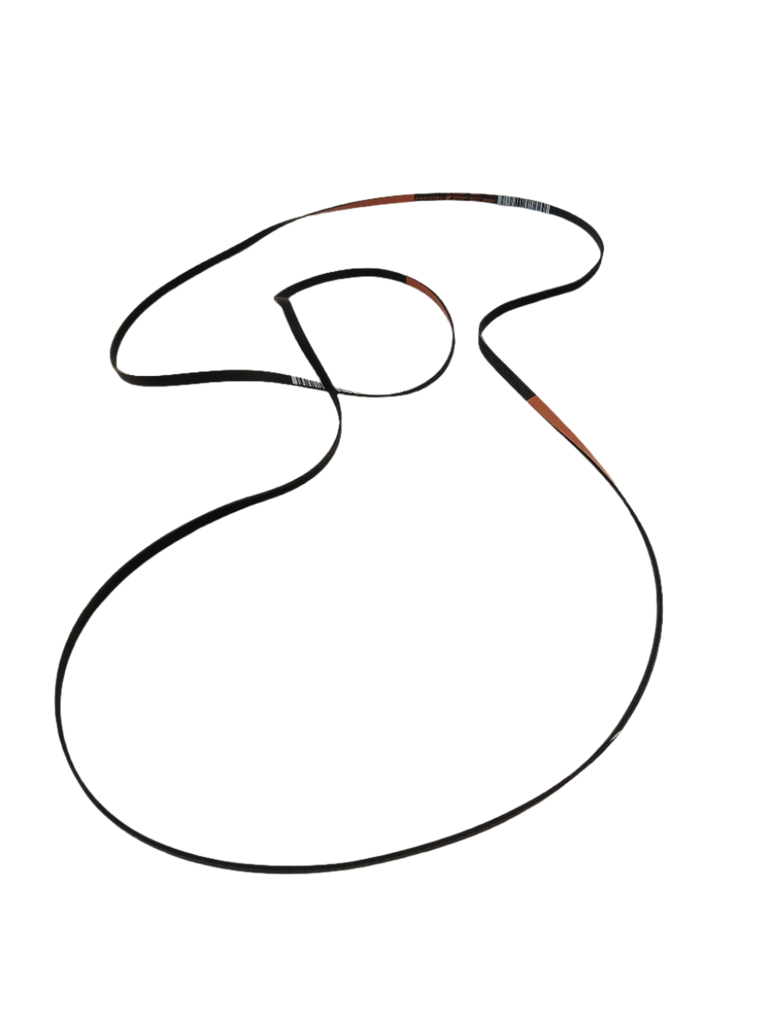

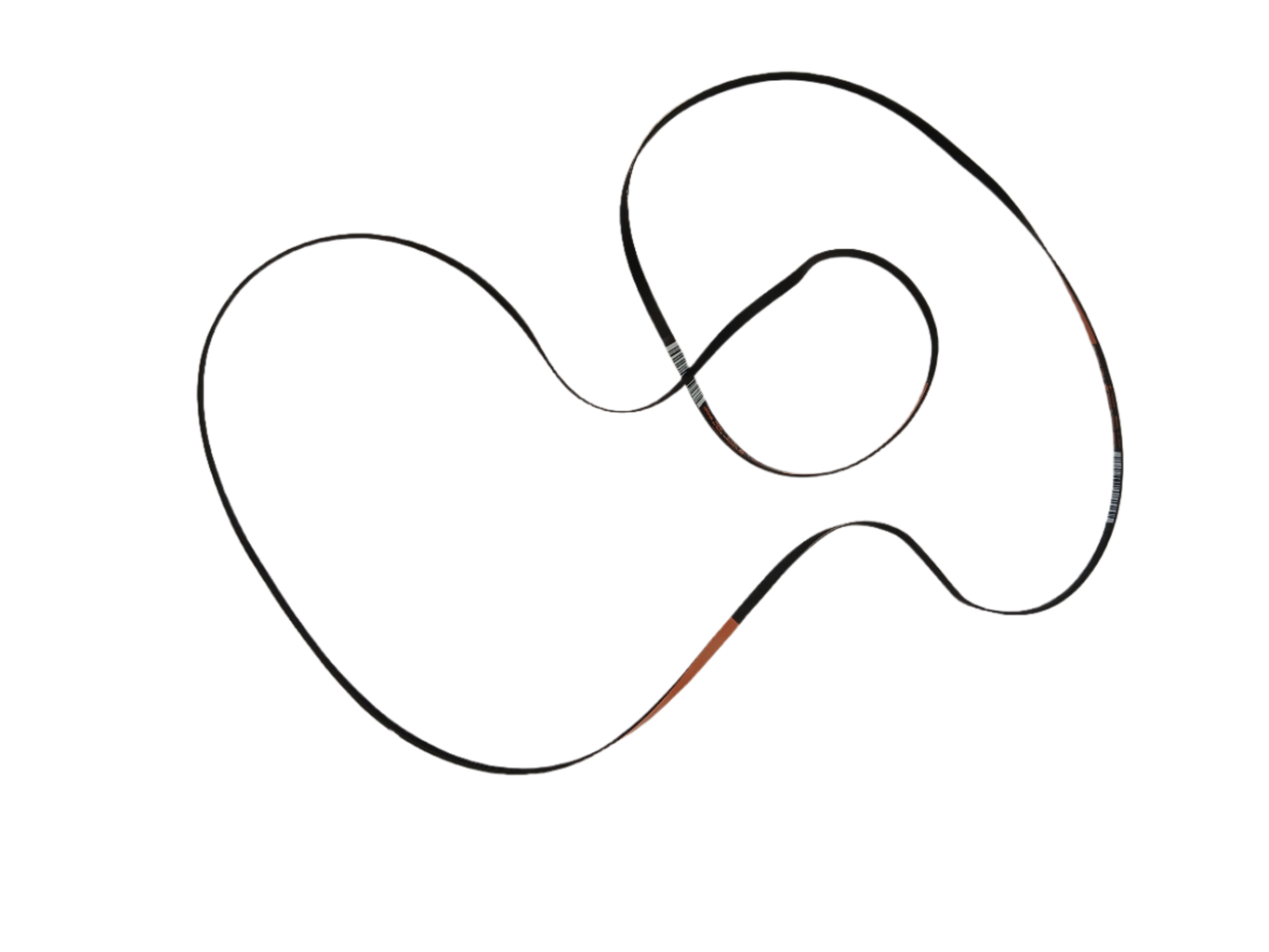

Whirlpool Dryer drum belt / drive belt WPW10131172, Replaces W10131172

Whirlpool OEM 5-rib dryer drum belt that transfers motor power to the dryer drum for tumbling. The part is also used in certain washer/dryer combo units.

Is This the Right Part?

✅ Cross Reference Information

Common Symptoms

• Drum stops spinning
• Dryer makes squealing or belt-related noise
• Dryer may not start if the belt switch or belt path is affected
• Drum turns unusually easily by hand when the belt is broken

Check Before Replacing

• Disconnect electrical power before servicing.
• With power disconnected, rotate the drum by hand and note whether it turns unusually freely; this can indicate a broken or displaced belt but is not conclusive.
• If the appliance design permits safe access, visually inspect the belt for breaks, fraying, glazing, or displacement from the drum, motor pulley, or idler pulley.
• Confirm that the belt remains routed around the drum and both pulleys; do not operate the dryer with panels removed.

Pro Tip

Part Details

Key Features

• Whirlpool OEM drive belt
• Five-rib/multi-rib construction

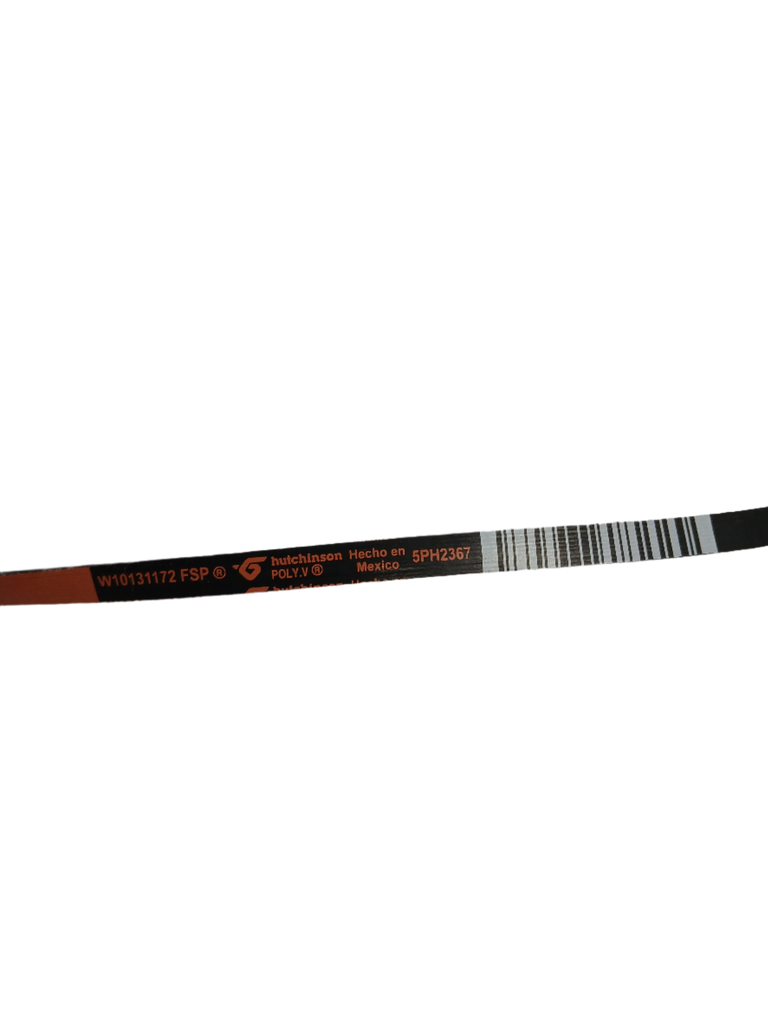

• Flat on one side with five ridges and four grooves on the other side
• Approximately 92 3/4 inches long according to a technical parts retailer
• Used on certain Whirlpool, Maytag, Kenmore, Crosley, and washer/dryer-combination appliances

Installation Notes

• Disconnect power or switch off the appliance circuit breaker before installation.
• Installation requires appliance disassembly and should follow the model-specific service documentation because cabinet and belt-routing arrangements can vary.
• Route the belt around the drum, motor pulley, and idler/tension pulley as specified for the appliance; confirm that the belt is seated and aligned before reinstalling all panels.
• Replace all removed panels and confirm the drum rotates normally by hand before restoring power.

Verified Compatible Models

3LCED9100WQ0, 3LCED9100WQ1, 3LCED9100WQ2, 3LCGD9100WQ0, 110.67022710, 110.77022710, 110.81932510, 110.81932511, 110.81942710, 110.81952710, 110.91932510, 110.91932511, 110.91932512, 110.91942710, 110.91952710

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
