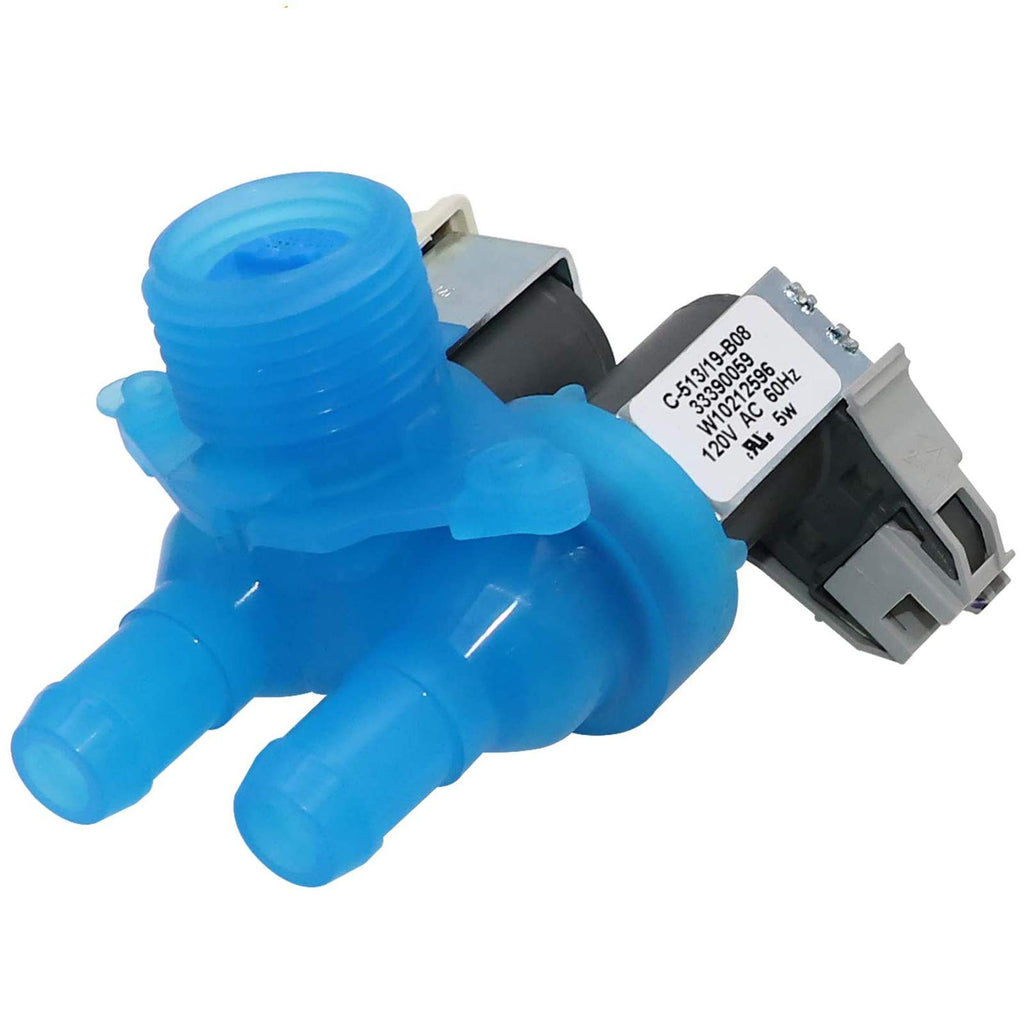

Whirlpool Washer Dual cold water inlet valve WPW10212596, Replaces W10212596

Whirlpool OEM dual cold-water inlet valve that controls water flow into the washer. The part is also documented for some washer-dryer combos and laundry centers.

Is This the Right Part?

✅ Cross Reference Information

Common Symptoms

• Slow or absent washer filling
• No cold-water fill
• Water entering when the washer is not running
• Water leakage at the valve or connected hose area
• Incorrect wash-water temperature when the cold-water channel is affected

Check Before Replacing

• Confirm both household water supplies are turned on and the inlet hoses are connected correctly.
• Inspect the inlet hoses for kinks, blockage, or incorrect hot/cold routing.
• Turn off the water supplies, disconnect the hoses, and inspect the valve inlet screens for mineral buildup or debris; clean only the accessible screens without removing them.
• Check for visible leakage around the valve and hose connections.
• If electrical testing is required, follow the appliance-specific service documentation and disconnect power before accessing the valve; do not assume the valve is defective from symptoms alone.

Pro Tip

Part Details

Key Features

• Whirlpool genuine OEM part
• Dual/double valve assembly
• Cold-water inlet valve
• Controls washer water flow
• Also documented for some washer-dryer combos and laundry centers
• Replaces previous Whirlpool number W10212596

Installation Notes

• Disconnect electrical power and shut off the water supplies before servicing.
• Drain residual water from the hoses into a suitable container before disconnecting them.
• Record hose and wiring positions before removal, and reconnect them to the corresponding ports and terminals on the replacement valve.
• Inspect and clean the inlet screens without removing them before installation.
• After installation, restore water and power, run an appropriate fill test, and check all connections for leaks.

Verified Compatible Models

11041932510, 11041942710, 11041952710, CET8000AQ0, CET8000AQ1, CET8000XQ0, CET9000GQ0, CET9100GQ0, CGT8000AQ0, CGT8000AQ1, CGT8000XQ0, CGT9000GQ0, CGT9100GQ0, CHW8990AW0, CHW8990BW0

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
