Range Won’t Heat or Display Is Dead? Electronic Control Board WS01F08569 – Fix Oven Errors Fast
If your GE Profile or Café range won’t heat, displays persistent error codes, or the control panel is completely unresponsive, a failed electronic control board is the most likely cause. In most GE-built ranges, the machine board (electronic control board) is the central logic unit that governs all cooking functions — managing oven temperature, surface burner ignition, convection fan, self-clean cycle, and the user interface display. When it fails, the range may refuse to heat, display fault codes that won’t clear, or go entirely dead. ⚡ The primary logic board is the first suspect when all other components test good and symptoms affect multiple functions simultaneously. Part WS01F08569 is the genuine OEM replacement that restores full range control, directly superseding WS01F08636, 191D9084G001, and 229C6538P001 with no modification required.
❓ Is This the Right Part?
This is the correct fix if ALL of the following are true:
- ✔ Range has power — breaker is on and outlet or hardwire connection is confirmed live
- ✔ Bake and broil elements have been tested and are not open (not the source of the no-heat fault)
- ✔ Temperature sensor (RTD probe) has been tested and reads within spec at room temperature (~1080Ω)
- ✔ Igniter or surface burner components have been inspected and are not the source of the fault
- ✔ ONLY problem is no heat, dead display, persistent error codes that won’t clear after a hard reset, or multiple functions failing simultaneously
Not sure? Send us your model number — we’ll confirm before you order.
🔧 Common Symptoms
- Oven won’t heat — bake or broil elements don’t activate despite correct settings
- Control panel completely dead — no display, no response to any button input
- Persistent error or fault codes that won’t clear after unplugging and resetting
- Oven heats to wrong temperature or cycles on and off erratically
- Self-clean cycle won’t start or won’t complete
- Surface burners or convection fan behave erratically or don’t respond to controls
✔ If these symptoms match, the electronic control board is the most likely failed component in the system.
✔ In most cases, replacing the control board restores full range operation immediately.
📦 Part Details

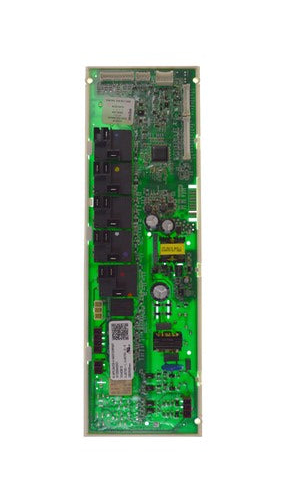

- Part Number: WS01F08569
- Type: Range electronic control board (machine board with frame) — central logic unit governing oven temperature, burner ignition, convection, self-clean, and UI display
- Replaces: OEM direct-fit control board — supersedes WS01F08636, 191D9084G001, 229C6538P001 (no modification required)
- Brands: GE, GE Profile, GE Café
A failed oven temperature sensor (RTD probe) causes the exact same no-heat and error code symptoms as a failed control board — and costs a fraction of the price. Test the sensor with a multimeter at room temperature; it should read approximately 1080Ω. If it reads open or far out of spec, replace the sensor first before committing to a board replacement.
⚙️ Installation
Skill Level: MODERATE — 30 to 60 minutes. Disconnect power at the breaker before beginning — this board carries line voltage and must not be handled live. The control board is located behind the rear panel or inside the control console at the back of the range; remove the panel screws and carefully photograph all wire harness connectors before disconnecting. The board is static-sensitive — avoid touching circuit traces and work on a non-static surface. Release the board from its mounting frame or clips, install the new WS01F08569 in the same position, reconnect all harnesses firmly, reassemble the panel, restore power, and run a test cycle to confirm all functions operate correctly.
💡 Pro Tip
Range control boards are typically final sale once installed. Before ordering, confirm power is reaching the board, test the temperature sensor and bake/broil elements with a multimeter, and check for any burnt connectors or heat damage on the existing board. If the board receives power, all inputs test good, and symptoms affect multiple functions simultaneously, the board is the correct diagnosis. Skipping this step is the most common cause of a costly misdiagnosis on high-value control boards.
🔗 Model Repair Pages
✅Compatibility & Cross Reference
Not sure about your model number? Call 1-877-899-7278 and we’ll help you confirm. All brand names are the property of their respective owners and are used for compatibility reference only.
