Washer Won’t Fill, Overfills, or Shows OE/IE Error? Pressure Switch EBF63534901 – Fix Water Level Faults Fast

If your LG or Kenmore washer won’t fill with water, overfills and floods, stops mid-cycle, or is throwing OE or IE error codes, a failed pressure switch is the most common root cause. In most LG front-load washers, the pressure switch monitors tub water level via an air pressure tube — when it fails, the control board loses accurate water level data, causing fill errors, cycle stalls, and overflow conditions. ⚡ Common failure point in LG-platform front-load washers and washer-dryer combos. Part EBF63534901 is the genuine OEM replacement that restores accurate water level sensing and clears fill and drain error codes — directly superseding EBF63534906 with no modification required.

❓ Is This the Right Part?

This is the correct fix if ALL of the following are true:

• ✔ Washer powers on and control panel responds normally
• ✔ Water inlet valve and supply hoses confirmed functional and pressurized
• ✔ Drain pump and drain hose confirmed clear and operational
• ✔ Air pressure hose from tub to switch is intact, clear, and properly connected
• ✔ ONLY problem is incorrect fill level, cycle stall, overflow, or OE/IE error codes

Not sure? Send us your model number — we'll confirm before you order.

🔧 Common Symptoms

• Washer won’t fill with water or fills very slowly — most common customer complaint
• Washer overfills and water overflows from the tub
• Washer fills but won’t advance to wash or rinse cycle
• Washer stops mid-cycle and won’t continue
• OE error code (drain error triggered by false water level reading)
• IE error code (inlet error from faulty pressure sensing)

✔ If these symptoms match, this is the most likely failed component in the water level sensing circuit.

✔ In most cases, replacing this pressure switch restores normal fill, cycle progression, and error-free operation immediately.

📦 Part Details

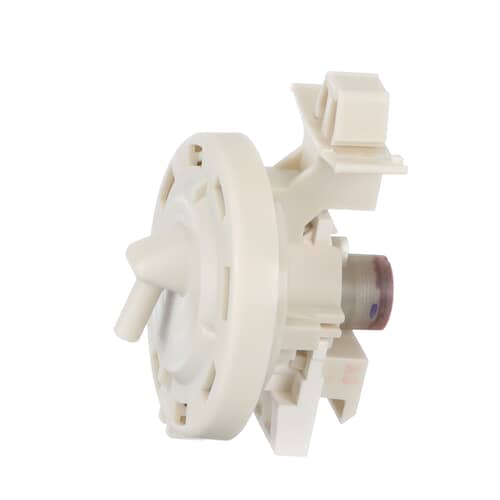

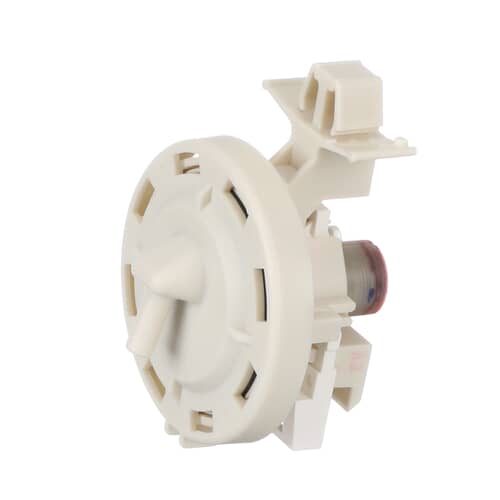

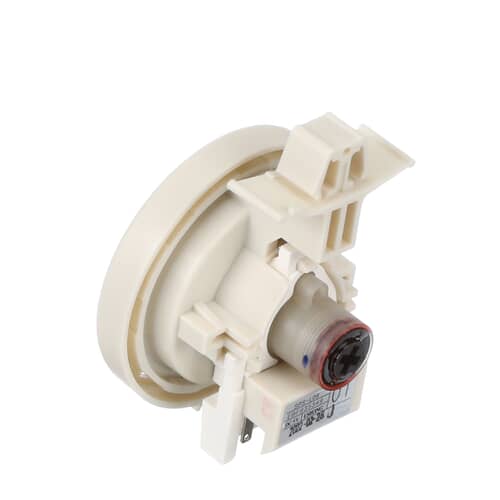

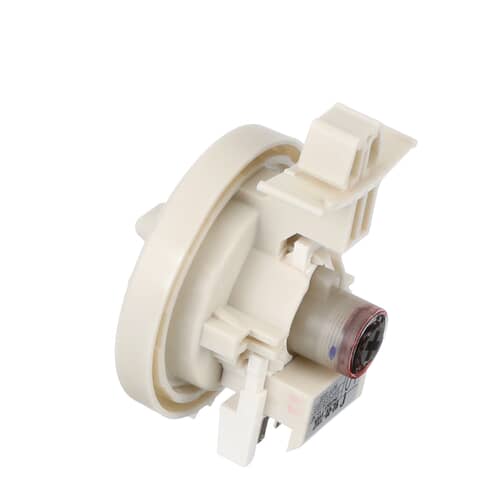

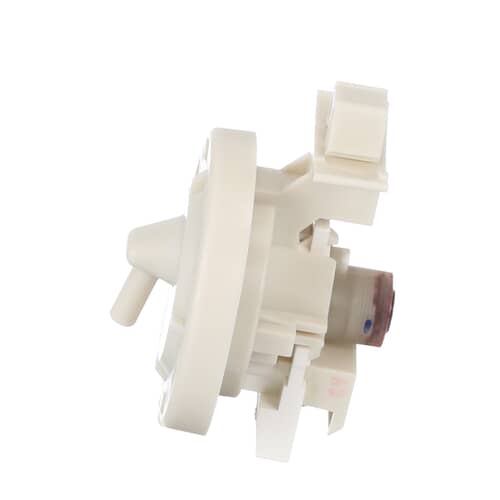

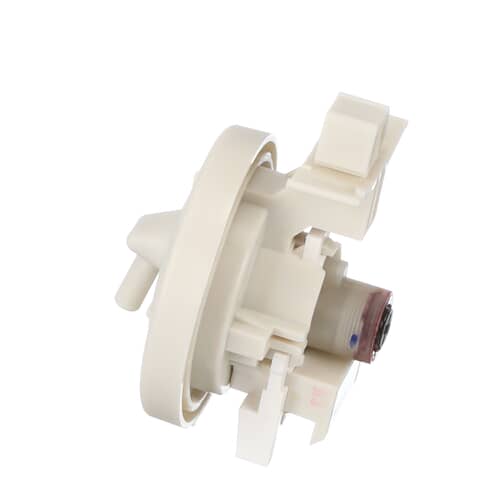

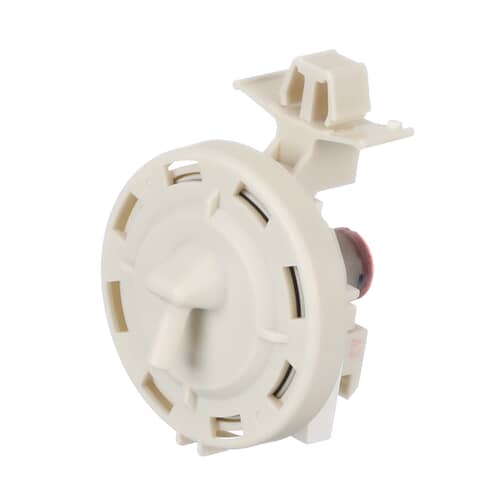

• Part Number: EBF63534901
• Type: Washer water level pressure switch — air-pressure sensing assembly, OEM direct-fit
• Replaces: OEM direct-fit pressure switch — supersedes EBF63534906 (no modification required)
• Brands: LG, Kenmore (LG-manufactured)

⚙️ Installation

Skill Level: MODERATE — 30–45 minutes. Unplug the washer and shut off the water supply before beginning. Remove the top or rear access panel to reach the pressure switch, typically mounted on the side or top of the tub. Disconnect the air hose and wiring harness, remove the mounting screws, and install the new EBF63534901 in the same position. Reconnect the air hose with a firm, secure fit — a loose hose connection is the #1 cause of repeat pressure switch failure. Reassemble and run a test cycle to confirm proper fill and cycle operation.

💡 Pro Tip

Compatible model pages: WM3400CW, WM3460CV, WM3460CW, WM3500CW, WM3600HVA, WM3600HWA, WM3700HRA, WM3700HVA, WM3700HWA
