Microwave Blowing Fuses or Causing Electrical Interference? Whirlpool Noise Filter W10422269 – Fix EMI Issues Fast

Name: Whirlpool Microwave Noise Filter W10422269 — EMI Fix | XPart Supply
Brand: XPart Supply Ltd.
SKU: W10422269
Price: 30.6 CAD
Availability: InStock

If your Whirlpool over-the-range microwave is repeatedly blowing the main fuse, tripping the breaker, or causing interference on nearby electronics, the noise filter (EMI line filter) is the most common cause. In Whirlpool, Maytag, Amana, and KitchenAid microwaves, the noise filter suppresses electromagnetic interference on the incoming power line. When it fails or shorts, it can blow the main fuse, cause erratic operation, or create audible buzzing and interference on nearby devices. ⚡ Common failure point in Whirlpool-platform over-the-range microwaves built 2008–2020. Part W10422269 is the genuine OEM replacement that restores clean power delivery and protects downstream components from electrical noise.

❓ Is This the Right Part?

This is the correct fix if ALL of the following are true:

✔ Microwave repeatedly blows the main fuse after replacement
✔ Microwave is dead but outlet and breaker are confirmed OK
✔ Other appliances on the same circuit work normally
✔ ONLY problem is blown fuse, no power, or electrical interference on nearby devices

Not sure? Send us your model number — we'll confirm before you order.

🔧 Common Symptoms

Microwave blows the ceramic main fuse immediately or shortly after replacement
Microwave completely dead — no display, no response, no sounds
Audible buzzing or humming from the microwave at rest
Interference or static on nearby radios, TVs, or electronics when microwave runs

✔ If these symptoms match, the noise filter is the most likely failed component in the power input circuit.

✔ In most cases, replacing the noise filter stops the fuse from blowing and restores normal microwave operation immediately.

📦 Part Details

Part Number: W10422269
Type: EMI Noise Filter / Line Filter — suppresses electromagnetic interference on the incoming AC power line
Replaces: W10269465
Brands: Whirlpool, Maytag, Amana, KitchenAid, Jenn-Air, Inglis, Crosley

⚠️ Recommended While Repairing:

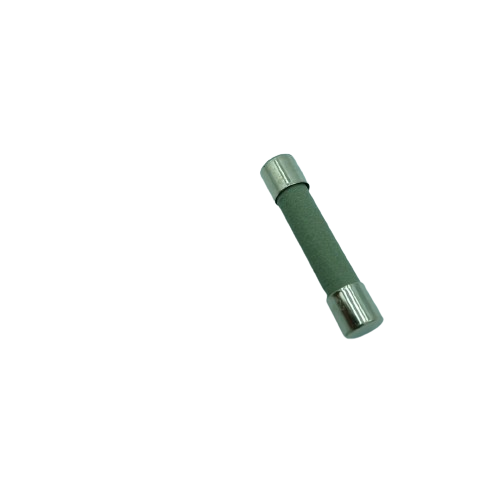

A shorted noise filter almost always takes out the main ceramic fuse (typically 20A, 250V) at the same time. Before reassembling, replace the main fuse — it's a $3–$5 part and skipping it means a second disassembly if the old fuse was already weakened. Check the door interlock switches as well, since a failed switch is another common cause of repeated fuse failures in this platform.

⚙️ Installation

Skill Level: MODERATE — 20–35 minutes. Disconnect power before servicing. Remove the outer cabinet or access panel to expose the power input area — the noise filter is mounted near the power cord entry point. Disconnect the wire terminals (note orientation), remove the mounting screw(s), swap the filter, and reconnect in reverse order. Replace the main fuse at the same time. Restore power and test before reassembling the cabinet.

✓ Compatible Models

Confirmed compatible with AMV1150VAB0, AMV2307PFS0, WMH31017AS0, WMH31017HS0, MMV1164WS0, IMH16XWQ0, UMV1160CS0, TMH16XSQ6, KHMS2040BSS0, GMH3204XVS2 plus 300+ additional Whirlpool, Maytag, Amana, KitchenAid, and Jenn-Air over-the-range microwave models. Contact us to verify your model number before ordering.

💡 Pro Tip

Bundle the Filter + Fuse + Door Switches for One-Trip Repairs:
This noise filter is a high-volume failure part across the entire Whirlpool microwave platform. If you're a technician servicing multiple units, stocking W10422269 alongside the matching 20A ceramic fuse and door interlock switch kit covers the three most common causes of a completely dead Whirlpool OTR microwave — and lets you close the call in a single visit. Ask us about technician pricing on multi-unit orders.

✓ Model-Specific Repair Pages

WMH31017HS0 WMH31017AS0 UMV1160CS0 TMH16XSQ6 MMV1164WS0 KHMS2040BSS0 IMH16XWQ0 GMH3204XVS2 AMV2307PFS0

✅Compatibility & Cross Reference

Part number W10422269 replaces W10269465

AMV1150VAB0, AMV1150VAB1, AMV1150VAB2, AMV1150VAB3, AMV1150VAB4, AMV1150VAB5, AMV1150VAB6, AMV1150VAD0, AMV1150VAD1, AMV1150VAD2, AMV1150VAD3, AMV1150VAD4, AMV1150VAQ0, AMV1150VAQ1, AMV1150VAQ2, AMV1150VAQ3, AMV1150VAQ4, AMV1150VAS0, AMV1150VAS1, AMV1150VAS2, AMV1150VAS3, AMV1150VAS4, AMV1150VAS5, AMV1150VAS6, AMV1150VAW0, AMV1150VAW1, AMV1150VAW2, AMV1150VAW3, AMV1150VAW4, AMV1150VAW5, AMV1150VAW6, AMV1160VAB2, AMV1160VAB3, AMV1160VAB4, AMV1160VAD2, AMV1160VAD3, AMV1160VAD4, AMV1160VAS2, AMV1160VAS3, AMV1160VAS4, AMV1160VAW2, AMV1160VAW3, AMV1160VAW4, AMV2174VAB2, AMV2174VAB3, AMV2174VAB4, AMV2174VAB5, AMV2174VAB6, AMV2174VAD2, AMV2174VAD3, AMV2174VAD4, AMV2174VAD5, AMV2174VAD6, AMV2174VAS2, AMV2174VAS3, AMV2174VAS4, AMV2174VAS5, AMV2174VAS6, AMV2174VAW2, AMV2174VAW3, AMV2174VAW4, AMV2174VAW5, AMV2174VAW6, AMV2175CB0, AMV2175CS0, AMV2175CW0, AMV2307PFB0, AMV2307PFB08, AMV2307PFB1, AMV2307PFB2, AMV2307PFB3, AMV2307PFB4, AMV2307PFB5, AMV2307PFB6, AMV2307PFB7, AMV2307PFS0, AMV2307PFS08, AMV2307PFS1, AMV2307PFS2, AMV2307PFS3, AMV2307PFS4, AMV2307PFS5, AMV2307PFS6, AMV2307PFS7, AMV2307PFW0, AMV2307PFW08, AMV2307PFW1, AMV2307PFW2, AMV2307PFW3, AMV2307PFW4, AMV2307PFW5, AMV2307PFW6, AMV2307PFW7, GMH3204XVB2, GMH3204XVB3, GMH3204XVQ2, GMH3204XVQ3, GMH3204XVS2, GMH3204XVS3, IMH1205AB0, IMH1205AS0, IMH15XVQ1, IMH15XVQ2, IMH15XVQ3, IMH15XVQ4, IMH15XVQ5, IMH15XVQ6, IMH160DW0, IMH160DW1, IMH160FW0, IMH160FW1, IMH160FW2, IMH16XVQ2, IMH16XVS2, IMH16XWQ0, IMH16XWQ0I, IMH16XWQ1, IMH16XWQ2, IMH16XWQ3, IMH16XWQ4, IMH16XWS0, IMH16XWS1, IMH16XWS2, IMH16XWS3, IMH16XWS4, IMH16XWS5, IMH172DS0, IMH172DS1, IMH172DS2, IMH172FS0, IMH172FS1, IMH172FS2, IMH205DS0, IMH2205AS0, IMH2205AS1, IMH2205AS2, IMH2205AW0, IMH2205AW1, IMH2205AW2, KHMS2040BBL0, KHMS2040BSS0, KHMS2040BWH0, KHMS2040WBL1, KHMS2040WBL2, KHMS2040WSS1, KHMS2040WSS2, KHMS2040WSS3, KHMS2040WWH1, KHMS2040WWH2, MMMS4230PZ00, MMV1153WB0, MMV1153WB1, MMV1153WB2, MMV1153WS0, MMV1153WS1, MMV1153WS2, MMV1153WW0, MMV1153WW1, MMV1153WW2, MMV1164WB0, MMV1164WB1, MMV1164WB2, MMV1164WB3, MMV1164WB4, MMV1164WB5, MMV1164WB6, MMV1164WS0, MMV1164WS1, MMV1164WS2, MMV1164WS3, MMV1164WS4, MMV1164WS5, MMV1164WS6, MMV1164WS7, MMV1164WW0, MMV1164WW1, MMV1164WW2, MMV1164WW3, MMV1164WW4, MMV1164WW5, MMV1164WW6, MMV1174FB0, MMV1174FB1, MMV1174FB2, MMV1174FB3, MMV1174FK1, MMV1174FS0, MMV1174FW0, MMV1174FW1, MMV1174FW2, MMV1174FW3, MMV1174FZ0, MMV1174FZ1, MMV1174FZ2, MMV1174FZ3, MMV1174HK0, MMV1175JB0, MMV1175JB01, MMV1175JK0, MMV1175JW0, MMV1175JW01, MMV1175JZ0, MMV1175JZ01, MMV4203WB2, MMV4203WQ2, MMV4203WS2, MMV4203WW2, MMV4206BB0, MMV4206BS0, MMV4206BW0, MMV5208WB1, MMV5208WQ1, MMV5208WS1, MMV5208WW1, TMH16XSB7, TMH16XSB8, TMH16XSB9, TMH16XSD6, TMH16XSD7, TMH16XSD8, TMH16XSQ6, TMH16XSQ7, TMH16XSQ8, TMH16XST4, TMH16XST5, TMH16XST6, UMV1160CB0, UMV1160CB1, UMV1160CB2, -, HOOD, UMV1160CB3, UMV1160CB4, UMV1160CB5, UMV1160CB6, UMV1160CB7, UMV1160CB8, UMV1160CS0, UMV1160CS1, UMV1160CS2, UMV1160CS3, UMV1160CS4, UMV1160CS5, UMV1160CS6, UMV1160CS7, UMV1160CS8, UMV1160CS9, UMV1160CW0, UMV1160CW1, UMV1160CW2, UMV1160CW3, UMV1160CW4, UMV1160CW5, UMV1160CW6, UMV1160CW7, UMV1160CW8, UMV1160FB0, UMV1160FS0, UMV1160FW0, UMV1170LB0, UMV1170LB0, UMV1170LB00, UMV1170LB00, UMV1170LS0, UMV1170LS0, UMV1170LS00, UMV1170LS00, UMV1170LW0, UMV1170LW0, UMV1170LW00, UMV1170LW00, WMH1162XVB2, WMH1162XVB3, WMH1162XVB4, WMH1162XVD2, WMH1162XVD3, WMH1162XVD4, WMH1162XVQ2, WMH1162XVQ3, WMH1162XVQ4, WMH1162XVS2, WMH1162XVS3, WMH1162XVS4, WMH1163XVB0, WMH1163XVB1, WMH1163XVB2, WMH1163XVB3, WMH1163XVB4, WMH1163XVB5, WMH1163XVD0, WMH1163XVD1, WMH1163XVD2, WMH1163XVD3, WMH1163XVD4, WMH1163XVD5, WMH1163XVQ0, WMH1163XVQ1, WMH1163XVQ2, WMH1163XVQ3, WMH1163XVQ4, WMH1163XVQ5, WMH1163XVS0, WMH1163XVS1, WMH1163XVS2, WMH1163XVS3, WMH1163XVS4, WMH1163XVS5, WMH1163XVS6, WMH1164XVS2, WMH1164XVS3, WMH1164XWS0, WMH1164XWS1, WMH1164XWS2, WMH1164XWS3, WMH1164XWS4, WMH1164XWS5, WMH1164XWS6, WMH2175XVB1, WMH2175XVB2, WMH2175XVB3, WMH2175XVB4, WMH2175XVB5, WMH2175XVQ1, WMH2175XVQ2, WMH2175XVQ3, WMH2175XVQ4, WMH2175XVQ5, WMH2175XVS1, WMH2175XVS2, WMH2175XVS3, WMH2175XVS4, WMH2175XVS5, WMH2175XVS6, WMH2175XVS7, WMH2175XVT1, WMH2175XVT2, WMH2175XVT3, WMH2175XVT4, WMH2175XVT5, WMH31017AB0, WMH31017AB1, WMH31017AB2, WMH31017AB3, WMH31017AB4, WMH31017AB5, WMH31017AD0, WMH31017AD1, WMH31017AD2, WMH31017AD3, WMH31017AD4, WMH31017AD5, WMH31017AS0, WMH31017AS1, WMH31017AS2, WMH31017AS3, WMH31017AS4, WMH31017AS5, WMH31017AW0, WMH31017AW1, WMH31017AW2, WMH31017AW3, WMH31017AW4, WMH31017AW5, WMH31017FB0, WMH31017FB1, WMH31017FB2, WMH31017FD0, WMH31017FD1, WMH31017FD2, WMH31017FS0, WMH31017FS1, WMH31017FS2, WMH31017FW0, WMH31017FW1, WMH31017FW2, WMH31017HB0, WMH31017HB08, WMH31017HB1, WMH31017HB2, WMH31017HB3, WMH31017HB4, WMH31017HB5, WMH31017HB6, WMH31017HB7, WMH31017HS0, WMH31017HS09, WMH31017HS09, WMH31017HS1, WMH31017HS10, WMH31017HS2, WMH31017HS3, WMH31017HS4, WMH31017HS5, WMH31017HS6, WMH31017HS7, WMH31017HS8, WMH31017HS9, WMH31017HS9, WMH31017HW0, WMH31017HW09, WMH31017HW1, WMH31017HW2, WMH31017HW3, WMH31017HW4, WMH31017HW5, WMH31017HW6, WMH31017HW7, WMH31017HW8, WMH31017HZ0, WMH31017HZ08, WMH31017HZ08, WMH31017HZ09, WMH31017HZ1, WMH31017HZ2, WMH31017HZ3, WMH31017HZ4, WMH31017HZ5, WMH31017HZ6, WMH31017HZ7, WMH31017HZ8, WMH31017HZ8, WMH3205XVB2, WMH3205XVQ2, WMH3205XVS2, YAMV1160VAB1, YAMV1160VAB2, YAMV1160VAB3, YAMV1160VAB4, YAMV1160VAB5, YAMV1160VAB6, YAMV1160VAB7, YAMV1160VAS1, YAMV1160VAS2, YAMV1160VAS3, YAMV1160VAS4, YAMV1160VAS5, YAMV1160VAS6, YAMV1160VAS7, YAMV1160VAW1, YAMV1160VAW2, YAMV1160VAW3, YAMV1160VAW4, YAMV1160VAW5, YAMV1160VAW6, YAMV1160VAW7, YAMV1170VES0, YAMV2307PFS0, YAMV2307PFS07, YAMV2307PFS08, YAMV2307PFS09, YAMV2307PFS1, YAMV2307PFS2, YAMV2307PFS3, YAMV2307PFS4, YAMV2307PFW0, YAMV2307PFW07, YAMV2307PFW08, YAMV2307PFW09, YAMV2307PFW1, YAMV2307PFW2, YAMV2307PFW3, YAMV2307PFW4, YKHMS2040BS0, YKHMS2040WS1, YKHMS2040WS3, YMH2175XSB6, YMH2175XSQ5, YMH2175XSS5, YMMV1174FZ0, YMMV1174FZ1, YMMV1174FZ2, YMMV1174FZ3, YMMV1174HK0, YMMV1174HK1, YMMV1174HK2, YMMV1175JK0, YMMV1175JZ0, YMMV1175JZ01, YMMV4203WB1, YMMV4203WB2, YMMV4203WS1, YMMV4203WS2, YMMV4203WW1, YMMV4203WW2, YMMV5208WB1, YMMV5208WS1, YMMV5208WW1, YWMH1162XVB1, YWMH1162XVB2, YWMH1162XVB3, YWMH1162XVB4, YWMH1162XVB5, YWMH1162XVQ1, YWMH1162XVQ2, YWMH1162XVQ3, YWMH1162XVQ4, YWMH1162XVQ5, YWMH1162XVS1, YWMH1162XVS2, YWMH1162XVS3, YWMH1162XVS4, YWMH1162XVS5, YWMH2205XVB1, YWMH2205XVQ1, YWMH2205XVQ2, YWMH2205XVQ3, YWMH2205XVS1, YWMH2205XVS2, YWMH2205XVS3, YWMH31017AB0, YWMH31017AB1, YWMH31017AB2, YWMH31017AB3, YWMH31017AB4, YWMH31017AB5, YWMH31017AS0, YWMH31017AS1, YWMH31017AS2, YWMH31017AS3, YWMH31017AS4, YWMH31017AS5, YWMH31017AW0, YWMH31017AW1, YWMH31017AW2, YWMH31017AW3, YWMH31017AW4, YWMH31017AW5, YWMH31017FB0, YWMH31017FB1, YWMH31017FS0, YWMH31017FS1, YWMH31017FW0, YWMH31017FW1, YWMH31017HB0, YWMH31017HB05, YWMH31017HB06, YWMH31017HB07, YWMH31017HB08, YWMH31017HB09, YWMH31017HB1, YWMH31017HB2, YWMH31017HB3, YWMH31017HS0, YWMH31017HS05, YWMH31017HS06, YWMH31017HS07, YWMH31017HS08, YWMH31017HS09, YWMH31017HS1, YWMH31017HS2, YWMH31017HS3, YWMH31017HW0, YWMH31017HW05, YWMH31017HW06, YWMH31017HW07, YWMH31017HW08, YWMH31017HW09, YWMH31017HW1, YWMH31017HW2, YWMH31017HW3, YWMH31017HZ0, YWMH31017HZ05, YWMH31017HZ06, YWMH31017HZ07, YWMH31017HZ08, YWMH31017HZ09, YWMH31017HZ1, YWMH31017HZ2, YWMH31017HZ3

Not sure about your model number? Call 1-877-899-7278 and we’ll help you confirm. All brand names are the property of their respective owners and are used for compatibility reference only.
