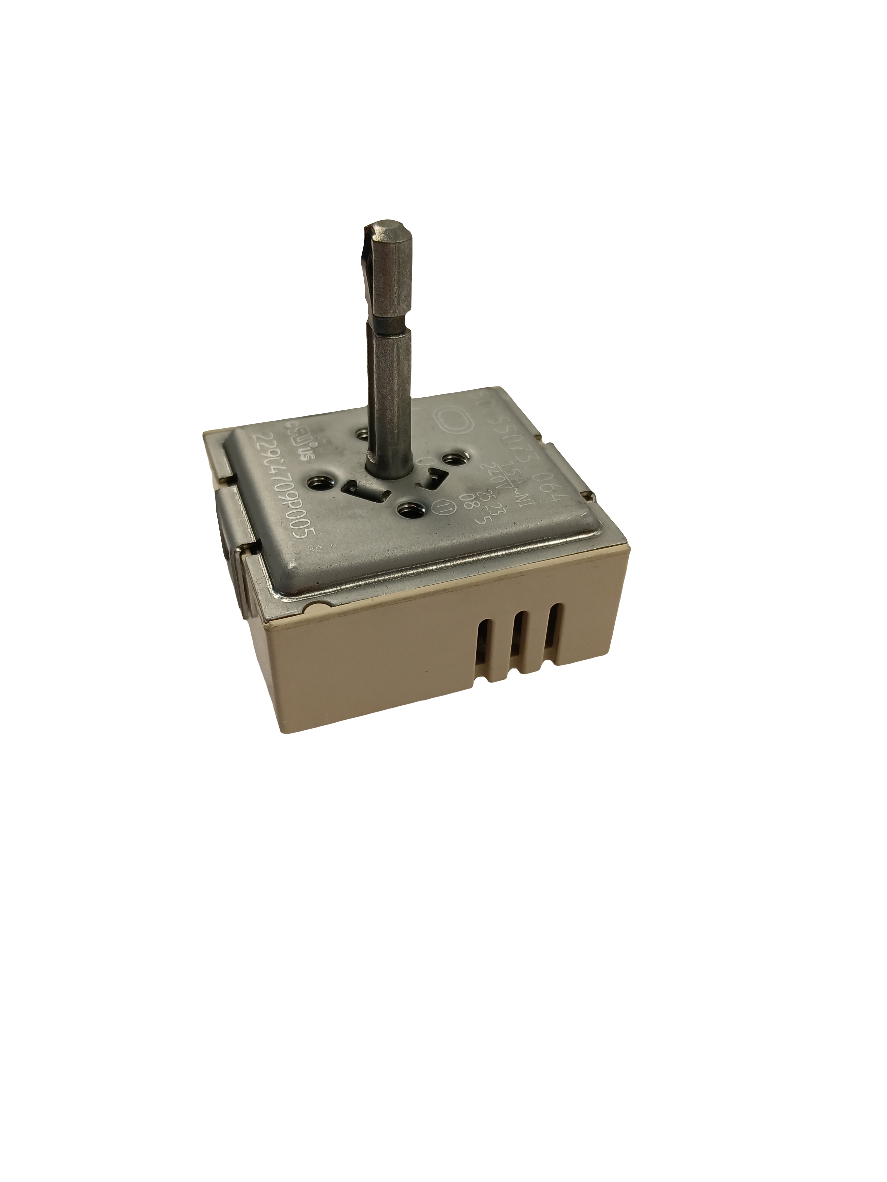

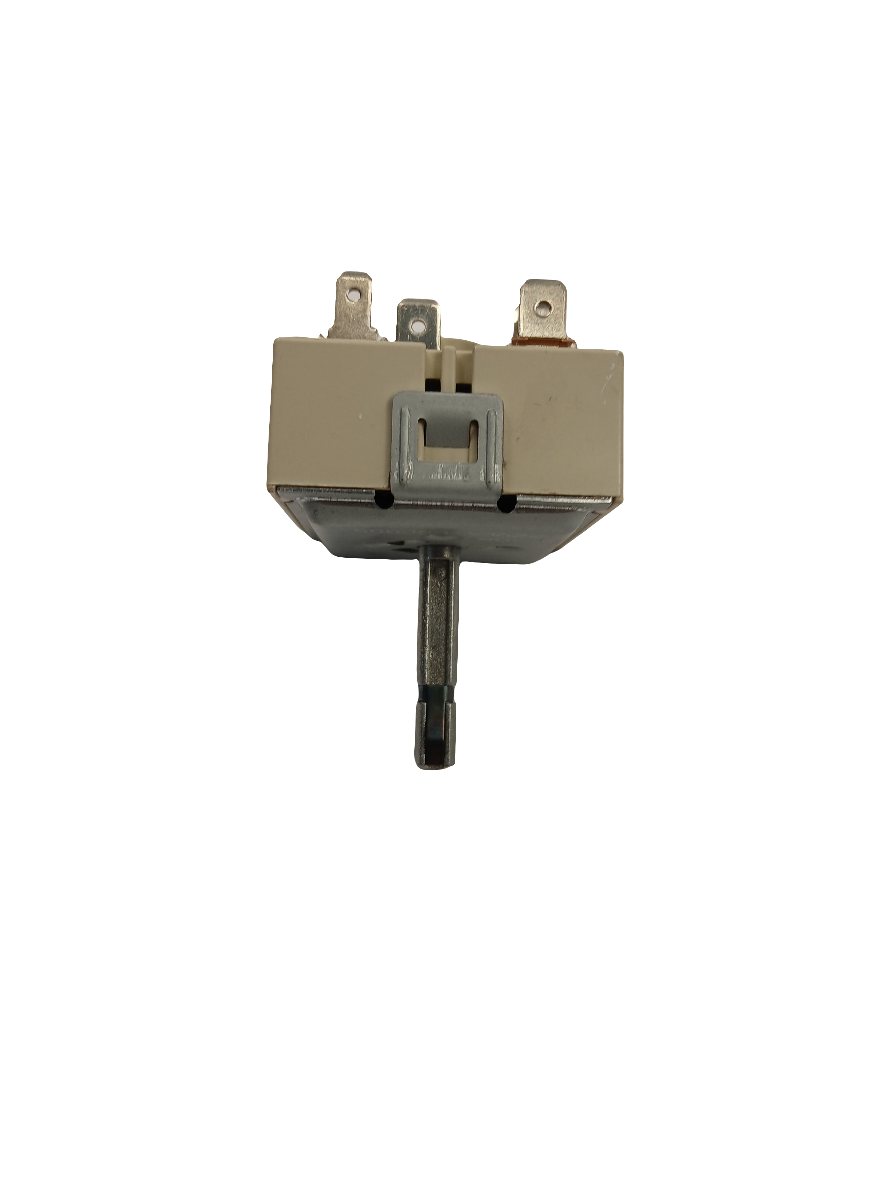

GE Range Surface Element Switch WG02F01547, Replaces WB24T10134

Is This the Right Part?

✅ Cross Reference Information

Common Symptoms

• Associated surface element will not heat or turn on.
• Associated surface element will not turn off.
• Heat level cannot be adjusted correctly.
• Dual-element selection or heating control does not operate as expected.

Check Before Replacing

• With power disconnected, confirm the control knob is properly seated on the switch shaft and is not damaged.
• Compare the affected element’s behavior with another surface element while observing normal safety precautions; unusual operation may involve the switch, element, wiring, or another control component.
• If qualified to perform electrical testing, have a technician check the switch and associated circuit against the appliance’s service documentation; do not test energized 240 V circuits unless properly trained and equipped.

Pro Tip

Part Details

Installation Notes

• Disconnect electrical power to the range before accessing or replacing the switch.
• Remove the control knob and access the control panel according to the appliance’s service instructions.
• Document or photograph wire positions before disconnecting the old switch, then transfer wiring only to the corresponding terminals on the replacement.
• Reinstall the switch, control-panel components, and knob securely before restoring power.
• If the burner is hard-wired or electrical testing is required, use a qualified appliance technician.

Verified Compatible Models

CP350ST1SS, CP350ST2SS, CP650ST1SS, CP650ST2SS, JCS905BK3BB, JCS905BK4BB, JCS905SK3SS, JCS905SK4SS, JCS905WK3WW, JCS905WK4WW, JCS968BK4BB, JCS968BK5BB, JCS968SK3SS, JCS968SK4SS, JCS968SK5SS, JCS968WK4WW, JCS968WK5WW, JCSP42BK3BB, JCSP42BK4BB, JCSP42DN1BB, JCSP42DN1WW, JCSP42DN2BB, JCSP42DN2WW, JCSP42DN3BB, JCSP42DN3WW, JCSP42SK3SS, JCSP42SK4SS, JCSP42SN1SS, JCSP42SN2SS, JCSP42SN3SS, JCSP42WK3WW, JCSP42WK4WW, JCSP46DP1BB, JCSP46DP1WW, JCSP46DP2BB, JCSP46DP2WW, JCSP46SP1SS, JCSP46SP2SS, JD630DF1BB, JD630DF1WW, JD630DF2BB, JD630DF2WW, JD630SF1SS, JD630SF2SS, JD900BK3BB, JD900BK4BB, JD900CK3CC, JD900CK4CC, JD900WK3WW, JD900WK4WW, JCS860SF1SS, PP962BM3BB, PP962SM3SS, PS905DP2BB, PS905TP1WW

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
