Whirlpool Dishwasher Door Seal W11664713 (Replaces W11454757, W11163967, W11484890)

Whirlpool Dishwasher Door Seal W11664713 (Replaces W11454757, W11163967, W11484890)

Sale price: $53.71
Regular price: $56.54

XPart Verified Replacement | SKU 9769373434145

Buying Options: W11664713

W11664713

$53.71

W1166471

$50.98

Product variant with selected options does not exist!

Frequently Bought Together

Is This the Part You Need?

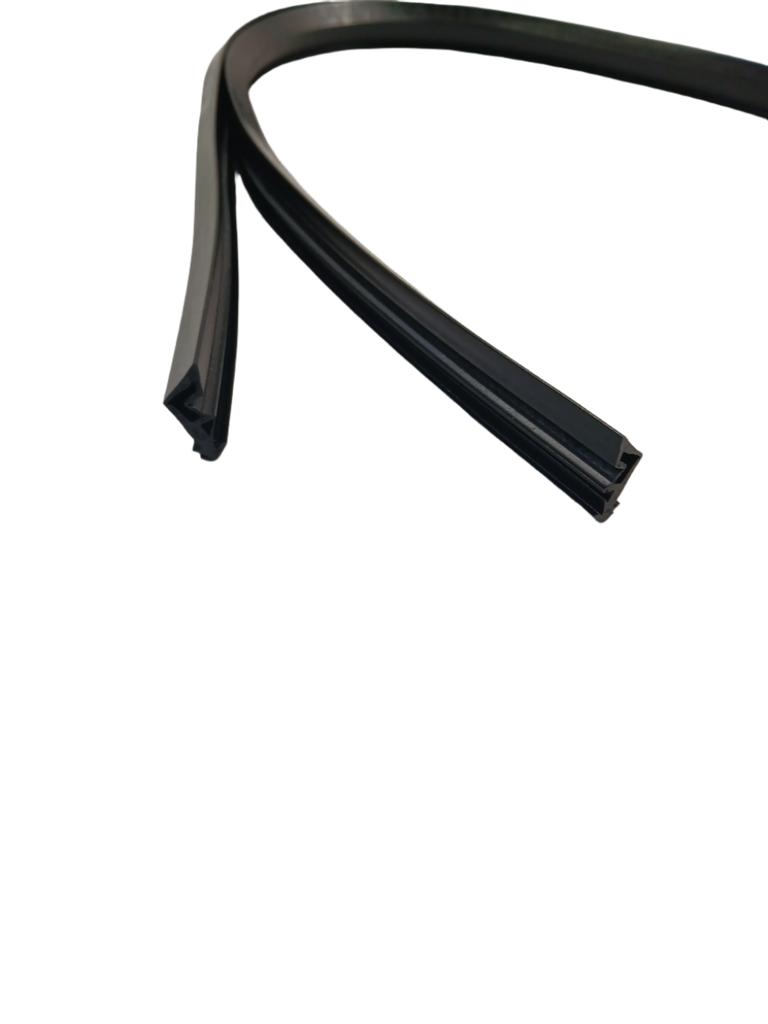

This is the door gasket / tub seal for select Whirlpool, KitchenAid, Maytag, and Jenn-Air dishwashers. The door seal runs around the perimeter of the tub opening and creates a watertight barrier when the door is closed. When the gasket hardens, cracks, tears, or loses its shape, water escapes during the wash cycle — pooling on your kitchen floor and potentially causing water damage to your cabinetry and subfloor. This is a direct OEM replacement that restores a leak-free seal.

Symptoms of a Failed Dishwasher Door Seal

Water leaking from the door during or after a wash cycle
Puddles on the kitchen floor in front of the dishwasher
Visible cracks, tears, or hardening in the door gasket
Gasket no longer springs back when compressed (compression set)
Door feels loose or doesn’t seal firmly when closed
Musty odour from moisture trapped around the door frame

Part Details

OEM Part Number: W11664713
Replaces / Cross-References: W11454757, W11163967, W11484890, W11563231, W11606677, W11561235
Compatible Brands: Whirlpool, KitchenAid, Maytag, Jenn-Air
Part Type: Dishwasher Door Seal / Tub Gasket
Condition: New OEM (W11664713) / Compatible Option available
Vendor: XPart Supply Ltd. — Canadian stock, expert support

Installation Notes

Skill Level: Beginner — no tools required, 10–15 minute repair
Always disconnect power to the dishwasher before beginning any repair
Open the door and pull the old gasket out of the channel around the tub opening
Clean the channel thoroughly before installing the new seal
Press the new gasket into the channel starting at the top centre, working outward to each side
Ensure the gasket seats fully in all corners — pay special attention to the bottom corners
Close the door and run a short cycle to verify the seal before reassembling

Compatible Models

JDPSG244LS0, JDPSG244LS1, JDPSG244LS2, JDPSS244LL0, JDPSS244LL1, JDPSS244LL2, JDPSS244LM0, JDPSS244LM1, JDPSS244LM2, JDPSS245LX0, JDPSS245LX1, JDPSS246LL0, JDPSS246LL1, JDPSS246LM0, JDPSS246LM1, KDFE104KBL0, KDFE104KBL1, KDFE104KPS0, KDFE104KPS1, KDFE104KWH0, KDFE104KWH1, KDFE204KBL0, KDFE204KBL1, KDFE204KBS0, KDFE204KBS1, KDFE204KPS0, KDFE204KPS1, KDFE204KWH0, KDFE204KWH1, KDFM404KBS0, KDFM404KBS1, KDFM404KPS0, KDFM404KPS1, KDPM604KBS0, KDPM604KBS1, KDPM604KPS0, KDPM604KPS1, KDPM704KPS0, KDPM704KPS1, KDPM804KBS0, KDPM804KBS1, KDPM804KPS0, KDPM804KPS1, KDTE104KPS0, KDTE104KPS1, KDTE204KBL0, KDTE204KBL1, KDTE204KBS0, KDTE204KBS1, KDTE204KPS0, KDTE204KPS1, KDTE204KWH0, KDTE204KWH1, KDTE304LPA0, KDTE304LPA1, KDTM404KBS0, KDTM404KBS1, KDTM404KPS0, KDTM404KPS1, KDTM604KBS0, KDTM604KBS1, KDTM604KPS0, KDTM604KPS1, KDTM704KPS0, KDTM704KPS1, KDTM704LPA0, KDTM704LPA1, KDTM804KBS0, KDTM804KBS1, KDTM804KPS0, KDTM804KPS1, MDB4949SKB0, MDB4949SKB1, MDB4949SKW0, MDB4949SKW1, MDB4949SKZ0, MDB4949SKZ1, MDB7959SKZ0, MDB7959SKZ1, MDB8959SKB0, MDB8959SKB1, MDB8959SKK0, MDB8959SKW0, MDB8959SKZ0, MDB9959SKZ0, MDB9979SKZ0

MDB8959SKB1 MDB8959SKZ0 MDB8959SKW0 MDB8959SKK0 MDB8959SKB0 MDB7959SKZ0 MDB4949SKZ0 MDB4949SKW0 MDB4949SKB0 KDTE104KPS0 KDTE204KWH0 KDTE204KBS0 KDTE204KBL0 KDFE204KWH0 KDFE204KBS0 KDFE204KBL0 JDPSS244LM2 JDPSS244LM1 JDPSS244LL2 JDPSS244LL1 JDPSS244LL0 JDPSG244LS2 JDPSG244LS1 KDFE104KWH0 KDFE104KPS0 KDFE104KBL0 KITCHENAID DISHWASHER KDTM804KBS0 KDTM704LPA1 KDTM704KPS1 KDTM704KPS0 KDTM604KPS0 KDTM604KBS1 KDTM604KBS0 KDTM404KPS1 KDTM404KPS0 KDTM404KBS1 KDTM404KBS0 KDPM804KPS1 KDPM804KPS0 KDPM804KBS0 KDPM704KPS1 KDPM704KPS0 KDPM604KPS1 KDPM604KPS0 KDPM604KBS0 KDFM404KPS0 KDFM404KBS1 KDFM404KBS0 JDPSS246LM1 JDPSS246LM0 JDPSS246LL1 JDPSS246LL0 JDPSS245LX0 JDPSS244LM0 JDPSG244LS0 MDB9979SKZ0 MDB9959SKZ0 KDTM804KPS0 KDTE204KPS0 KDFE204KPS0

💡 Pro Tip — Clean the Channel Before Installing:
Before fitting the new gasket, wipe out the door seal channel with a damp cloth and remove any mineral deposits, mould, or debris. A dirty channel prevents the new gasket from seating fully — especially in the bottom corners — and will cause the same leak you’re trying to fix. Also inspect the door latch and hinge alignment: a misaligned door puts uneven pressure on the gasket and will shorten its lifespan significantly.

W11664713 – Whirlpool Dishwasher Door Seal Parts Diagram

✅Compatibility & Cross Reference

Item #11 in diagram.

Part number W11664713 replaces W11163967, W11454757, W11484890, W11561235, W11563231, W11606677

MDB4949SKB0, MDB4949SKW0, MDB4949SKZ0, MDB7959SKZ0, MDB8959SKB0, MDB8959SKK0, MDB8959SKW0, MDB8959SKZ0, MDB9959SKZ0, MDB9979SKZ0 BLB14GRANA2, JDPSG244LS0, JDPSG244LS1, JDPSG244LS2, JDPSS244LL0, JDPSS244LL1, JDPSS244LL2, JDPSS244LM0, JDPSS244LM1, JDPSS244LM2, JDPSS245LX0, JDPSS245LX1, JDPSS246LL0, JDPSS246LL1, JDPSS246LM0, JDPSS246LM1, KDFE104KBL0, KDFE104KBL1, KDFE104KPS0, KDFE104KPS1, KDFE104KWH0, KDFE104KWH1, KDFE204KBL0, KDFE204KBL1, KDFE204KBS0, KDFE204KBS1, KDFE204KPS0, KDFE204KPS1, KDFE204KWH0, KDFE204KWH1, KDFM404KBS0. KDFM404KBS1, KDFM404KPS0, KDFM404KPS1, KDPM604KBS0, KDPM604KBS1, KDPM604KPS0, KDPM604KPS1, KDPM704KPS0, KDPM704KPS1, KDPM804KBS0, KDPM804KBS1, KDPM804KPS0, KDPM804KPS1, KDTE104KPS0, KDTE104KPS1, KDTE204KBL0, KDTE204KBL1, KDTE204KBS0, KDTE204KBS1, KDTE204KPS0, KDTE204KPS1, KDTE204KWH0, KDTE204KWH1, KDTE304LPA0, KDTE304LPA1, KDTM404KBS0, KDTM404KBS1, KDTM404KPS0, KDTM404KPS1, KDTM604KBS0, KDTM604KBS1, KDTM604KPS0, KDTM604KPS1, KDTM704KPS0, KDTM704KPS1, KDTM704LPA0, KDTM704LPA1, KDTM804KBS0, KDTM804KBS1, KDTM804KPS0, KDTM804KPS1, MDB4949SKB1, MDB4949SKW1, MDB4949SKZ1, MDB7959SKZ1, MDB8959SKB0, MDB8959SKB1, MDB8959SKK0, MDB8959SKW0

Why is my dishwasher leaking water from the door?

Water leaking from the dishwasher door during operation is almost always caused by a worn or damaged door seal (tub gasket). The seal runs around the perimeter of the tub opening and compresses against the door when closed, creating a watertight barrier. Over time, the rubber seal cracks, tears, hardens, or warps — losing its ability to seal properly. Even small gaps allow water to escape, especially during high-pressure spray cycles. Check the seal for visible damage — cracks, tears, flat spots, or areas that have pulled out of the channel. If the seal looks worn or damaged, replacing it stops the leak. Also verify the door closes fully and latches properly — a misaligned door can prevent the seal from compressing evenly.

W11664713, Whirlpool dishwasher door seal, dishwasher tub gasket, dishwasher leaking, W11082290, dishwasher door gasket, dishwasher seal replacement, dishwasher leaking from door, Maytag dishwasher seal, KitchenAid dishwasher gasket, dishwasher tub seal, dishwasher water leak, door seal replacement, dishwasher gasket torn, Kenmore dishwasher seal, dishwasher leaking bottom, dishwasher door not sealing, dishwasher rubber seal, dishwasher boot seal, dishwasher leaking front

Whirlpool, Maytag, Amana, Jenn-Air, KitchenAid, Kenmore (verify by model)

Not sure about your model number? Call 1-877-899-7278 and we’ll help you confirm. All brand names are the property of their respective owners and are used for compatibility reference only.
