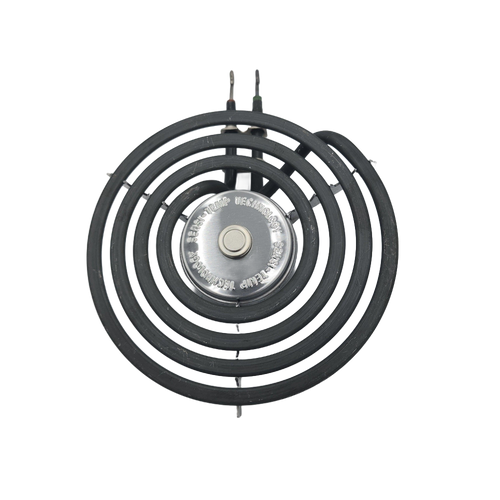

Coil Heating Element, Surface Burner, Electric Coil Element

WPW10208592, AP6009151, PS11750151, EAP11750151, 4452894, 8053462, W10131825, W10269460, W10594481, 660532

Whirlpool, KitchenAid, Maytag, Jenn-Air, Amana, Kenmore

WhirlpoolWCE77US0HB0, WCE77US0HB1, WCE77US0HB2, WCE77US0HB3, WCE77US0HW0, WCE77US0HW1, WCE77US0HW2, WCE77US0HW3, WCE77US0HS0, WCE77US0HS1, WCE77US0HS2, WCE77US0HS3, WCE77US0HZ0, WCE77US0HZ1, WCE77US0HZ2, WCE77US0HZ3, WCE85US0HB0, WCE85US0HB1, WCE85US0HB2, WCE85US0HB3, WCE85US0HW0, WCE85US0HW1, WCE85US0HW2, WCE85US0HW3, WCE85US0HS0, WCE85US0HS1, WCE85US0HS2, WCE85US0HS3, WCE85US0HZ0, WCE85US0HZ1, WCE85US0HZ2, WCE85US0HZ3, WFE505W0HS0, WFE505W0HS1, WFE505W0HS2, WFE505W0HS3, WFE505W0HV0, WFE505W0HV1, WFE505W0HV2, WFE505W0HV3, WFE505W0HW0, WFE505W0HW1, WFE505W0HW2, WFE505W0HW3, WFE505W0HZ0, WFE505W0HZ1, WFE505W0HZ2, WFE505W0HZ3, WFE510S0AS0, WFE510S0AS1, WFE510S0AS2, WFE510S0AS3, WFE510S0AW0, WFE510S0AW1, WFE510S0AW2, WFE510S0AW3, WFE515S0ES0, WFE515S0ES1, WFE515S0ES2, WFE515S0ES3, WFE515S0EW0, WFE515S0EW1, WFE515S0EW2, WFE515S0EW3, WFE525S0HS0, WFE525S0HS1, WFE525S0HS2, WFE525S0HS3, WFE525S0HV0, WFE525S0HV1, WFE525S0HV2, WFE525S0HV3, WFE525S0HW0, WFE525S0HW1, WFE525S0HW2, WFE525S0HW3, WFE525S0HZ0, WFE525S0HZ1, WFE525S0HZ2, WFE525S0HZ3

KitchenAidKFEG500ESS0, KFEG500ESS1, KFEG500ESS2, KFEG500ESS3, KFEG500EWH0, KFEG500EWH1, KFEG500EWH2, KFEG500EWH3, KFEG500EBL0, KFEG500EBL1, KFEG500EBL2, KFEG500EBL3, KFES530ESS0, KFES530ESS1, KFES530ESS2, KFES530ESS3, KFES530EWH0, KFES530EWH1, KFES530EWH2, KFES530EWH3, KFES530EBL0, KFES530EBL1, KFES530EBL2, KFES530EBL3, KFGG500ESS0, KFGG500ESS1, KFGG500ESS2, KFGG500ESS3, KFGG500EWH0, KFGG500EWH1, KFGG500EWH2, KFGG500EWH3, KFGG500EBL0, KFGG500EBL1, KFGG500EBL2, KFGG500EBL3, KFGS530ESS0, KFGS530ESS1, KFGS530ESS2, KFGS530ESS3, KFGS530EWH0, KFGS530EWH1, KFGS530EWH2, KFGS530EWH3, KFGS530EBL0, KFGS530EBL1, KFGS530EBL2, KFGS530EBL3

MaytagMER6600FZ0, MER6600FZ1, MER6600FZ2, MER6600FZ3, MER6600FW0, MER6600FW1, MER6600FW2, MER6600FW3, MER6600FB0, MER6600FB1, MER6600FB2, MER6600FB3, MER8600FZ0, MER8600FZ1, MER8600FZ2, MER8600FZ3, MER8600FW0, MER8600FW1, MER8600FW2, MER8600FW3, MER8600FB0, MER8600FB1, MER8600FB2, MER8600FB3, MGR6600FZ0, MGR6600FZ1, MGR6600FZ2, MGR6600FZ3, MGR6600FW0, MGR6600FW1, MGR6600FW2, MGR6600FW3, MGR6600FB0, MGR6600FB1, MGR6600FB2, MGR6600FB3, MGR8600FZ0, MGR8600FZ1, MGR8600FZ2, MGR8600FZ3, MGR8600FW0, MGR8600FW1, MGR8600FW2, MGR8600FW3, MGR8600FB0, MGR8600FB1, MGR8600FB2, MGR8600FB3

Jenn-AirJES1450FS00, JES1450FS01, JES1450FS02, JES1450FS03, JES1450FW00, JES1450FW01, JES1450FW02, JES1450FW03, JES1450FB00, JES1450FB01, JES1450FB02, JES1450FB03, JGS1450FS00, JGS1450FS01, JGS1450FS02, JGS1450FS03, JGS1450FW00, JGS1450FW01, JGS1450FW02, JGS1450FW03, JGS1450FB00, JGS1450FB01, JGS1450FB02, JGS1450FB03

AmanaAER6603SFS0, AER6603SFS1, AER6603SFS2, AER6603SFS3, AER6603SFW0, AER6603SFW1, AER6603SFW2, AER6603SFW3, AER6603SFB0, AER6603SFB1, AER6603SFB2, AER6603SFB3, AGR6603SFS0, AGR6603SFS1, AGR6603SFS2, AGR6603SFS3, AGR6603SFW0, AGR6603SFW1, AGR6603SFW2, AGR6603SFW3, AGR6603SFB0, AGR6603SFB1, AGR6603SFB2, AGR6603SFB3

Kenmore790.91312013, 790.91312014, 790.91312015, 790.91312016, 790.91313013, 790.91313014, 790.91313015, 790.91313016, 790.91314013, 790.91314014, 790.91314015, 790.91314016, 790.91315013, 790.91315014, 790.91315015, 790.91315016, 790.91412013, 790.91412014, 790.91412015, 790.91412016, 790.91413013, 790.91413014, 790.91413015, 790.91413016

Professional Repair Time: 10-15 minutes
DIY Repair Time: 15-20 minutes
Difficulty Rating: Easy (1.5/5) — Simple plug-and-play replacement requiring minimal mechanical skill

1. Turn off the circuit breaker to the range at the electrical panel to ensure complete power disconnection.
2. Verify power is off by attempting to turn on the range. The display should be blank and the range should not respond.
3. Allow the cooktop to cool completely if the range was recently used. The coil element can retain heat for several minutes after power is shut off.
4. Locate the 8-inch coil element on the cooktop. It's typically one of the larger burners, usually positioned at the front or rear of the cooktop.
5. Grasp the coil element firmly at the center of the coil (not at the terminal end).
6. Pull the coil element straight up and out of the socket. The element should release easily with steady, firm pressure. Do not twist or rock the element side-to-side, as this can damage the socket.
7. Set the old element aside on a heat-resistant surface to cool completely.
8. Inspect the coil socket (the opening where the element was mounted) for debris, corrosion, or damage. Clean the socket with a dry cloth if necessary. Do not use water or cleaning solutions.
9. Verify the socket contacts are clean and not corroded. If contacts are discolored or corroded, gently clean them with a small wire brush or fine steel wool.
10. Unpack the new WS01F09151 coil element from its packaging.
11. Compare the new element to the old one to verify the size (8 inches), terminal type, and overall appearance match. Ensure you have the correct replacement part.
12. Inspect the new element for any visible damage or defects before installation.
13. Align the terminal end of the new coil element with the socket opening on the cooktop.
14. Insert the terminal end of the new element into the socket, ensuring it's properly aligned.
15. Push the element straight down into the socket with firm, steady pressure until it's fully seated. You should feel a slight resistance as the terminal contacts engage with the socket contacts.
16. Verify the element is fully seated by gently tugging on it. It should not pull out easily—there should be firm resistance.
17. Verify the coil element sits flat on the cooktop and is not tilted or misaligned.
18. Turn the circuit breaker back on to restore power.
19. Verify the range display lights up and responds to button presses.
20. Test the new element by turning the burner control to a medium setting (around 5-6 on a 0-10 scale).
21. Observe the coil element for proper heating. The coil should begin to glow red within 30-60 seconds, starting from the terminal end and progressing outward.
22. Verify the entire coil glows evenly and uniformly red. The glow should be consistent across the entire 8-inch diameter.
23. Allow the element to heat for 2-3 minutes to verify it maintains consistent heat and does not cycle on and off.
24. Turn the burner control to high (10 on a 0-10 scale) and verify the element glows brighter red.
25. Turn the burner control to low (1-2 on a 0-10 scale) and verify the element glows dimmer red.
26. Turn the burner control to off and verify the element stops glowing and cools down.
27. Repeat the heating test 2-3 times to verify consistent operation.
28. If the element does not heat, turn off the circuit breaker and verify the element is fully seated in the socket. Reseat the element if necessary.
29. If the element heats unevenly (only part of the coil glows), the element may be defective. Replace it with a new one.
30. If the element cycles on and off randomly, the range control or element may be faulty. Test the control with a multimeter or consult a professional.
31. Once testing is complete, allow the element to cool completely before using the range for cooking.
32. Place a pot or pan on the element to verify it heats cookware properly.
33. Monitor the element during the first few uses to ensure consistent performance.

Safety Notes: Always turn off the circuit breaker before working on the range. Never touch the coil element while it's hot—it can cause severe burns. Allow the element to cool completely before handling. Never immerse the coil element in water. Do not use the range with a damaged or missing coil element.

Always verify the element is fully seated in the socket. A loose connection between the element terminal and socket contacts is a common cause of poor heating or intermittent operation. Push the element down firmly until you feel solid resistance. If the element doesn't seat properly, the socket contacts may be damaged and require replacement.

Test the old element with a multimeter before replacing it. Set the multimeter to resistance (ohms) mode. A good 8-inch coil element should read approximately 24-28 ohms at room temperature. If the reading is significantly different, shows infinite resistance (open circuit), or shows zero resistance (short circuit), the element is faulty and needs replacement. This test confirms the diagnosis before you purchase a new element.

Verify the socket contacts are not damaged. If the socket contacts are pitted, corroded, or damaged, they may not make proper electrical contact with the new element. Clean corroded contacts with a small wire brush or fine steel wool. If contacts are severely damaged, the socket may need replacement—consult a professional or the range's service manual.

Never force the element into the socket. The element should slide into the socket smoothly with firm but steady pressure. If you encounter significant resistance or the element won't seat fully, stop and inspect for misalignment or socket damage. Forcing the element can damage both the element and the socket.

Check the burner control for proper operation. If the new element doesn't heat or heats intermittently, the burner control (infinite switch) may be faulty. The control regulates power to the element. Test the control with a multimeter or consult a professional. A faulty control will cause poor heating even with a new element.

Verify the circuit breaker is functioning properly. If the element doesn't heat after installation, the circuit breaker may have tripped or the breaker itself may be faulty. Check the breaker position—it should be fully on. If it's tripped (in the middle position), flip it fully off, then back on. If it trips again immediately, there may be a short circuit—stop and consult a professional.

Inspect the terminal end of the element carefully. The terminal prongs must be clean, straight, and undamaged. If the prongs are bent, corroded, or discolored, clean them gently with fine steel wool or a small wire brush. Bent prongs may not make proper contact with the socket—carefully straighten them if necessary.

This element is 8 inches in diameter. The WS01F09151 is specifically an 8-inch element. Do not confuse it with 6-inch elements, which are smaller and will not fit properly. Always verify the element size matches your cooktop before ordering. Using the wrong size element can result in non-fit or poor performance.

Coil elements are not interchangeable across all ranges. While many ranges use similar 8-inch coil elements, some models have specific terminal types or electrical specifications. Always verify your range model number matches one of the compatible models before ordering. Using an incompatible element can result in non-fit or electrical faults.

Monitor the element during the first few cooking uses. After installing the new element, use it for several cooking tasks and monitor for consistent heating, proper temperature response, and any unusual noises or smells. Address any issues immediately before they affect cooking performance or safety.

This part is typically non-returnable once installed. Coil elements are usually non-returnable once installed due to the risk of damage or contamination. Verify compatibility and inspect the element before installation to avoid costly mistakes.

• Coil element does not heat at all
• Element heats unevenly (only part of the coil glows red)
• Element heats intermittently (turns on and off randomly)
• Element produces a burning smell
• Visible cracks or breaks in the coil
• Element is discolored or charred
• Burner control does not respond or is unresponsive
• Element cycles on and off too frequently
• Element glows dimly even on high setting
• Cookware does not heat properly on this burner
• Element sparks or arcs when turned on
• Visible corrosion or rust on the element
