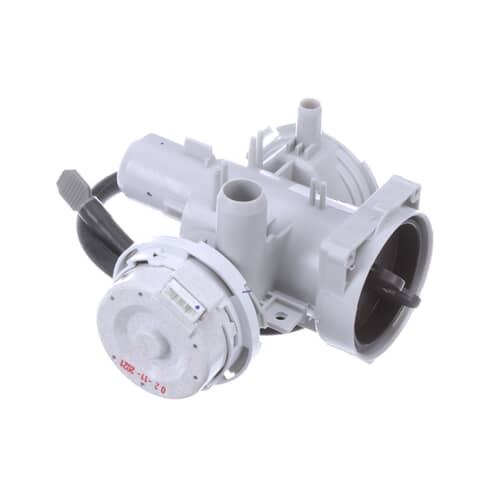

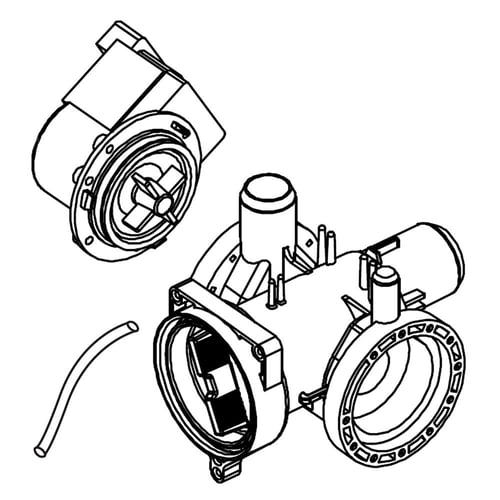

LG Washer Pump Assembly, Drain AHA75693425

Genuine LG drain pump assembly for washing machines. It removes water from the washer tub during the drain portion of the cycle.

Is This the Right Part?

Common Symptoms

• Water remains in the drum after a cycle
• Drain-related error such as an OE code may appear
• Cycle may pause or fail to advance after washing or rinsing
• Unusual humming or grinding during the drain phase
• Slow or incomplete draining despite an unobstructed drain hose

Check Before Replacing

• Disconnect power before inspecting the pump, filter, hoses, or wiring.
• Clean and inspect the drain filter for coins, lint, clothing, or other obstructions before condemning the pump.
• Check that the external drain hose is not kinked, crushed, or clogged.
• During a drain cycle, observe whether the pump operates and whether water exits the drain hose; lack of drainage can also result from a blockage, wiring fault, or control issue.
• Inspect the pump housing, hose connections, and surrounding area for cracking or water leakage.

Pro Tip

Part Details

Key Features

• Genuine LG drain pump assembly
• Washer drain-pump component for LG and selected Kenmore applications
• Motor-driven pump assembly intended to evacuate water from the washer tub
• Manufacturer part number AHA75693425
• Listed operating voltage: 26 V

Installation Notes

• Disconnect electrical power before installation.
• Drain residual water through the washer’s drain-filter or service-drain arrangement before disconnecting the pump to reduce spillage.
• Confirm the replacement matches the washer model and the original pump’s hose, connector, and mounting configuration.
• Before removal, note or photograph hose and wiring routing; reconnect each hose and electrical connector to the same locations.
• After installation, inspect connections for leaks and run an appropriate drain or spin test while monitoring water flow.

Verified Compatible Models

W3S1CVK2RNS, WM3400CW, WM3400CW/00, WM3460CV, WM3460CW, WM3470CM, WM3500CW, WM3600HVA, WM3600HWA, WM3600HWA/00, WM3700HRA, WM3700HVA, WM3700HWA, WM3700HWA/03, WSEX200HNA

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
