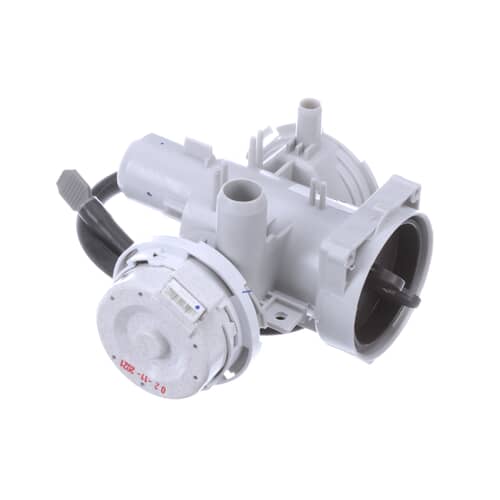

LG Motor Assembly, DC, Pump / Washer Drain Pump Motor Assembly EAU64082901

LG washer pump motor assembly used to remove water during the drain cycle and circulate water within the washer pump system. The part is a 26 V DC pump motor assembly.

Is This the Right Part?

Common Symptoms

• Standing water remains in the tub after the drain portion of a cycle.
• Washer stops before completing the cycle because draining does not complete.
• Humming or grinding noise occurs during attempted draining.
• An LG OE drain-related error may occur, although a blocked filter, hose, or pump can produce similar symptoms.

Check Before Replacing

• Unplug the washer before inspection or service.
• Check and clean the accessible drain-pump filter or coin trap, following the washer’s owner instructions.
• Inspect the external drain hose for kinks or blockage.
• With power disconnected, inspect the pump area and impeller for coins, fabric, or other obstructions if access is provided by the model’s service procedure.
• Visually inspect the pump connector and wiring for looseness, damage, or corrosion; do not test live voltage unless qualified and using the model-specific service documentation.

Pro Tip

Part Details

Key Features

• LG genuine motor assembly identified as “Motor Assembly, DC, Pump.”
• 26 V DC pump motor assembly.
• Used in the washer drain-pump system.
• Current LG replacement relationship is AHA75693425.

Installation Notes

• Disconnect electrical power before beginning service.
• Expect residual water when hoses or the pump are disconnected; use suitable towels or a shallow container.
• Reconnect the wiring harness and pump hoses securely and restore the assembly in the same orientation as removed.
• After installation, check for leaks and run an appropriate drain or spin test before returning the washer to service.
• Use the model-specific service documentation for access-panel removal and mounting details; access and fastening arrangements can vary by washer model.

Verified Compatible Models

F3L7CYK5W.ABWEEUS, F3Q4CBK2E.ABLEEUS, F3Q7AYK2E.ABLEEUS, F3Q7AYK2T.ASSEEUS, F3Q8CXK1T.ASSEEUS, F3Q8CXK1W.ABWEEUS, F3Q8CXK2E.ABLEEUS, F3S1CWK2EH.ABLEEUS, F3S1CWK2EN.ABLEEUS, F3S1CWK2EV.ABLEEUS, F3S1CWK2WH.ABLEEUS, F3S1CWK2WN.ABWEEUS, F3S1CWK2WV.ABWEEUS, F3S1CWKBTN.ASSEEUS, F3S1CWKBTV.ASSEEUS

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
