THE BURNER DOES NOT HEAT PROPERLY

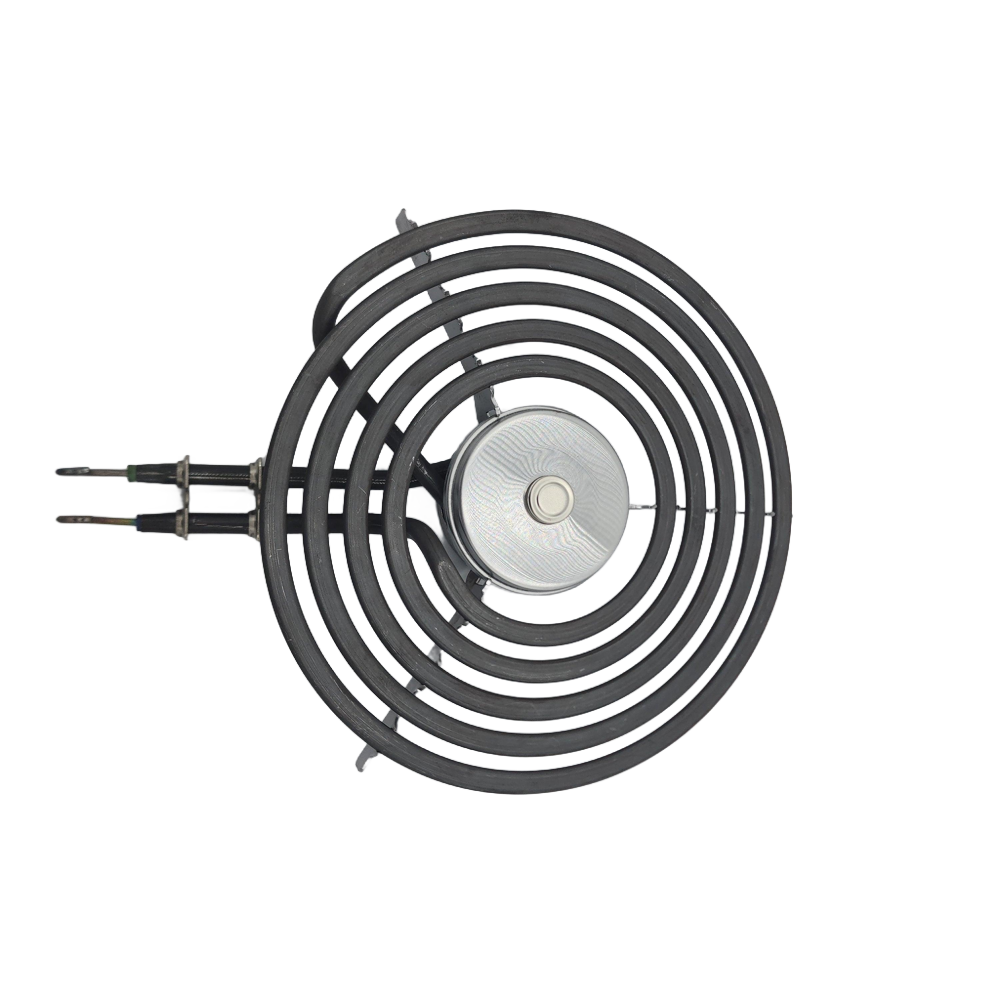

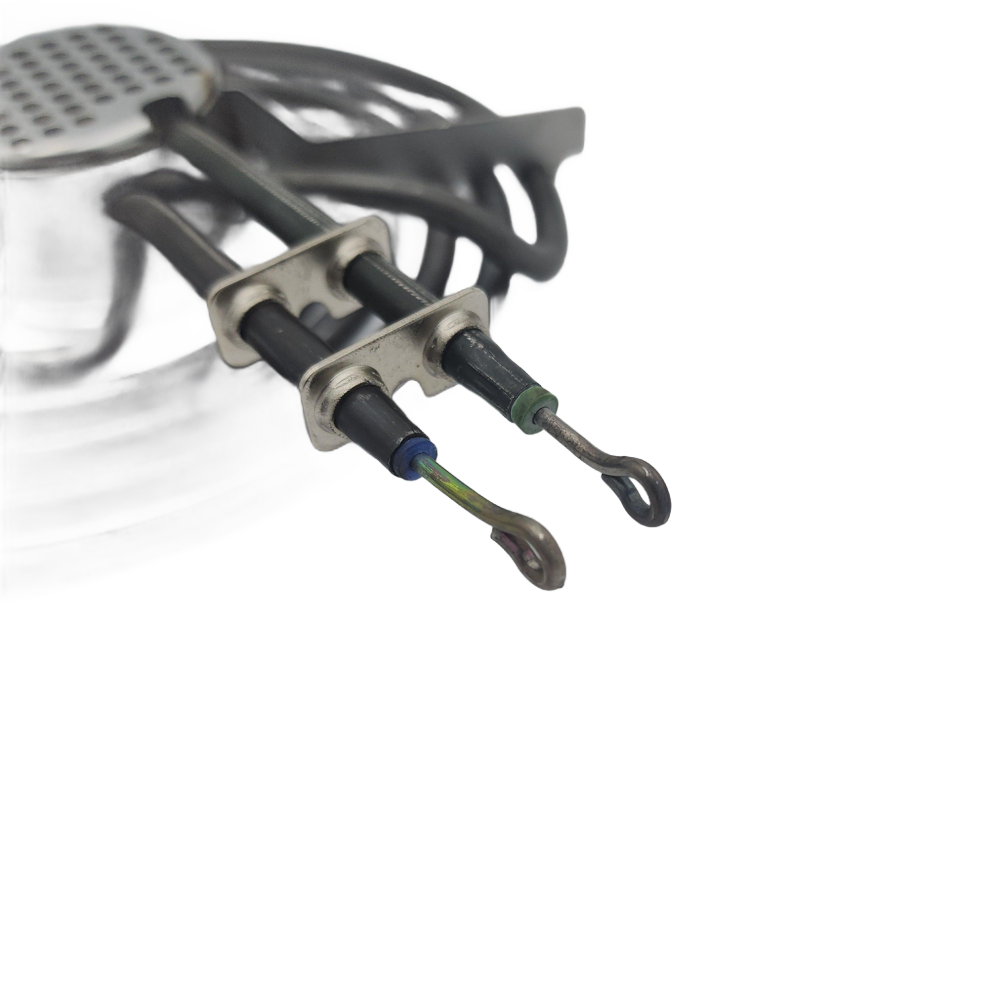

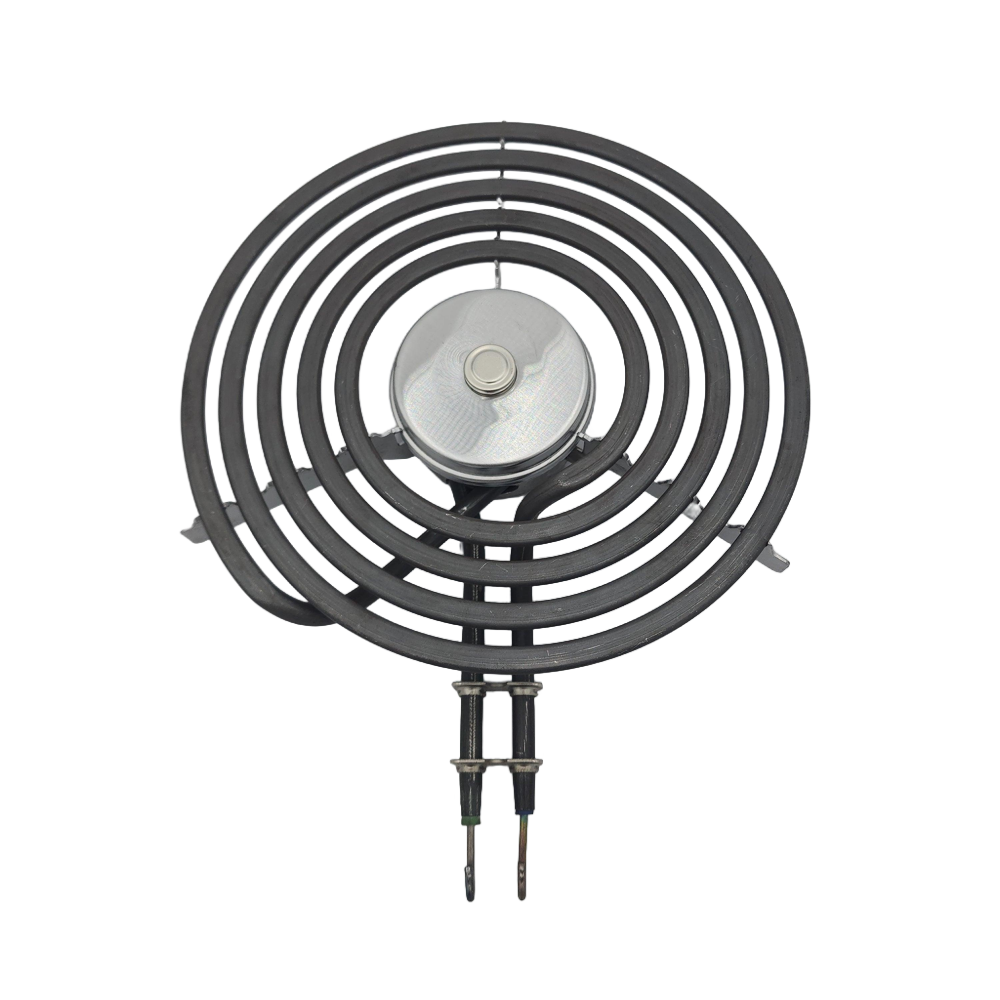

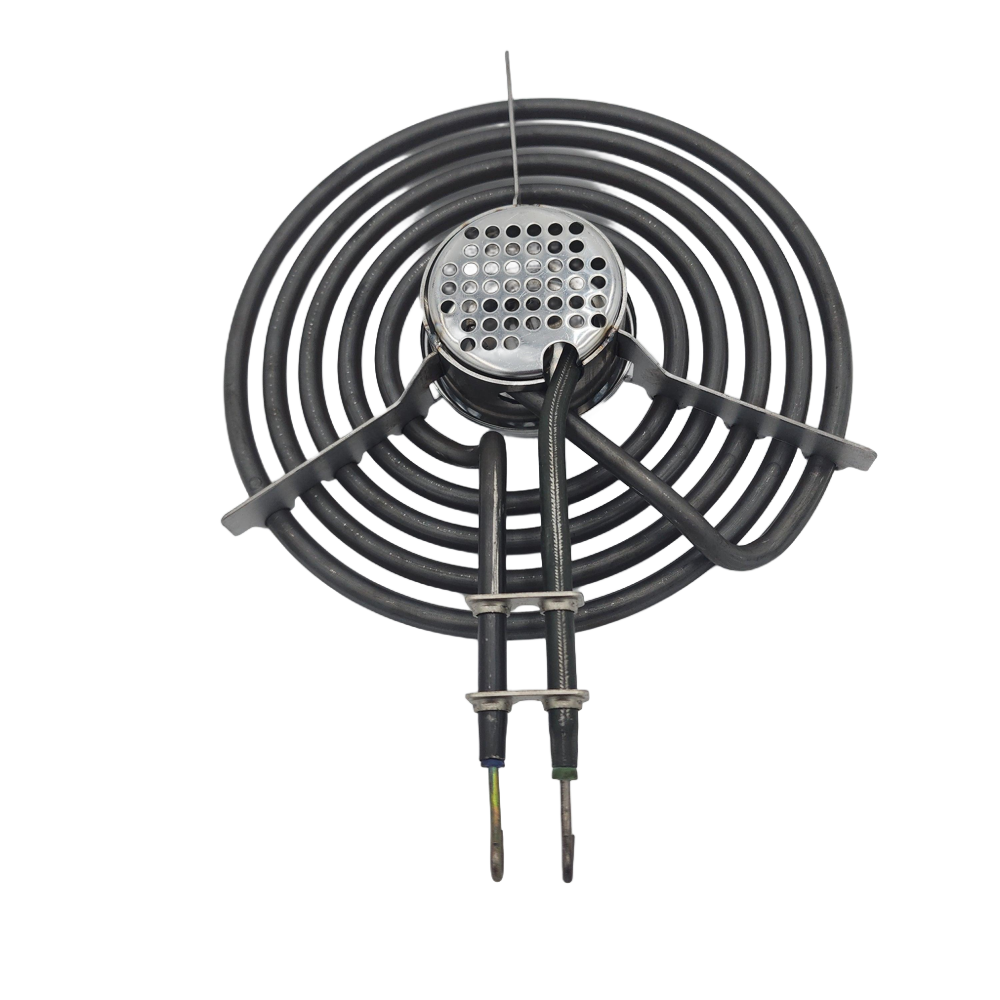

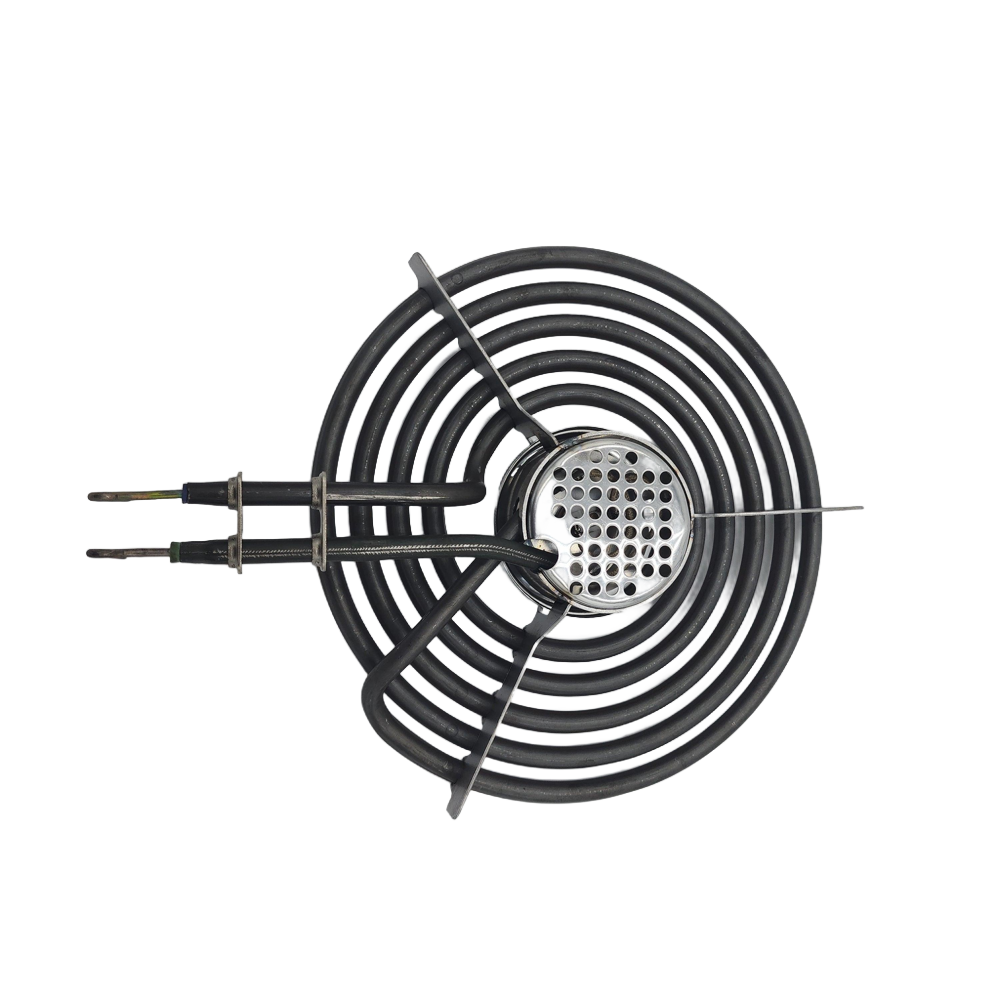

Whirlpool Corporation Range Coil Surface Element; larger plug-in surface heating element, 2,400-watt W11396790, Fixes The burner does not heat properly
Genuine Whirlpool OEM surface heating element for the cooking area on top of an electric range or cooktop. Documented as a larger plug-in element and, on some listings, an 8-inch element used in left-front and right-rear positions.
Part W11396790Replaces W11199518, W11255552, W11364019Whirlpool Corporation
Guaranteed to Fit — or your money back.
Confirm your full appliance model number before ordering.
Confirm your full appliance model number before ordering.
Is This the Right Part?
Part NumberW11396790
ReplacesW11199518, W11255552, W11364019
ManufacturerWhirlpool Corporation
Appliance TypeRange
Part TypeCoil Surface Element; larger plug-in surface heating element, 2,400-watt
✅ Cross Reference Information
Current Part NumberW11396790
Verified Previous OEM NumbersW11199518, W11255552, W11364019
Common Symptoms
- No heat from the cooking element
- Slow or insufficient heating
- Uneven or erratic heating
- Visible coil damage, burn marks, or discoloration
Check Before Replacing
- Disconnect electrical power to the range or cooktop before inspection.
- Confirm the element is fully seated in its receptacle and that the receptacle and terminals show no visible burning or damage.
- Inspect the coil for breaks, cracks, severe discoloration, or other visible damage.
- If qualified to perform electrical testing, test the disconnected element for continuity with a multimeter; no continuity indicates an open element, but continuity alone does not prove the element is good.
Pro Tip
Before replacing the element, verify that it is fully inserted into the receptacle and confirm that the replacement matches the appliance model and element position.
Part Details
Part NumberW11396790
Part TypeCoil Surface Element; larger plug-in surface heating element, 2,400-watt
ManufacturerWhirlpool Corporation
Appliance TypeRange
Primary FunctionProvides direct heat to cookware as a large plug-in coil surface element on an electric range or cooktop.
Installation Notes
- Disconnect power by unplugging the appliance or switching off the range or cooktop circuit breaker before installation.
- Wear protective work gloves when handling the element.
- Allow the old element to cool completely before removal.
- Install only after confirming the part matches the appliance model and required position.
- Seat the replacement element fully in its receptacle before restoring power.
Verified Compatible Models
Fitment reminder: Verified compatibility is maintained by the XPart Model Hub Network. Match the complete appliance model number before ordering.
✅Compatibility & Cross Reference
Not sure about your model number? Call 1-877-899-7278 and we’ll help you confirm. All brand names are the property of their respective owners and are used for compatibility reference only.
