⚠ Part Discontinued — No Longer Available (NLA): Whirlpool part 3204401 has been discontinued and is no longer manufactured. Stock is limited to existing inventory only. Contact us to check availability or find a compatible alternative.

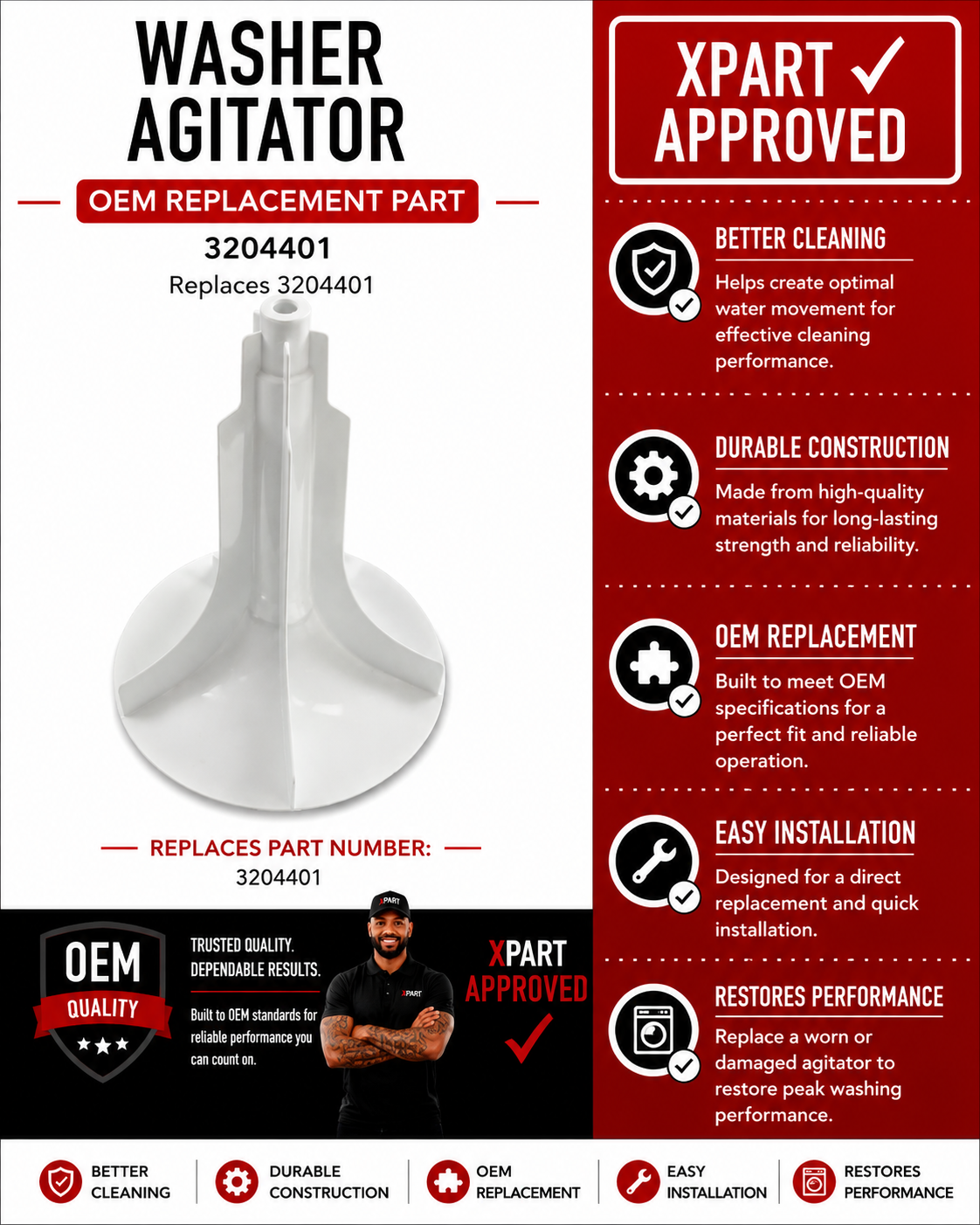

Washer Not Agitating? Whirlpool 3204401 Agitator Assembly — Fix Poor Wash Action Fast
If your top-load washer runs but clothes come out still dirty or the drum spins without agitating, a failed agitator assembly is the most common cause. In Whirlpool and Kenmore top-load washers, the agitator is the central post that moves laundry through the water during the wash cycle. When it fails, the drum may spin freely but clothes won't tumble — leaving loads unwashed or unevenly cleaned. ⚡ Common failure point in Whirlpool-built top-load washers from the early 2000s. Part 3204401 is the genuine OEM agitator assembly that restores full wash action and proper laundry agitation.
❓ Is This the Right Part?
This is the correct fix if ALL of the following are true:
- ✔ Washer powers on and the cycle runs normally
- ✔ Drum spins but clothes are not being moved/agitated
- ✔ Water fills and drains correctly
- ✔ ONLY problem is lack of agitation or poor wash performance
Not sure? Send us your model number — we'll confirm before you order.
🔧 Common Symptoms
- Washer runs full cycle but clothes come out dirty or unwashed
- Agitator post does not move during wash cycle
- Drum spins freely but no back-and-forth agitation motion
- Loud clunking or grinding noise during the wash cycle
✔ If these symptoms match, the agitator assembly is the most likely failed component.
✔ In most cases, replacing the 3204401 agitator restores full wash performance immediately.
📦 Part Details
- Part Number: 3204401
- Type: Agitator Assembly — Top-Load Washer
- Replaces: WP3204401, 3204401VP, 3204401R
- Brands: Whirlpool, Kenmore, Roper, Estate
- Status: Discontinued / No Longer Available (NLA) — Limited Stock Only
⚠️ Recommended While Repairing:
While the agitator is out, inspect the agitator dogs / directional cogs (cam agitator repair kit). These small plastic dogs wear out and cause the agitator to spin freely in one direction — a common companion failure. Replacing them at the same time saves a second disassembly.
While the agitator is out, inspect the agitator dogs / directional cogs (cam agitator repair kit). These small plastic dogs wear out and cause the agitator to spin freely in one direction — a common companion failure. Replacing them at the same time saves a second disassembly.
⚙️ Installation
Skill Level: EASY — 20–30 Minutes. Disconnect power before servicing. Remove the fabric softener dispenser and agitator cap to access the bolt securing the agitator to the drive shaft. Lift the old agitator straight up and off the shaft, drop the new one into place, and torque the bolt to spec. Reconnect power and run a test cycle.
✓ Compatible Models
Confirmed compatible with LSR5132HQ0, LSR5132HQ1, LSR6132HQ0, LSR7233EQ0, LSR8233EQ0, LSQ9010LW0, LSQ9010LW1, LSQ9010LW2, LSN1000HQ0, 110.20022010, 110.20022011, 110.20022012 plus additional Whirlpool and Kenmore top-load models. Contact us to verify your model number before ordering.
💡 Pro Tip
NLA Part — Act Fast on Remaining Stock:
Part 3204401 is discontinued and no longer manufactured by Whirlpool. Once existing inventory is gone, no direct OEM replacement will be available. If you have a second machine of the same model or a known-failing unit, consider ordering a spare now while stock lasts. Contact us to check current availability.
Part 3204401 is discontinued and no longer manufactured by Whirlpool. Once existing inventory is gone, no direct OEM replacement will be available. If you have a second machine of the same model or a known-failing unit, consider ordering a spare now while stock lasts. Contact us to check current availability.
✓ Model-Specific Repair Pages
✅Compatibility & Cross Reference
Not sure about your model number? Call 1-877-899-7278 and we’ll help you confirm. All brand names are the property of their respective owners and are used for compatibility reference only.
