GE Unitized Laundry Centre Control Board Assembly WW03F00536 — Fixes Not Starting or Cycle Errors
Restores full washer and dryer function on GE GUD and GTUP series unitized laundry centres.
🇺🇸 Matching U.S. Part Number: WW03F00536

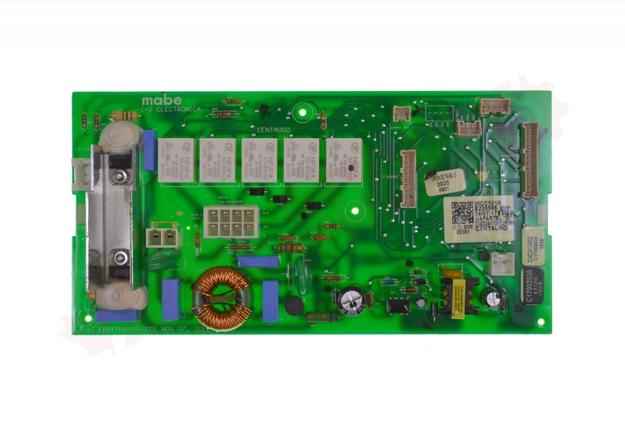

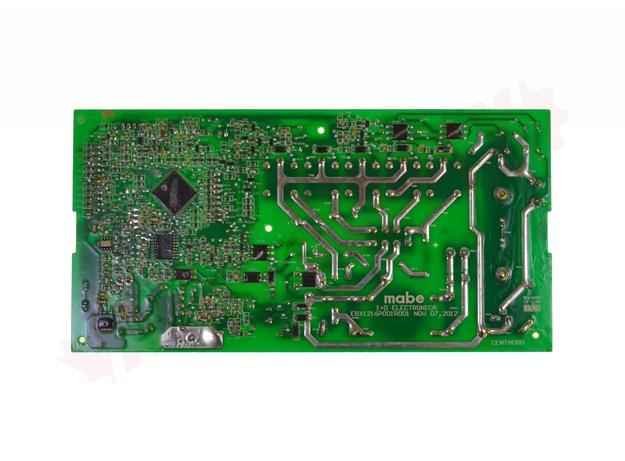

The GE WW03F00536 Washer & Dryer Control Board Assembly is the combined main PCB that manages all washer and dryer functions in GE GUD and GTUP series unitized laundry centres — cycle selection, motor activation, heat control, water valve sequencing, timer operations, and all user input from the control panel. It replaces WH12X22744 and 234D2417G002 when fitment is confirmed by the appliance model number. ⚠️ This part is discontinued with no restock expected — order while stock lasts.
Is This the Right Part?
Confirm the complete model number before ordering. Similar parts may use different connectors, harness positions, or mounting points.
Common Symptoms
- Washer or dryer section does not start when the start button is pressed — no response
- Unit starts then stops mid-cycle with no error code or warning
- Control panel completely dark or unresponsive — no display, no button response
- Washer fills and drains but drum won't agitate or spin — motor not receiving signal
Check Before Replacing
- Confirm unit has power — breaker on, power cord fully seated at the wall
- Test the thermal fuse (dryer section) for continuity — a failed fuse mimics a dead board
- Test the lid switch (washer section) for continuity — unit must recognize lid as closed
- Perform a power reset — unplug for 5 minutes, then retry before condemning the board
Part Details
Installation Notes
- Disconnect power at the breaker before servicing. Use ESD precautions when handling electronic components.
- Photograph all wiring harness connector positions before unplugging.
- Compare the new part with the original before installation.
- Inspect nearby wires, harnesses, and connectors for damage or heat stress.
- Restore power and run a test cycle on both washer and dryer sections to confirm full function.
Use a qualified technician when diagnosis or installation is outside your experience.
Verified Compatible Models
GTUP270GMWM01, GTUP270GMWM02, GTUP270PSDG00, GUD27ESMJ1WW, GUD27ESSJ1WW, GUD27GSSJ1WW, GUD37ESMJ1DG
Fitment reminder: Match the complete model number, including suffixes and revision digits, before ordering. Contact us to verify your model number.
✓ Model-Specific Repair Pages
✅Compatibility & Cross Reference
Not sure about your model number? Call 1-877-899-7278 and we’ll help you confirm. All brand names are the property of their respective owners and are used for compatibility reference only.
