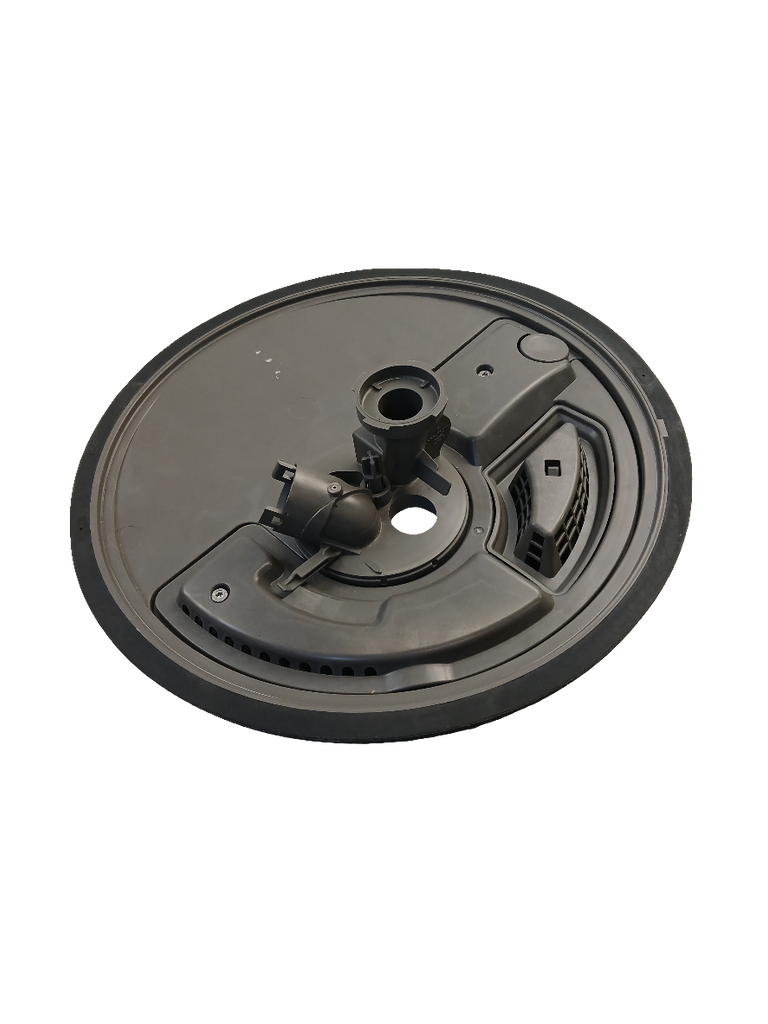

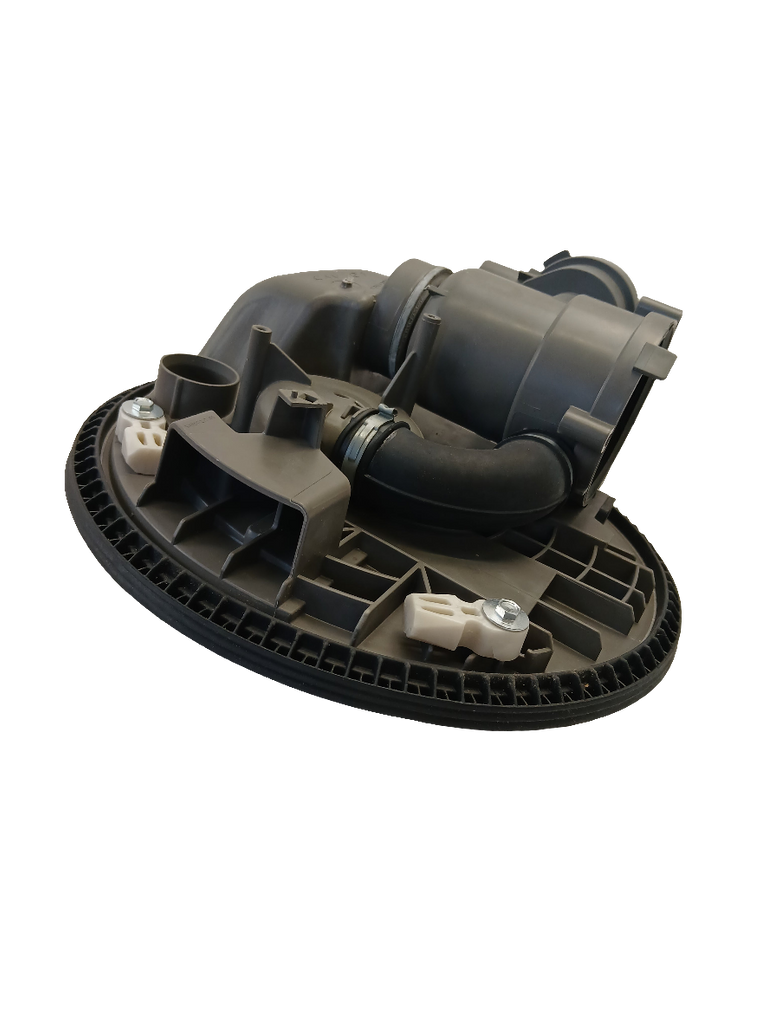

Whirlpool Dishwasher sump assembly W10832796, Replaces W10647213

Dishwasher pump sump/sump assembly. Includes the diverter grommet or diverter valve shaft seal, which is not sold separately according to the cited parts documentation. The sump collects and drains water during wash cycles and may address leaks from underneath the dishwasher.

Is This the Right Part?

✅ Cross Reference Information

Common Symptoms

• Water leaking from the dishwasher underside.
• Water appearing around the sump or diverter-motor area.

Check Before Replacing

• Disconnect electrical power and shut off the water supply before inspecting underneath the dishwasher.
• Check for visible water tracks or pooling around the sump and diverter-motor area, while also checking adjacent hoses and pumps so the leak source is not assumed.
• Confirm that the diverter shaft seal/grommet is present and that the leak is not coming from a separate attached component before ordering a sump assembly.

Pro Tip

Part Details

Key Features

• Genuine Whirlpool dishwasher sump assembly.
• Collects and drains water during wash cycles.
• Includes the diverter valve shaft seal/grommet.
• The included diverter grommet is not available separately.

Installation Notes

• Disconnect power and turn off the dishwasher water supply before beginning service.
• Replacement access may require working from both inside and beneath the dishwasher; avoid forcing the sump or attached components.
• Document hose and wire-harness routing before disassembly, and inspect for leaks after reassembly.
• The diverter grommet/seal is supplied with the sump assembly rather than installed as a separate service part.

Verified Compatible Models

66514819N611, 66514819N612, KDPM354GBS0, KDPM354GPS0, KDTM354DSS3, KDTM354DSS4, KDTM354DSS5, KDTM354EBS1, KDTM354EBS2, KDTM354EBS3, KDTM354ESS0, KDTM354ESS1, KDTM354ESS2, KDTM354ESS3, KDTM384EBS0

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
