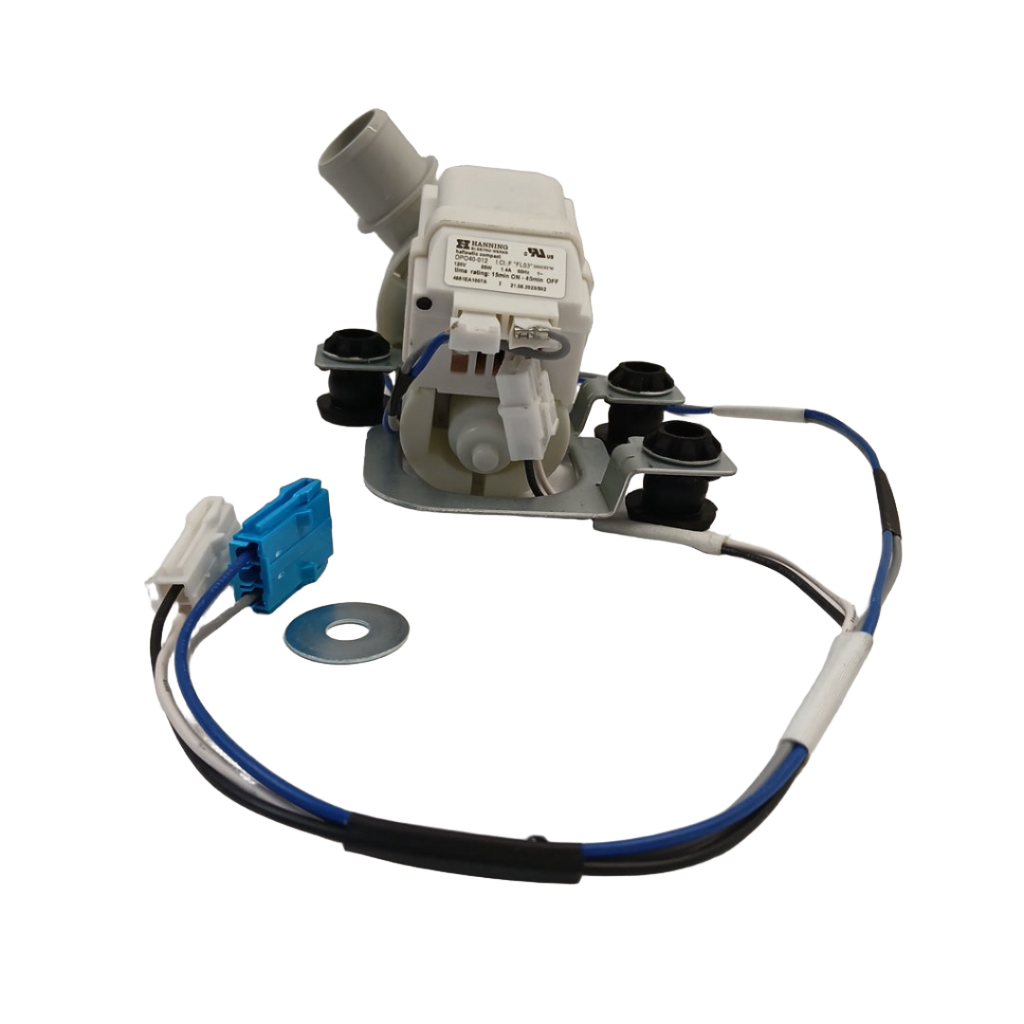

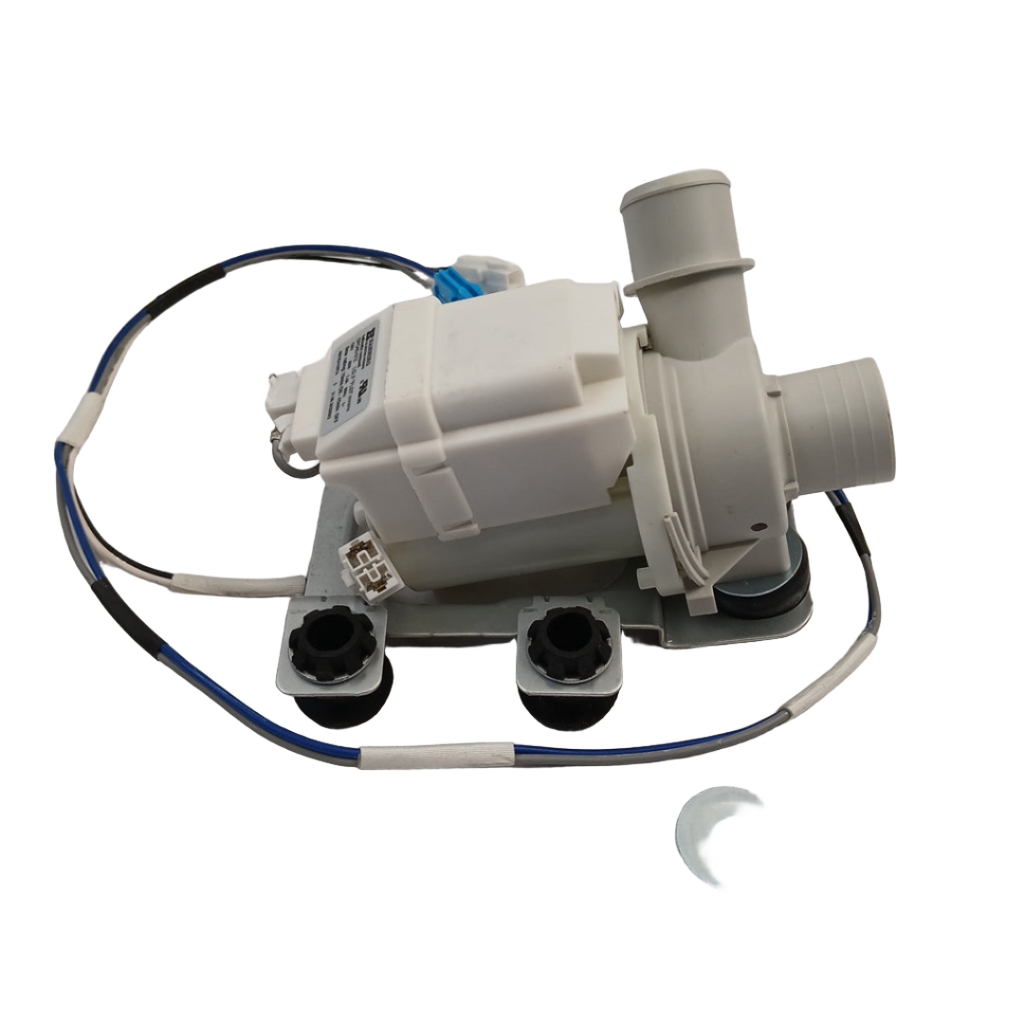

LG Washer Drain Pump Assembly 5859EA1004P, Replaces AHA74333302, 5859EA1004G, 5859EA1004F, AHA74333301, 5859EA1004R

Genuine LG washer drain pump assembly that removes water during the washer drain portion of the cycle.

Is This the Right Part?

✅ Cross Reference Information

Common Symptoms

• Water remains in the tub or the washer has draining issues.
• Water leaks during the drain cycle, including at the pump area or its connections.
• The pump is noisy during the drain cycle after obstructions have been ruled out.

Check Before Replacing

• Disconnect power before inspection or service.
• Check the drain hose and standpipe for a kink, blockage, or backup before attributing a draining problem to the pump.
• With power disconnected, inspect the pump and accessible drain path for small objects, clothing, or other obstructions.
• With power disconnected, inspect the pump housing and hose connections for visible signs of leakage or damage.

Pro Tip

Part Details

Key Features

• Genuine LG OEM drain pump assembly.
• Designed for washer drain-cycle water removal.
• The assembly may include multiple components; consult the applicable parts diagram to identify included items.

Installation Notes

• Unplug the washer before installing or servicing this part.
• Wear work gloves to protect hands during service.
• Refer to the model-specific parts diagram to confirm the assembly components before installation.

Verified Compatible Models

796.31412310, 796.31412410, 796.31433710, 796.31462411, 796.31463411, 796.31513211, 796.31523211, 796.31552610, 796.31553610, 796.31622310, T1227AGP.ABWEEUS, T1327AGP.ABWEEUS, T1327AGP5.ASSEEUS, T1335ADF.ABWEEUS, T1423ADFS5.ASSEEUS, T1428ADFH.ABWEEUS, T1428ADFH5.ASSEEUS, T1435ADF.ABWEEUS, T1471HGP.ABWEEUS, T1643AGP.ABWEEUS, T1643AGP5.ASSEEUS, T1643AGPS.ABWEEUS, T1643AGPS5.ASSEEUS, T1743ADFS.ABWEECI, T1743ADFS.ABWEEUS, WT901CW, WT1001CW, WT1101CW/00, WT1701CV, WT1701CV/00, WT1701CV/01, WT1701CW, WT4870CW, WT4970CW, WT5070CW, WT5070CW/00, WT5170HW, WT5680HVA, WT5680HVA-T1743ADFS5, WT5680HVA/00, WT6001HW, WT7050CV/00, WT7200CV/00, WT7200CW/00, WT7500CW, WT7500CW/00, WT7600HKA, WT7700HWA, WT7700HWA/00, WT7700HWA/01

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
