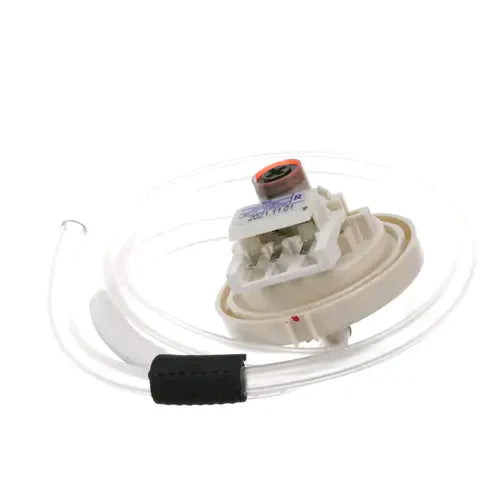

LG Washer Switch Assembly, Sensor / Water-Level Pressure Switch 6501EA1001R, Fixes Washer may overfill or fail to fill to the correct water level
Genuine LG washer water-level pressure switch assembly that detects and regulates washer water level.
Confirm your full appliance model number before ordering.
Is This the Right Part?
✅ Cross Reference Information
Common Symptoms
- Overfilling
- Incorrect water level
- Washer not filling properly
- Water-level sensing error
Check Before Replacing
- Verify the appliance model number against the part’s compatibility list before ordering.
- Inspect the pressure-sensing hose/tube and its connections for visible disconnection, kinking, blockage, or damage.
- Check for visible damage to the switch assembly or its electrical connector with power disconnected.
- Do not condemn the switch solely from a fill symptom; verify the hose, wiring, and related control circuit as applicable.
Pro Tip
Part Details
Installation Notes
- Disconnect electrical power before servicing the washer.
- Verify the replacement part number and model compatibility before removing the original component.
- Reconnect any pressure-sensing hose/tube and electrical connector exactly as found; do not operate the washer with connections loose or disconnected.
Verified Compatible Models
048231013369, 048231013635, 25667, 29002, 29272, 29278, 29472, 29478, 31402, 31403, 31412, 31422, 31423, 31433, 31452, 31462, 31463, 31512, 31513, 31522, 31523, 31552, 31553, 31622, 31623, 796.31412410, 79629002000, 79629002010, 79629272000, 79629272001, 79629272010, 79629272900, 79629272901, 79629278000, 79629278001, 79629278010, 79629278900, 79629472000, 79629472001, 79629478000, 79629478001, T1227AGP, T1227AGPP, T1227AGPPA, T1227AGPPH, T1309ADFH, T1309ADFH.ABWEEUS, T1309ADFH6, T1309ADFN, T1309ADFND, T1319ADFN, T1320ADFH, T1320ADFH8, T1321ADFH, T1321ADFH8, T1327AGP, T1327AGP5, T1327AGPP, T1327AGPP5, T1327AGPP5A, T1327AGPPA, T1335ADF, T1335ADFP, T1423ADFH, T1423ADFH5, T1423ADFS5, T1427HGPP, T1427HGPP5, T1427HGPV, T1428ADF, T1428ADFH, T1428ADFH5, T1435ADF.ABWEEUS, T1487EFHU5.ASSEUUS, T1760AGPSP9.ASTEPEU, T18J5EFHDT4.AEBETUS, WT1101CW, WT1201CV, WT1201CW, WT1801HVA, WT1801HWA, WT1901CK, WT1901CW, WT4870CW, WT5001CW, WT5070CW, WT5101HV, WT5101HW, WT5170HV, WT5170HW, WT5170WH, WT5270CV, WT5270CW, WT5480CW, WT5680HVA, WT5680HWA, WT6001HV, WT6105CW, WT7100CW/00, WT7150CM, WT7155CW, WT7200CV, WT7300CV, WT7405CV, WT7405CW, WT7480CL, WT7600HKA, WT7900HBA, WT7900HWA, WT8400CW-AEWEUUS
Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
