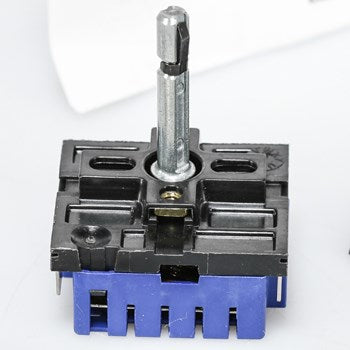

Whirlpool Range/Cooktop Surface Element Switch 8203534, Replaces 3188516

XPart Number XP10020070
$131.22
$137.78
Available by special order
Buying Options: OEM Genuine

Product variant with selected options does not exist!

Frequently Bought Together

Check Fit & Find Parts
Bubba checks verified models, product descriptions, cross-references and store data. Find your model number →
SURFACE ELEMENT WILL NOT HEAT

Whirlpool Range/Cooktop Surface Element Switch 8203534, Fixes Surface element will not heat

Genuine Whirlpool surface element control switch, also called an infinite switch, for electric range and cooktop surface burners.

Part 8203534Replaces 3188516Whirlpool
Guaranteed to Fit — or your money back.
Confirm your full appliance model number before ordering.

Is This the Right Part?

Part Number8203534
Replaces3188516
ManufacturerWhirlpool
Appliance TypeRange/Cooktop
Part TypeSurface Element Switch

✅ Cross Reference Information

Current Part Number8203534
Replaces3188516

Common Symptoms

  • Surface element does not turn on.
  • Surface element remains at high heat.
  • Surface element does not regulate heat normally.

Check Before Replacing

  • With power disconnected, compare the switch wiring and shaft configuration with the replacement part.
  • If the element will not heat or remains at high heat, verify the element and wiring before condemning the switch.
  • Disconnect power at the appliance or circuit breaker before inspection or replacement.

Pro Tip

Photograph the existing wire connections before disconnecting the old switch.

Part Details

Part Number8203534
Part TypeSurface Element Switch
ManufacturerWhirlpool
Appliance TypeRange/Cooktop
Primary FunctionTurns the surface element on and off and regulates its heat output.

Installation Notes

  • Disconnect electrical power by unplugging the appliance or shutting off its circuit breaker before installation.
  • Use appropriate hand protection and follow the appliance service documentation.
  • Record wire positions before removing the original switch.

Verified Compatible Models

GJC3634HT0, GJC3634HT2, GJC3034GZ0, GJC3034HQ1, GJC3034HB1, GJC3034HQ3, GJC3034GQ0, GJC3634HP4, GJC3034HT4, GJC3034HB3, GJC3034HT2, GJC3034HT0, GJC3634HB2, GJC3634GZ0, GJC3634HB0

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
