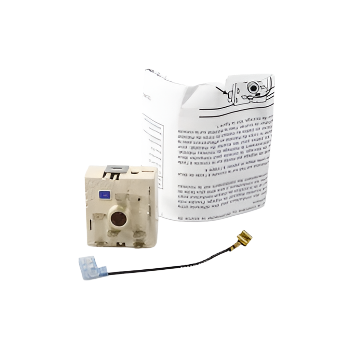

Whirlpool Range Surface element infinite control switch 8203538, Replaces 9753499, 9752315

Genuine Whirlpool surface-element infinite control switch for an electric range. It controls a surface burner’s on/off operation and heat level.

Is This the Right Part?

Common Symptoms

• Surface burner does not heat or turn on
• Surface burner works only on high
• Surface burner will not shut off
• Surface burner heat level is erratic

Check Before Replacing

• Confirm the range is disconnected from power before inspection or replacement.
• If another surface element of the same size is available, compare operation to help distinguish an element problem from a switch problem.
• Do not rely on the switch alone for diagnosis because other range components can cause similar symptoms.

Pro Tip

Part Details

Key Features

• Infinite-control switch
• For a dual surface element application
• Controls elements rated 1000–2400 watts
• 13 amps
• 240 volts

Installation Notes

• Disconnect electrical power to the range at the plug or circuit breaker before installation.
• Follow the wiring instructions supplied with the replacement switch and document wire locations before transfer.
• Use protective work gloves when handling the range during installation.

Verified Compatible Models

GR450LXHB0, GR450LXHB1, GR450LXHQ0, GR450LXHQ1, IJP87801, IJP89800, IJP89801, KERC500EAL1, KERC500EAL2, KERC500EAL3, KERC500EAL4, KERC500EAL5, KERC500EWH1, KERC500EWH2, KERC500EWH3

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
