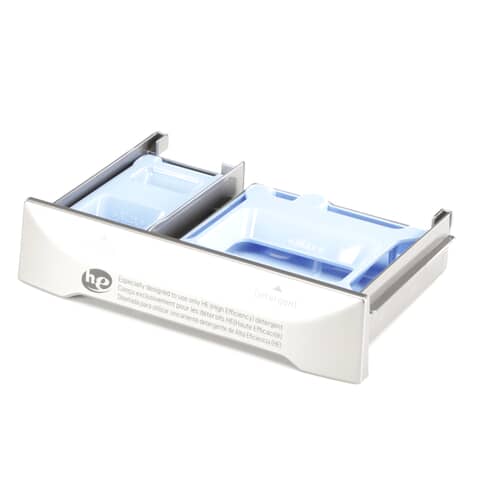

LG Washer Detergent Box Assembly AAZ72925602, Replaces AAZ73855902, AAZ73855906, MAY62020102, MAY65797202, MAY65797205, MAY65797207, MAY65797208

Washer dispenser drawer/detergent-box assembly that houses compartments for detergent, fabric softener, and bleach.

Is This the Right Part?

✅ Cross Reference Information

Common Symptoms

• Detergent, softener, or bleach remains in its compartment after a cycle
• Dispenser overflow or water backing up around the drawer
• Visible cracking, warping, or deterioration of the drawer or inserts
• Drawer does not slide, seat, or align correctly
• Additives dispense inconsistently between compartments

Check Before Replacing

• Remove the dispenser drawer according to the washer owner's manual and inspect it for cracks, warping, missing inserts, or damaged guides.
• Rinse the drawer and removable inserts with lukewarm water and clean buildup with a soft brush; do not use force to clear openings.
• Confirm that the liquid-detergent cup, softener insert, bleach insert, and drawer are assembled correctly and seated securely.
• Check that the drawer is fully inserted and aligned before operating the washer.
• If dispensing remains abnormal after cleaning and correct reassembly, inspect the washer's water-supply and dispenser components separately or contact qualified service.

Pro Tip

Part Details

Key Features

• Genuine LG OEM detergent-box assembly
• Integrated compartments for detergent, fabric softener, and bleach
• Part-specific assembly used in LG washers and washer-dryer combinations
• Replaces documented earlier LG numbers including AAZ73855906 and MAY62020102

Installation Notes

• Follow the owner's or service manual for the specific washer model.
• Remove and reinstall the drawer and its inserts without forcing them; verify that each component is correctly seated.
• Clean and dry the dispenser area before installing the replacement assembly.
• After installation, confirm that the drawer slides normally and remains fully seated during operation.

Verified Compatible Models

25667, 35563, 793396, 048231013369, 048231013635, LGWT7700HVA, T17A1EFHU5, T17A1EFHU5B, T18A1EFHU5, T1309ADFH6, T1327AGPP5, T1487EFHU5, T1772HFFSP5, T1789EFH5U, T1789EFH5UB, T1872EFHU5, T1872EFHU5B, T1889EFHU5, WT1201CV, WT1701CV, WT1701CV/00, WT1701CV/01, WT1801HVA, WT1801HWA, WT5070CV, WT5101HV, WT5101HV/00, WT5170HV, WT5270CV, WT5680HVA, WT5680HVA-T1743ADFS5, WT5680HVA-T1743ADFSP5, WT5680HVA-T1743HDFSP5, WT5680HVA/00, WT5680HVA/01, WT6001HV, WT7060CV, WT7300CV, WT7300CV/01, WT7305CV, WT7305CV/00, WT7400CV, WT7400CV/00, WT7405CV, WT7405CV/00, WT7700HVA, WT7700HVA/00, WT7710HVA, WT7800CV, WT7800CV/00

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
