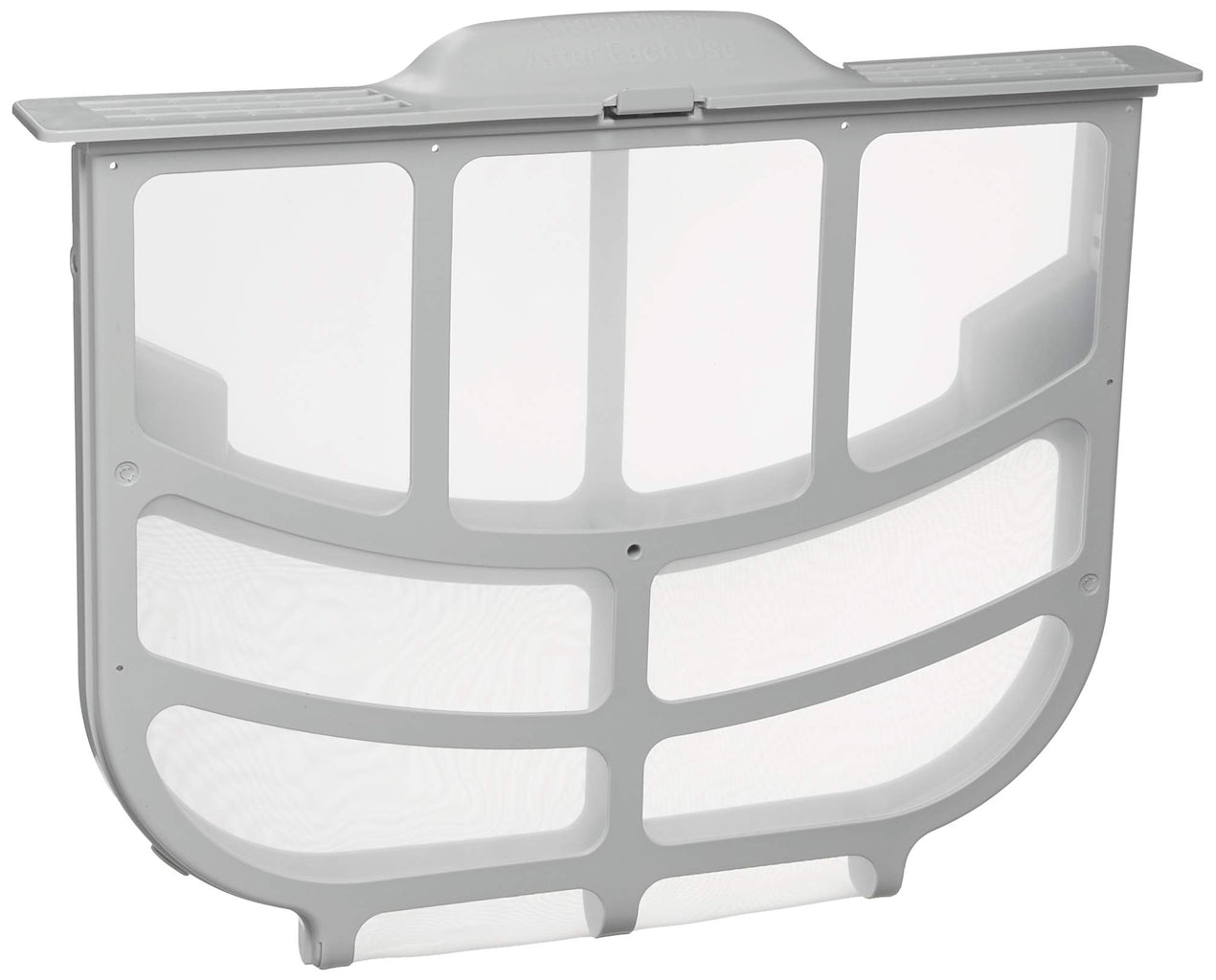

LG Dryer Lint Filter Assembly ADQ74233201

Genuine LG dryer lint filter assembly that traps lint and debris from exhaust air during drying cycles.

Is This the Right Part?

Common Symptoms

• Lint remains on clothing or accumulates inside the dryer when the filter mesh is torn, damaged, or ineffective.
• Longer-than-normal drying times caused by a clogged filter restricting airflow.
• Visible lint buildup or residue on the filter screen that does not clear with normal cleaning.

Check Before Replacing

• Remove the lint filter and visually inspect the mesh and plastic frame for tears, holes, warping, or cracks.
• Check whether the filter is heavily coated with lint, detergent, or fabric-softener residue.
• Confirm that the filter slides into its housing completely and sits firmly and flush.
• Clean the filter and allow it to dry completely before reinstalling; if the mesh remains damaged, replace the filter.
• If drying remains slow after checking the filter, inspect the dryer vent and exhaust path because restricted airflow may have other causes.

Pro Tip

Part Details

Key Features

• Genuine LG lint filter assembly.
• Fine mesh screen with a plastic frame.
• Designed for installation in the dryer's lint-filter housing.
• Traps lint and debris from exhaust air.
• Removable for routine cleaning and replacement.

Installation Notes

• Remove the existing filter by pulling it straight up from the dryer housing.
• Slide the replacement filter into the filter slot in the same orientation as the removed filter.
• Ensure the filter is seated securely and flush before operating the dryer.
• Clean or replace the filter if the mesh is torn or damaged.
• Follow the appliance owner's manual for model-specific installation and maintenance instructions.

Verified Compatible Models

DLE8400WE, DLEX7700KE, DLEX7700VE, DLEX7700WE, DLEX7710VE, DLEX7710WE, DLEX8600WE, DLG8401WE, DLG8481LE, DLGX7701KE, DLGX7701VE, DLGX7701WE, DLGX7711VE, DLGX7711WE, DLGX8601WE

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
